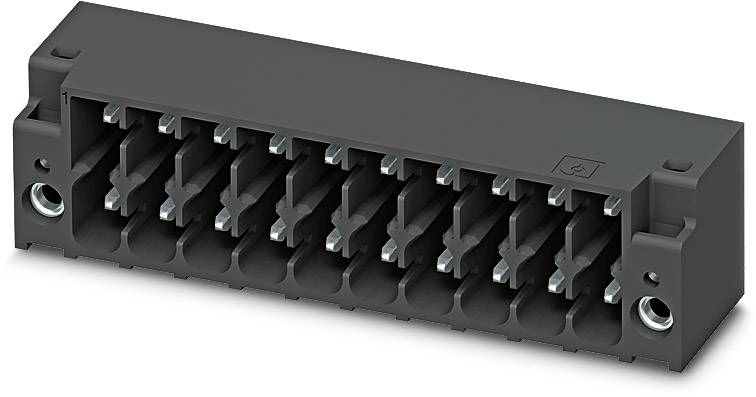

Name: Phoenix Contact Pin housing PCB DMC Total number of pins 30 Contact spacing: 3.50 mm 1787140 50 pc(s)
Brand: Phoenix Contact
SKU: 774780
Availability: InStock

'Electrical connector with 12 terminals in a black plastic housing, suitable for industrial applications.'

Image similar

Product type

Pin housing PCB

Connector type

Plug, horizontal mount

No. of rows

Series

DMC

3.50 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

44 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 6.70 / piece)

€ 335.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Printed-circuit board connector DMC 1,5/15-G1F-3,5-LR P20THR

Content: 50 pc(s)
No. of rows: 2
Total number of pins: 30

Technical specifications

Product type: Pin housing PCB

Connector type: Plug, horizontal mount

No. of rows: 2

Connector system: wire-to-board

Series: DMC

Features: + screw lock
2-tier

CS: 3.50 mm

Pins per row: 15

Total number of pins: 30

Width: 59.50 mm

Nominal current: 8 A

Nominal current - rounded value: 8 A

Content: 50 pc(s)

Dim: (L x W x H) 11.60 x 59.50 x 12.80 mm

Connection: Print

Actuation direction: Perpendicular (to the PCB)

Manufacturer part #: 1787140

Factory colour: Black

Industrial packaging: Yes

Contact material: Tin plated

Nominal voltage: 160 V

Height: 12.80 mm

Length: 11.60 mm

Connector orientation: Parallel (to the PCB)

Type: DMC 1,5/15-G1F-3,5-LR P20THR

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 774780 Phoenix Contact Pin housing PCB DMC Total number of pins 30 Contact spacing: 3.50 mm 1787140 50 pc(s)

User & Safety Instructions

User & Safety Instructions 774780 Phoenix Contact Pin housing PCB DMC Total number of pins 30 Contact spacing: 3.50 mm 1787140 50 pc(s)

Description

Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 15, Pitch: 3.5 mm, Color: Black, Contact surface: Tin, Assembly: SMD/THT/THR

Hints

Special order, no right of withdrawal.

Description

Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 15, Pitch: 3.5 mm, Color: Black, Contact surface: Tin, Assembly: SMD/THT/THR
