Name: Phoenix Contact Pin housing PCB DMCV Total number of pins 4 Contact spacing: 3.50 mm 1787205 50 pc(s)
Brand: Phoenix Contact
SKU: 772425
Availability: InStock

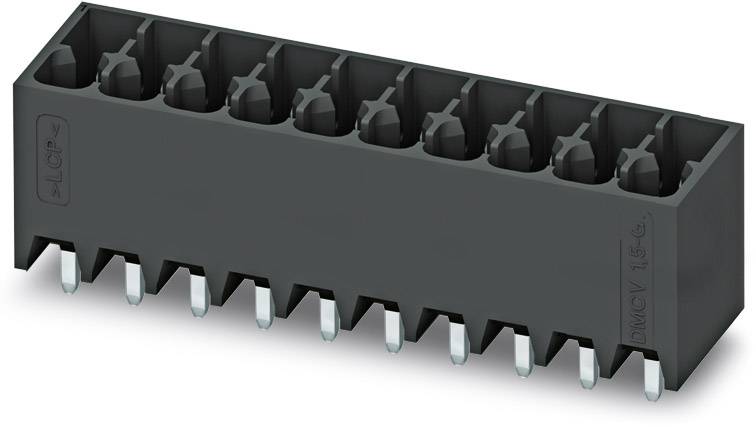

Black, rectangular electronic connector with ten metallic pins at the bottom and ten slots at the top, used for printed circuit boards.

Image similar

Product type

Pin housing PCB

Connector type

Plug, vertical mount

No. of rows

Series

DMCV

3.50 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

222 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 0.86 / piece)

€ 42.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Printed-circuit board connector DMCV 1,5/ 2-G1-3,5 P20THR

Content: 50 pc(s)
No. of rows: 2
Total number of pins: 4

Technical specifications

Product type: Pin housing PCB

Connector type: Plug, vertical mount

No. of rows: 2

Connector system: wire-to-board

Series: DMCV

Features: 2-tier

CS: 3.50 mm

Pins per row: 2

Total number of pins: 4

Width: 12.00 mm

Nominal current: 8 A

Nominal current - rounded value: 8 A

Content: 50 pc(s)

Dim: (L x W x H) 7.80 x 12.00 x 10.60 mm

Connection: Print

Actuation direction: Perpendicular (to the PCB)

Manufacturer part #: 1787205

Factory colour: Black

Industrial packaging: Yes

Contact material: Tin plated

Nominal voltage: 160 V

Height: 10.60 mm

Length: 7.80 mm

Connector orientation: Perpendicular (to the PCB)

Type: DMCV 1,5/ 2-G1-3,5 P20THR

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 772425 Phoenix Contact Pin housing PCB DMCV Total number of pins 4 Contact spacing: 3.50 mm 1787205 50 pc(s)

User & Safety Instructions

User & Safety Instructions 772425 Phoenix Contact Pin housing PCB DMCV Total number of pins 4 Contact spacing: 3.50 mm 1787205 50 pc(s)

Description

Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 2, Pitch: 3.5 mm, Color: Black, Contact surface: Tin, Assembly: SMD/THT/THR

Hints

Special order, no right of withdrawal.

Description

Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 2, Pitch: 3.5 mm, Color: Black, Contact surface: Tin, Assembly: SMD/THT/THR
