Phoenix Contact Pin housing PCB GMSTBV Total number of pins 12 Contact spacing: 7.62 mm 1829251 50 pc(s)

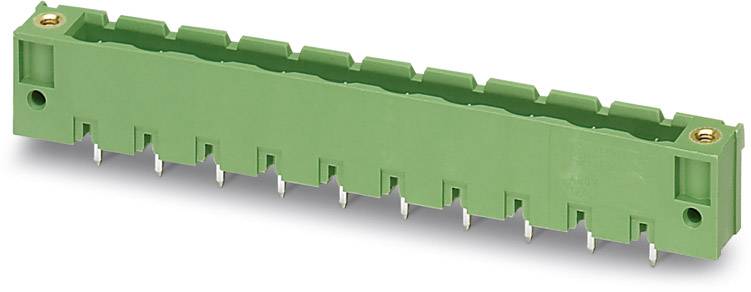

A green, rectangular connector with multiple metal pins, suitable for mounting on a circuit board.
Image similar
Product type
Pin housing PCB
Connector type
Plug, vertical mount
No. of rows
1
Series
GMSTBV
CS
7.62 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 26 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 4.20 / piece)
€ 209.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Housing GMSTBV 2,5/12-GF-7,62

  • Content: 50 pc(s)
  • No. of rows: 1
  • Total number of pins: 12

Technical specifications

Product type

Pin housing PCB

Connector type

Plug, vertical mount

No. of rows

1

Connector system

wire-to-board

Series

GMSTBV

Features

lateral opening

CS

7.62 mm

Pins per row

12

Total number of pins

12

Width

102.02 mm

Nominal current

12 A

Nominal current - rounded value

12 A

Content

50 pc(s)

Dim

(L x W x H) 8.60 x 102.02 x 15.90 mm

Connection

Print

Manufacturer part #

1829251

Factory colour

Green

Industrial packaging

Yes

Contact material

Tin plated

Nominal voltage

630 V

Height

15.90 mm

Length

8.60 mm

Connector orientation

Perpendicular (to the PCB)

Type

GMSTBV 2,5/12-GF-7,62

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 568498 Phoenix Contact Pin housing PCB GMSTBV Total number of pins 12 Contact spacing: 7.62 mm 1829251 50 pc(s)

User & Safety Instructions

User & Safety Instructions 568498 Phoenix Contact Pin housing PCB GMSTBV Total number of pins 12 Contact spacing: 7.62 mm 1829251 50 pc(s)

Description

Header, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 12, Pitch: 7.62 mm, Color: green, Contact surface: Tin, Assembly: Soldering
