Name: Phoenix Contact Pin housing PCB MCV Total number of pins 12 Contact spacing: 3.81 mm 1712982 200 pc(s)
Brand: Phoenix Contact
SKU: 568340
Availability: InStock

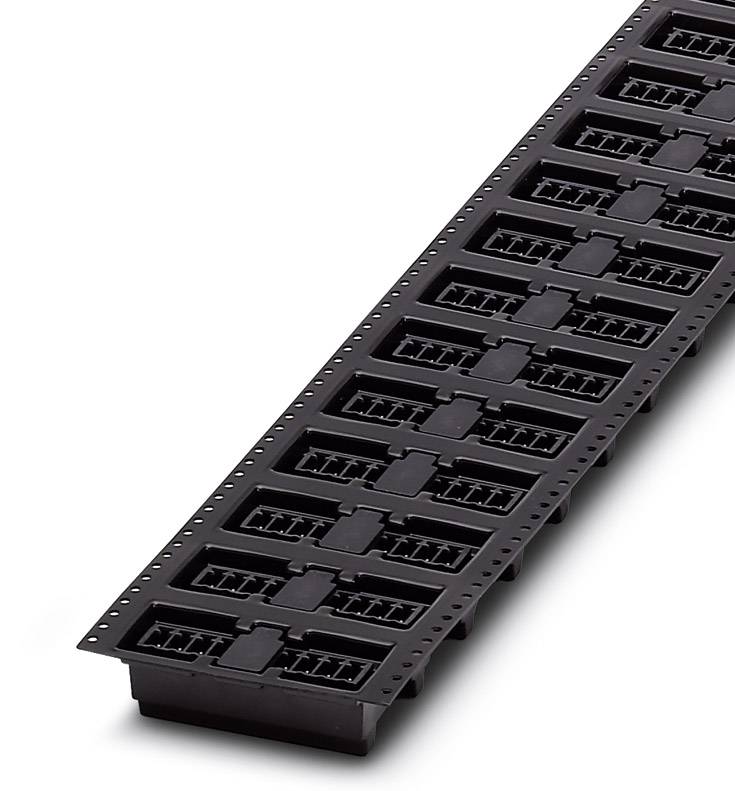

Mounted like a row of rectangular black connectors in a long, narrow rack.

Image similar

Product type

Pin housing PCB

Connector type

Plug, vertical mount

No. of rows

Series

MCV

3.81 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

48 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 200 pc(s))

Set(s)

Total (€ 3.13 / piece)

€ 665.00

-6 %

€ 625.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Base strip MCV 1,5/12-G-3,81 P26 THRR72

Content: 200 pc(s)
No. of rows: 1
Total number of pins: 12

Technical specifications

Product type: Pin housing PCB

Connector type: Plug, vertical mount

No. of rows: 1

Connector system: wire-to-board

Series: MCV

Features: for reflow
+ screw lock
lateral opening

CS: 3.81 mm

Pins per row: 12

Total number of pins: 12

Width: 47.11 mm

Nominal current: 8 A

Nominal current - rounded value: 8 A

Content: 200 pc(s)

Dim: (L x W x H) 7.25 x 47.11 x 11.80 mm

Connection: Print

Manufacturer part #: 1712982

Factory colour: Black

Industrial packaging: Yes

Contact material: Tin plated

Nominal voltage: 160 V

Height: 11.80 mm

Length: 7.25 mm

Connector orientation: Perpendicular (to the PCB)

Type: MCV 1,5/12-G-3,81 P26 THRR72

Documents & Downloads

Datasheet

Datasheet 568340 Phoenix Contact Pin housing PCB MCV Total number of pins 12 Contact spacing: 3.81 mm 1712982 200 pc(s)

User & Safety Instructions

User & Safety Instructions 568340 Phoenix Contact Pin housing PCB MCV Total number of pins 12 Contact spacing: 3.81 mm 1712982 200 pc(s)

Description

Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 12, Pitch: 3.81 mm, Color: Black, Contact surface: Tin, Assembly: Taped SMD/THT/THR components, User information and design recommendations for through hole reflow technology can be found under ¿Downloads¿
