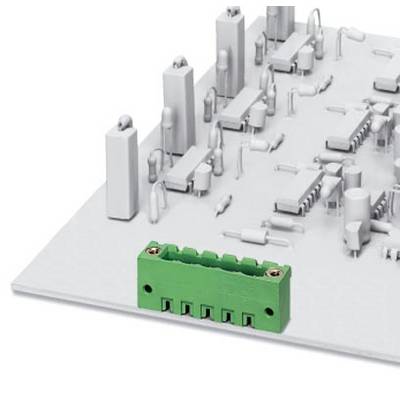

Phoenix Contact Pin housing PCB MSTBVA Total number of pins 4 Contact spacing: 5.08 mm 1802676 50 pc(s)
EAN:
Part number:
Item no:
Product type
Pin housing PCB
Connector type
Plug, vertical mount
No. of rows
1
Series
MSTBVA
CS
5.08 mm
Datasheet (PDF)
Sales and shipping:
Number (Package size 50 pc(s))
Total (€ 1.01 / piece)
€
Highlights & Details
Printed-circuit board connector MSTBVA 2,5/ 4-G-5,08 PIN 13,9
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 4
Technical specifications
- Product type
Pin housing PCB
- Connector type
Plug, vertical mount
- No. of rows
1
- Connector system
wire-to-board
- Series
MSTBVA
- Features
closed
- CS
5.08 mm
- Pins per row
4
- Total number of pins
4
- Width
25.90 mm
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Content
50 pc(s)
- Dim
(L x W x H) 8.60 x 25.90 x 22.32 mm
- Connection
Print
- Manufacturer part #
1802676
- Factory colour
Green
- Industrial packaging
Yes
- Contact material
Tin plated
- Nominal voltage
250 V
- Height
22.32 mm
- Length
8.60 mm
- RoHS-compliant
- Connector orientation
Perpendicular (to the PCB)
- Type
MSTBVA 2,5/ 4-G-5,08 PIN 13,9
Documents & Downloads
Datasheet
Datasheet 569756 Phoenix Contact Pin housing PCB MSTBVA Total number of pins 4 Contact spacing: 5.08 mm 1802676 50 pc(s)
User & Safety Instructions
User & Safety Instructions 569756 Phoenix Contact Pin housing PCB MSTBVA Total number of pins 4 Contact spacing: 5.08 mm 1802676 50 pc(s)
Description
Header, Nominal current: 12 A, Number of positions: 4, Pitch: 5.08 mm, Color: green, Contact surface: Tin
Hints
Special order, no right of withdrawal.
