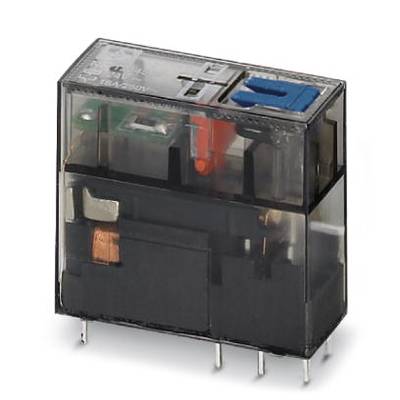

Phoenix Contact REL-MR- 24DC/21HC AU/MS PCB relay 24 V DC 16 A 1 change-over 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Single relay REL-MR- 24DC/21HC AU/MS
- Industrial packaging, pack of 10
Technical specifications
- Type
REL-MR- 24DC/21HC AU/MS
- Coil nominal voltage
24 V DC
- Control mode
monostable, 1 coil
- Contact type
1 change-over
- Contact material
AgNi hard gold plated
- Switching voltage (max.)
36 V DC
30 V AC
- Switching current (max.)
16 A
- Max. switching capacity
4000 VA
- Connection
Solder pins
- Width
12.7 mm
- Height
29 mm
- Depth
25 mm
- Dim
(W x H x D) 12.7 x 29 x 25 mm
- Industrial packaging
Yes
- Content
10 pc(s)
- Product type
PCB relay
Documents & Downloads
Datasheet
Datasheet 709152 Phoenix Contact REL-MR- 24DC/21HC AU/MS PCB relay 24 V DC 16 A 1 change-over 10 pc(s)
User & Safety Instructions
User & Safety Instructions 709152 Phoenix Contact REL-MR- 24DC/21HC AU/MS PCB relay 24 V DC 16 A 1 change-over 10 pc(s)
Description
Plug-in miniature relay, with multi-layer contact with hard gold coating, 1 PDT, test button, mechanical switch position indicator, status LED, freewheeling diode, polarity A1+, A2-, input voltage 24 V DC
