Name: Phoenix Contact Socket housing cable GFKC Total number of pins 4 Contact spacing: 7.62 mm 1939659 50 pc(s)
Brand: Phoenix Contact
SKU: 567959
Availability: InStock

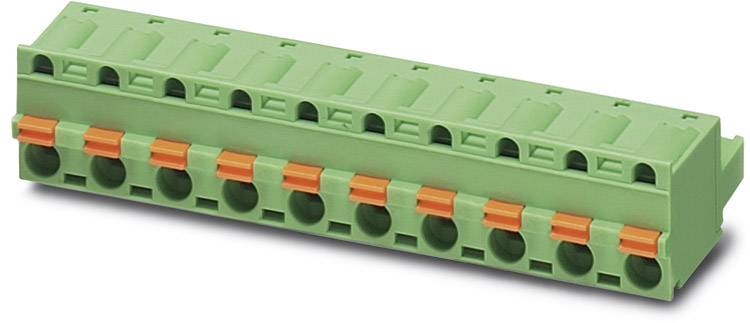

Green connector block with orange levers, used for electrical wiring in control panels.

Image similar

Product type

Socket housing cable

Connector type

Socket, straight

No. of rows

Series

GFKC

7.62 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

48 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 3.00 / piece)

€ 149.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Printed-circuit board connector GFKC 2,5/ 4-ST-7,62

Content: 50 pc(s)
No. of rows: 1
Total number of pins: 4

Technical specifications

Product type: Socket housing cable

Connector type: Socket, straight

No. of rows: 1

Connector system: wire-to-board

Series: GFKC

Features: + push-in spring bracket

CS: 7.62 mm

Pins per row: 4

Total number of pins: 4

Width: 28.56 mm

Nominal current: 12 A

Nominal current - rounded value: 12 A

Content: 50 pc(s)

AWG max.: 12

AWG (min.): 24

Stripping length (max.): 10.00 mm

Dim: (L x W x H) 15.00 x 28.56 x 25.60 mm

Connection: Spring-loaded terminal
Plug

Actuation direction: Perpendicular (to the PCB)

Manufacturer part #: 1939659

Factory colour: Green

Industrial packaging: Yes

Contact material: Tin plated

Connector contact surface: Tin plated

Nominal voltage: 630 V

Height: 25.60 mm

Length: 15.00 mm

max. cross section: 2.5 mm²

Min. cross section: 0.2 mm²

Type: GFKC 2,5/ 4-ST-7,62

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 567959 Phoenix Contact Socket housing cable GFKC Total number of pins 4 Contact spacing: 7.62 mm 1939659 50 pc(s)

User & Safety Instructions

User & Safety Instructions 567959 Phoenix Contact Socket housing cable GFKC Total number of pins 4 Contact spacing: 7.62 mm 1939659 50 pc(s)

Description

Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 4, Pitch: 7.62 mm, Connection method: Spring-cage conn., Color: green, Contact surface: Tin, COMBICON plug-in connectors may only be activated under no load conditions. If for operating reasons small loads must be switched, experimental values are available upon request.
