Piher PC16SH-10IP06104A2020TA Carbon film pot Dustproof Mono 0.2 W 100 kΩ 1 pc(s) Single

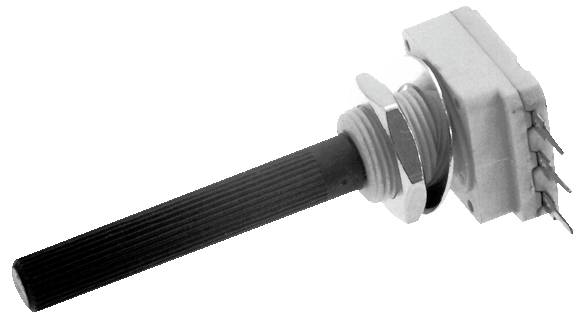

A cylindrical potentiometer with a ribbed black shaft and silver mounting bracket, featuring multiple pins for electronic connections.
Packaging type
Single
Product type
Carbon film pot
Potentiometer features
Dustproof
Resistance
100 kΩ
Resistance characteristic
linear
Datasheet (PDF)
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
72 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 3.49 / piece)
€ 3.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Piher potentiometer 16/6 mono linear 100K

  • 100 kΩ
  • linear

Technical specifications

  • ESD Packaging: No ESD
  • Series PC16
  • Design: Horizontal
  • Length, socket 16 mm
  • Width, base 16 mm
  • Height, socket 6.5 mm
  • Length, shaft 45 mm
  • Diameter, Shaft 6 mm
  • Axis: Plastic
  • Resistance value 100 kOhm
  • Resistance unit: KOhm
  • Resistance value_1: 100
  • Resistance tolerance: ±20 %
  • Resistance curve: Linear
  • Rated output: 0.2 W
  • Max voltage 250 V
  • Mechanical rotation angle 300 °
  • Electrical angle of rotation 280 °
  • Stop strength 40 Ncm
  • Torque 1.5 Ncm
  • Approvals UL 94 V0
Packaging type

Single

Product type

Carbon film pot

Potentiometer features

Dustproof

Resistance

100 kΩ

Resistance characteristic

linear

Output

Mono

Power rating

0.2 W

Cut-off voltage

250 V

Mechanical angle

300°

Electrical angle

280°

Torque (max.)

1.5 Ncm

Impact tolerance

40 Ncm

Axle length

45 mm

Axle type

Plastic

Axle Ø

6 mm

CS

5 mm

Case dimensions

16 x 16 x 6.5 mm

Length

16 mm

Width

16 mm

Height

6.5 mm

(Ø)

16 mm

Tolerance ±

20 %

Content

1 pc(s)

Type

PC16SH-10IP06104A2020TA

Dim

(Ø x H) 16 mm x 6.5 mm

RoHS-compliant

Yes

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3523560 Piher PC16SH-10IP06104A2020TA Carbon film pot Dustproof Mono 0.2 W 100 kΩ 1 pc(s) Single

User & Safety Instructions

User & Safety Instructions 3523560 Piher PC16SH-10IP06104A2020TA Carbon film pot Dustproof Mono 0.2 W 100 kΩ 1 pc(s) Single

Description

POTENTIONS mono linear 6mm-axle

This text is machine translated.

Features

  • • 16mm carbon film potentiometer
  • • Protection class IP54 to IEC 60529
  • • Self-extinguishing material UL 94-V0

Scope of delivery

  • PC16SH-10IP06104A2020TA.
