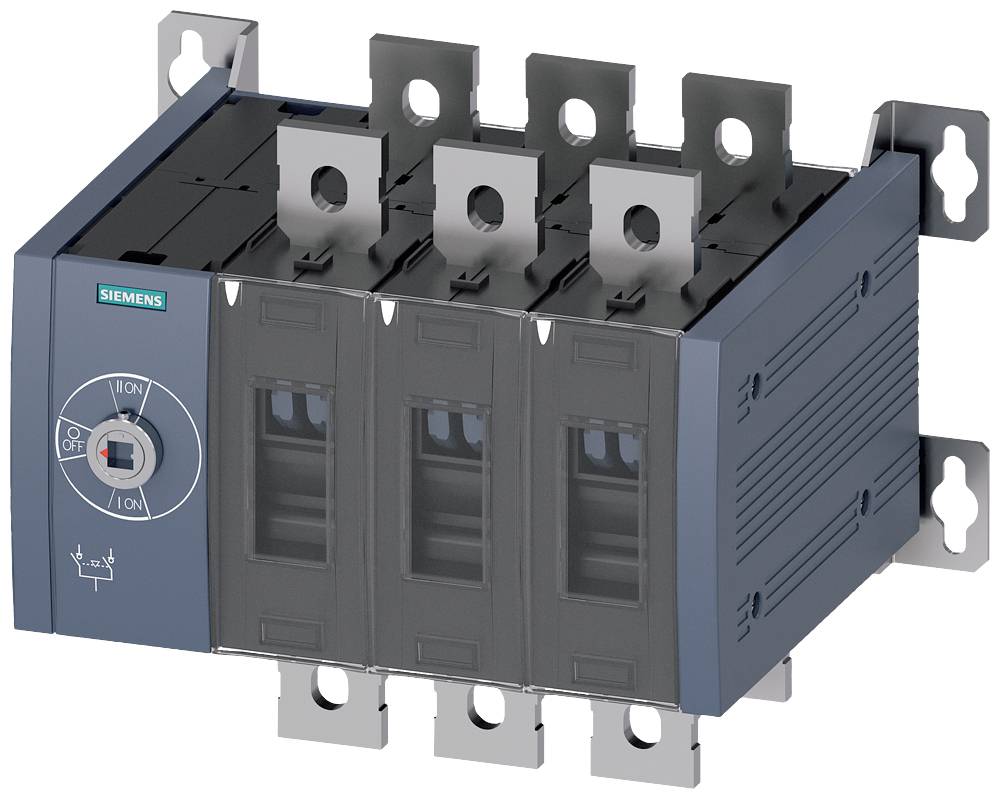

Power switch 3-pin 800 A 415 V AC Siemens 3KC03480QE000AA0
Product type
Power switch
Nominal voltage
415 V AC
Number of pins
3
Nominal current - rounded value
800 A
Operating voltage
415 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 2,075.00 / piece)
€ 2,075.00
incl. VAT
14-day return policy included
Technical specifications
- Protection class: IP20
- Isolation voltage: 1000 V
- Ambient temperature: -25 °C to +70 °C
- Surge voltage resistance: 12 kV
- Mechanical life: 8000
- Power loss: 105 W
- Design of the electrical connection: rail connection
- Mounting type: screw fastening
- Product type
Power switch
- Operating voltage
415 V AC
- Nominal voltage
415 V AC
- Number of pins
3

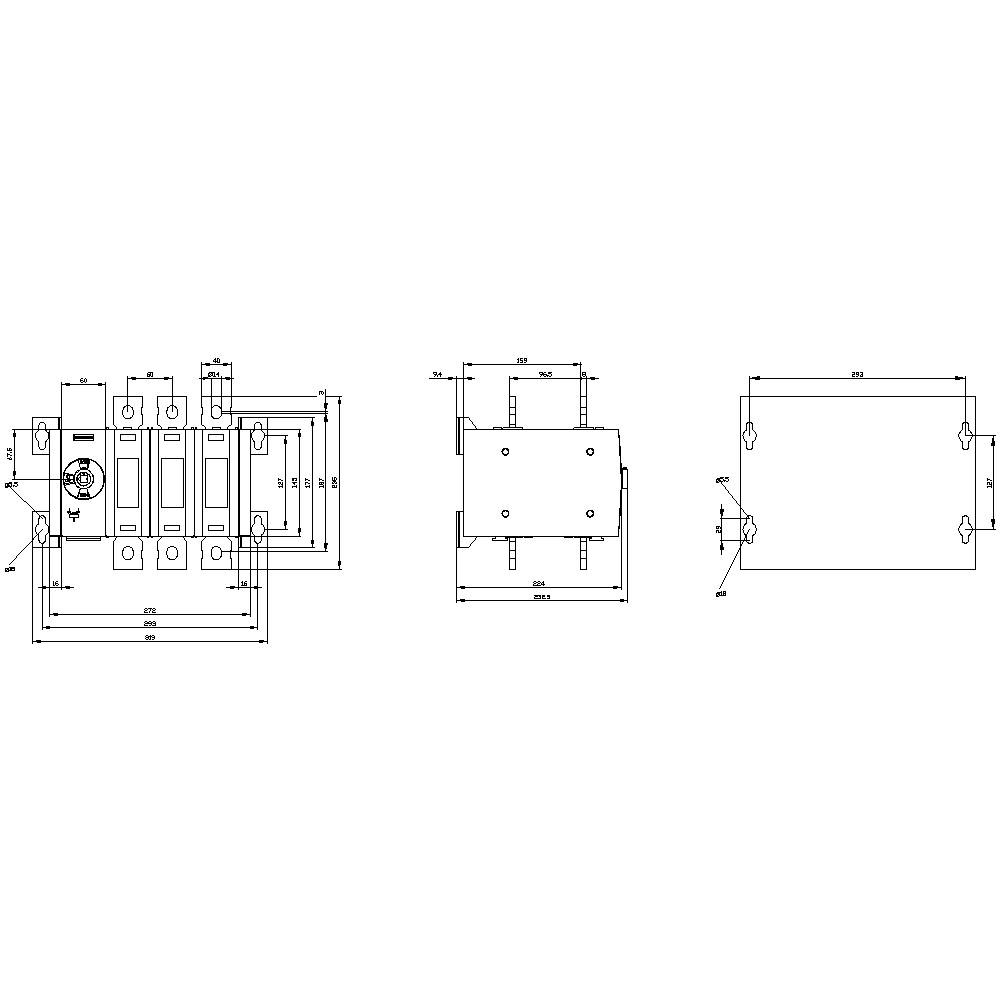

- Dim
(W x H x D) 319 x 235 x 232.5 mm
- Nominal current
800 A
- Nominal current - rounded value
800 A
- Type
Front wheel drive
- Width
319 mm
- Height
235 mm
- Depth
232.5 mm
16
16
800 A
3
IP00
0
FALSE
FALSE
Rail connection
TRUE
None
TRUE
TRUE
TRUE
355 kW
30 kA
Other
FALSE
FALSE
FALSE
FALSE
FALSE
415 V
FALSE
FALSE
Built-in device fixed built-in technique
800 A
800
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1742818 Power switch 3-pin 800 A 415 V AC Siemens 3KC03480QE000AA0
User & Safety Instructions
User & Safety Instructions 1742818 Power switch 3-pin 800 A 415 V AC Siemens 3KC03480QE000AA0
Description
Power contactor, AC-3 300 A, 160 kW / 400 V Coil AC 50/60 Hz and DC 96-127 V x (0.8-1.1) F-PLC input 24 V DC 3-pole size S10 Auxiliary contacts 2 NO + 2 NC Main circuit: Busbar Control and auxiliary circuit: screw terminal
