Buy Prexiso PAG90 Angle finder with magnet base 90 °

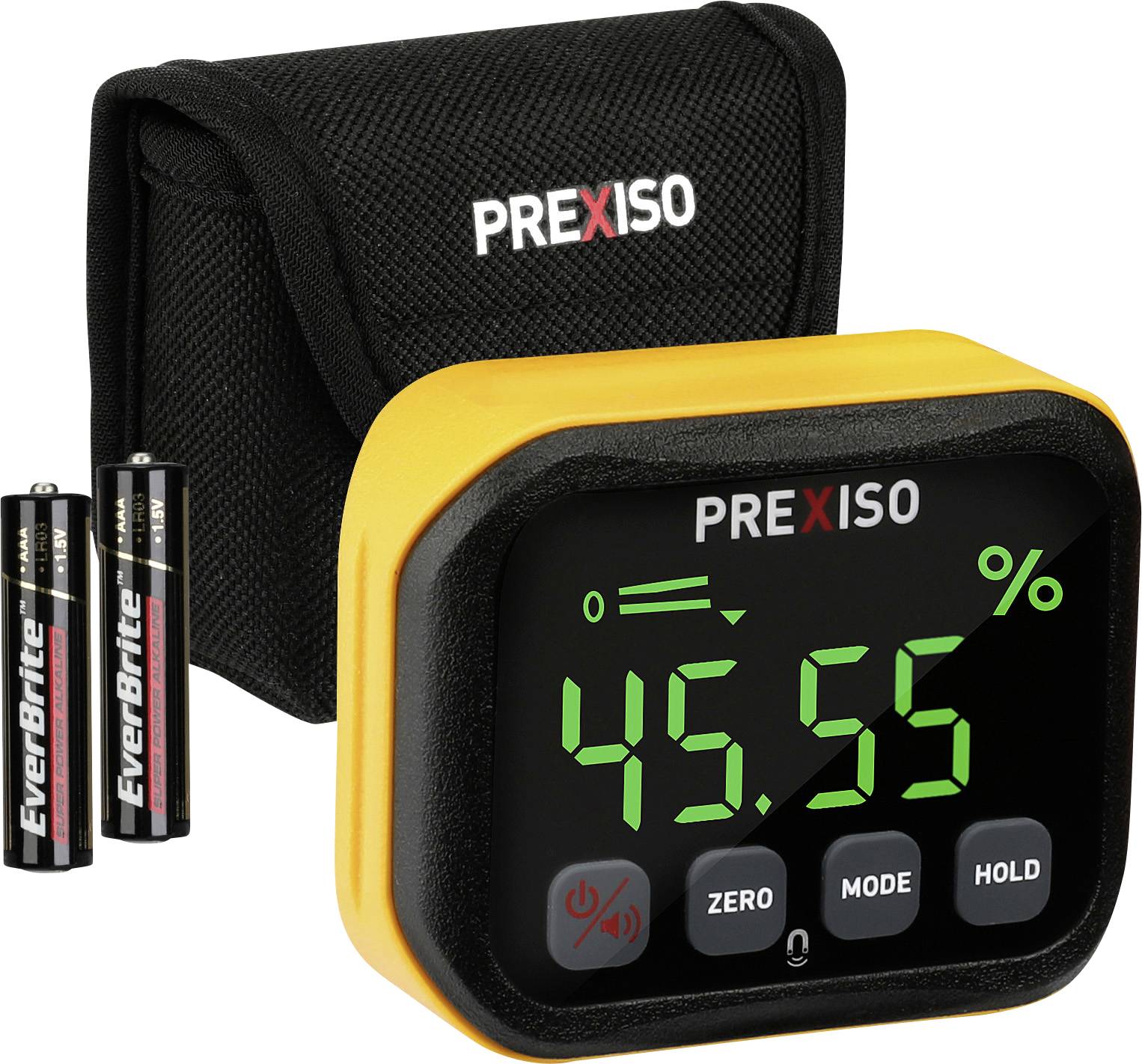

Digital inclinometer by PREXISO with a display showing '45.55°'. Two batteries and a black case are placed beside it.

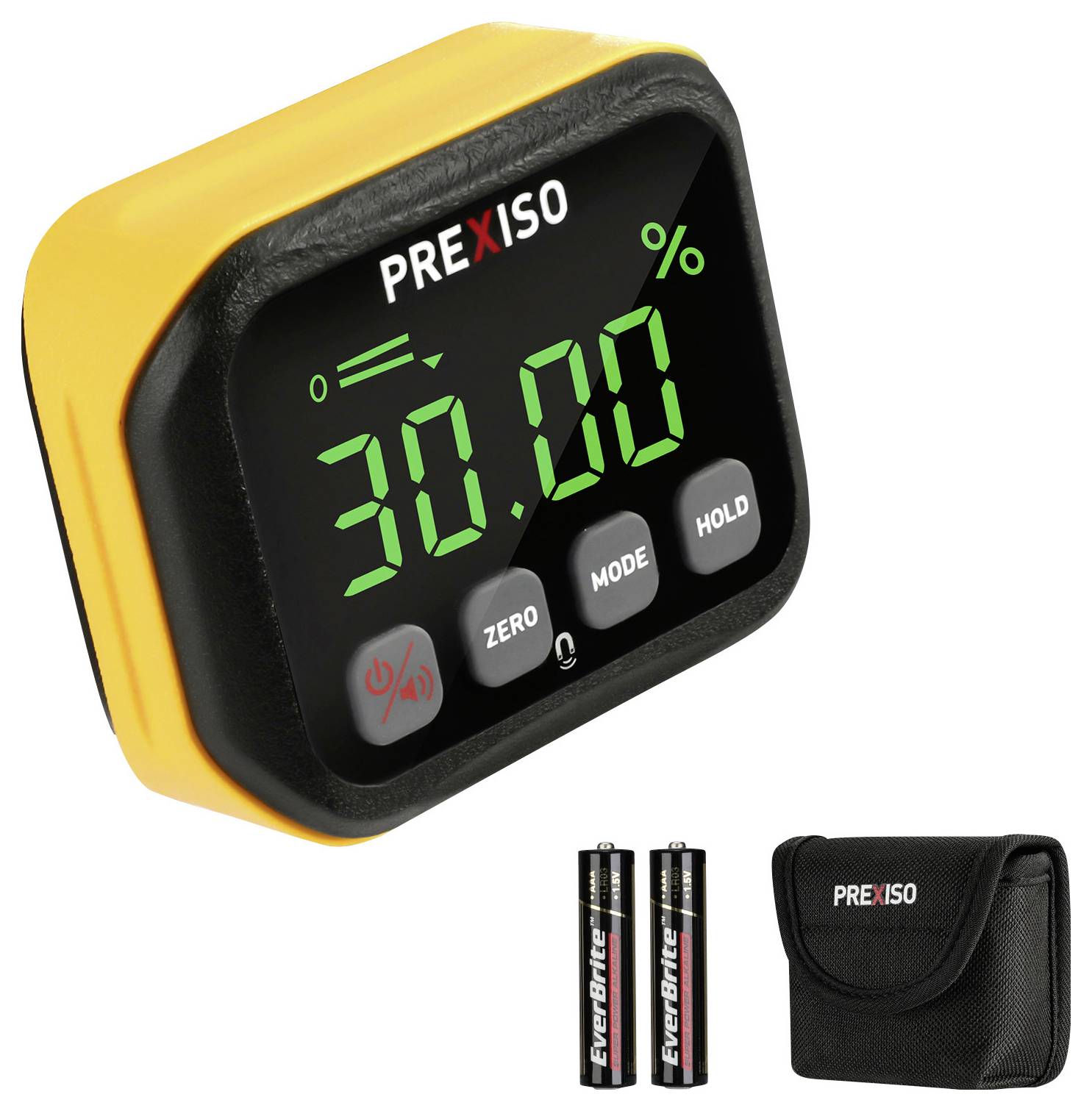

Digital protractor with green display showing 30°. Housing in yellow and black. Includes two batteries and a carry case.

Several joiners are working in a workshop. A digital protractor is showing different angle measurements on wooden surfaces.

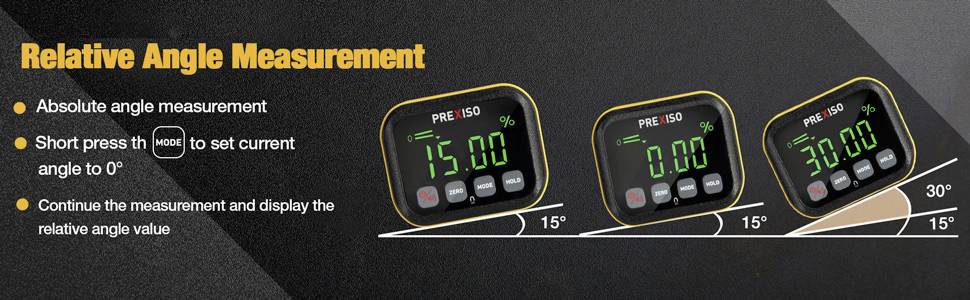

'Representation of the relative angle measurement process with a digital device. Steps for zero setting and angle display in degrees.'

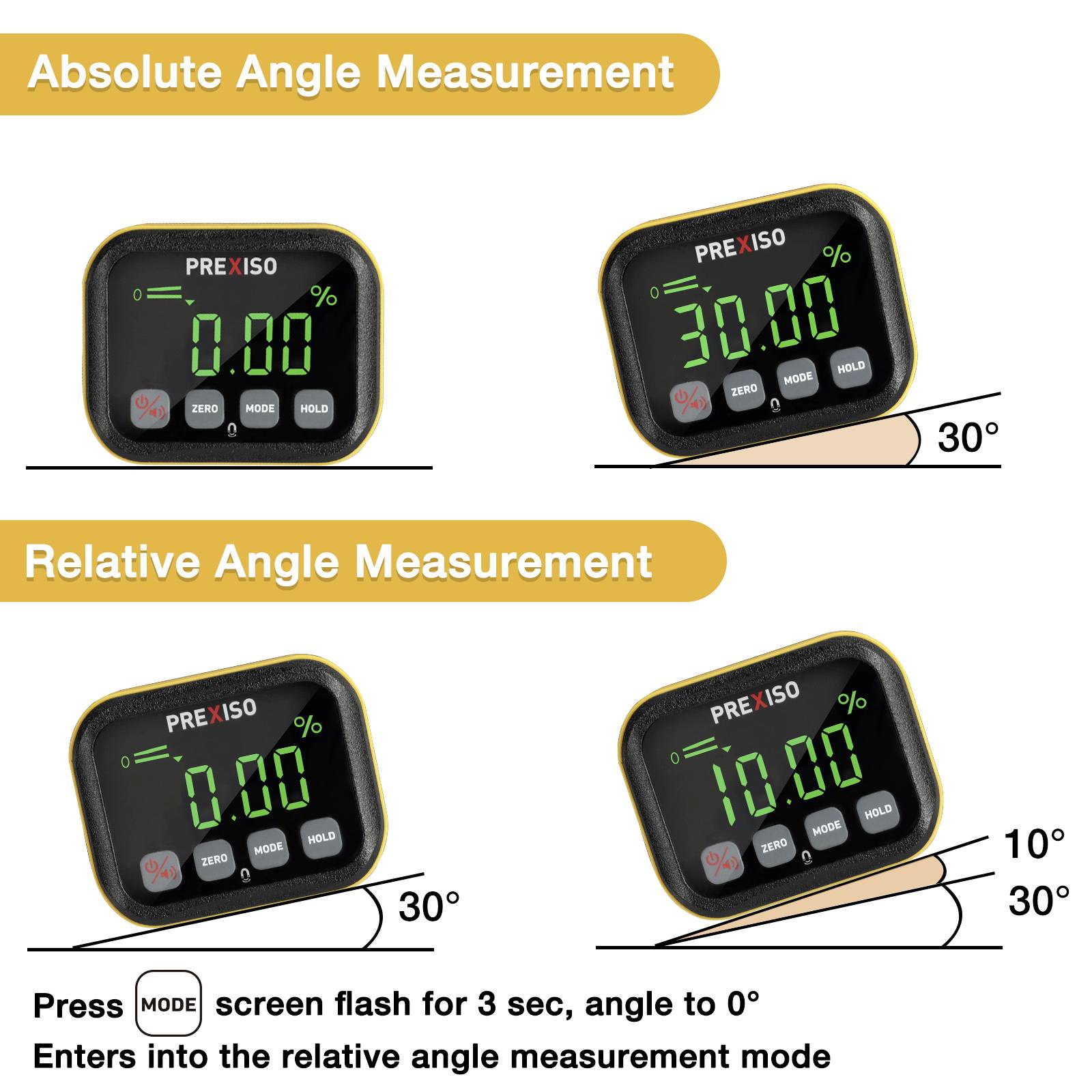

This image shows a comparison of absolute and relative angle measurement using a digital angle measurer. Top: Absolute angle, bottom: Relative angle mode with 30° baseline.

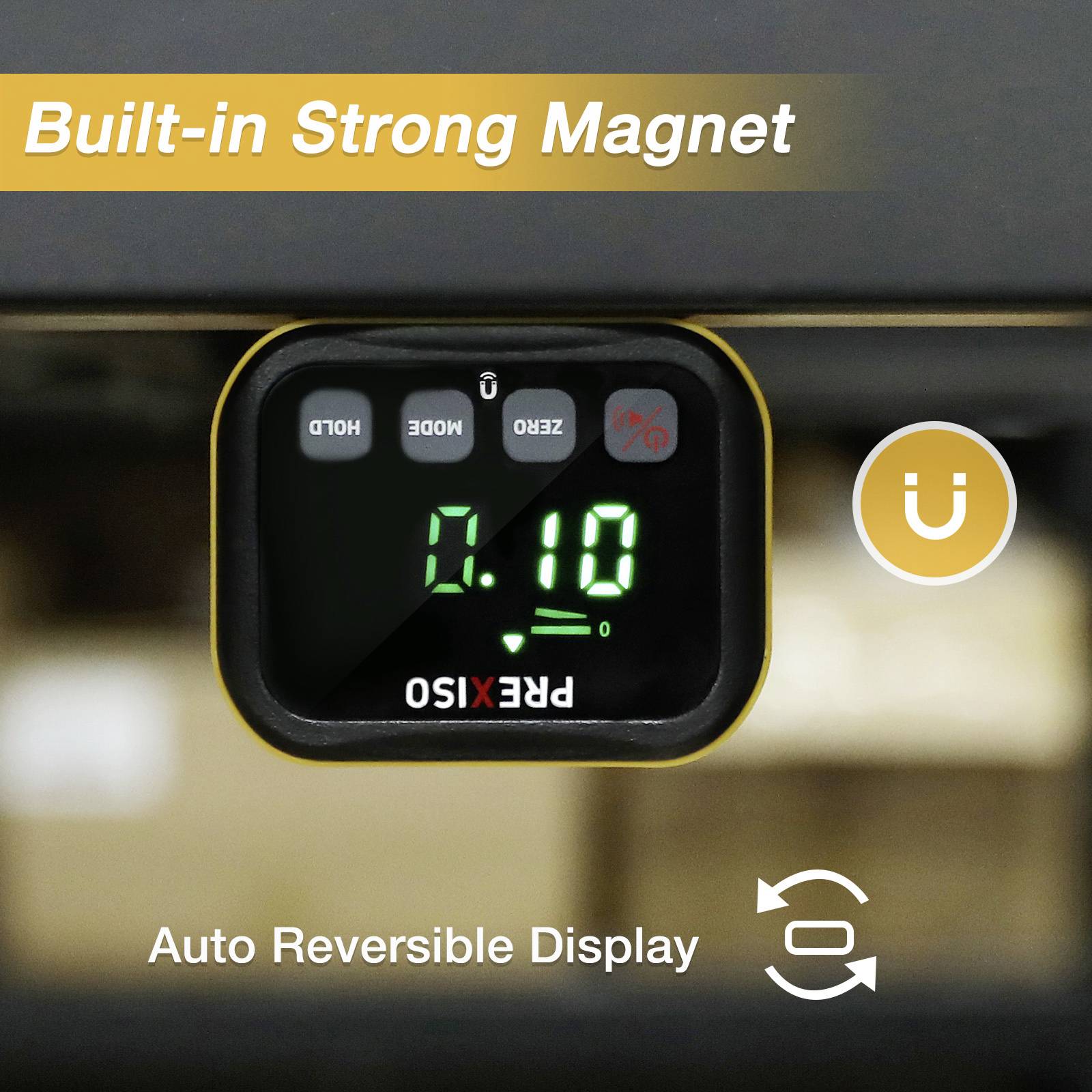

Digital display with green text showing '0.0'. Top left reads 'Built-in Strong Magnet'. Bottom: 'Auto Reversible Display' with symbols.

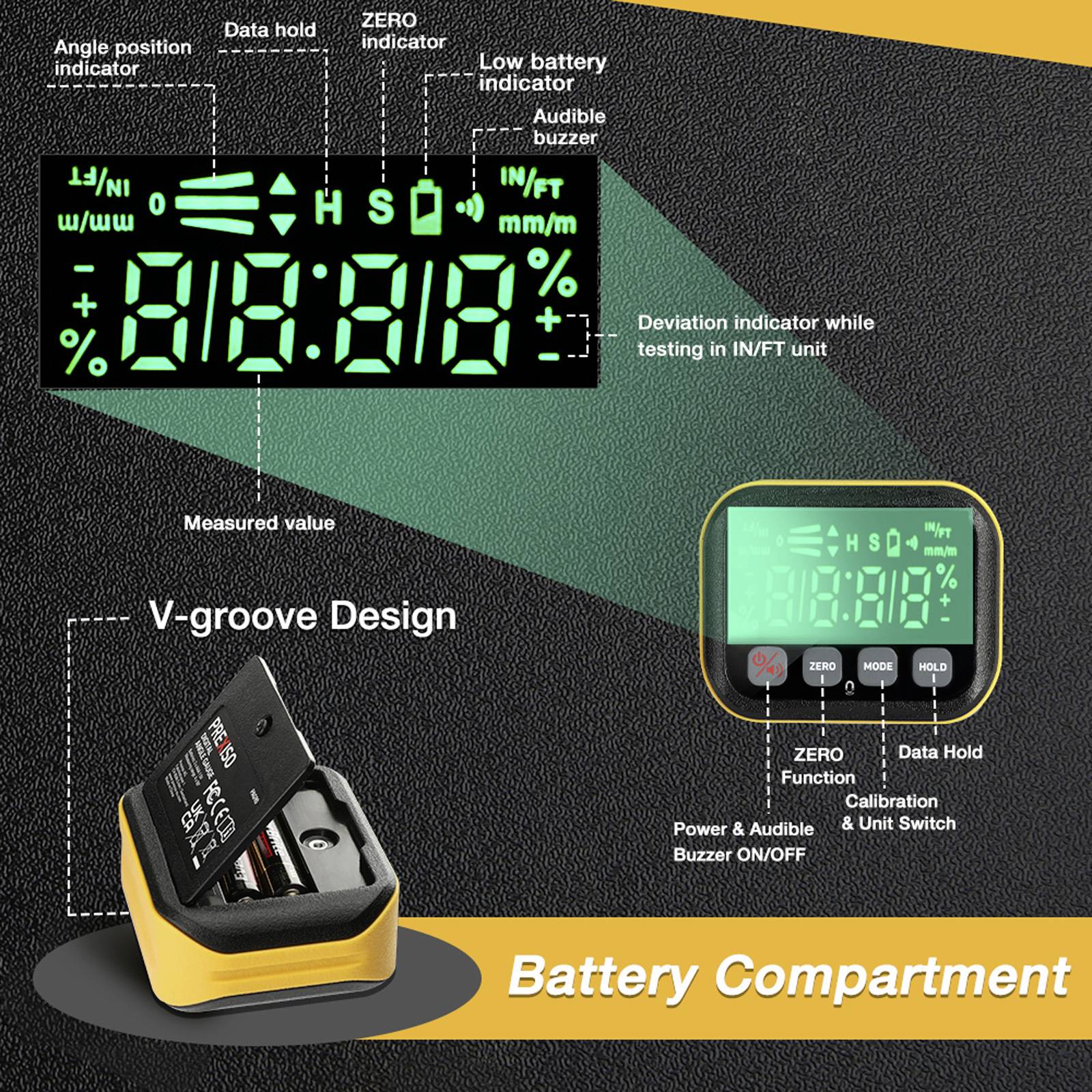

Digital display of an angle sensor, showing angle, battery status and additional functions. Battery compartment with V-groove design visible.

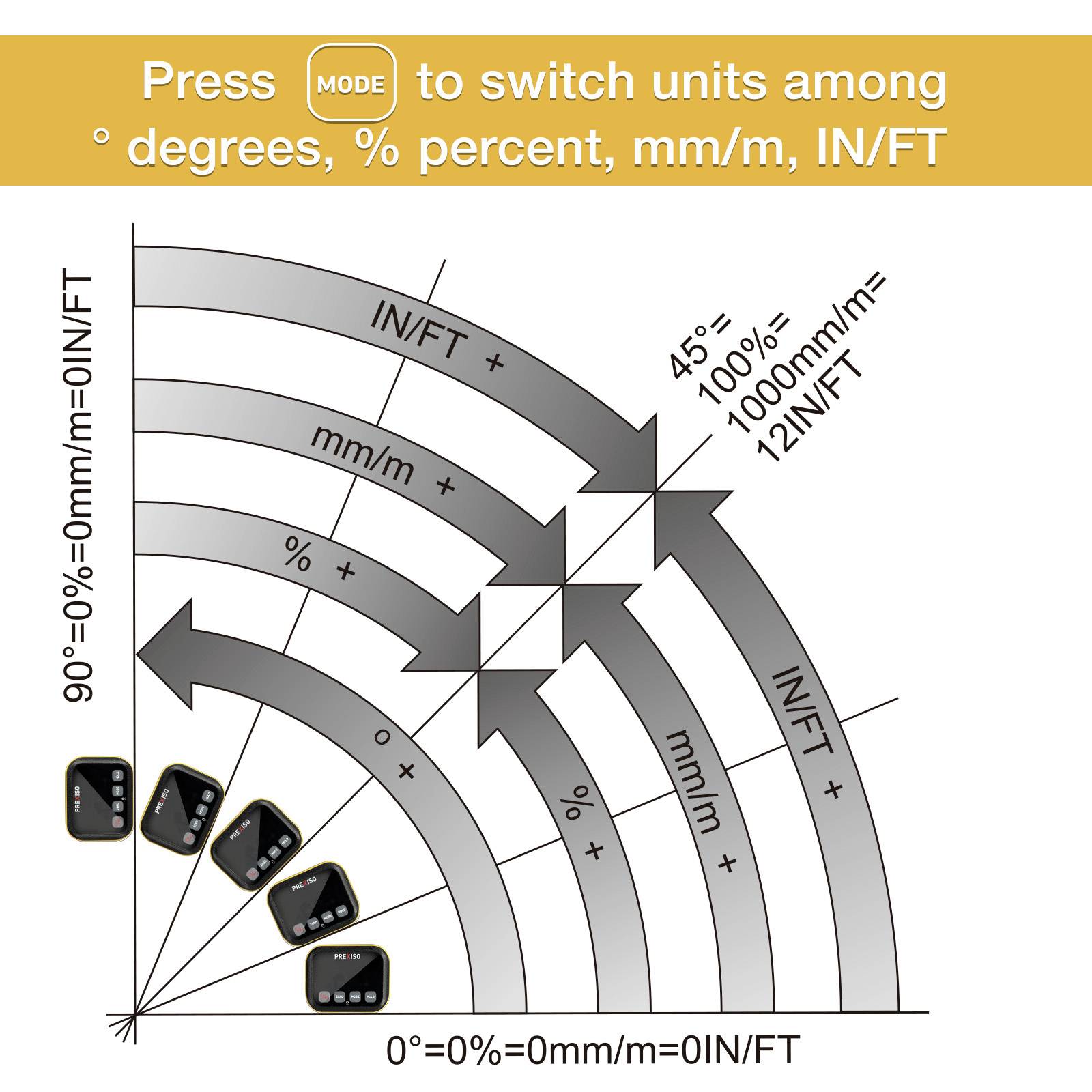

The image shows an instruction for unit conversion with a mode button: 'Degrees', 'Percentage', 'mm/m', 'IN/FT'.

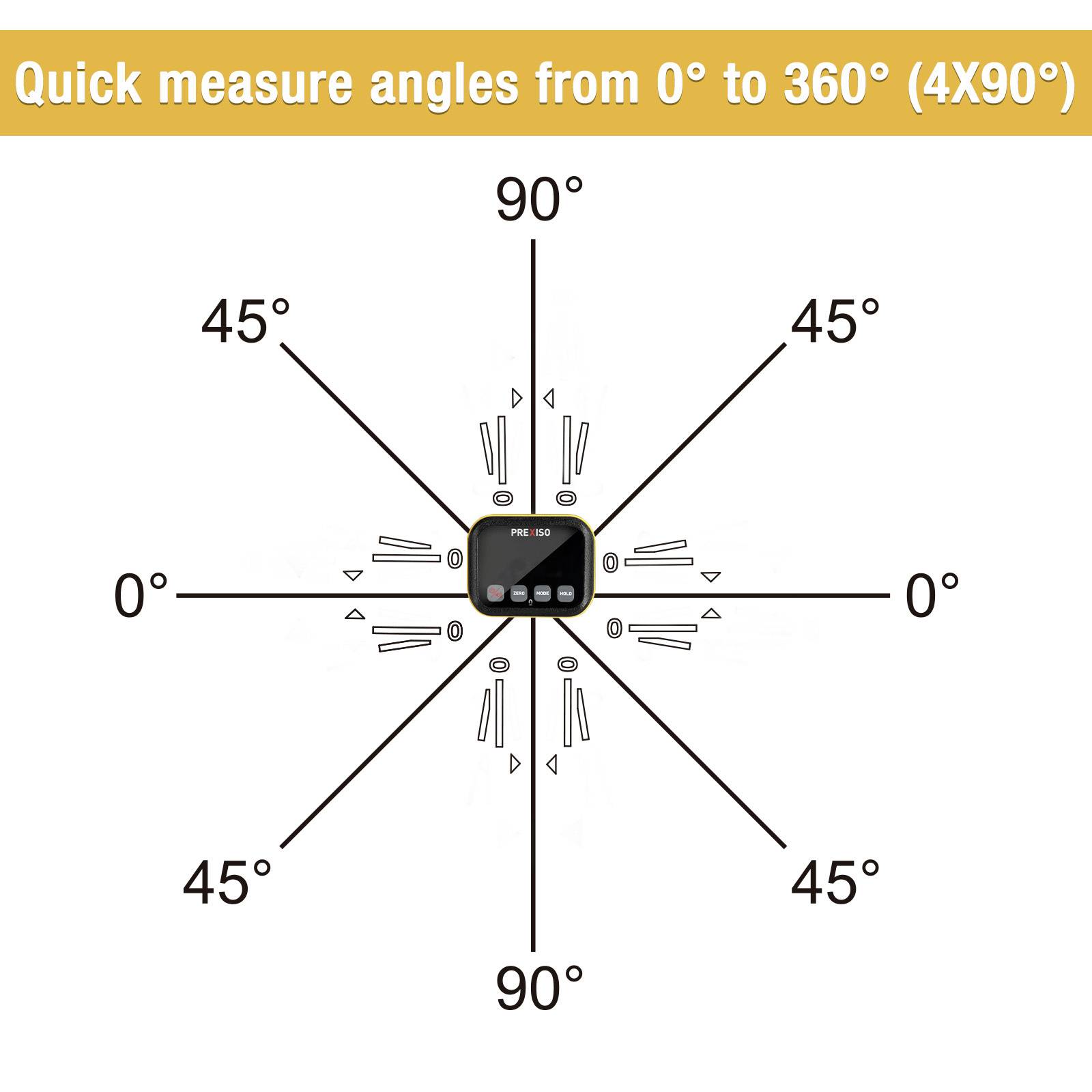

A device for rapid angle measurement from 0° to 360°, depicted with a central point and eight radial lines at 45-degree intervals.

A craftsman wearing ear protection and safety glasses is working at a circular saw. On the left, a magnetic angle gauge with an illuminated display is being advertised.

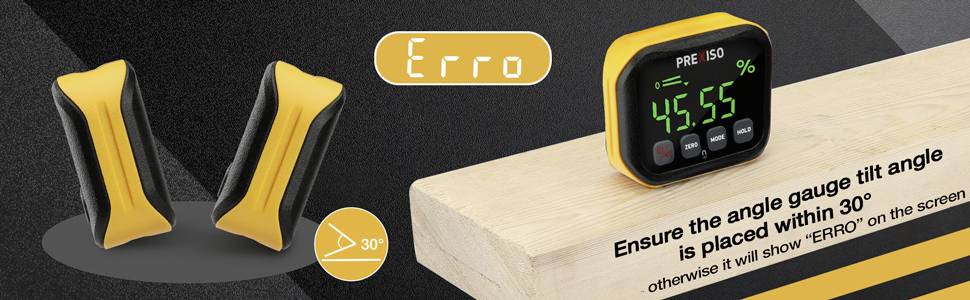

Digital inclinometer shows '45.55°'. Note: Placement within 30°, otherwise 'Error' message on the display.

'Construction work' shows a device on a building site. 'Woodworking' shows a hand planing. 'Decoration' shows a person painting. 'Railway construction' shows rails on a gravel bed.

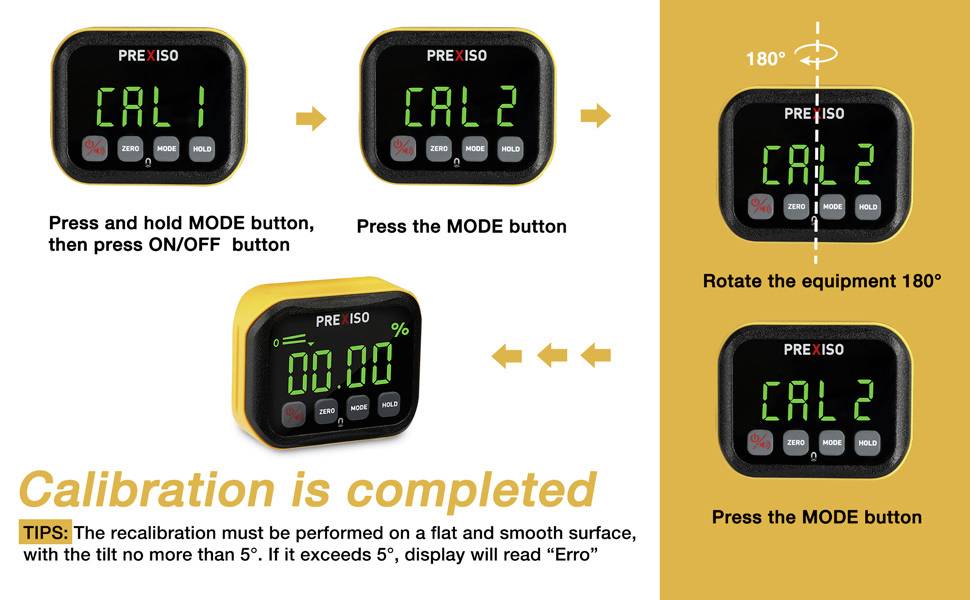

'Step-by-Step Calibration Guide for a PREXISO Device with Button Operation. Important Notes on Inclination and Error Indication.'

1/14

Fast track dispatch on Fri, 11 Sep

30 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 23.52 / piece)

€ 23.52

plus VAT.

Report legal concerns

Highlights & Details

PREXISO angle finder with magnetic base PAG90

High measurement accuracy ±0.1° at 0° and 90°, ±0.2° at other angles
Strong magnetic base for working in any ferrous metal surface
V-shaped groove for aligning pipes and cables

Technical specifications

Technical Data
Measuring range 4 x 90°
Accuracy ±0.1° at 0° and 90°, ±0.2° at other angles
Resolution 0.05°
Unit °degrees / % / mm/m / IN/FT
Battery type 2xAAA alkaline batteries

Product type: Angle finder with magnet base

Angle setting (max.): 90°

Accuracy: ± 0.1°

Length: 68.4 mm

Width: 59.9 mm

Height: 31.8 mm

Dim: (L x W x H) 68.4 x 59.9 x 31.8 mm

Weight: 80 g/m

: Manufacturer's standards (no certificate)

Type: PAG90

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3205492 Prexiso PAG90 Angle finder with magnet base 90 °

Description

PREXISO angle finder with magnetic base PAG90.
Compact and precise for measuring, setting and testing angles, with angle display in degrees with a working range of 4 x 90° and automatic digit reversal for overhead measurements.

This text is machine translated.

Scope of delivery

1 x Presiso angle finder
2 x AAA alkaline battery
Case
Quick start instructions
Safety Instructions
