Name: Sola WMD 500 56052401 Goniometer 500 x 500 mm 270 °
Brand: Sola
SKU: 3819491
Availability: InStock

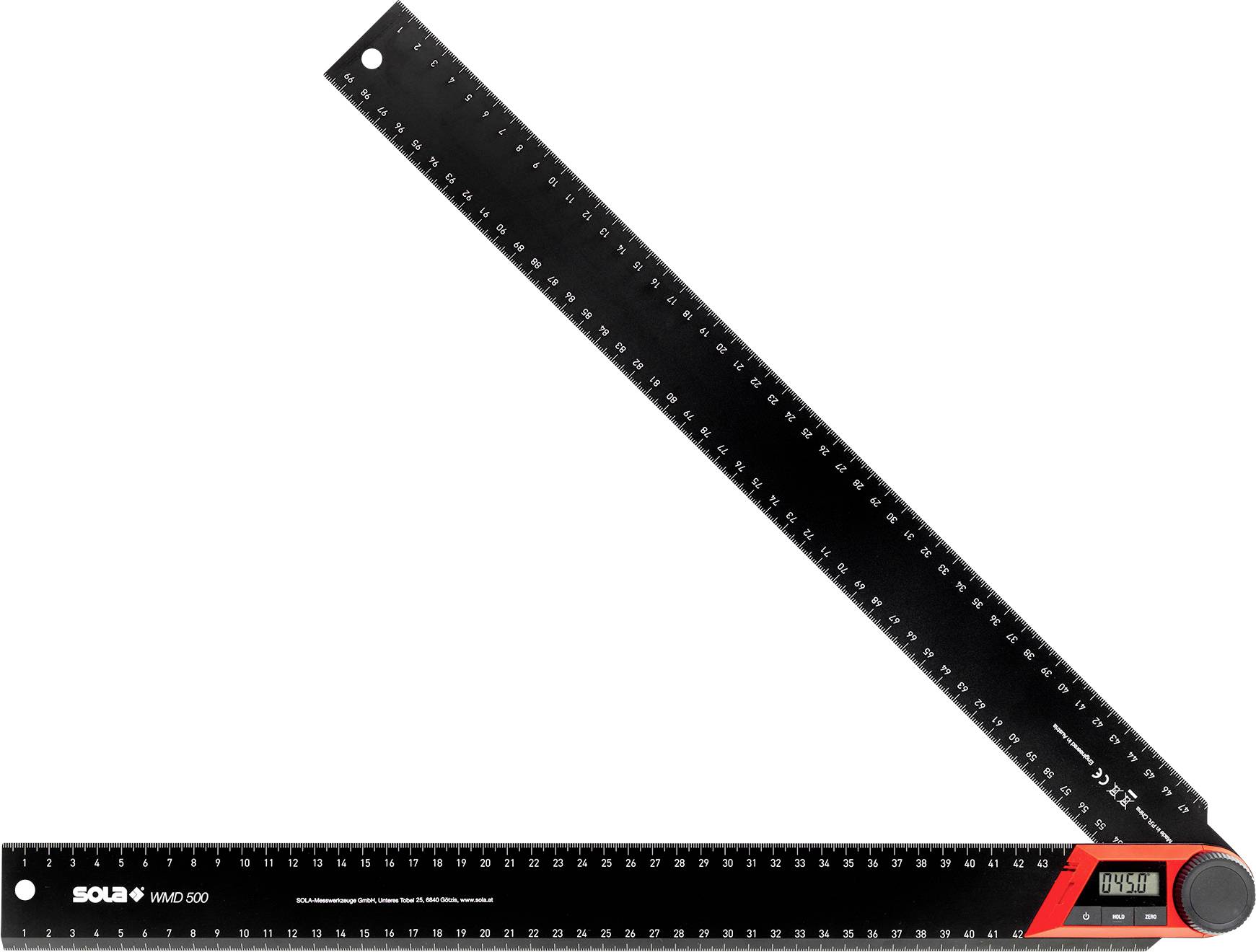

Black folding angle ruler with marked measurement scales and a small digital display, shown open in an L shape.

A hand uses a black marker and ruler to trace lines on a technical drawing or blueprint.

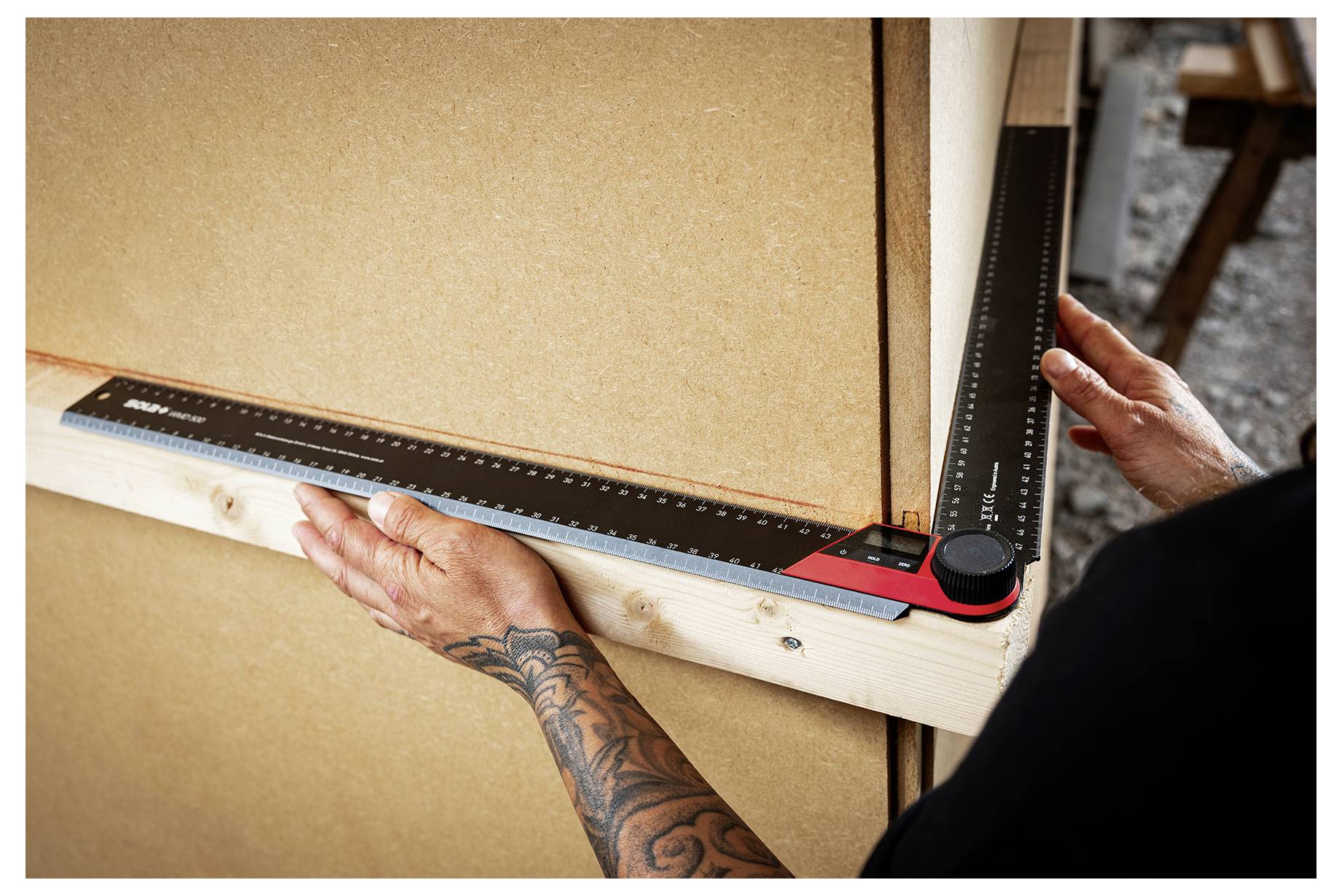

Person using a carpenter’s square to check and mark a wooden board against a vertical panel, measuring a right angle during construction.<br>

1/3

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 4

Total (€ 48.99 / piece)

€ 195.96

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Digital protractor WMD 500

High-contrast LCD display for exact digital angle measurements
HOLD function for storing the measured values and ZERO function for incremental measurements
Manual fixing of the arms for a precise transmission of angle measurements
Integrated stop edge for accurate and reliable measurements
Can be used as a ruler with running mm/cm scale on both sides
Robust, dimensionally stable legs with reinforcing ribs

Technical specifications

Display: High-contrast LCD display for simple numerical reading Power supply 1 x 3 V CR2032 button cell

Product type: Goniometer

Side A: 500 mm

Side B: 500 mm

Angle setting (max.): 270°

Accuracy: ± 0.3°

Material: Aluminium

Material properties: anodised

Length: 500 mm

Width: 55 mm

Depth: 25 mm

Dim: (L x W) 500 mm x 55 mm

Weight: 230 g

: Manufacturer's standards (no certificate)

Type: WMD 500

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3819491 Sola WMD 500 56052401 Goniometer 500 x 500 mm 270 °

User & Safety Instructions

User & Safety Instructions 3819491 Sola WMD 500 56052401 Goniometer 500 x 500 mm 270 °

Description

The digital protractor for precise measurement results at the push of a button.
A digital angle gauge - also known as a digital bevel - combines the functions of an adjustable angle and a ruler in an electronic measurement tool. Unlike conventional angle gauges, which have a scale and a moving display to display the angle, a digital angle gauge has an LCD display that numerically shows the angle measured.
