Name: Sola WMD 200 56052301 Goniometer 200 x 200 mm 270 °
Brand: Sola
SKU: 3819490
Availability: InStock

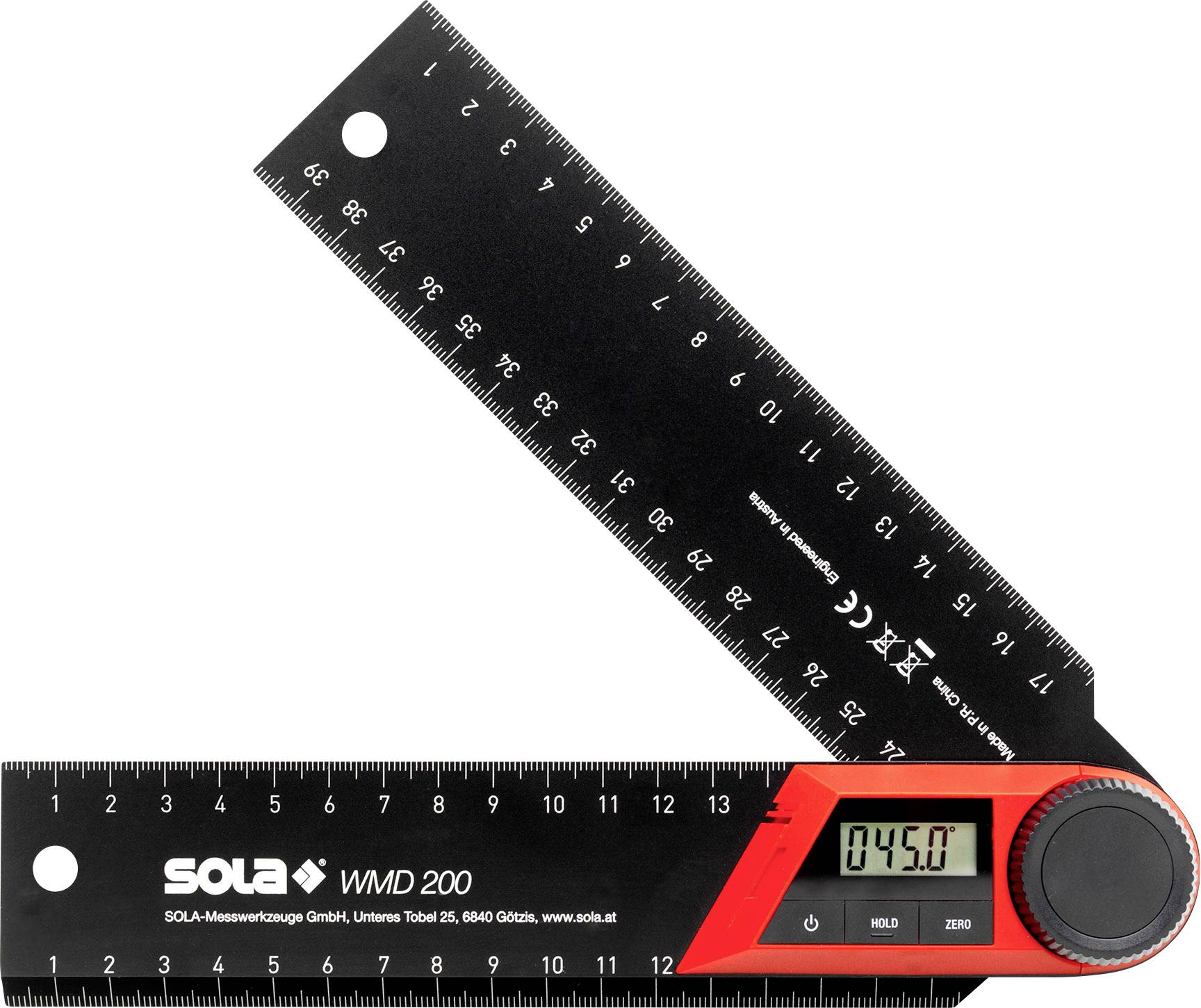

Black Sola WMD 200 digital angle gauge and ruler showing 45.0 degrees, with a large rotary dial on the right.

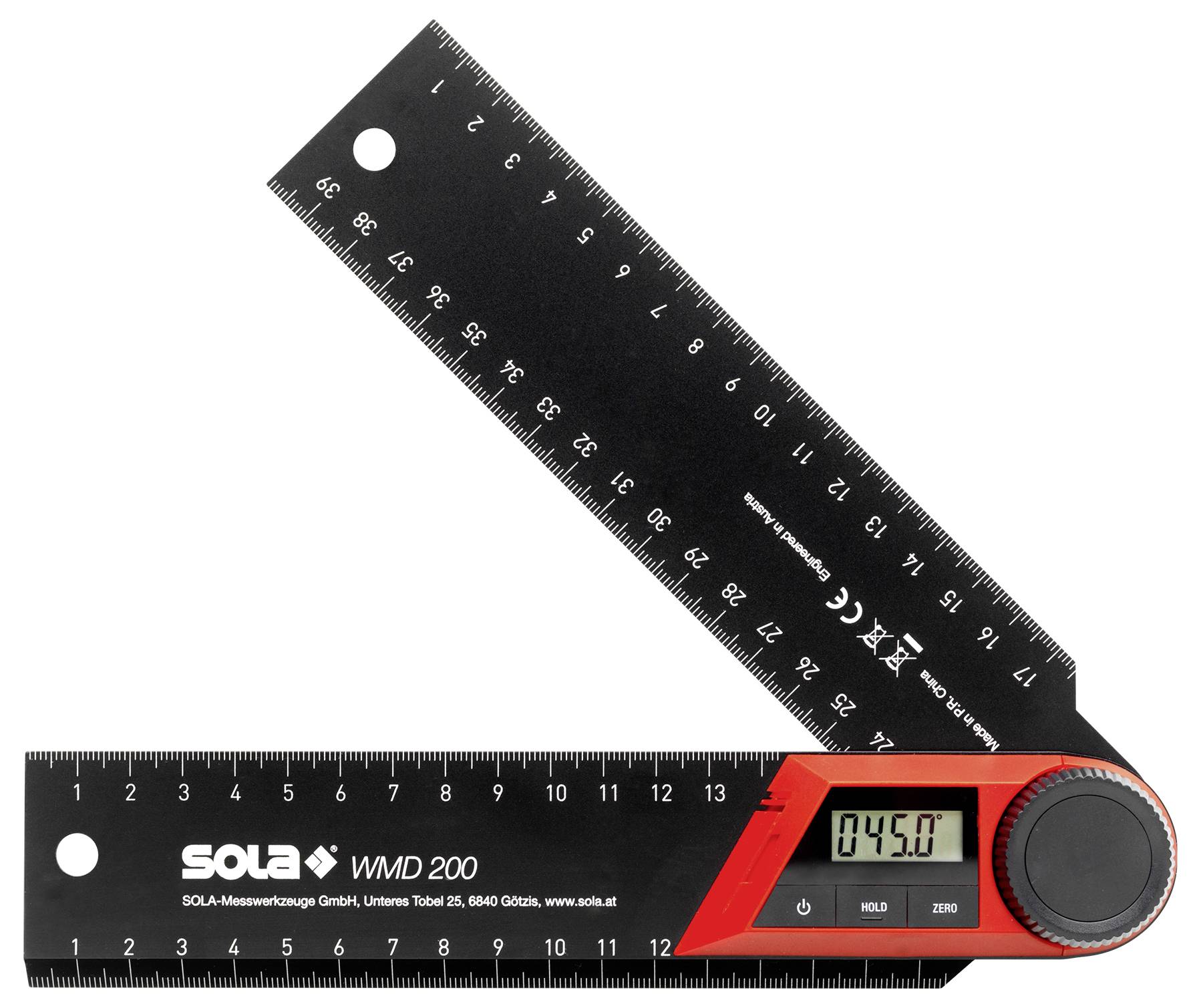

Digital angle finder and ruler showing a 45.0° measurement, with a hinged black ruler arm and red display unit.

Close-up of a person measuring a wood board with a black ruler while a red hand tool rests nearby on a work surface.

1/3

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 4

Total (€ 41.99 / piece)

€ 167.96

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Digital protractor WMD 200

High-contrast LCD display for exact digital angle measurements
HOLD function for storing the measured values and ZERO function for incremental measurements
Manual fixing of the arms for a precise transmission of angle measurements
Integrated stop edge for accurate and reliable measurements
Can be used as a ruler with running mm/cm scale on both sides
Robust, dimensionally stable legs with reinforcing ribs

Technical specifications

Product type: Goniometer

Side A: 200 mm

Side B: 200 mm

Angle setting (max.): 270°

Accuracy: ± 0.3°

Material: Aluminium

Material properties: anodised

Length: 230 mm

Width: 55 mm

Height: 230 mm

Depth: 25 mm

Dim: (L x W x H) 230 x 55 x 230 mm

Weight: 110 g

Calibration service: Display: High-contrast LCD display for simple numerical reading Power supply 1 x 3 V CR2032 button cell

: Manufacturer's standards (no certificate)

Type: WMD 200

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3819490 Sola WMD 200 56052301 Goniometer 200 x 200 mm 270 °

User & Safety Instructions

User & Safety Instructions 3819490 Sola WMD 200 56052301 Goniometer 200 x 200 mm 270 °

Description

The digital protractor for precise measurement results at the push of a button.
A digital angle gauge - also known as a digital bevel - combines the functions of an adjustable angle and a ruler in an electronic measurement tool. Unlike conventional angle gauges, which have a scale and a moving display to display the angle, a digital angle gauge has an LCD display that numerically shows the angle measured.
