Proma 140 017, UV Exposure Unit 60W
EAN:
Part number:
Item no:
Datasheet (PDF)
2 Piece(s)
Sales and shipping:
Number
Total (€ 427.73 / piece)
€
Only 2 Piece(s) available
Technical specifications
- Tubes: 4 x 15 W
- Time setting range: 1 sec.. - 10 Min.
- Land area: 240 x 365 mm
- Power consumption: 60 W
- Length
473 mm
- Width
340 mm
- Height
93 mm
- Dim
(L x W x H) 473 x 340 x 93 mm
- Content
1 pc(s)
- Type
140 017
- Power consumption
60 W
- Product type
UV exposure control
Documents & Downloads
Datasheet
Datasheet 539031 Proma 140 017, UV Exposure Unit 60W
User & Safety Instructions
User & Safety Instructions 539031 Proma 140 017, UV Exposure Unit 60W
Description

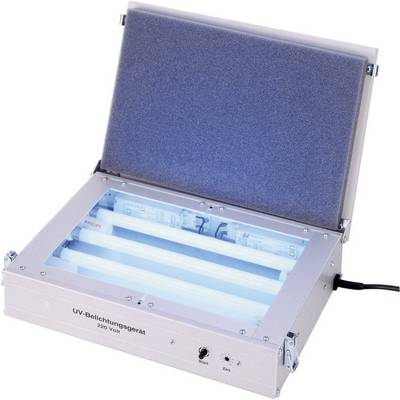

The Proma 140 017, UV Exposure Unit 60W is housed in an anodised aluminium enclosure and features a polished crystal plate and electronics integrated in the base with the UV fluorescent bulbs and a timer. The robust lid with foam bed ensures good, even pressure thanks to its toggle-type fasteners. The four aluminium feeder and adjuster bars around the exposure plate allow single and double sided films to be accurately assembled and the alignment of photo coated circuit boards.
Hints
Please check before purchasing the current safety information for this product in our online shop.
