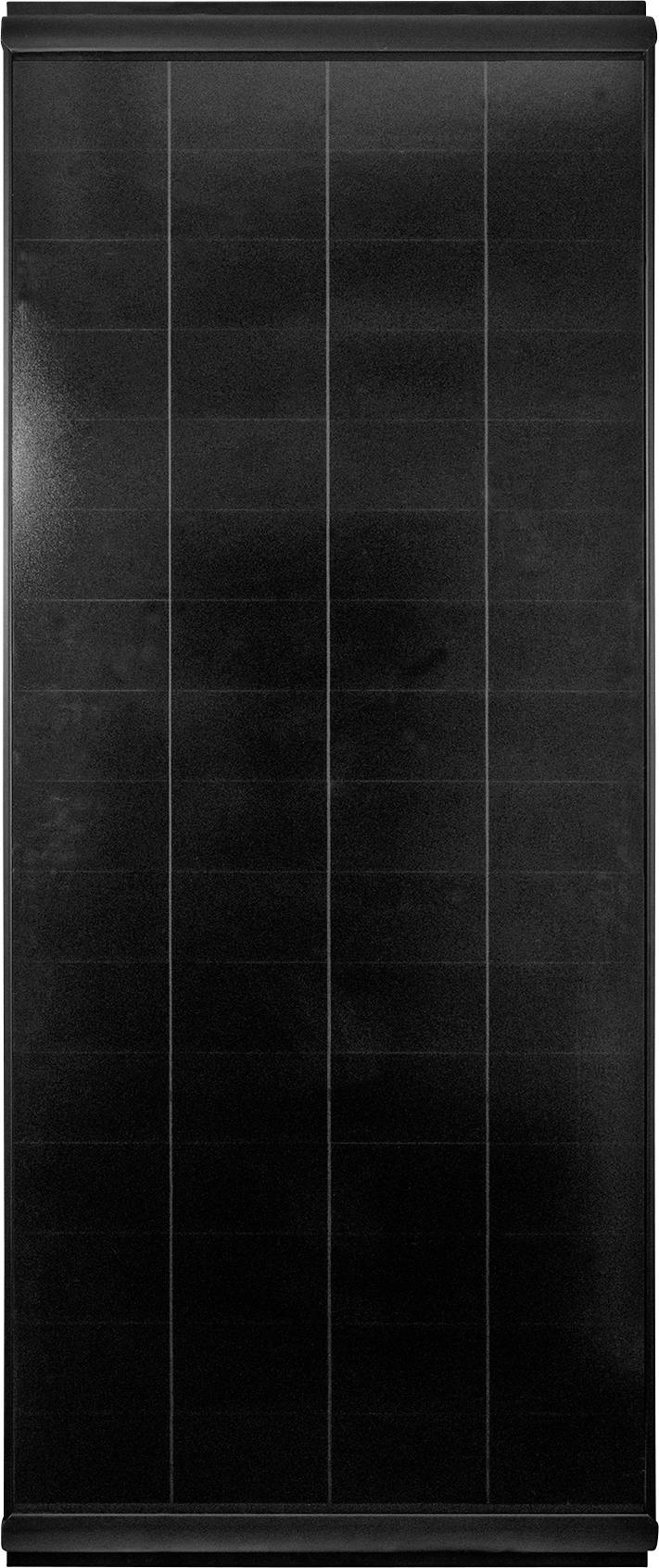

ProUser SP180 Monocrystalline solar panel 180 W 18.24 V
EAN:
Part number:
Item no:
Number
Total (€ 163.86 / piece)
€ 163.86
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Solar Panel 180W SP180
- Mono HPBC solar cells
Technical specifications
- Efficiency of cells: 21%
- Voltage at Pmax (VMP): 18.24V
- Current at Pmax (Imp): 9.87A
- Open circuit voltage (VOC): 230.5V
- Short-circuit current (ISC): 10.69A
- Cell type: 64 (4x16) mono HPBC cells
- Connector distributor socket MC4
- IP Junction box IP67
- Application class A
- Temperature range -40°C to +85°C.
- Product type
Monocrystalline solar panel
180 W
- Nominal voltage
18.24 V
- Dim
(L x W x H) 162 x 670 x 40 mm
- Efficiency
21 %
- Connector
MC-PV-4
Cable
- Weight
13.7 kg
- Cable length
5 m
- Short-circuit current
10.69 A
- Open circuit voltage (OCV)
23.05 V
- Nominal current
9.87 A
- Width
670 mm
- Height
40 mm
- Length
162 mm
- Voltage (max.)
18.24 V
- No. of cells
64
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3323917 ProUser SP180 Monocrystalline solar panel 180 W 18.24 V
Description
The SP180 solar panel is specially designed for your caravan or mobile home. With dimensions 1615 x 670 x 40 mm it fits perfectly on your vehicle and offers you everywhere a high power source of renewable energy.
This text is machine translated.
This text is machine translated.
Scope of delivery
- With 6 bits. Junction box connector (IP67)
- 5 meter cable (4mm²)
- Roof cable bushing
