PTT footswitch Albrecht 42200
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 47.99 / piece)
€ 47.99
incl. VAT
14-day return policy included
Highlights & Details

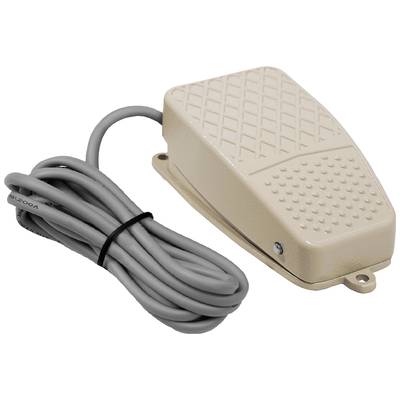

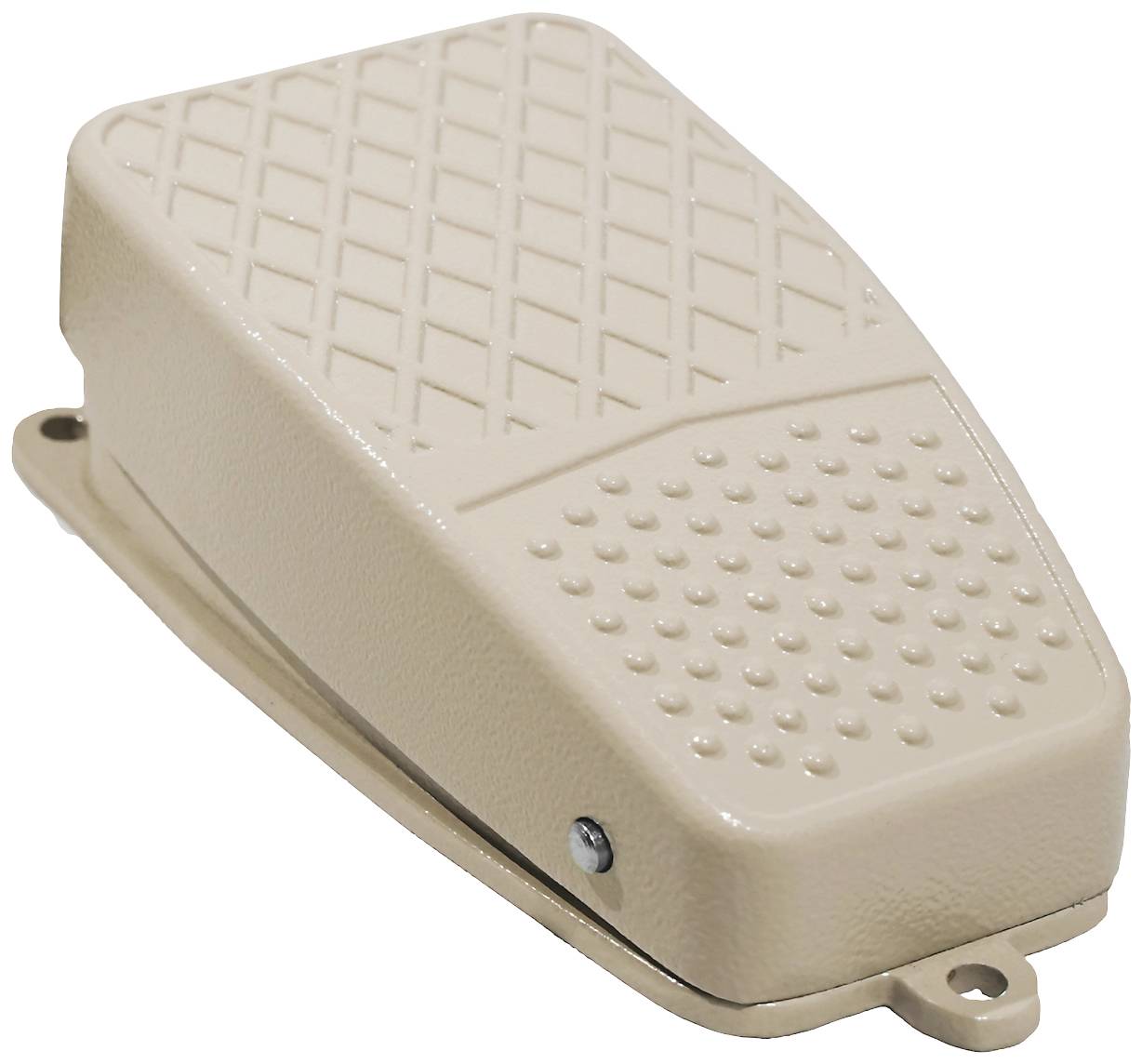

Albrecht PTT foot switch for CB radio
- Hands-free communication possible via PTT-push button in CB-radio
- For 6-pin connectors
- 3 m connection cable
Technical specifications
- Switching capacity 10 A/250 V
- 1 changeover contact button
- Insulation resistance > 100 MΩ
- Contact resistance < 25 mΩ
- Lifetime > 100,000 switching cycles
- Operating temperature -25 to +75 oC
- Product type
PTT footswitch
- Compatible with (details)
6-pin CB radio
- Width
71 mm
- Height
45 mm
- Depth
135 mm
- Dim
(W x H x D) 71 x 45 x 135 mm
Documents & Downloads
Datasheet
Datasheet 3164653 PTT footswitch Albrecht 42200
User & Safety Instructions
User & Safety Instructions 3164653 PTT footswitch Albrecht 42200
Description
PTT foot switch for connection to 6-pin CB radio devices such as the Albrecht AE 6491.

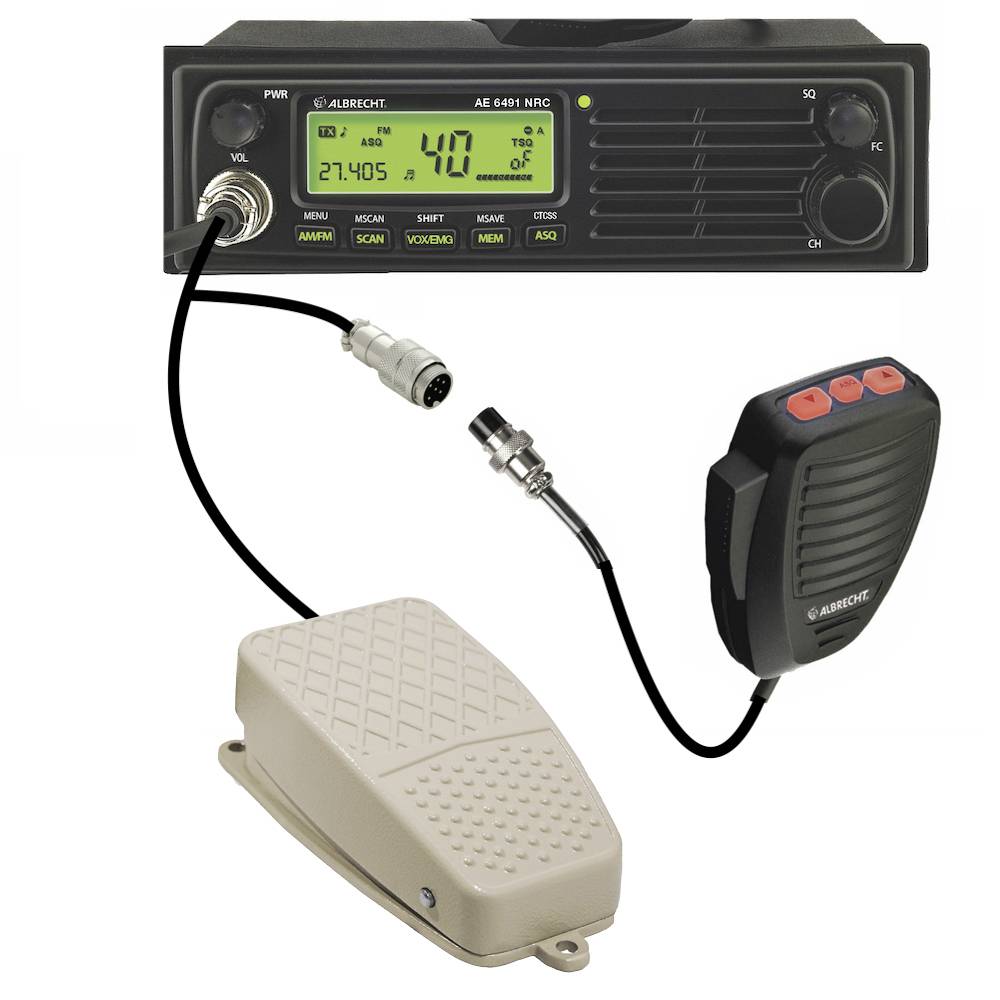

The foot switch is connected directly to the microphone jack of the CB radio. The hand-held microphone is plugged into the connection cable of the foot switch and should be placed near the talking person.
If the foot switch is pressed, it triggers the PTT transmission button (Push-to-Talk) of the microphone. You no longer need to take the hand-held microphone in order to transmit radio signals. Thanks to the 3 m long cable the foot switch can be installed almost everywhere in the vehicle.
Compatible CB-radio sets:
AE6491, AE6199, AE5890, AE6891, AE6790, AE6690, AE5090XL, Midland M20, Alan 48 Pro, Alan 78 Pro, Stabo XM 3003
This text is machine translated.
The foot switch is connected directly to the microphone jack of the CB radio. The hand-held microphone is plugged into the connection cable of the foot switch and should be placed near the talking person.
If the foot switch is pressed, it triggers the PTT transmission button (Push-to-Talk) of the microphone. You no longer need to take the hand-held microphone in order to transmit radio signals. Thanks to the 3 m long cable the foot switch can be installed almost everywhere in the vehicle.
Compatible CB-radio sets:
AE6491, AE6199, AE5890, AE6891, AE6790, AE6690, AE5090XL, Midland M20, Alan 48 Pro, Alan 78 Pro, Stabo XM 3003
This text is machine translated.
Scope of delivery
- 1 PTT foot switch with 3 m long cable
