PV4 socket 2.5-6mm², IP68, 1500V 2800008 Black BKL Electronic Content: 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.92
10
7% = € 0.14
€ 1.78
25
10% = € 0.20
€ 1.72
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.92 / piece)
€ 1.92
plus VAT.
Technical specifications
- Packaging type
Piece
- Type
2800008
- Product type
Photovoltaics connector
IP68
- Connection
Crimp
- Factory colour
Black
- Rated surge voltage
1500 V
- Rated voltage
1500 V DC
- Test current
40 A
- Manufacturer part #
2800008
- Content
1 pc(s)
- Cable Ø (max.)
7.65 mm
- Cable Ø up to
5.30 mm
- Cable Ø range
5.30 - 7.65 mm
- Contact material
Copper silver plated
- RoHS-compliant
Yes
- Connector type
Socket, straight
Documents & Downloads
Datasheet
Datasheet 3208497 PV4 socket 2.5-6mm², IP68, 1500V 2800008 Black BKL Electronic Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3208497 PV4 socket 2.5-6mm², IP68, 1500V 2800008 Black BKL Electronic Content: 1 pc(s)
Description
Photovoltaic plug contact for building your own solar cables.
PV4, also known as the MC4 (Multi Contact) brand, are the
Standard connector for photovoltaic systems.
This text is machine translated.
PV4, also known as the MC4 (Multi Contact) brand, are the
Standard connector for photovoltaic systems.
This text is machine translated.

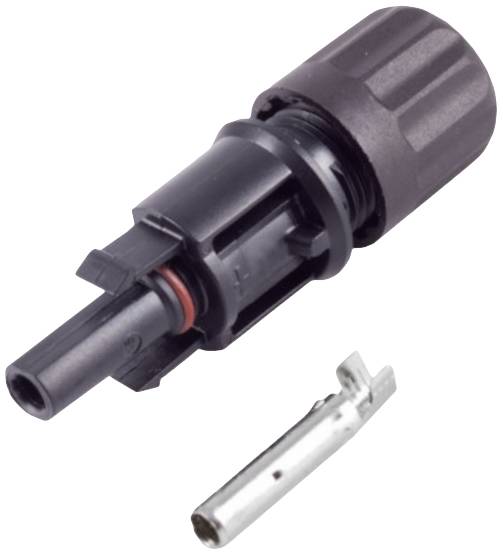

Scope of delivery
- 1x PV4 plug connector, socket
- 1x pin connector for PV4 socket
Hints
CAUTION!
Never work on cables or plugs that are live.
