Name: Quadrios 1905CA055 Heatshrink set Black Shrinkage:2:1 800 pc(s)
Brand: Quadrios
SKU: 2705910
Availability: InStock

'Set of heat shrink tubes 2:1, 800 pieces in various sizes. Includes table with specifications and illustration of a tube.'

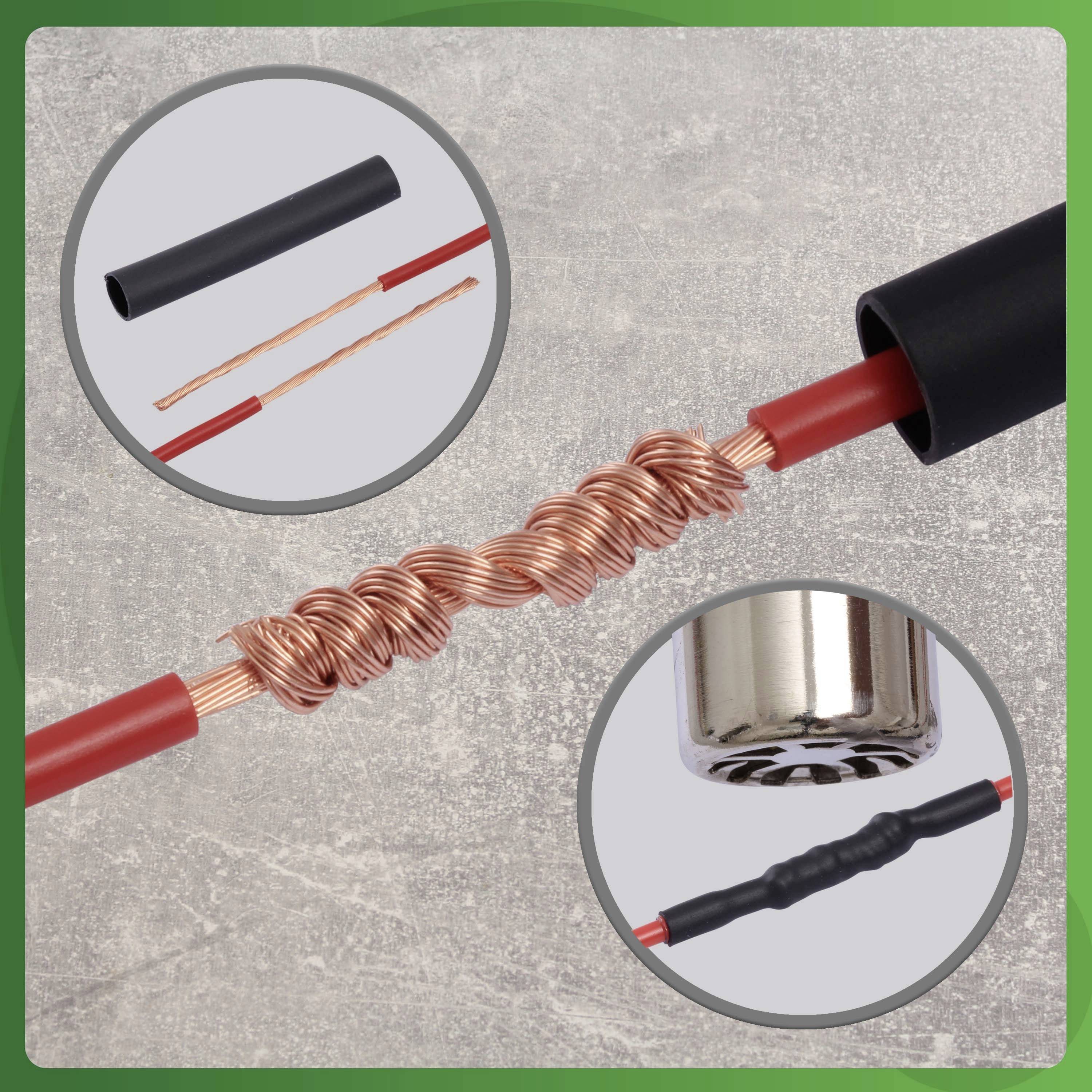

Close-up of wires: Two wire ends are twisted together and then encased in heat-shrink tubing.

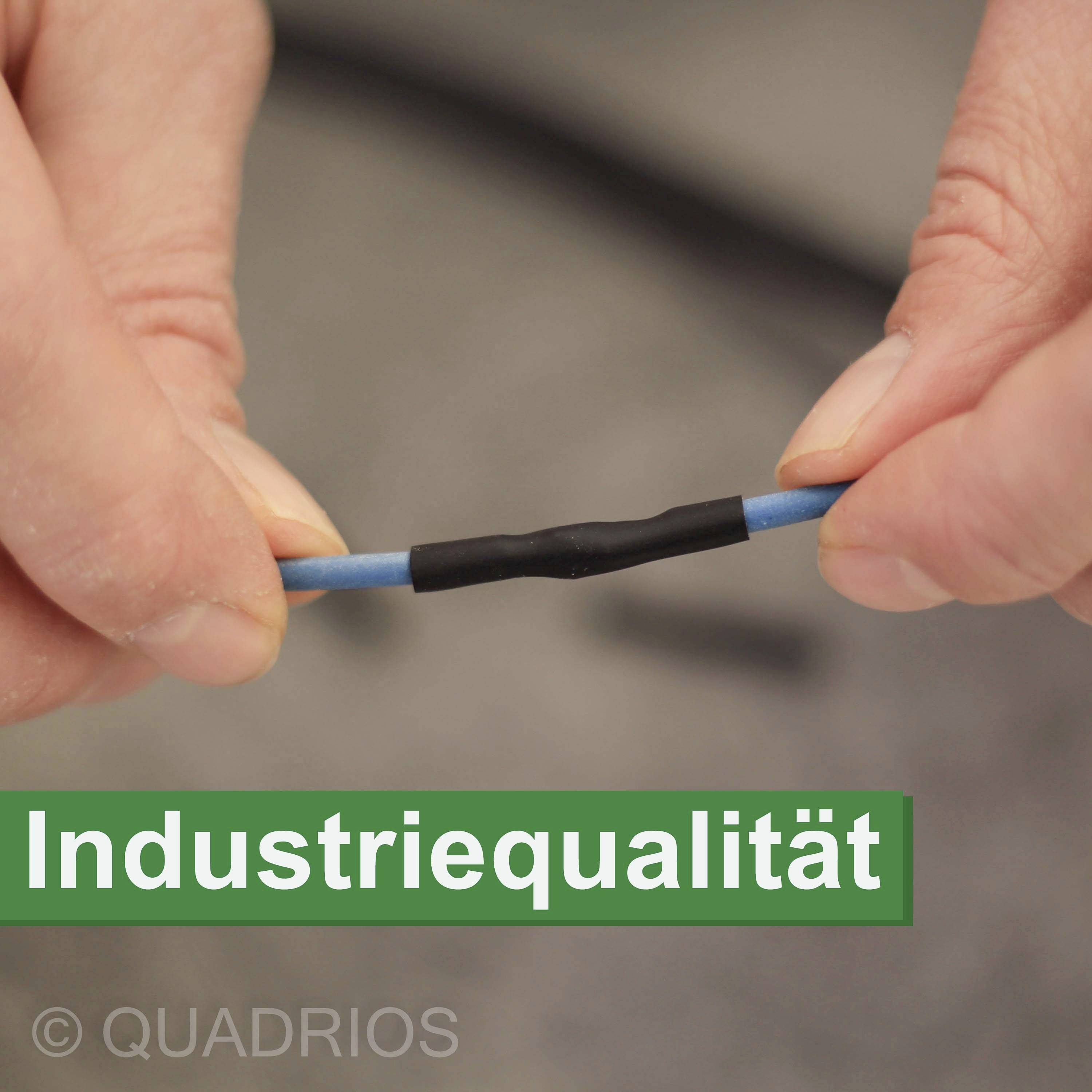

A person is holding a cable piece covered in black heat-shrink tubing. Underneath it reads 'Industrial Quality'.

'Bar chart shows diameter in mm (1.5-12.0) and quantity in pieces (25-300). Smallest quantity at 6.0 mm, largest at 2.5 mm.'

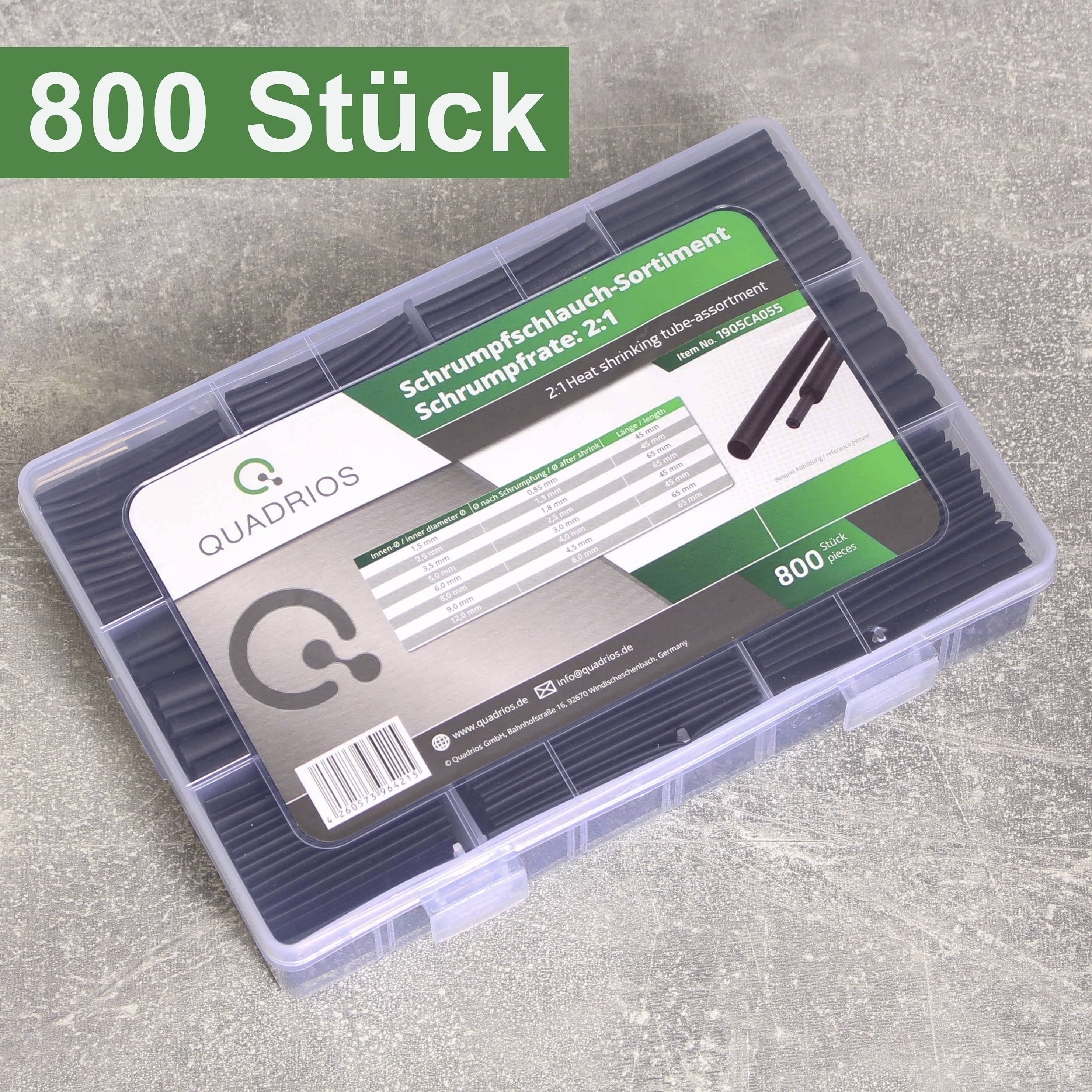

'Heat shrink tube assortment, 800 pieces' in a transparent plastic box with a green label.

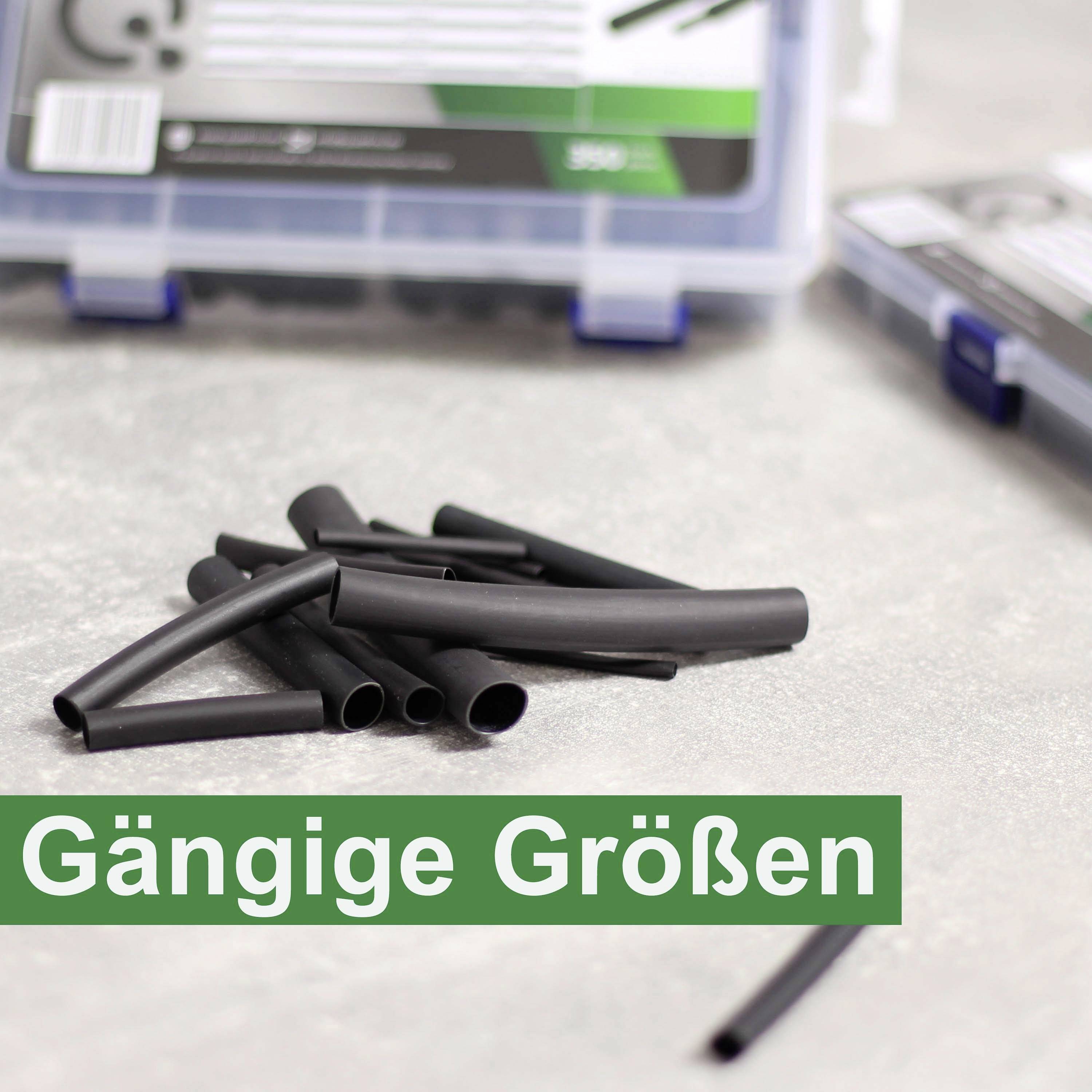

Black heat-shrink tubes in various sizes are lying on a table. In the background, an opened box with similar tubes.

1/6

Product type

Heatshrink set

Heatshrink features

Abrasion resistance

Content

800 pc(s)

Factory colour

Black

Shrinkage

2:1

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

61 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 800 pc(s))

Set(s)

Total (€ 15.99 / piece)

€ 15.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Shrink hose set assortment 800 pcs. Industrial quality 2:1

800 pc(s)
Shrinkage: 2:1
Black

Technical specifications

Product type: Heatshrink set

Factory colour: Black

Shrinkage: 2:1

Heatshrink features: Abrasion resistance

Content: 800 pc(s)

Material: PE

Shrink temperature (min.): 70 °C

Shrink temperature (max.): 110 °C

Min. temperature: -40 °C

Max. temperature: 125 °C

Manufacturer part #: 1905CA055

Halogen-free: Yes

Type: 1905CA055

Documents & Downloads

Datasheet

Datasheet 2705910 Quadrios 1905CA055 Heatshrink set Black Shrinkage:2:1 800 pc(s)

User & Safety Instructions

User & Safety Instructions 2705910 Quadrios 1905CA055 Heatshrink set Black Shrinkage:2:1 800 pc(s)

Description

You can expect a large 800-piece premium heat-shrink tubing assortment with black heat-shrink sleeves for a range of applications. Whether electronics, home, workshop, field service or hobby - by the extensive selection one always has the suitable shrink hose section ready. Whether it's repair, insulation, protective coating, as protection against damage, corrosion, As well as friction, the PE shrink tubes are mechanically very resistant and have a high insulation effect. Material: PE, shrink temperature: 70 °C ... 110 °C, operating temperature: -40 °C ... 125 °C, flammability class VW-1, tensile strength (min.): 10.4 MPa, dielectric strength 1.5 kV/mm (30 sec.), industrial quality.

This text is machine translated.

Scope of delivery

300 pieces - Ø 1.5 mm - length - 45 mm, black 220 pieces - Ø 2.5 mm - length - 45 mm, black 60 pieces - Ø 3.5 mm - length - 65 mm, black 30 pieces - Ø 5 mm - length - 65 mm, black 25 pieces - Ø 6 mm - length - 45 mm, black 55 pieces - Ø 8 mm - length - 45 mm, black 55 pieces - Ø 9 mm - length - 65 mm, black 55 pieces - Ø 12 mm - length - 65 mm, black
