Name: Quadrios 22C464 Butt joint + heatshrink 4.0 mm² 6.0 mm² Insulated Yellow 1 Set
Brand: Quadrios
SKU: 2620418
Availability: InStock

'50x Heat shrink connectors, suitable for cables with cross-section 4-6mm². Product name: QUADRIOS, Item number 22C464.'

Four transparent splice connectors with yellow and black rings, used for connecting cables.

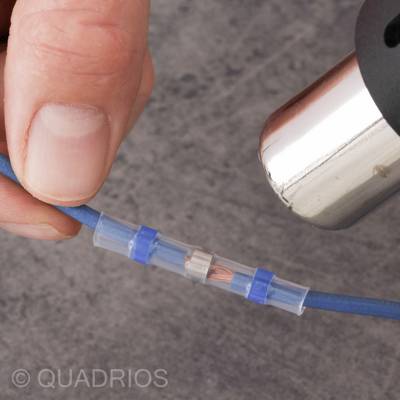

A hand is holding a blue power cable with bare copper wires, which are being connected with blue connectors. A metal tool is visible in the background.

'A solderless connection for cable repair, with a blue heat-shrink sleeve, is being held by two hands against a grey background.'

A blue pipe section connected by a transparent flexible coupling, against a blurred grey background, demonstrates a connection technology.

1/5

Product type

Butt joint

Insulation type

Insulated

Length

40 mm

Content

1 Set

max. cross section

6.0 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

26 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (€ 11.99 / piece)

€ 11.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Solder-piece set connector 4…6 mm² yellow 50 pieces set

Water resistantShrink ratio 2:1

Our service for you

Technical specifications

Product type: Butt joint

Factory colour: Yellow

Insulation type: Insulated

Length: 40 mm

Content: 1 Set

Manufacturer part #: 22C464

Type: 22C464

max. cross section: 6.0 mm²

Min. cross section: 4.0 mm²

Dim: (Ø x L) 6.0 mm x 40 mm

Cross-section range: 4.0 - 6.0 mm²

RoHS-compliant: Yes

Features: + heatshrink

Temperature range: Melt-temperature solder: 160 °C Operating temperature range -55 - +125 °C

(Ø): 6.0 mm

Shrinkage: 2:1

Voltage (max.): 600 V

Variants(All information include VAT, plus shipping costs)

Content

Factory colour

Insulation type

Length

max. cross section

Min. cross section

Quadrios 22C464 Butt joint + heatshrink 4.0 mm² 6.0 mm² Insulated Yellow 1 Set

Item no:2620418

Fast track dispatch on Thu 29 Oct

26 Set(s)Conrad Electronic

This article

1 Set

Yellow

Insulated

40 mm

6.0 mm²

4.0 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11.99^*

Quadrios 2011C397 Butt joint + heatshrink 0.3 mm² 6 mm² Insulated White, Red, Blue, Black, Yellow 340 pc(s)

Item no:2380645

Fast track dispatch on Thu 29 Oct

81 Piece(s)Conrad Electronic

340 pc(s)

White

Insulated

42 mm

6 mm²

0.3 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 37.99^*

Quadrios 22C461 Butt joint + heatshrink 0.25 mm² 0.34 mm² Insulated White 1 Set

Item no:2620415

Fast track dispatch on Thu 29 Oct

27 Set(s)Conrad Electronic

1 Set

White

Insulated

26 mm

0.34 mm²

0.25 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11.99^*

Quadrios 22C462 Butt joint + heatshrink 0.5 mm² 1.0 mm² Insulated Red 1 Set

Item no:2620416

Fast track dispatch on Thu 29 Oct

74 Set(s)Conrad Electronic

1 Set

Red

Insulated

40 mm

1.0 mm²

0.5 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11.99^*

Quadrios 22C463 Butt joint + heatshrink 1.5 mm² 2.5 mm² Insulated Blue 1 Set

Item no:2620417

Fast track dispatch on Thu 29 Oct

37 Set(s)Conrad Electronic

1 Set

Blue

Insulated

40 mm

2.5 mm²

1.5 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11.99^*

Quadrios 22C465 Butt joint + heatshrink 4 mm² 6 mm² Insulated Yellow 1 Set

Item no:2620414

Fast track dispatch on Thu 29 Oct

15 Set(s)Conrad Electronic

1 Set

Yellow

Insulated

42 mm

6 mm²

4 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 20.99^*

Quadrios 22C466 Butt joint + heatshrink 1.5 mm² 2.5 mm² Insulated Blue 1 Set

Item no:2620412

Fast track dispatch on Thu 29 Oct

24 Set(s)Conrad Electronic

1 Set

Blue

Insulated

37 mm

2.5 mm²

1.5 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 20.99^*

Quadrios 22C467 Butt joint + heatshrink 0.5 mm² 1.5 mm² Insulated Red 1 Set

Item no:2620411

Available soon

Conrad Electronic

1 Set

Red

Insulated

36 mm

1.5 mm²

0.5 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 20.99^*

Quadrios 22C468 Butt joint + heatshrink 2.5 mm² 4 mm² Insulated Black 1 Set

Item no:2620413

Fast track dispatch on Thu 29 Oct

22 Set(s)Conrad Electronic

1 Set

Black

Insulated

38 mm

4 mm²

2.5 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 20.99^*

Quadrios 22C469 Butt joint + heatshrink 0.3 mm² 0.5 mm² Insulated White 1 Set

Item no:2620410

Fast track dispatch on Thu 29 Oct

25 Set(s)Conrad Electronic

1 Set

White

Insulated

26 mm

0.5 mm²

0.3 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 20.99^*

Documents & Downloads

Datasheet

Datasheet 2620418 Quadrios 22C464 Butt joint + heatshrink 4.0 mm² 6.0 mm² Insulated Yellow 1 Set

User & Safety Instructions

User & Safety Instructions 2620418 Quadrios 22C464 Butt joint + heatshrink 4.0 mm² 6.0 mm² Insulated Yellow 1 Set

Description

The hot-melting inner adhesive seals watertight when the overlap is correct - the soldering ring connects the two conductors during the shrinking and melting process! The advantage of the transparent design is that you can see the wrapped object. The application is very simple: Strip the cable and insert it into the plug on both sides until the stripped cable ends overlap or twist under the soldering ring. Even heating in the melting temperature on the solder until it is melted - preferably with a hot air gun or a hot air blower - ready. The maximum current is limited by the conductor cross-section of the cable used, its conductor material and the quality of the solder joint.
