Quadrios 23T045 Ferrule set 0.5 mm², 0.75 mm², 1 mm², 1.5 mm², 2.5 mm², 4 mm², 6 mm², 10 mm² Partially insulated 1 Set

This wire-end sleeve set is especially suitable for hobbyists, professionals, field service, service workshops, electronics and laboratory use. The tried and tested accompanying sleeve pliers are optimally adjusted to a wide range of applications and are therefore very flexible in use.

The crimping pliers for wire-end sleeves are automatically adjusted to the sleeve diameters in a wide range of applications between 0.25 and 10 mm² conductor cross-section of the wire – with every new crimping procedure. The square clamp provides a secure contact with a strong joint and a consistently high quality during the crimping process. The automatic press mechanism is optimally calibrated at the factory, but can be fine-tuned to individual requirements. The ergonomic grip lies well in the hand and allows a good "grip". The pliers have a quick-locking safety lock and a low weight of only 363 g for fatigue-free working.
The assortment box with wire-end sleeves is filled and well tidied up – this means you don't have to find annoying searches or the option of not having the necessary size at hand! The material is tinned copper, the insulated wire-end sleeves have a vinyl-plastic collar (DE-color code). The test voltage is 600 V, the temperature resistance of the casing corresponds to 120°C, the protective collar is approved up to 75 °C. All parts are RoHS and REACH compliant.

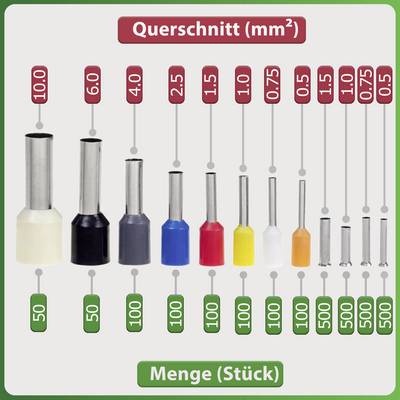

Delivery scope
• 1x automatic crimping tool with square press claw
• 100 x 0.5 mm² x 8 mm, protective collar orange
• 100 x 0.75 mm² x 8 mm, protective collar white
• 100 x 1.0 mm² x 8 mm, protective collar yellow
• 100 x 1.5 mm² x 8 mm, protective collar red
• 100 x 2.5 mm² x 8 mm, protective collar blue
• 100 x 4.0 mm² x 9 mm, protective collar gray
• 50 x 6.0 mm² x 12 mm, protective collar black
• 50 x 10 mm² x 12 mm, protective collar ivory

This text is machine translated.
