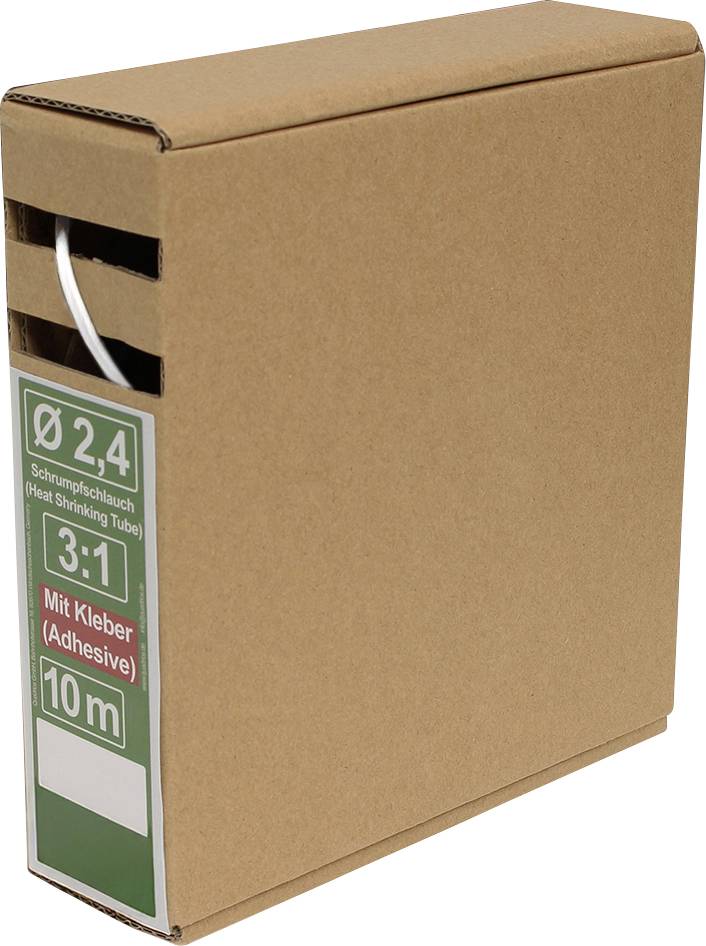

Quadrios 25CA485 Heatshrink + adhesive White 2.4 mm 0.8 mm Shrinkage:3:1 10 m
EAN:
Part number:
Item no:
Product type
Heatshrink + adhesive
Nominal inside diameter (pre-shrinkage)
2.4 mm
Nominal diameter (post-shrinkage)
0.8 mm
Heatshrink features
Dispenser
Content
10 m
Datasheet (PDF)
Quantity (Set(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 1.26
€ 12.60
3
1 M = € 1.19
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 1.26)
€ 12.60
plus VAT.
Only 3 Set(s) available
Highlights & Details
Shrink tubing white ⌀ 2.4 mm 3:1 with adhesive 10 m
- 10 m
- Shrinkage: 3:1
- White
- Nominal inside diameter (pre-shrinkage): 2.4 mm
Technical specifications
- Product type
Heatshrink + adhesive
- Nominal inside diameter (pre-shrinkage)
2.4 mm
- Nominal diameter (post-shrinkage)
0.8 mm
- Factory colour
White
- Shrinkage
3:1
- Heatshrink features
Dispenser
- Content
10 m
- Material
PE
- Shrink temperature (min.)
90 °C
- Shrink temperature (max.)
125 °C
- Min. temperature
-40 °C
- Max. temperature
+125 °C
- Manufacturer part #
25CA485
- Halogen-free
Yes
- Type
25CA485
Documents & Downloads
Datasheet
Datasheet 3449988 Quadrios 25CA485 Heatshrink + adhesive White 2.4 mm 0.8 mm Shrinkage:3:1 10 m
User & Safety Instructions
User & Safety Instructions 3449988 Quadrios 25CA485 Heatshrink + adhesive White 2.4 mm 0.8 mm Shrinkage:3:1 10 m
Description
These high-quality heat shrink tubing is ideal for service workshops, electronics enthusiasts and laboratory use. In a dispenser box the white shrink tube is located respectively at the piece and can be shortened individually in different nominal diameters. With hot-melting inner adhesive: With correct overlap and application water-proof!
Material: PE, shrink temperature (min.): 90 °C, shrink temperature (max.): 125 °C, operating temperature: -40 °C to +125 °C, tensile strength (min.): 10.4 MPa, dielectric strength 15 kV/mm (30 sec.), industrial quality. All hoses fulfill RoHS guidelines and are lead-free and halogen-free.
This text is machine translated.
Material: PE, shrink temperature (min.): 90 °C, shrink temperature (max.): 125 °C, operating temperature: -40 °C to +125 °C, tensile strength (min.): 10.4 MPa, dielectric strength 15 kV/mm (30 sec.), industrial quality. All hoses fulfill RoHS guidelines and are lead-free and halogen-free.
This text is machine translated.
Scope of delivery
- 10 m Shrink hose ⌀ 2.4 mm 3:1 with adhesive
