Buy Quadrios 26CA816 Heatshrink + adhesive White Shrinkage:3:1 20 m | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

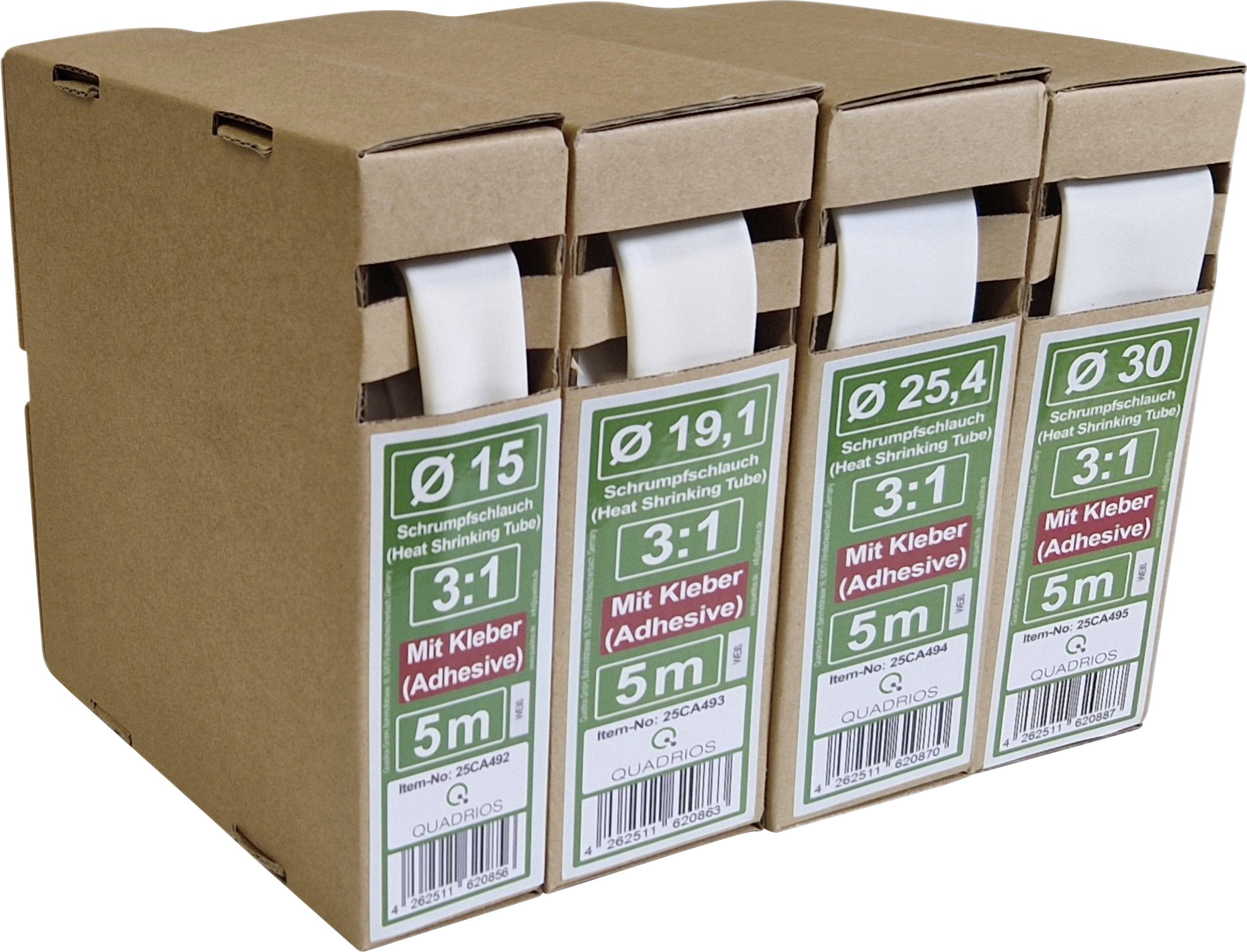

Cardboard display box containing four shrink tubing rolls with green labels showing sizes Ø 15, Ø 19.1, Ø 25.4, and Ø 30, each marked 'Mit Kleber (Adhesive)' and '5 m'.

Cardboard display box containing four shrink tubing rolls with green labels showing sizes Ø 15, Ø 19.1, Ø 25.4, and Ø 30, each marked 'Mit Kleber (Adhesive)' and '5 m'.

Quadrios

Product type

Heatshrink + adhesive

Heatshrink features

Dispenser

Content

20 m

Factory colour

White

Shrinkage

3:1

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (1 m = € 5.75)

€ 114.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Heat shrink hose Mega Set white 15 - 30 mm 20 m

20 m
Shrinkage: 3:1
White

Technical specifications

Nominal diameter (before shrinking) 15 mm; 19.1 mm; 25.4 mm; 30 mm
Nominal diameter (after shrinking) 5 mm; 6.4 mm; 8.5 mm; 10 mm

Product type: Heatshrink + adhesive

Factory colour: White

Shrinkage: 3:1

Heatshrink features: Dispenser

Content: 20 m

Material: PE

Shrink temperature (min.): 90 °C

Shrink temperature (max.): 125 °C

Min. temperature: -40 °C

Max. temperature: 125 °C

Manufacturer part #: 26CA816

Halogen-free: Yes

Type: 26CA816

Documents & Downloads

Datasheet

Datasheet 3841272 Quadrios 26CA816 Heatshrink + adhesive White Shrinkage:3:1 20 m

User & Safety Instructions

User & Safety Instructions 3841272 Quadrios 26CA816 Heatshrink + adhesive White Shrinkage:3:1 20 m

Description

These high-quality heat shrink tubing is ideal for service workshops, electronics enthusiasts and laboratory use. The cardboard dispenser boxes contain the shrink tubes each at a piece and can be individually shortened in various nominal diameters. With hot-melting inner adhesive: With correct overlap and application water-proof!
Material: PE, shrink temperature (min.): 90 °C, shrink temperature (max.): 125 °C, operating temperature: -40 °C to +125 °C, tensile strength (min.): 10.4 MPa, dielectric strength 15 kV/mm (30 sec.), industrial quality. All hoses fulfill RoHS guidelines and are lead-free and halogen-free.

This text is machine translated.

Scope of delivery

5 m heat-shrink tubing white 15 mm shrink ratio 3:1
5 m heat-shrink tubing white 19.1 mm shrink ratio 3:1
5 m heat-shrink tubing white 25.4 mm shrink ratio 3:1
5 m heat-shrink tubing white 30 mm shrink ratio 3:1

Description

These high-quality heat shrink tubing is ideal for service workshops, electronics enthusiasts and laboratory use. The cardboard dispenser boxes contain the shrink tubes each at a piece and can be individually shortened in various nominal diameters. With hot-melting inner adhesive: With correct overlap and application water-proof!
Material: PE, shrink temperature (min.): 90 °C, shrink temperature (max.): 125 °C, operating temperature: -40 °C to +125 °C, tensile strength (min.): 10.4 MPa, dielectric strength 15 kV/mm (30 sec.), industrial quality. All hoses fulfill RoHS guidelines and are lead-free and halogen-free.

This text is machine translated.

Scope of delivery

5 m heat-shrink tubing white 15 mm shrink ratio 3:1
5 m heat-shrink tubing white 19.1 mm shrink ratio 3:1
5 m heat-shrink tubing white 25.4 mm shrink ratio 3:1
5 m heat-shrink tubing white 30 mm shrink ratio 3:1
