Raspberry Pi® RP-1B+ Raspberry Pi® B+ 512 MB 4 x 0.7 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
Highlights & Details

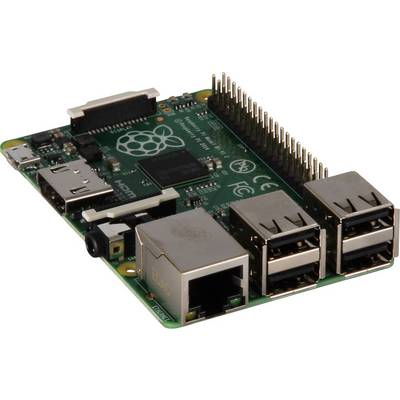

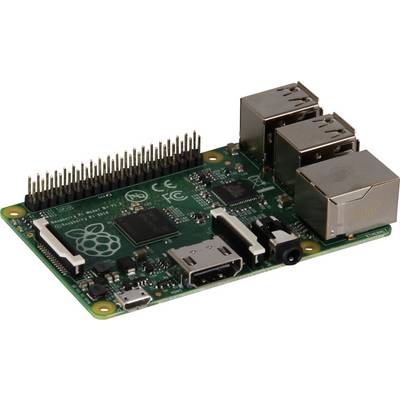

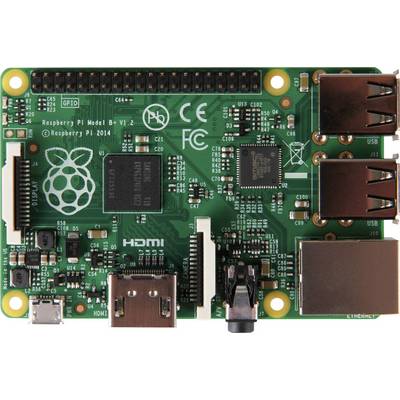

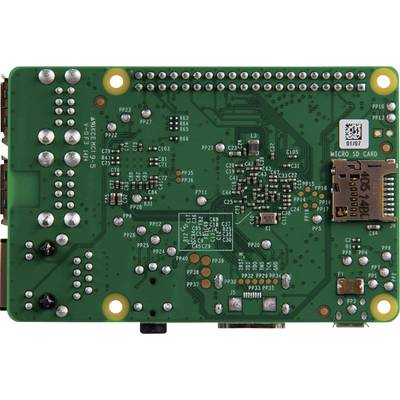

Raspberry Pi® Model B+
- Revised + version offers more interfaces and higher energy efficiency
- Wide range of uses: mini PC, server, controller
- Processor, RAM, graphics already integrated
- Fast networking via RJ45 LAN connection
- USB and HDMI™ connections
- Versatile and expandable
Technical specifications
- Product type
SBC
- Type
Raspberry Pi® B+
- SoC
Broadcom BCM2836
- Processor
ARM Cortex-A7
- Processor cores (No.)
4 x
- GPU
Broadcom Video Core IV
512 MB
- Clock speed
0.7 GHz
- Memory type
DDR2
- Operating system (Version)
w/o OS
- Internal ports
CSI (camera)
DSI (display)
GPIO (40-pin)
- External ports
4x USB 2.0
LAN (10/100)
3.5 mm jack
HDMI™
micro SD
micro USB (current)
- Wi-Fi
no
- Power supply (LOV)
via USB
- Output voltage
5 V DC
- Output current
2 A
- Length
85 mm
- Width
56 mm
- Height
17 mm
- CPU
ARM1176JZFS (1x 700 MHz)
Documents & Downloads
Datasheet
Datasheet 1227449 Raspberry Pi® RP-1B+ Raspberry Pi® B+ 512 MB 4 x 0.7 GHz
User & Safety Instructions
User & Safety Instructions 1227449 Raspberry Pi® RP-1B+ Raspberry Pi® B+ 512 MB 4 x 0.7 GHz
Conformity certificate
Conformity certificate 1227449 Raspberry Pi® RP-1B+ Raspberry Pi® B+ 512 MB 4 x 0.7 GHz
Description
The Model B+ is the final revision of the original Raspberry Pi. It replaced the Model B in July 2014 and was superseded by the Raspberry Pi 2 Model B in February 2015. Compared to the Model B it has:
· More GPIO. The GPIO header has grown to 40 pins, while retaining the same pinout for the first 26 pins as the Model A and B.
· More USB. We now have 4 USB 2.0 ports, compared to 2 on the Model B, and better hotplug and overcurrent behaviour.
· Micro SD. The old friction-fit SD card socket has been replaced with a much nicer push-push micro SD version.
· Lower power consumption. By replacing linear regulators with switching ones we’ve reduced power consumption by between 0.5W and 1W.
· Better audio. The audio circuit incorporates a dedicated low-noise power supply.
· Neater form factor. We’ve aligned the USB connectors with the board edge, moved composite video onto the 3.5mm jack, and added four squarely-placed mounting holes.
The Model B+ is perfectly suitable for use in schools: it offers more flexibility for learners than the leaner Model A or A+, which are more useful for embedded projects and projects which require very low power, and has more USB ports than the Model B.
· More GPIO. The GPIO header has grown to 40 pins, while retaining the same pinout for the first 26 pins as the Model A and B.
· More USB. We now have 4 USB 2.0 ports, compared to 2 on the Model B, and better hotplug and overcurrent behaviour.
· Micro SD. The old friction-fit SD card socket has been replaced with a much nicer push-push micro SD version.
· Lower power consumption. By replacing linear regulators with switching ones we’ve reduced power consumption by between 0.5W and 1W.
· Better audio. The audio circuit incorporates a dedicated low-noise power supply.
· Neater form factor. We’ve aligned the USB connectors with the board edge, moved composite video onto the 3.5mm jack, and added four squarely-placed mounting holes.
The Model B+ is perfectly suitable for use in schools: it offers more flexibility for learners than the leaner Model A or A+, which are more useful for embedded projects and projects which require very low power, and has more USB ports than the Model B.
Features
- Broadcom BCM2835 Motherboard
- ARM1176JZF-S processor 700 MHz
- Broadcom VideoCore 4 graphics card with OpenGL ES 2.0, 1080p30 h.264/ MPEG-4 AVC high-profile decoder
- 512 MB RAM
- Video outputs: HDMI™
- Audio outputs: 3.5 mm jack, HDMI
- Onboard micro-SD card slot
- Onboard RJ45 (10/100 Ethernet)
- Data storage via microSD card slot
- 4x USB 2.0
