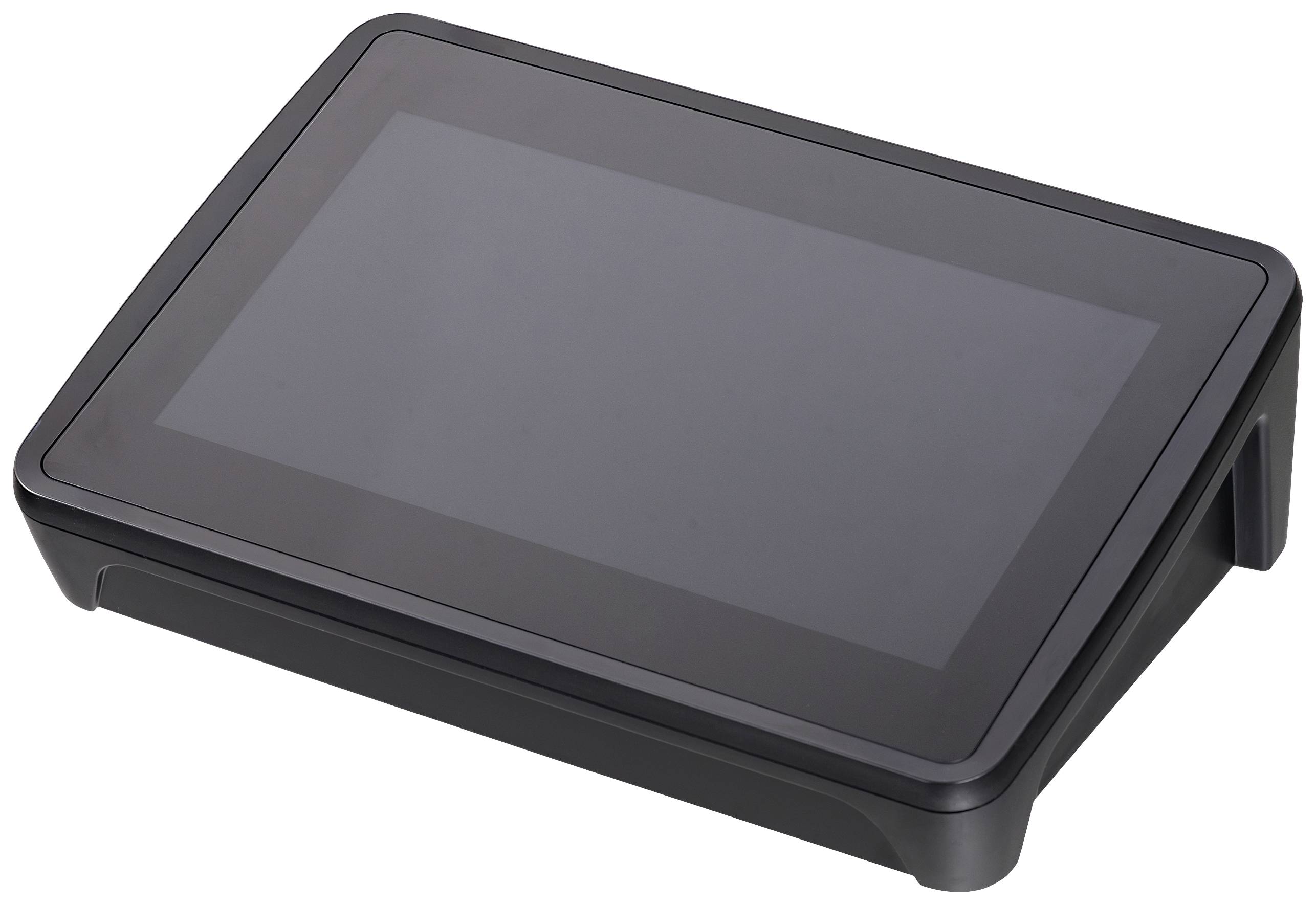

Bopla BoPad BOP 10.1 P-9005 Touchscreen monitor 25.7 cm (10.1 inch) 1024 x 600 Pixel Backlighting
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 197.47 / piece)
€ 197.47
plus VAT.
Highlights & Details
BoPad 10.1 HDMI Starter Kit
- 10.1" display TFT LCD 16:9
- Technology: A-SI TFT active matrix
- RGB interface
- WSVGA 1024 x (RGB) x 600 pixels
- Backlight: LED 900 cd/m²
- Operating temperature range: -10 °C to 60 °C
Technical specifications
- Housing material: ABS plastic.
- Colour: Black, similar to RAL 9005
- Internal product dimensions (L x W x H) 249.30 x 161.80 x 44.30 mm
- Temperature resistance --10°C to +60°C.
- Backlight: LED 900 cd/m²
- RGB interface
- Product type
Display
- Display technology
LCD
- Display (cm)
25.7 cm
- Screen size diagonal (inches)
10.1 inch
- Display resolution
1024 x 600 Pixel
- Features
Backlighting
- Length
285 mm
- Width
198 mm
- Height
92.90 mm
Documents & Downloads
Datasheet
Datasheet 3196339 Bopla BoPad BOP 10.1 P-9005 Touchscreen monitor 25.7 cm (10.1 inch) 1024 x 600 Pixel Backlighting
User & Safety Instructions
User & Safety Instructions 3196339 Bopla BoPad BOP 10.1 P-9005 Touchscreen monitor 25.7 cm (10.1 inch) 1024 x 600 Pixel Backlighting
Description

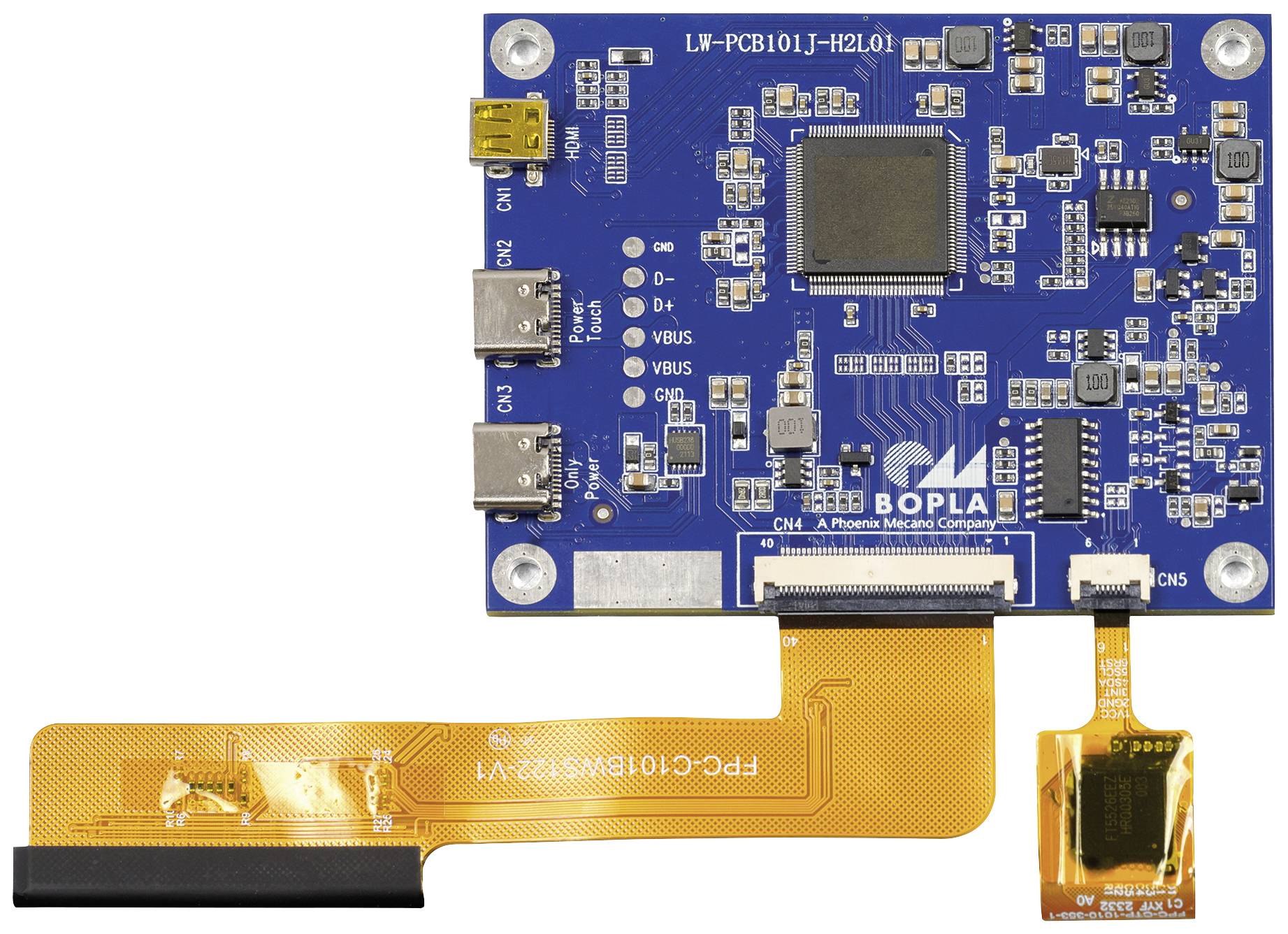

The BoPad starter kit has an HDMI and a USB-C connection so you can connect a multitude of devices. Possible usage area control or surveillance monitor, input monitor, machine operation, etc. Touch/display unit glued to the front screen in an "optical bonding" process.
This text is machine translated.
This text is machine translated.
Features

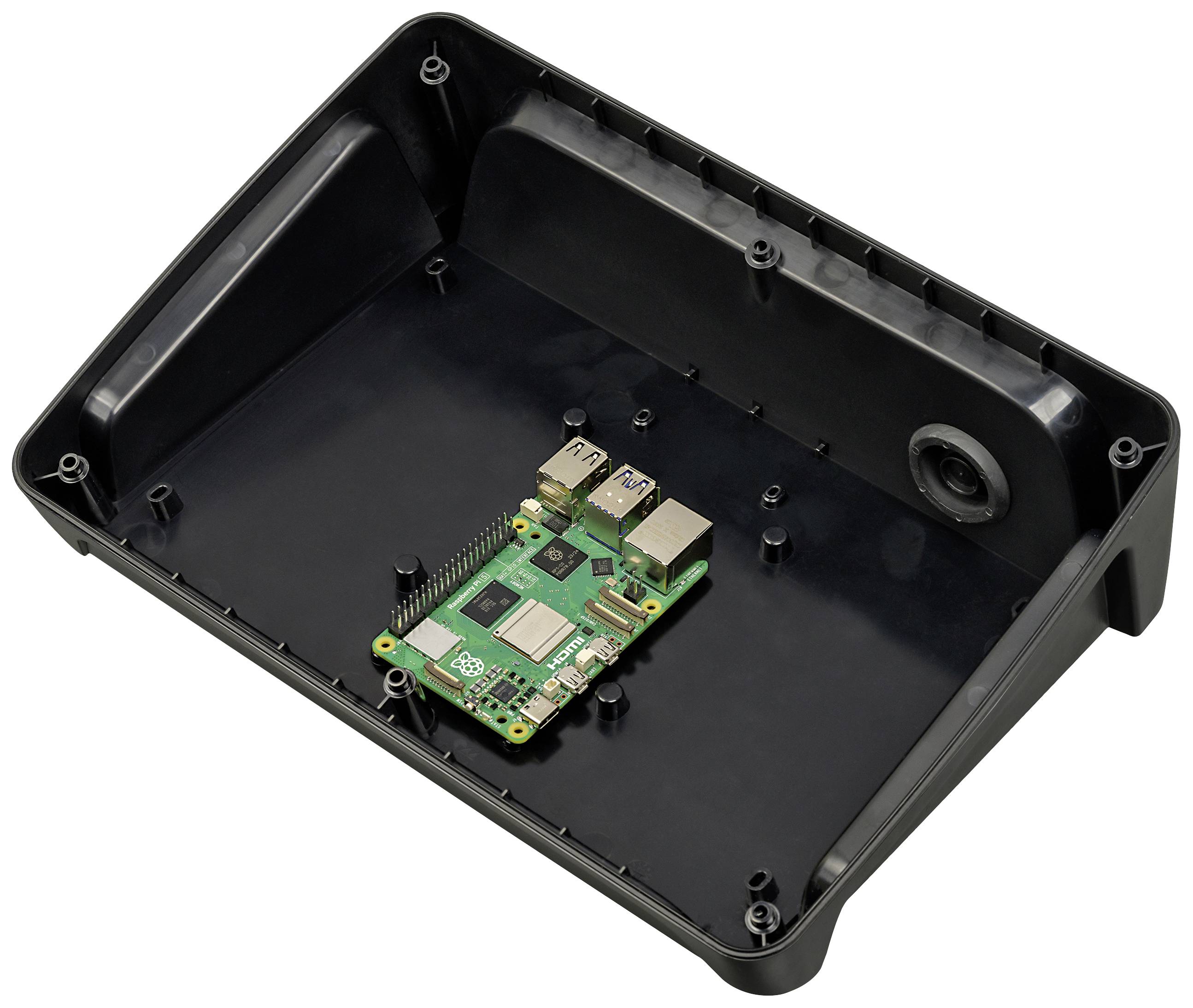

- Mounting dome for various development boards
- Easy to read in daylight thanks to strong backlight
- Advantages of "optical bonding" method
- No air gap
- Keeps dust and moisture out
- Better use of the touch-screen
- Higher contrast and better readability

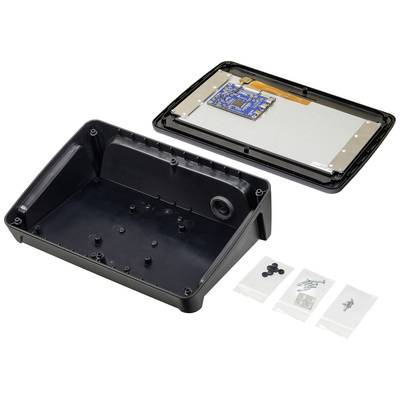

Scope of delivery
- 1x BoPad 10.1 P (black, similar to 9005) including mounted 10.1" display

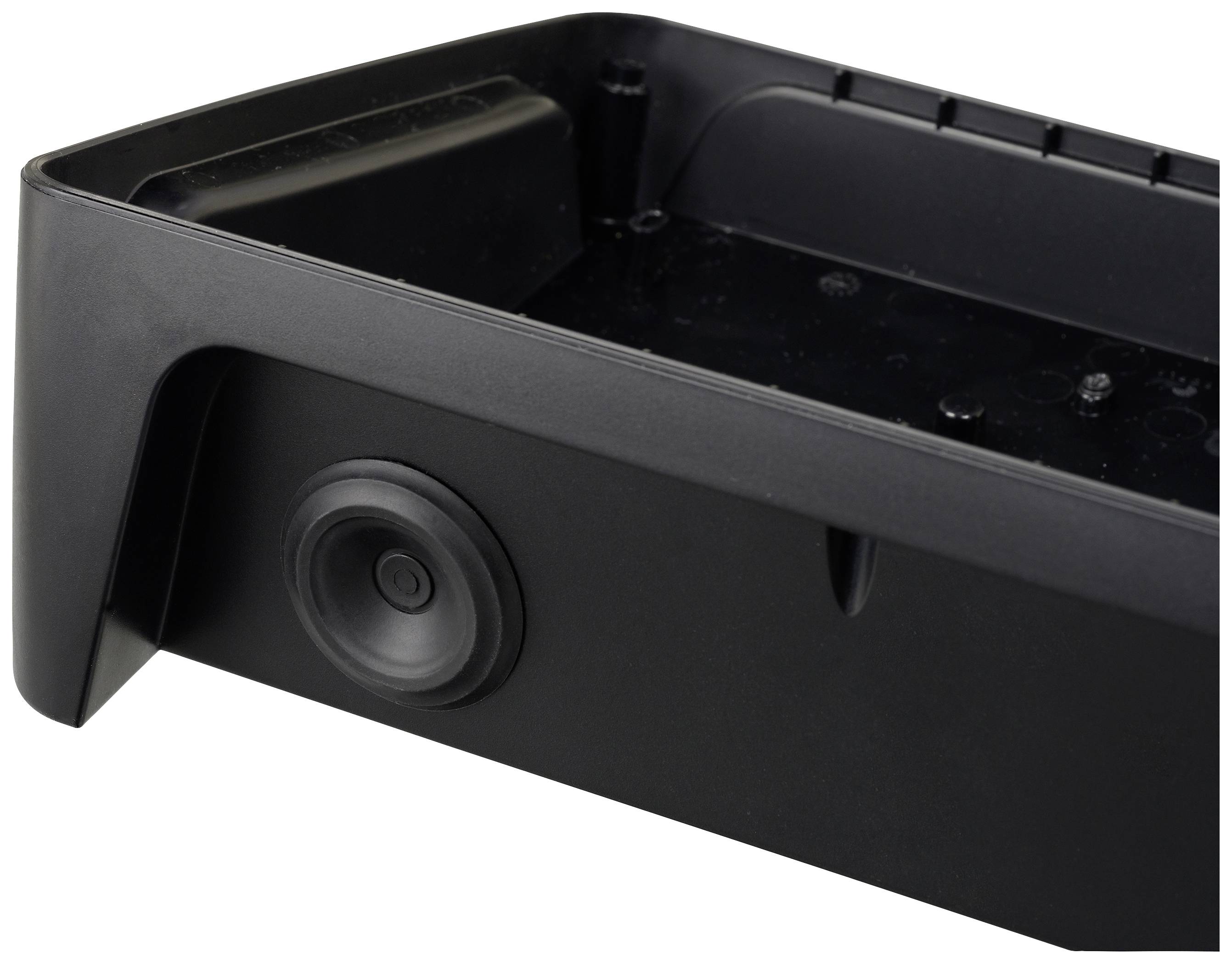

- 1x cable through socket (mounted)
- 6x casing screws
- 6x screw cover
- 4x Rubber feet
- 4x attachment screws for Raspberry Pi

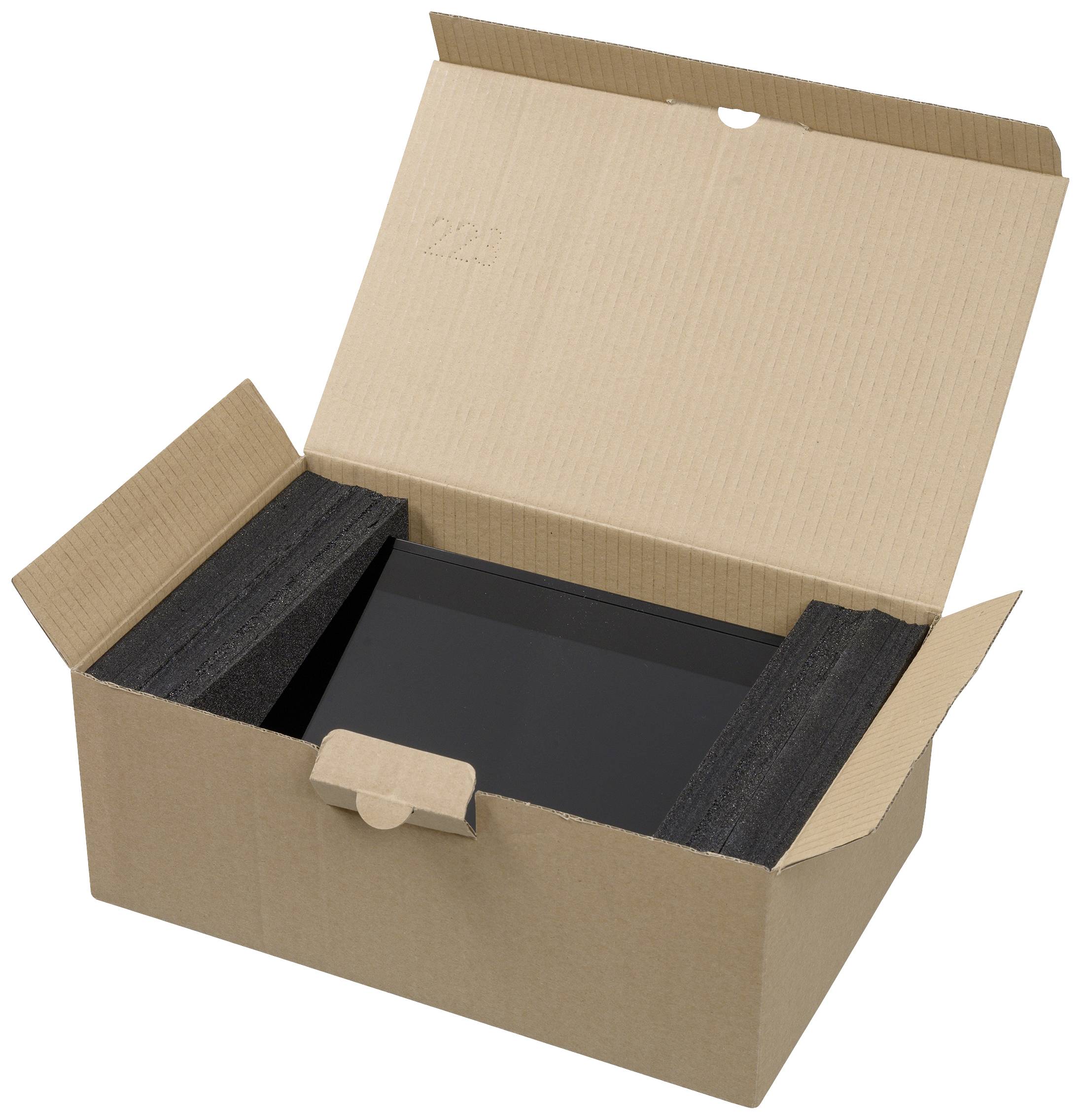

- 1x tailor-made delivery packaging
