Raspberry Pi® Touch Display 2 Module 12.7 cm (5 inch) 1280 x 720 Pixel Compatible with (development kits): Raspberry Pi®
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 47.05 / piece)
€ 47.05
plus VAT.
Raspberry Pi® 12.7 cm (5 inch) TOUCH DISPLAY 2
Highlights & Details
- 720 (RGB) × 1280 pixel display format
- 88 mm × 155 mm active surface
- 85-degree viewing angle
- Real capacitive multi-touch touch screen, supports five-finger touch
- Anti-glare surface
- This text is machine translated.
Technical specifications
- Product type
Display
- Display technology
LCD
- Display (cm)
12.7 cm
- Screen size diagonal (inches)
5 inch
- Suitable for
Raspberry Pi® A
Raspberry Pi® A+
Raspberry Pi® 3 A+
Raspberry Pi® B
Raspberry Pi® B+
Raspberry Pi® 2 B
Raspberry Pi® 3 B
Raspberry Pi® 3 B+
Raspberry Pi® 4 B
Raspberry Pi® 5 B
- Display resolution
1280 x 720 Pixel
- Interfaces
DSI (display)
- Image format
16:9
- Length
16 mm
- Width
143 mm
- Height
91 mm
- Compatible with
Raspberry Pi®
Documents & Downloads
Datasheet
Datasheet 3455196 Raspberry Pi® Touch Display 2 Module 12.7 cm (5 inch) 1280 x 720 Pixel Compatible with (development kits): Raspberry Pi®
User & Safety Instructions
User & Safety Instructions 3455196 Raspberry Pi® Touch Display 2 Module 12.7 cm (5 inch) 1280 x 720 Pixel Compatible with (development kits): Raspberry Pi®
Description
Raspberry Pi Touch Display 2 is a 12.7 cm (5 inch) touchscreen display for Raspberry Pi. It is Ideal for interactive projects such as tablets, entertainment systems and information dashboards.
The Raspberry Pi OS features a touch screen driver with support for five-finger touch and an on-screen keyboard so you can take full advantage of functionality without having to connect a keyboard or mouse.

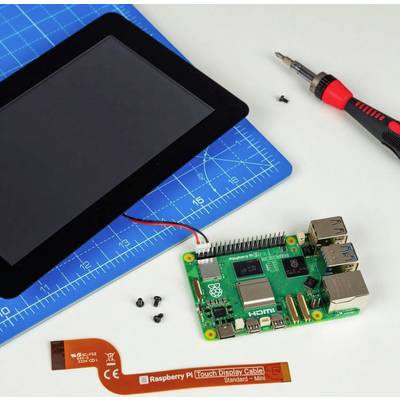

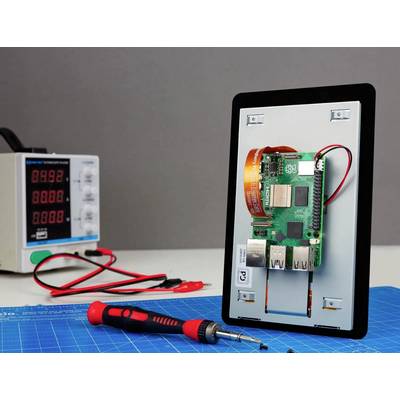

Only two connections are required to connect the 720 × 1280 display to your Raspberry Pi: Power supply via GPIO connector and a ribbon cable that connects to the DSI connector of all Raspberry Pi computers except Raspberry Pi Zero Series.
The Raspberry Pi OS features a touch screen driver with support for five-finger touch and an on-screen keyboard so you can take full advantage of functionality without having to connect a keyboard or mouse.
Only two connections are required to connect the 720 × 1280 display to your Raspberry Pi: Power supply via GPIO connector and a ribbon cable that connects to the DSI connector of all Raspberry Pi computers except Raspberry Pi Zero Series.
Hints
The Raspberry Pi Touch Display 2 will be produced until at least January 2030.
