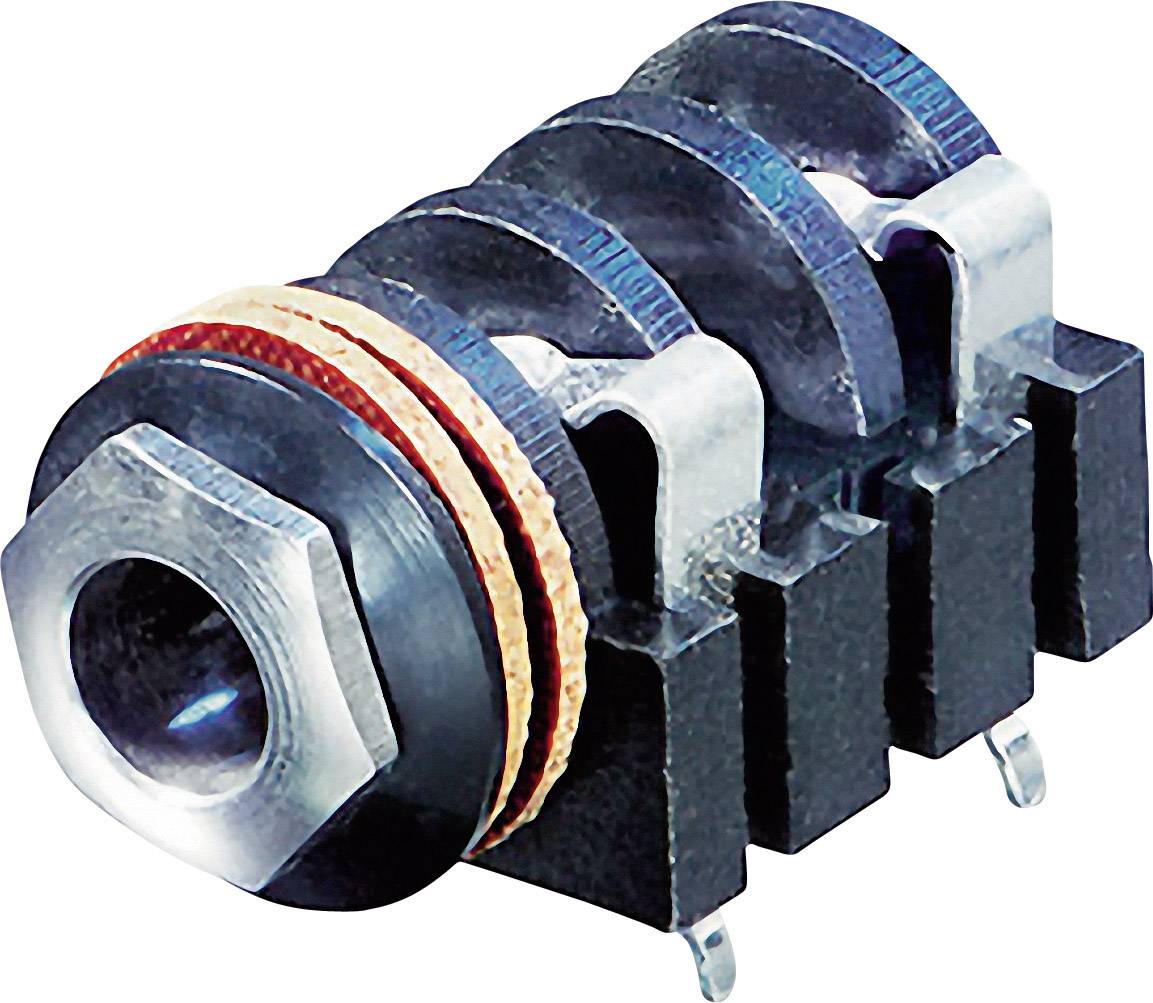

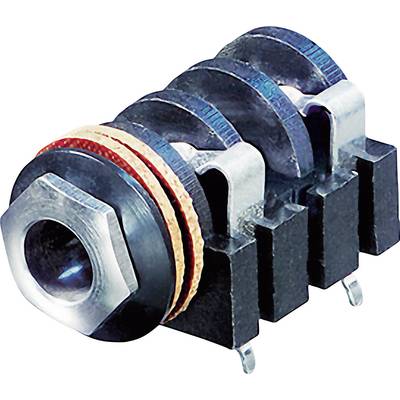

Rean AV NYS2152 6.35 mm audio jack Socket, horizontal mount Number of pins: 2 Mono Black 1 pc(s)
EAN:
Part number:
Item no:
Product type
6.35 mm audio jack
Connector type
Socket, horizontal mount
Connection
Soldering
Number of pins
2
Contact material
Tin plated
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
2
-
€ 1.25
6
8% = € 0.10
€ 1.15
10
11% = € 0.14
€ 1.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 2
Total (€ 1.25 / piece)
€ 2.50
plus VAT.
Built-in latch bush 6.35 mm
Highlights & Details
- 6.35 mm audio jack
- Socket, horizontal mount
Technical specifications
- Type
Chromium sleeve
- Product type
6.35 mm audio jack
- Connector type
Socket, horizontal mount
- Factory colour
Black
- Connection
Soldering
- Number of pins
2
- Contact material
Tin plated
- Material (details)
Plastic
- Manufacturer part #
NYS2152
- Type
NYS2152
- Audio channels
Mono
- Recess diameter (details)
11.4 mm
- Content
1 pc(s)
- Switch contact
Wired
- Temperature range
-20 - +70 °C
- Front panel thickness
3 mm
- Fitting method
Built-in, Print
Documents & Downloads
Datasheet
Datasheet 650995 Rean AV NYS2152 6.35 mm audio jack Socket, horizontal mount Number of pins: 2 Mono Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 650995 Rean AV NYS2152 6.35 mm audio jack Socket, horizontal mount Number of pins: 2 Mono Black 1 pc(s)
Description
Scope of delivery
- With nut and washers.
- This text is machine translated.
