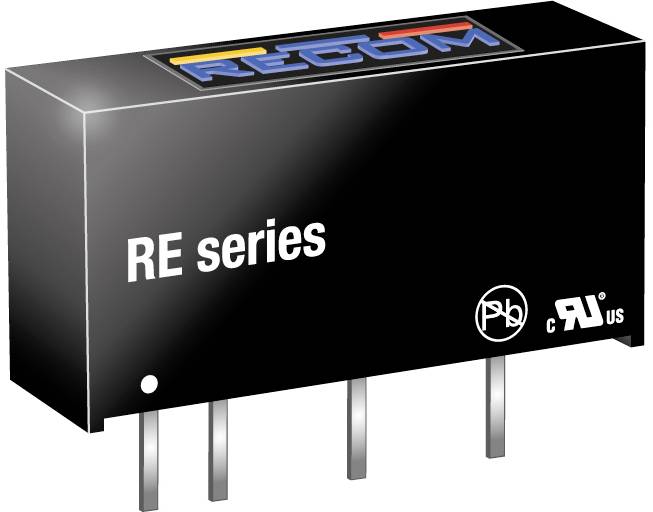

RECOM RE-053.3S DC/DC converter (print) 3.3 303 mA 1 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
93 Piece(s)
Sales and shipping:
Number
Total (€ 6.29 / piece)
€
Technical specifications
- Product type
DC/DC converter (print)
- Type
RE-053.3S
- Min. input voltage
4.5 V
- Input voltage (max.)
5.5 V
- No. of outputs
1 x
- Output voltages
3.3
- Max. output current
303 mA
- Output current (max.) - rounded
303 mA
1 W
- Insulation voltage
1000 V
- Enclosure
SIP 7
- Dim
(L x W x H) 19.6 x 6 x 10.2 mm
- Height
10.2 mm
- Length
19.6 mm
- Width
6 mm
- RoHS-compliant
Yes
- Output voltage (max.)
3.3 V
- Output voltage (min.)
3.3 V
- Content
1 pc(s)
