ElectromechanicsRelaysImpulse Changeover Switches

Relay Schneider Electric RPM11BD 10 pc(s)

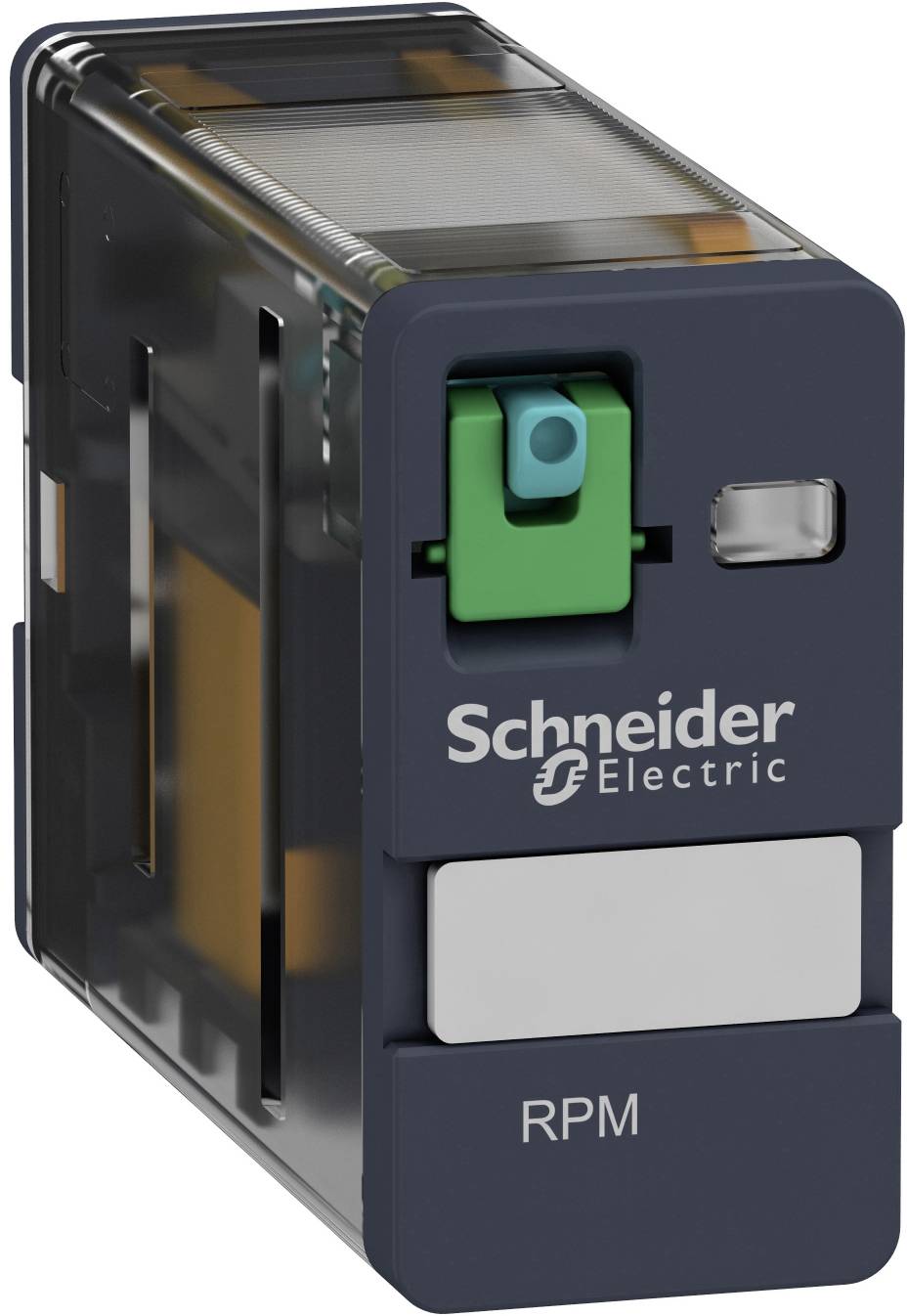

Schneider Electric RPM relay module with green latch and labeled front panel.<br>

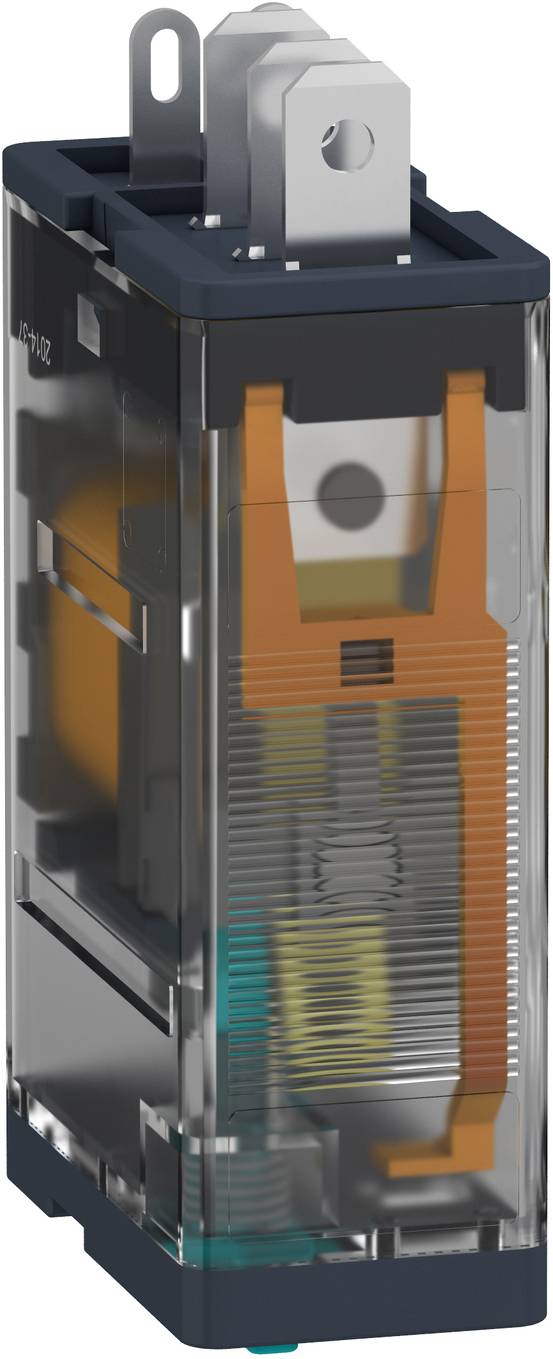

Transparent industrial electrical relay or contactor with visible orange internal components and metal terminals on top
Dimensional technical drawing of a small rectangular electronic component, showing front, side, and top views with measurements in mm and inches.

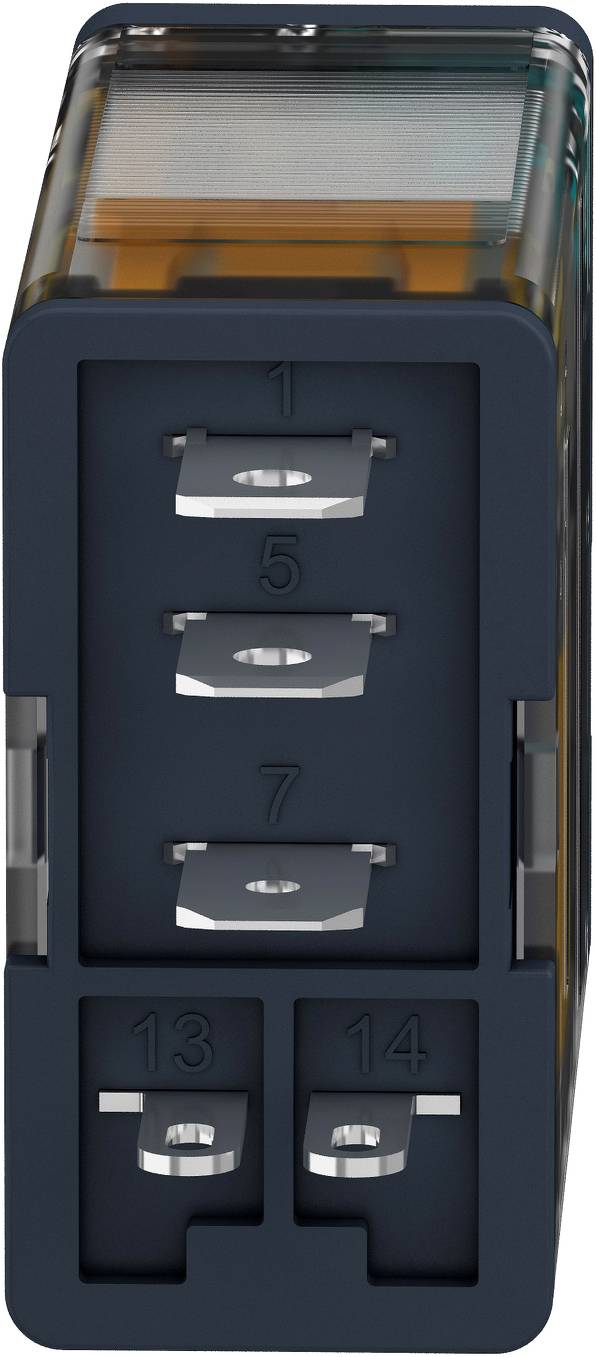

Close-up of a dark blue electrical connector with numbered terminals 1, 5, 7, 13, and 14 visible on the front.

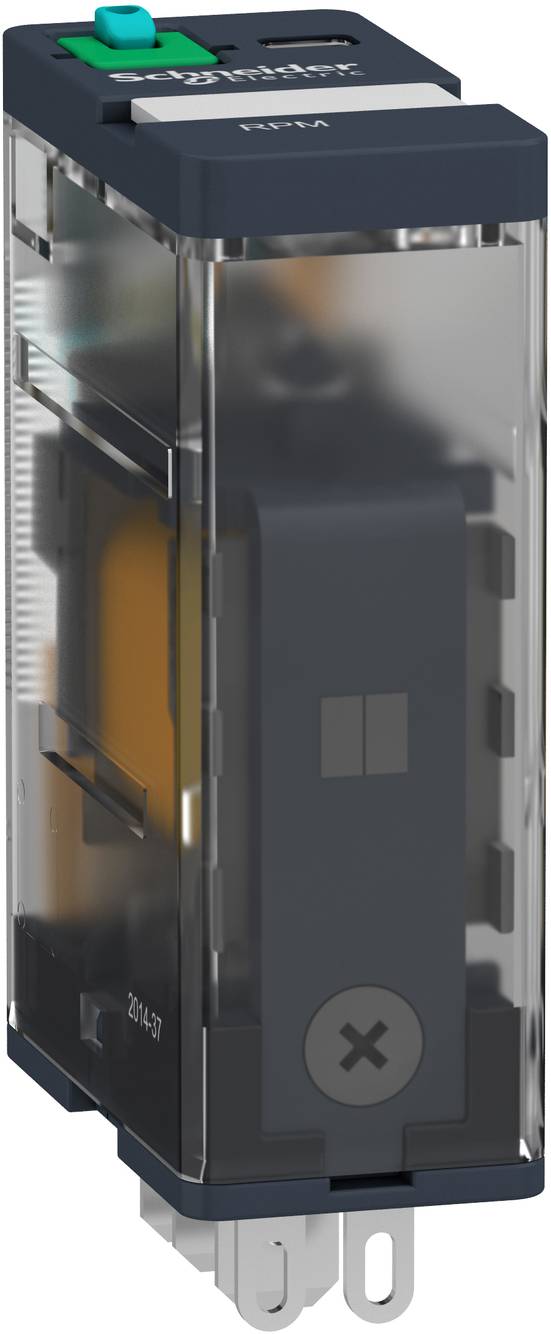

Transparent electrical relay or relay module with dark casing, exposed internal components, and metal mounting terminals at the bottom.

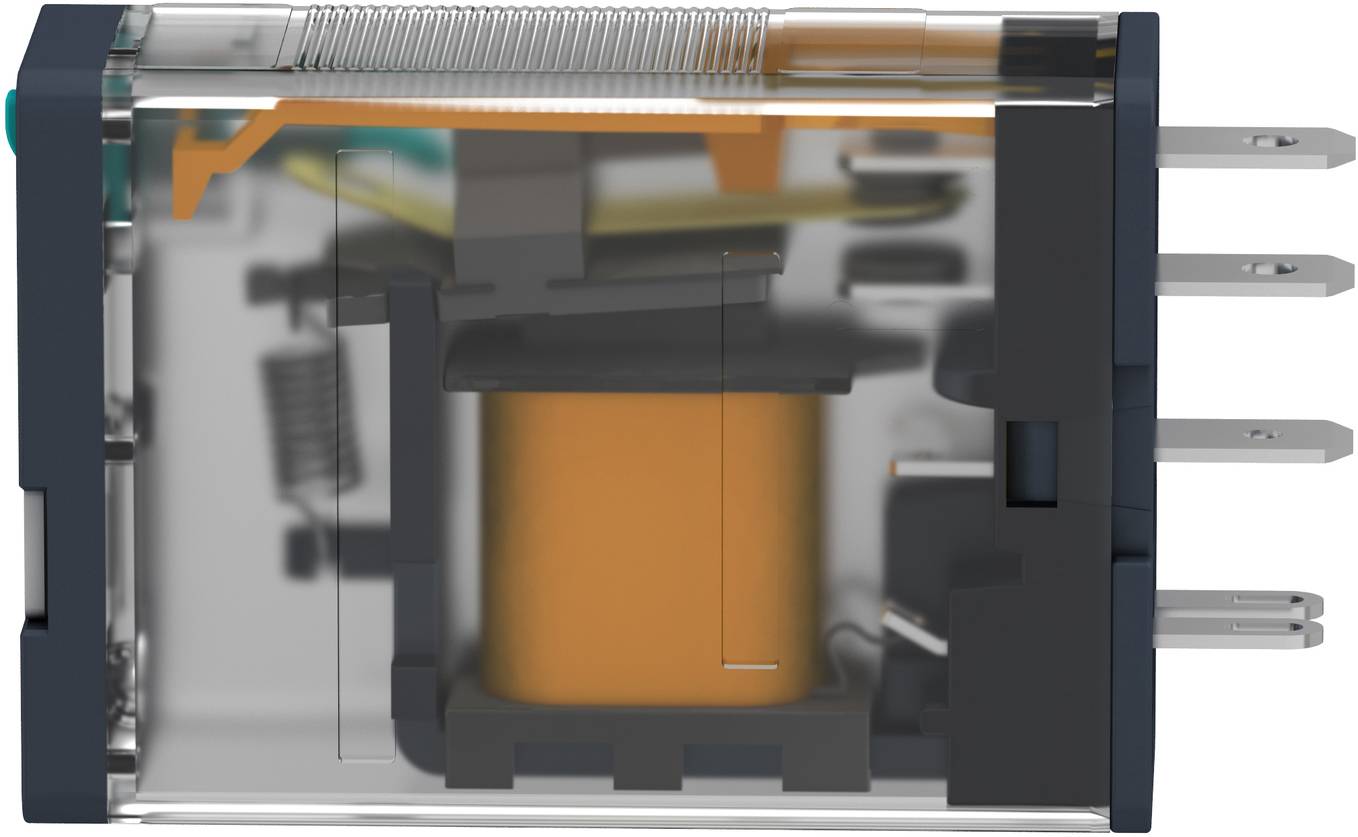

Cutaway of an electromagnetic relay showing the coil, spring-loaded armature, and three electrical terminals inside a transparent housing.

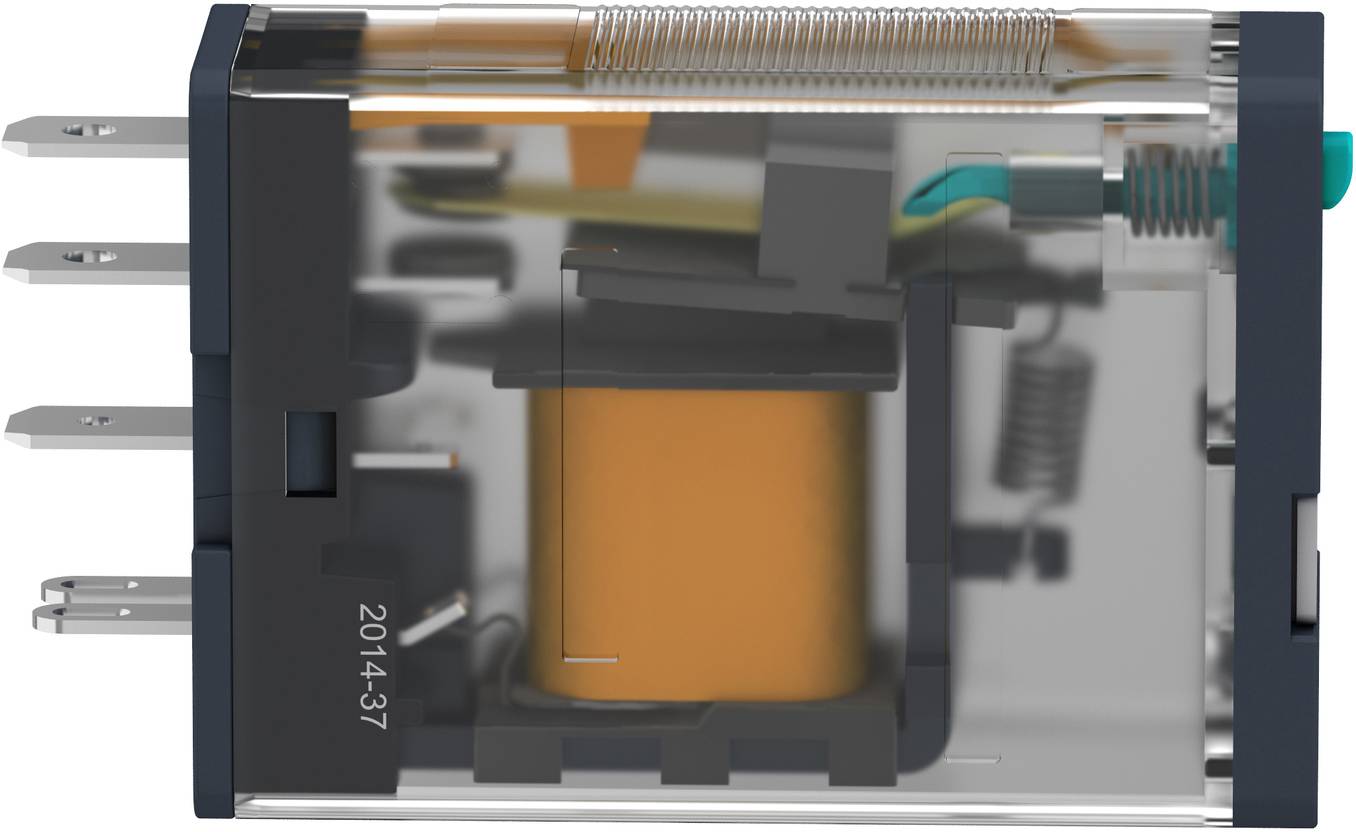

Cutaway view of an electromechanical relay showing coil, spring, moving contacts, and side terminals inside a clear plastic housing.
Cutaway of an electromagnetic relay showing the coil, contacts, and spring mechanism inside a clear housing.
1/8
Product type
Relay
Type
RPM11BD
Width
14 mm
Height
27 mm
Depth
43 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 10 pc(s))
Total (€ 7.00 / piece)
€ 69.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Drive, polarity: Non-polar
  • Number of contacts as N/O contacts: 0
  • Number of contacts as changer: 1
  • Number of contacts as NC contacts: 0
  • Type of switching contact: Other
  • Design of the electrical connection: Other
  • Rated control supply voltage DC 24-24 V
  • Complete unit with socket: No.
  • With removable terminals: No.
  • With LED indicator: No.
  • With positively guided contacts: No.
  • Switching characteristics of drive: Mono-stable
  • Protection class (RT) according to IEC 61810-7: RT I
  • Voltage type for activation: DC
  • Contact coating material: Other
  • Material of the contact insert: Other
  • Contact material: Other
Product type

Relay

Type

RPM11BD

Width

14 mm

Height

27 mm

Depth

43 mm

Dim

(W x H x D) 14 x 27 x 43 mm

Content

10 pc(s)

IP20

Nominal current

15 A

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3755977 Relay Schneider Electric RPM11BD 10 pc(s)

User & Safety Instructions

User & Safety Instructions 3755977 Relay Schneider Electric RPM11BD 10 pc(s)

Description

Harmony relay Power relay RPM as a component. Number of contacts 1, execution relay changer, contact load 15 A. Coil control voltage 24 VDC. Mechanical position indicator yes, LED display no. Test button for testing the contacts yes, test lever for permanent switching for test purposes yes, operation without tools. Stable pins connections. Mounting in separate plug socket.

This text is machine translated.
