Relay Schneider Electric RPM32P7 10 pc(s)

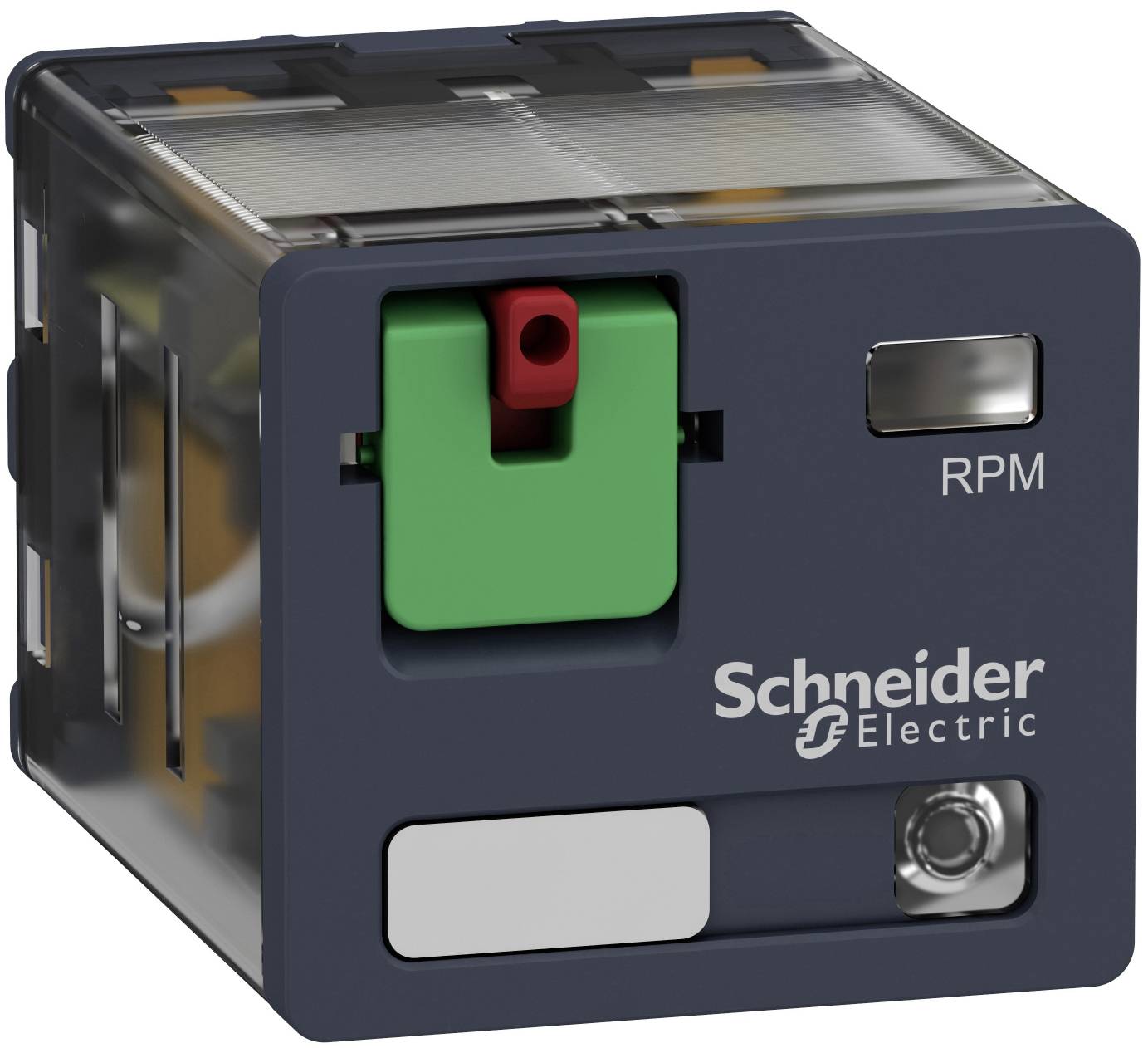

Schneider Electric RPM relay module with translucent case, green/red test button, and front status window.

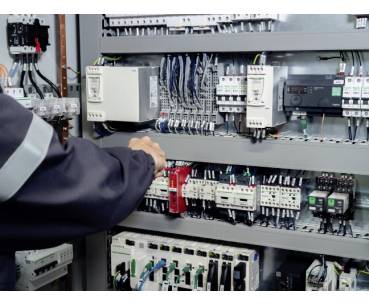

Technician inspecting an electrical control panel with wiring, relays, breakers, and industrial automation components.

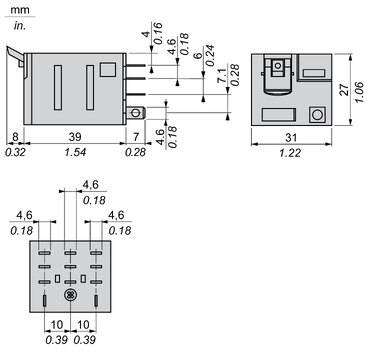

Technical dimension drawing of a small electrical component with front, side, and top views labeled in mm and inches.

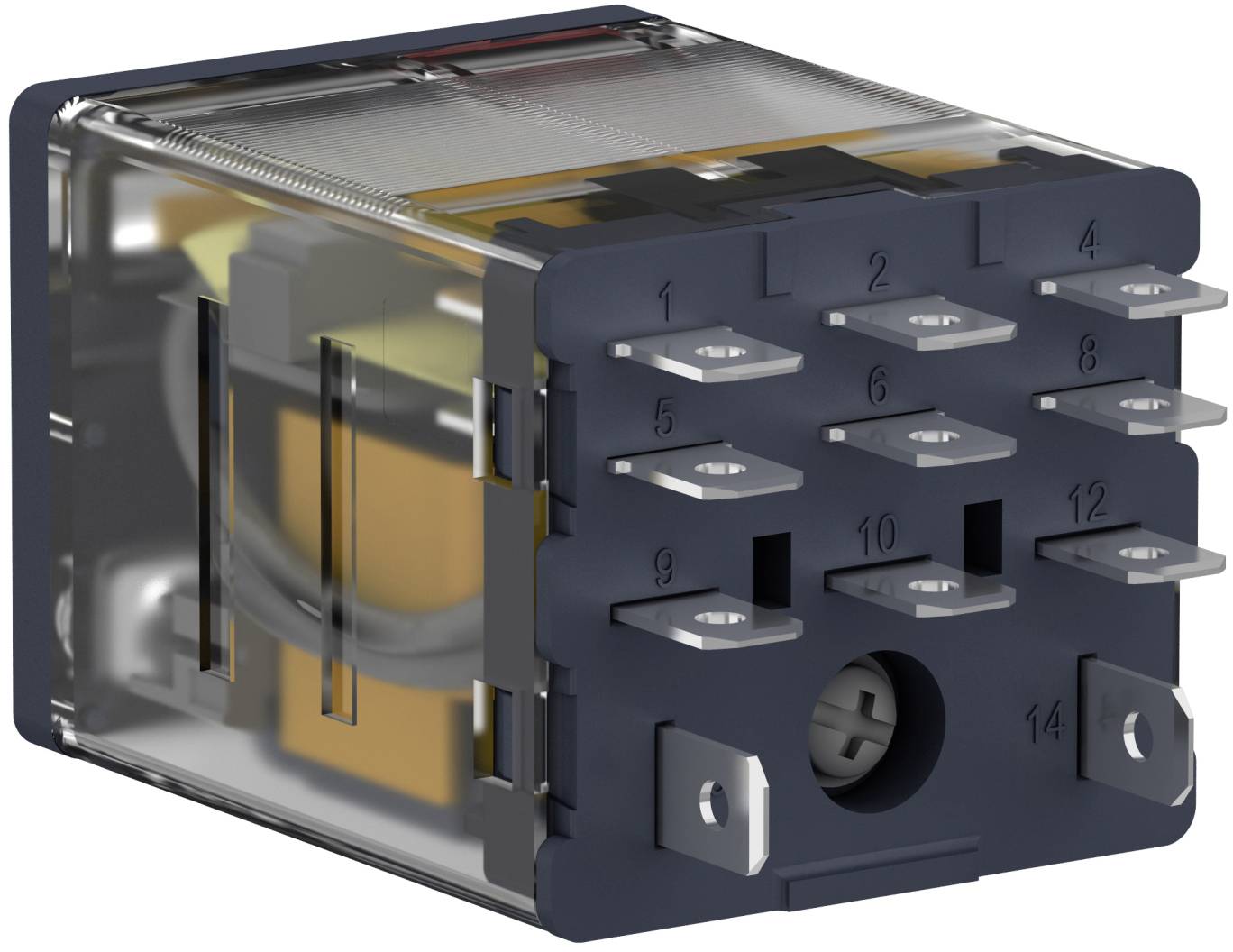

Transparent electrical relay with 14 metal terminals, shown in perspective view.

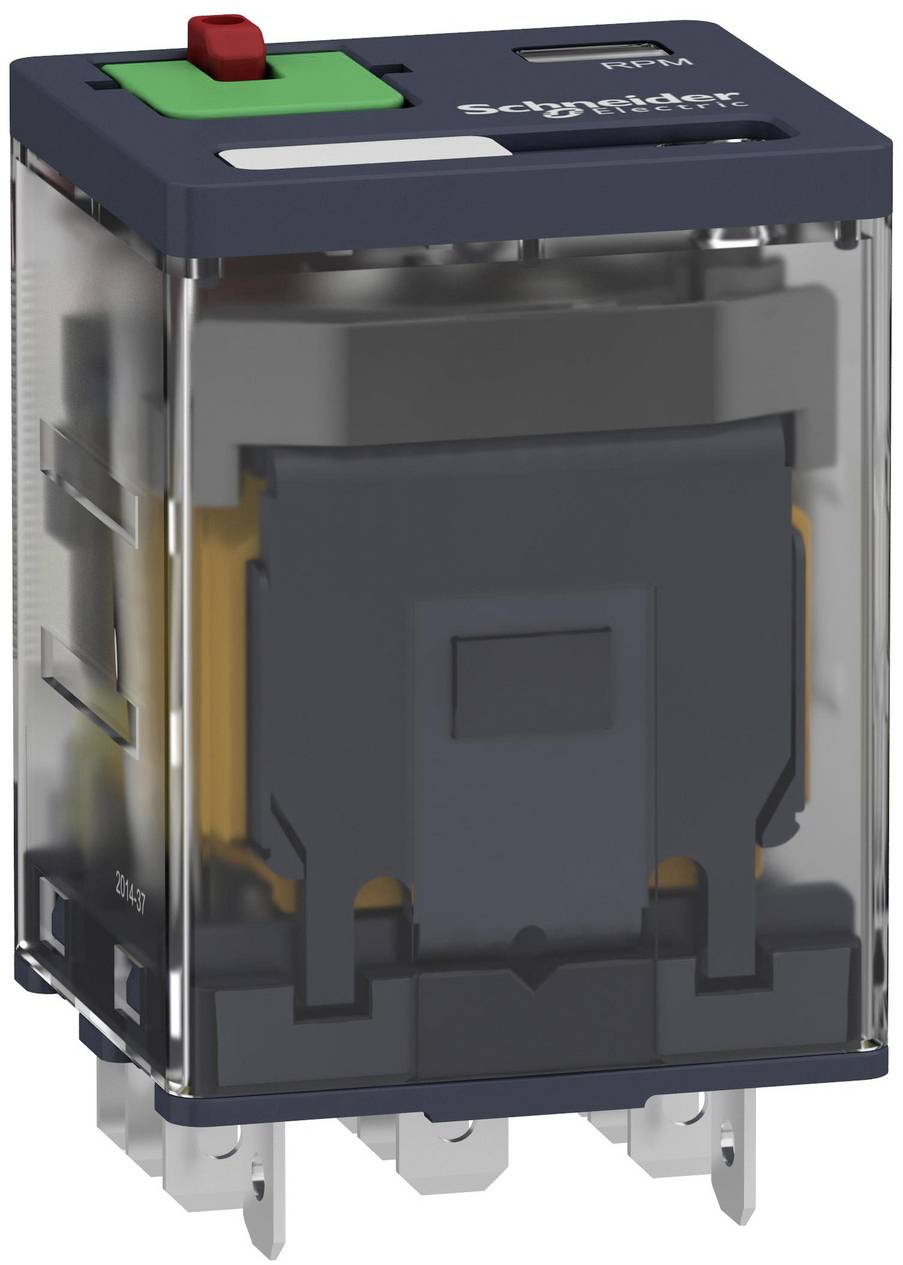

Clear-cased Schneider Electric electrical relay/module with a red manual test button and metal terminals underneath.

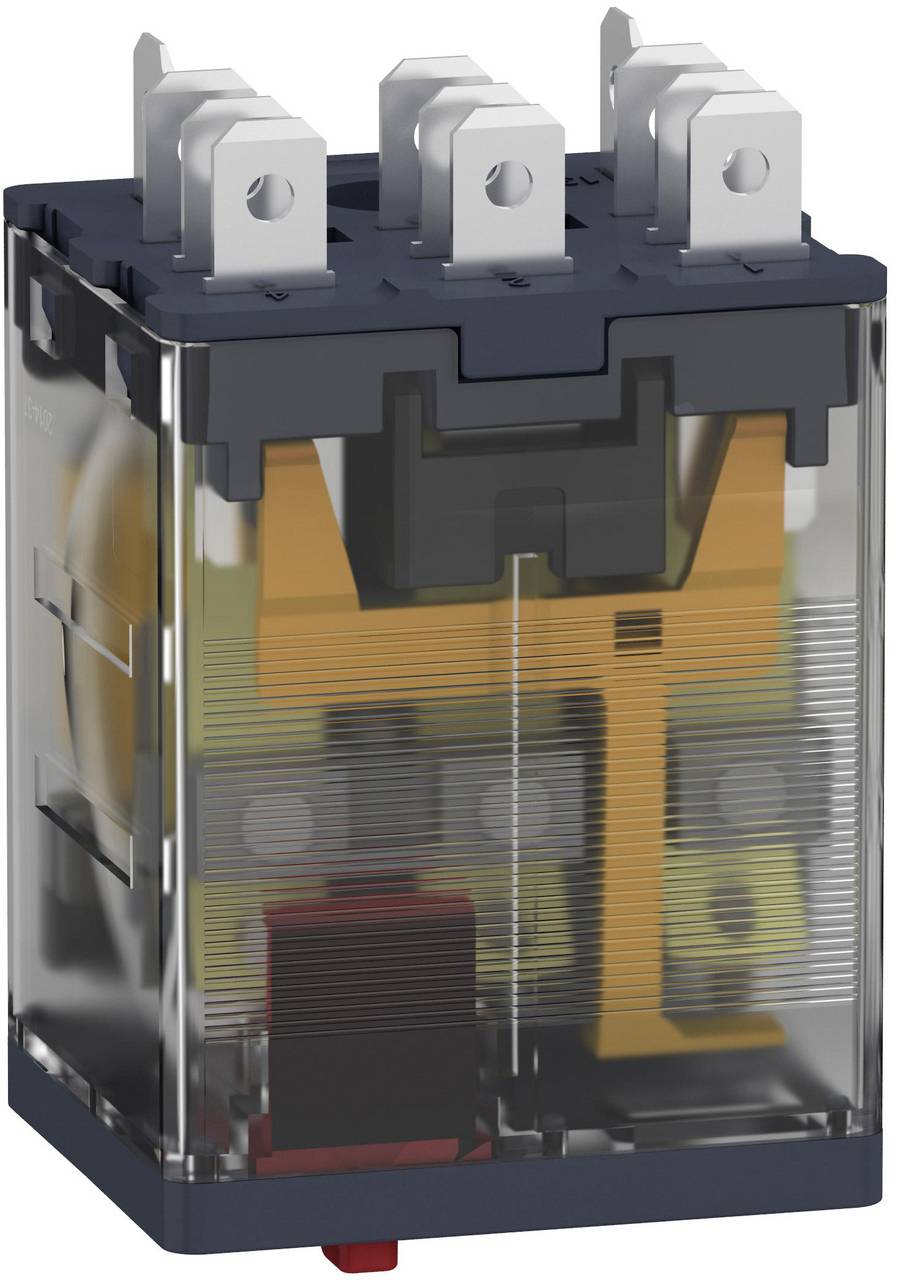

Transparent electrical relay with three top terminals, showing visible internal coil and switch mechanism inside a dark plastic case.

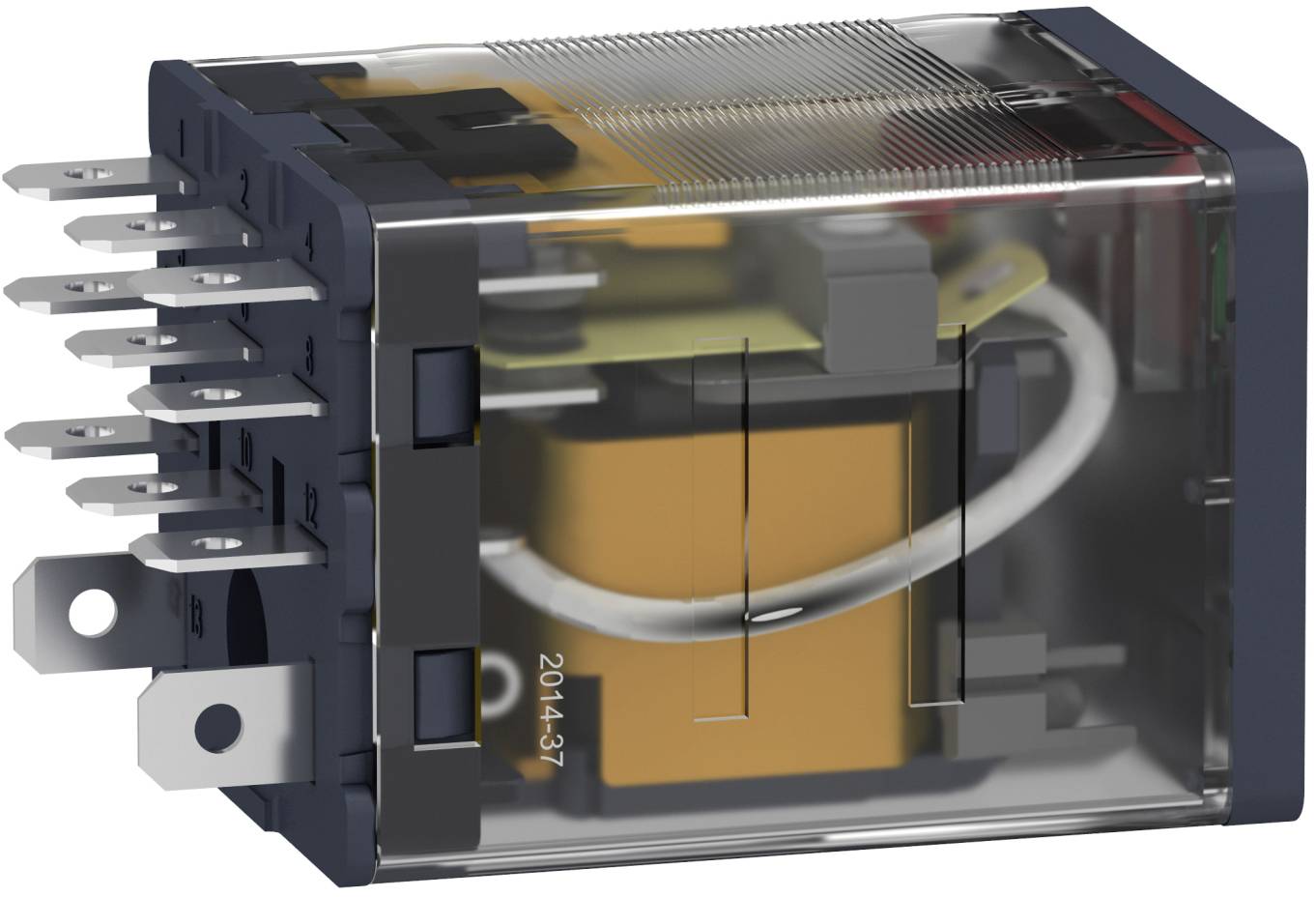

Transparent electrical relay with metal terminals and visible internal coil and contacts inside a black plastic housing.

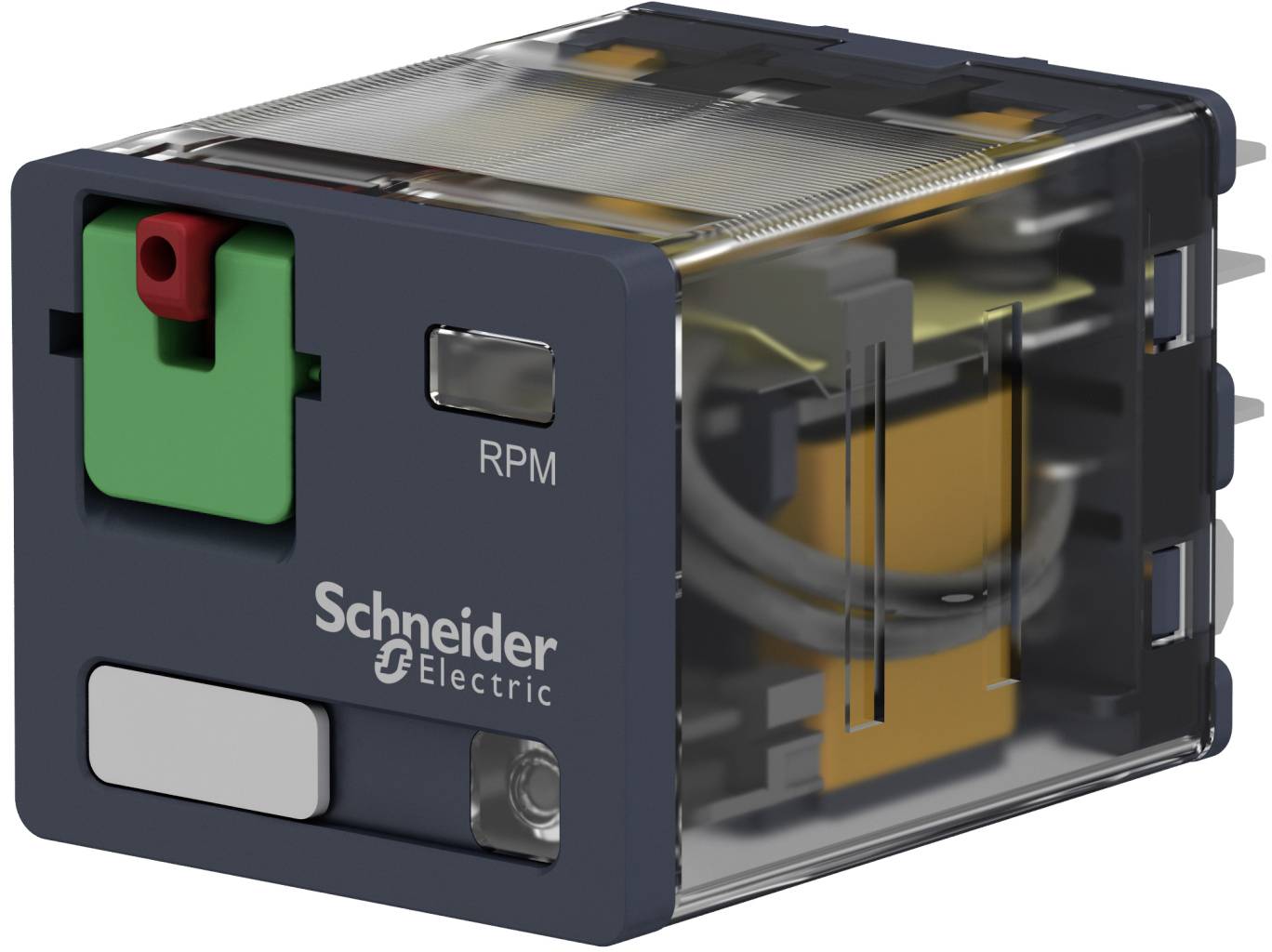

Schneider Electric industrial relay module with transparent cover, showing internal coil and contacts, front labeled 'RPM'.

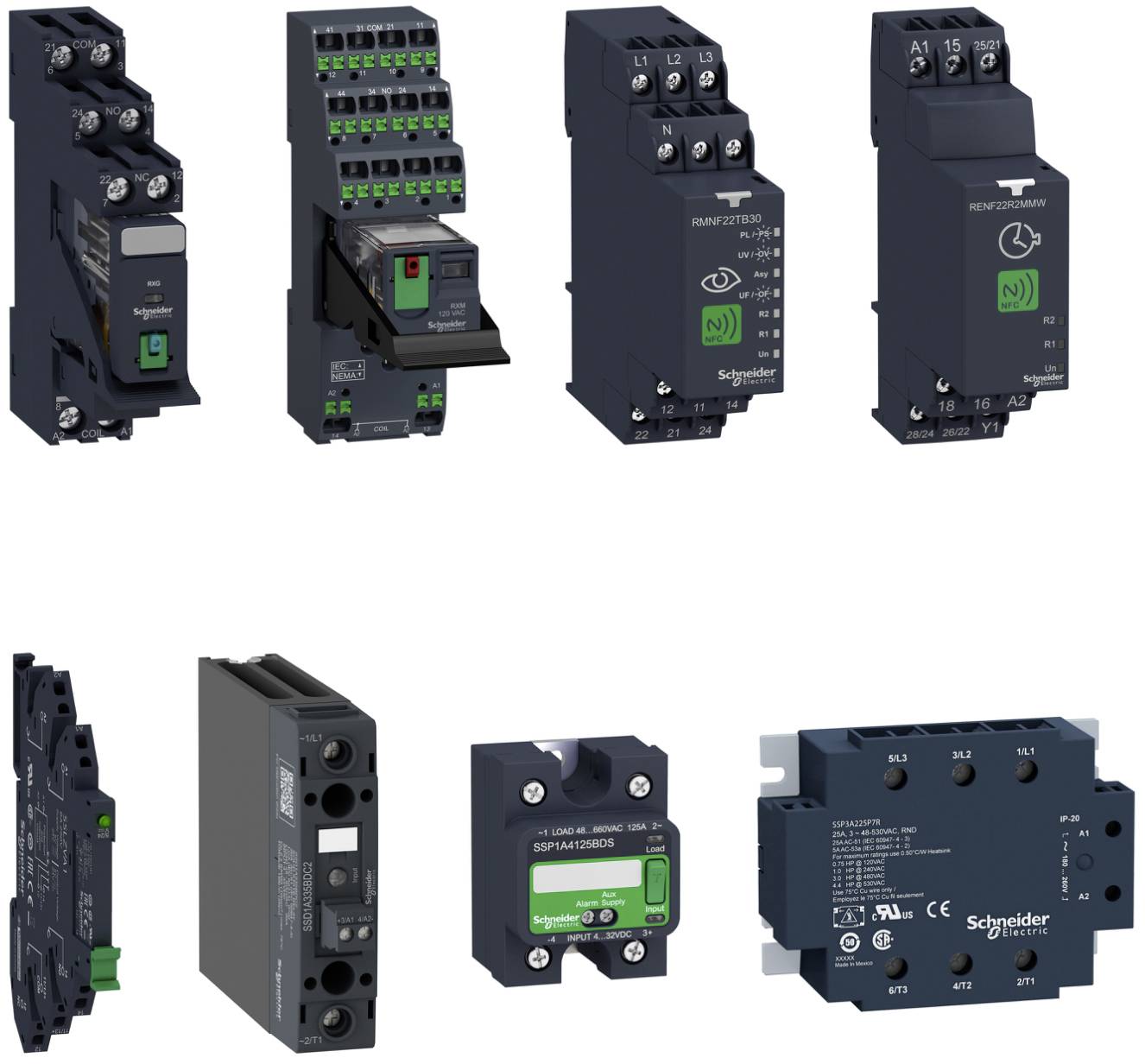

Collage of eight Schneider Electric modular electrical control relays and timers, showing various side and front views of DIN-rail components.
1/9
Product type
Relay
Type
RPM32P7
Width
31 mm
Height
27 mm
Depth
53 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 10 pc(s))
Total (€ 21.50 / piece)
€ 214.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Drive, polarity: Non-polar
  • Number of contacts as N/O contacts: 0
  • Number of contacts as changer: 3
  • Number of contacts as NC contacts: 0
  • Type of switching contact: Other
  • Design of electrical connection: Plug connection
  • Rated control supply voltage AC 50 Hz: 230-230 V
  • Rated control supply voltage AC 60 Hz: 230-230 V
  • Complete unit with socket: No.
  • With removable terminals: Yes
  • With LED display: Yes
  • With forced contacts: Yes
  • Switching characteristics of drive: Mono-stable
  • Protection class (RT) according to IEC 61810-7: RT I
  • Type of voltage for activation: AC
  • Contact coating material: Other
  • Material of the contact insert: Other
  • Contact material: Other
Product type

Relay

Type

RPM32P7

Width

31 mm

Height

27 mm

Depth

53 mm

Dim

(W x H x D) 31 x 27 x 53 mm

Content

10 pc(s)

IP40

Nominal current

15 A

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 3755853 Relay Schneider Electric RPM32P7 10 pc(s)

User & Safety Instructions

User & Safety Instructions 3755853 Relay Schneider Electric RPM32P7 10 pc(s)

Description

Harmony relay Power relay RPM as a component. Number of contacts 3, execution relay changer, contact load capacity each 15 A. Coil control voltage 230 VAC. Mechanical position indicator yes, LED display yes. Test button for testing the contacts yes, test lever for permanent switching for test purposes yes, operation without tools. Stable pins connections. Mounting in separate plug socket.

This text is machine translated.
