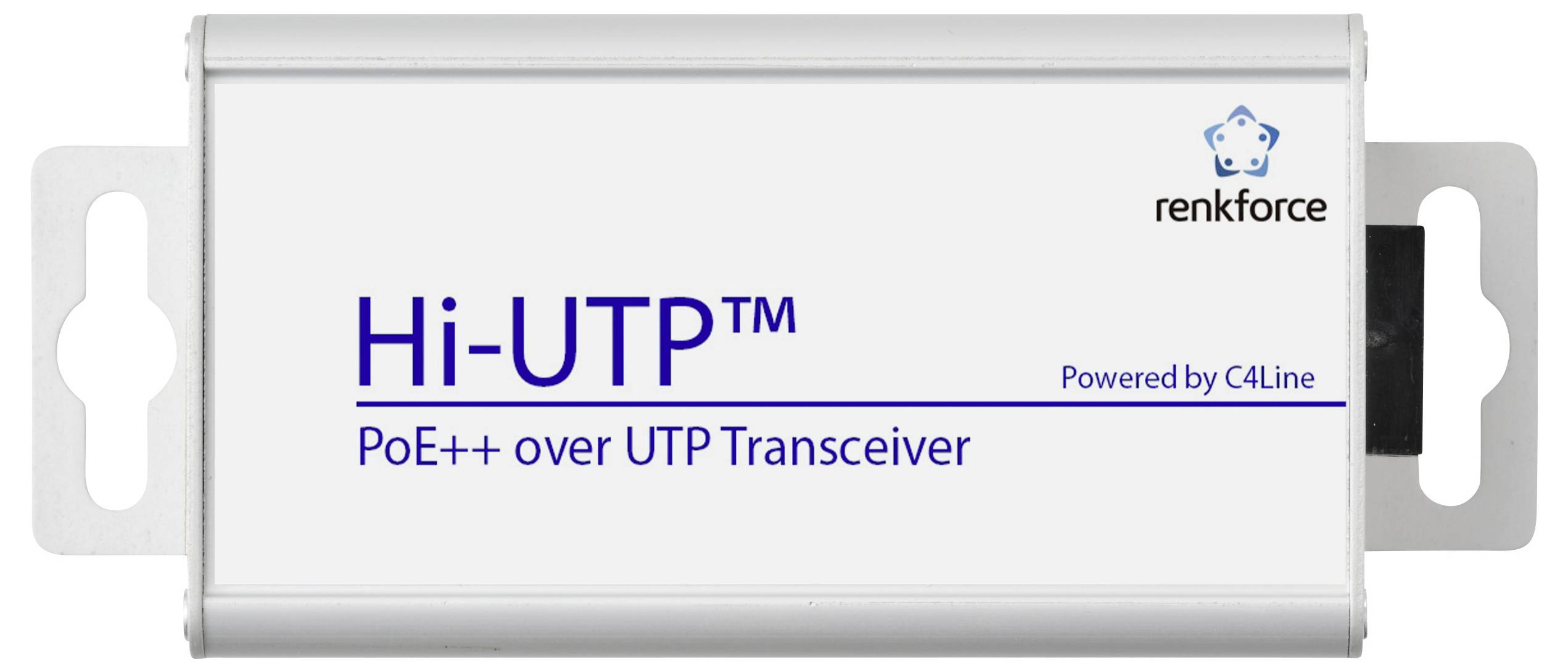

Renkforce RF-6861942 Network extender Patch cable Range (max.): 400 m 1 pc(s) 100 Mbps PoE
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 41.17 / piece)
€ 41.17
plus VAT.
Technical specifications
- Support IEEE 802.3 af/at/bt PoE++ 90Watt.
- Support reverse polarity protection feature for the AC/DC Power input.
- Support the Power and UTP Extended Port crosstalk protection feature for MDU installation site.
- Product type
Network extender
- Content
1 pc(s)
- Transfer type
Patch cable
- Range (max.)
400 m
- Bit rate (max.)
100 Mbps
- Interfaces
LAN (10/100 Mbps)
- Width
42 mm
- Height
40 mm
- Length
102 mm
- Weight
117.5 g
- Features
PoE
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3430971 Renkforce RF-6861942 Network extender Patch cable Range (max.): 400 m 1 pc(s) 100 Mbps PoE
Datasheet 3430971 Renkforce RF-6861942 Network extender Patch cable Range (max.): 400 m 1 pc(s) 100 Mbps PoE
Datasheet 3430971 Renkforce RF-6861942 Network extender Patch cable Range (max.): 400 m 1 pc(s) 100 Mbps PoE
Datasheet 3430971 Renkforce RF-6861942 Network extender Patch cable Range (max.): 400 m 1 pc(s) 100 Mbps PoE
Datasheet 3430971 Renkforce RF-6861942 Network extender Patch cable Range (max.): 400 m 1 pc(s) 100 Mbps PoE
User & Safety Instructions
User & Safety Instructions 3430971 Renkforce RF-6861942 Network extender Patch cable Range (max.): 400 m 1 pc(s) 100 Mbps PoE
User & Safety Instructions 3430971 Renkforce RF-6861942 Network extender Patch cable Range (max.): 400 m 1 pc(s) 100 Mbps PoE
Description
OCP (over current protection) and OVP (over voltage protection) functions.
The separation and connection process for the network grouping and security feature.
1 Master-to-multiple-slave network topology for a cost-effective network installation.
IEEE 802.3 AF/at/tt PoE++ 90 Watt for PoE devices with high performance.
300 300 meter long power range for PoE++ devices.
Supports 48 VDC to 70 VDC. Different operating voltages for different power consumption.
+ and - 2-wire and voltage independent functions for robust installation support.
Supports large MDU installation sites (Multi Dwelling Unit) with 2-wire and voltage independent functions.
This text is machine translated.
The separation and connection process for the network grouping and security feature.
1 Master-to-multiple-slave network topology for a cost-effective network installation.
IEEE 802.3 AF/at/tt PoE++ 90 Watt for PoE devices with high performance.
300 300 meter long power range for PoE++ devices.
Supports 48 VDC to 70 VDC. Different operating voltages for different power consumption.
+ and - 2-wire and voltage independent functions for robust installation support.
Supports large MDU installation sites (Multi Dwelling Unit) with 2-wire and voltage independent functions.
This text is machine translated.
