Renkforce RV2,4-7 Reversing camera system 2 camera inputs Screw mount Black (matt)
EAN:
Part number:
Item no:
Number
Total (€ 231.09 / piece)
€ 231.09
plus VAT.
Highlights & Details
Radio reversing video system 2.4GHz Professional
- With night vision
- Incl. remote control
Technical specifications
- Monitor LCD size 7" (17.78 cm)
- Digital panel resolution 800 x 3 (RGB) x 480
- Aspect ratio: 16:9
- Channels: 4
- Operating frequency 2400 - 2483.5 MHz
- Receive sensitivity -89 dBm
- Decompression format: MPEG4
- Output power 17 dBm
- MODULATION 2.4G FSK/GFSK
- Time delay 120 msRange: 30-120 meters
- MicroSD/TF memory card: Max. 128 GBTV standards PAL / NTSC
- Power consumption: Max. 6 W
- Speaker 1.5 W/8 Ω
- Sensor 1/3" (8,47 cm) CMOS 2099
- Resolution 800 (H) x 480 (V)
- Lens: 2.8 mm
- Minimum illumination of 0 Lux (LED switched on)
- IR LED 12
- Night vision distance 45 ft (14 m)
- Protection class (water): IP69
- Viewing angle 90°
- Dim
(L x W x H) 21.2 x 6.6 x 34.4 cm
- Product type
Reversing camera system
- Distance sensor to base
200 m
- No. of sensors
1
- Display type
LCD display
- Resolution
800 h
480 V
- Operating voltage
12 V DC
24 V DC
- Operating temperature (max.)
65 °C
- Operating temperature (min.)
-20 °C
- Aperture
2 mm
- Max. viewing angle hor.
90°
- Screen size diagonal (cm)
17.78 cm
- Screen size diagonal (inches)
7 inch
- Mounting slot
Rear
- Features
2 camera inputs
- Factory colour
Black (matt)
- Weight
834 g
- Light sensitivity
10 lx
- Mounting type
Screw mount
- Width
6.6 cm
- Height
34.4 cm
- Length
21.2 cm
- Transfer type
Radio
- Interfaces
2.4 GHz radio
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2685015 Renkforce RV2,4-7 Reversing camera system 2 camera inputs Screw mount Black (matt)
Description
Reliable parking aidWith the Renkforce wireless rear view video system 2.4 GHz professional can even cope with complicated reversing maneuvers. The camera and monitor communicate via radio over up to 120 meters away and are then automatically paired.Sophisticated technologyThe 7 inch monitor has four channels, which can be recorded in conjunction or individually. A SD/TF card with a maximum memory capacity of 128 GB can be used for this purpose. The views include Normal, Mirror, Turn, Flip, Share, Auto-scan and individual display available. The night vision function as well as the automatic darkness always provides for clear and clear pictures. The camera has a viewing angle of 90 degrees and is dust and water resistant according to IP69. A remote control with full functional scope and an in-built loudspeaker round off the offer.
This text is machine translated.
This text is machine translated.
Features

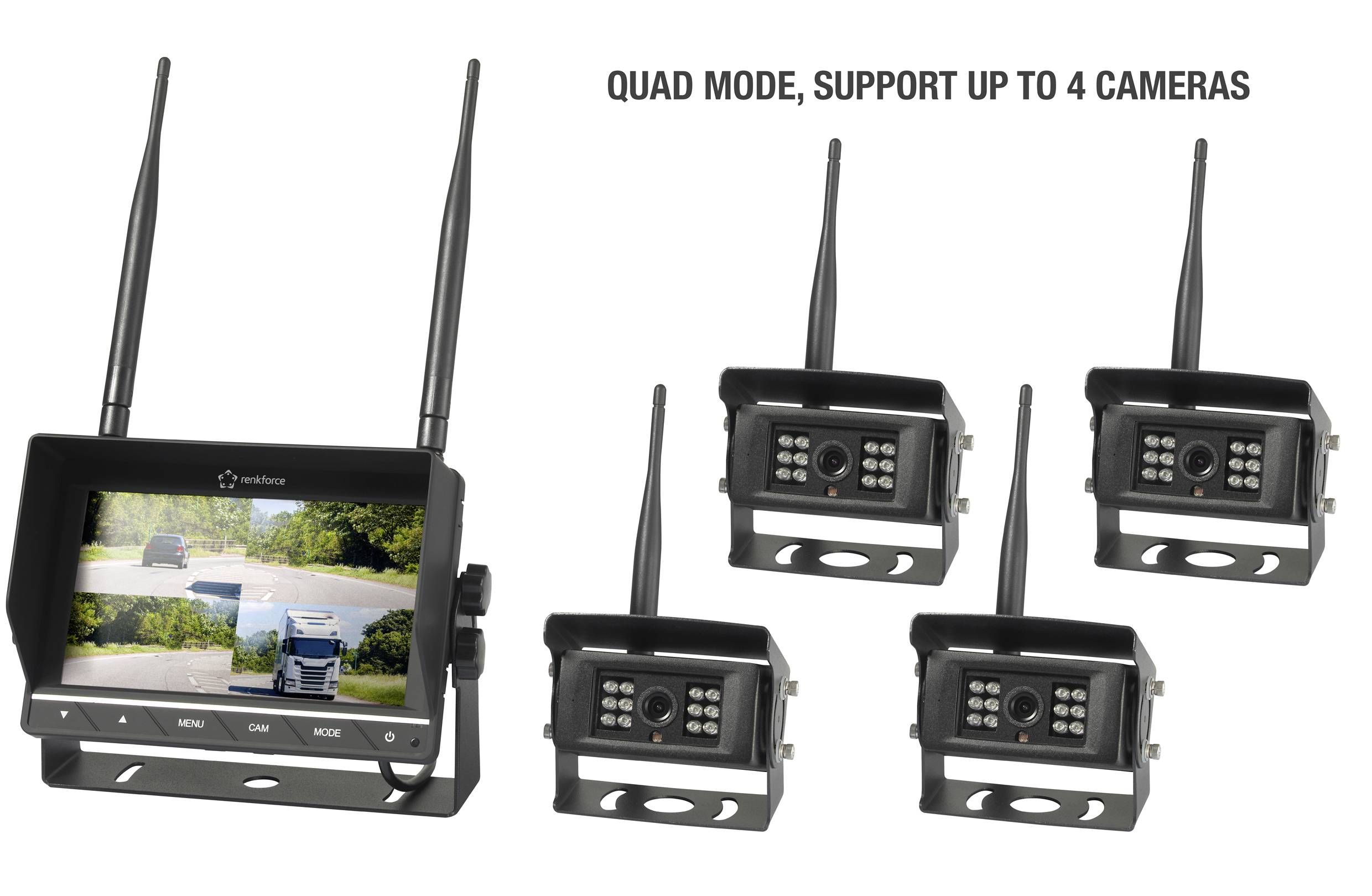

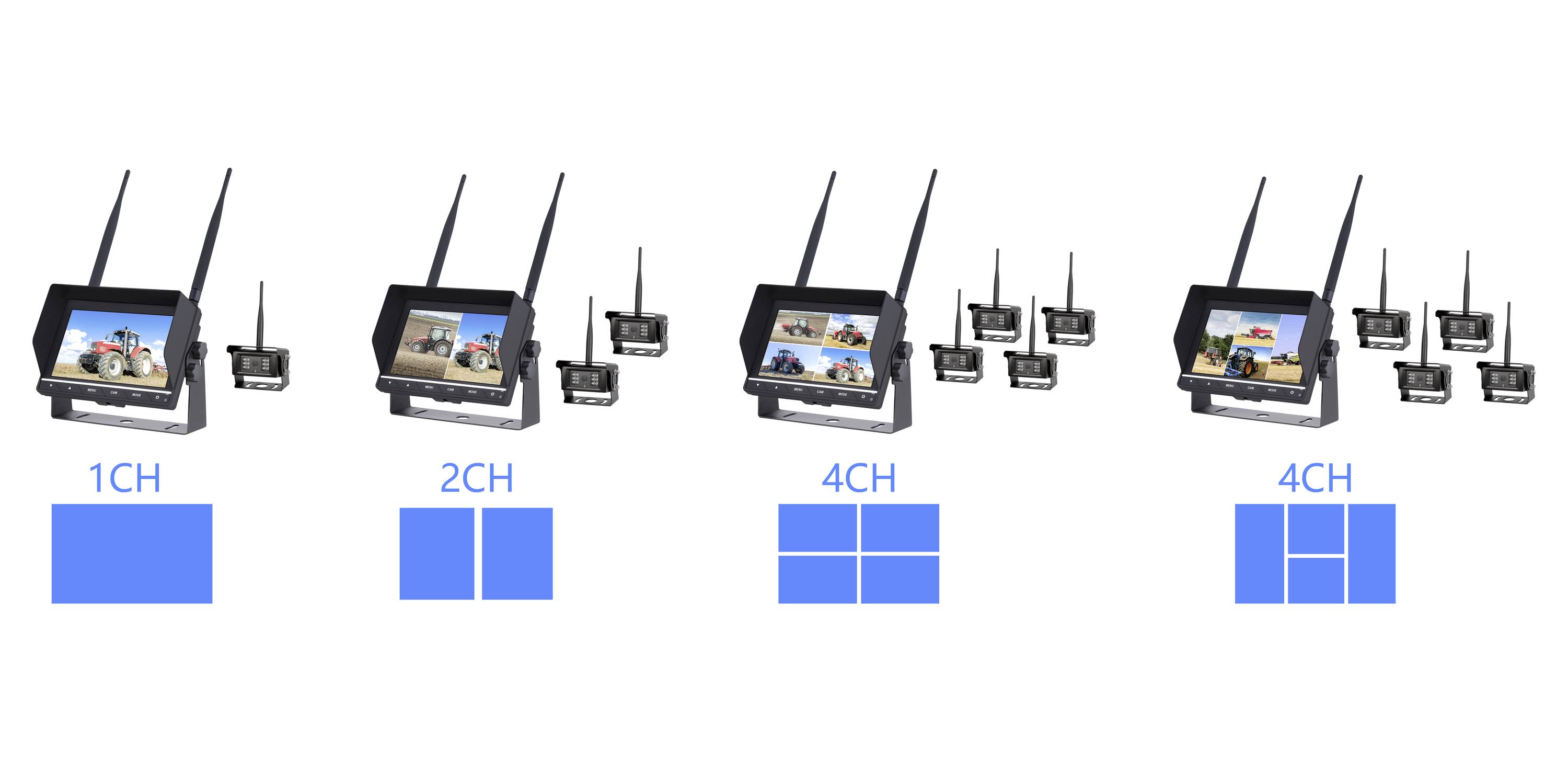

- NORMAL, MIRROR, FLIP and MIR-FLIP viewing available. Split mode, auto-scan mode and single-display mode available. Auto pairing happens when camera is activated. Support 4-channel composite and single-channel recording in AVI signal format. Auto dim function available. Full-function remote control. On-board speaker. Auto switch to the working channel when trigger is activated !! one mirror can support 4 cameras max. !!

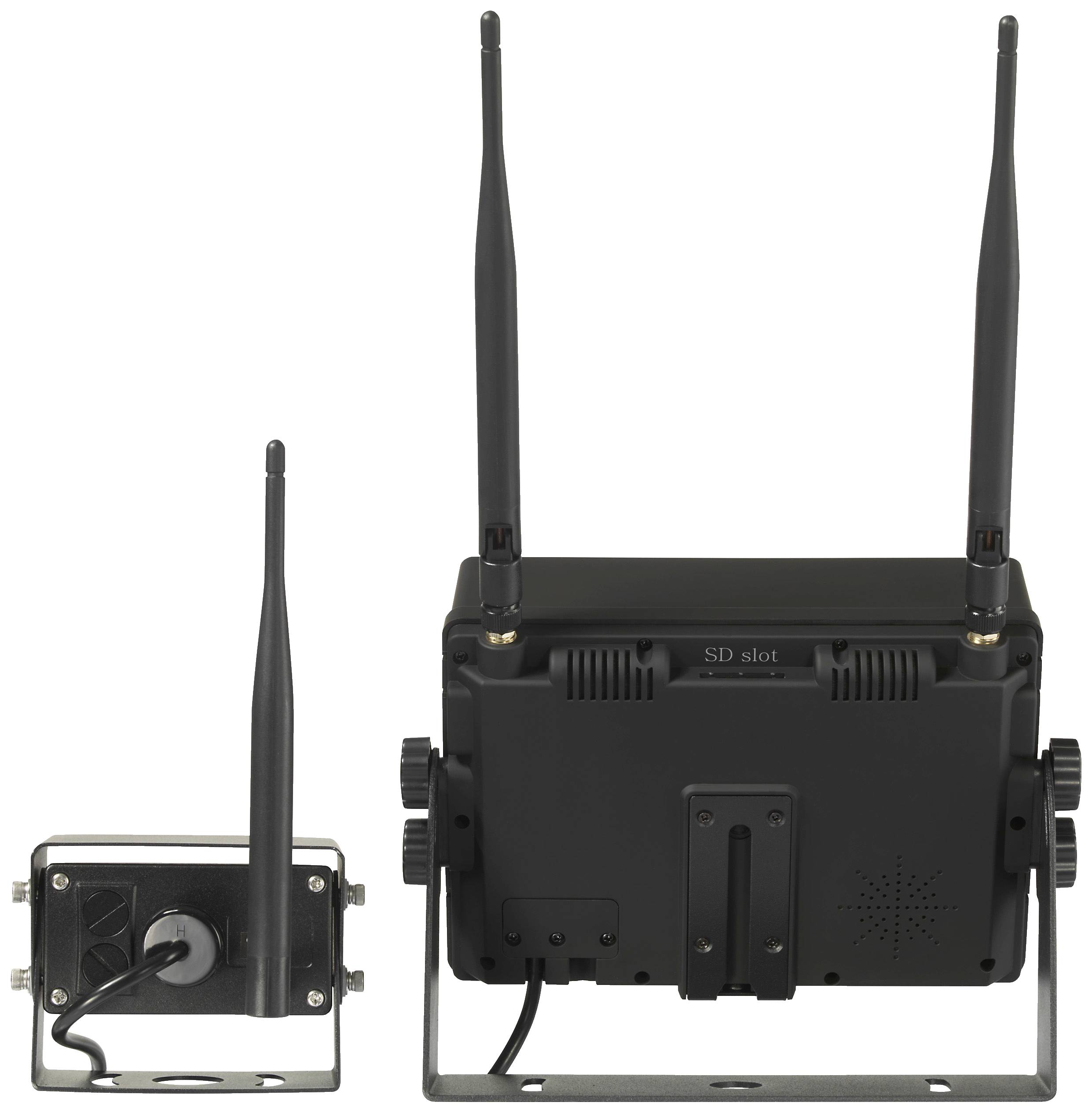

- MONITOR (Receiver)
- LCD size: 7" (17.78 cm)
- Digital Panel Resolution: 800 x 3 (RGB) x 480
- Aspect Ratio 16:09 Channel: 4 channels
- Operating Frequency: 2400 - 2483.5 MHz
- Receiving Sensitivity: -89 dBm
- Decompression Form: MPEG4
- Transmit Output Power: 17 dBm
- Modulation: 2.4G FSK/GFSK
- Time Delay: 120ms
- Transmitting Distance: 30-120 M
- SD /TF Card: Max. 128G
- System Format: PAL / NTSC
- Power Supply: DC 10-32V
- Power Consumption
- Max. 6W
- Loudspeaker
- 1.5W/8Ω
- Operating temperature
- -20~+70ºC,RH90%
- Storage temperature
- -30~+80ºC,RH90%
- CAMERA (transmitter)
- Sensor
- 1/3" (8.47 cm) CMOS 2099
- Resolution:
- 800 (H) x 480 (V)
- Lens:
- 2.8mm
- Min illumination:
- 0Lux (LED ON)
- IR led:
- 12pcs
- Night Vision distance:
- 45ft (1,371.6 cm)
- Waterproof
- IP69
- View angle:
- 90°
- Power voltage:
- 12-24V
- Operating temperature
- -20~+65ºC,RH90%
- Storage temperature
- -30~+80ºC,RH90%
- Anti-reverse protection and transient surge protection between camera and monitor
Scope of delivery
- Main unit
- Display stand
- Camera
- Sunshade
- Remote control
- Connect cable (approx 1 meter)
- Monitor power cable with cigarette socket 22 cm (max. extention 3 meters)
- User manual
