Revopoint Mini 2 Standard 3D scanner
EAN:
Part number:
Item no:
Number
Total (€ 1,105.00 / piece)
€ 1,105.00
incl. VAT
14-day return policy included
Highlights & Details
Revo point mini 2 standard edition 3D scanner

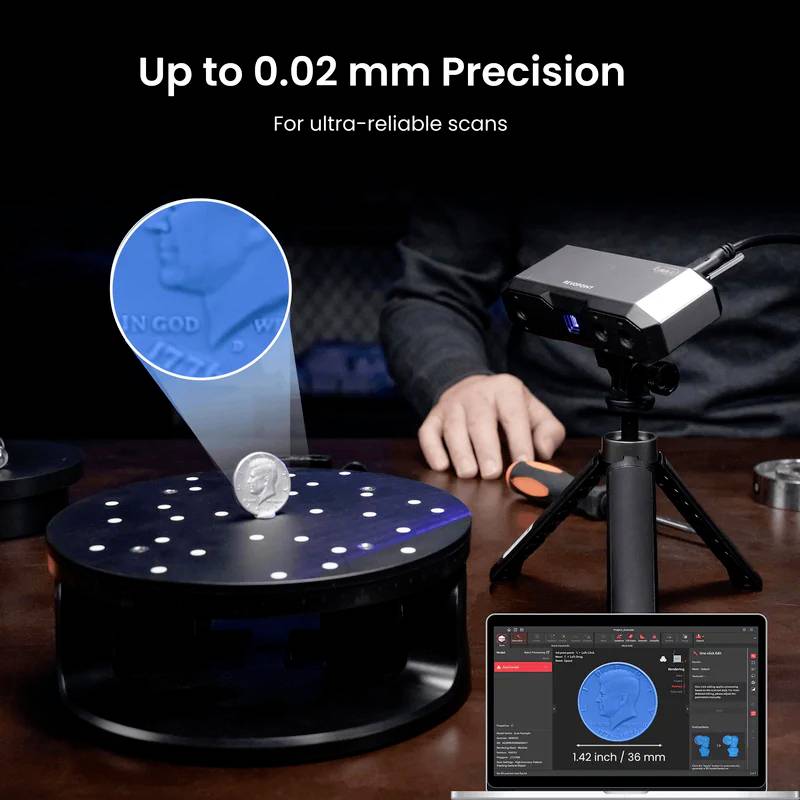

- Precision: Up to 0.02 mm single frame accuracy
- Working distance 120 mm - 250 mm
- Individual measurement range 52 x 64 mm to 168 x 132 mm
- Scanning speed: Up to 16 fps
- Sensors: 9-axis IMU for blur-free scans
- Connectivity: USB type-C & Wi-Fi 6 for instantaneous working
- Compatibility: IOS, Android, Windows, MacOS
Technical specifications
- Product type
3D scanner
- Scanning method
Structured-light 3D scanner
- Scan resolution
0.2 mm
- Interfaces
Wi-Fi 6 (IEEE 802.11ax)
USB C®
- Power supply (LOV)
rechargeable
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3398919 Revopoint Mini 2 Standard 3D scanner
Description
The Revo point MINI 2 sets new standards in the world of 3D scanning. With a measurement accuracy of 0.02 mm and a resolution of up to 0.05 mm, it enables the precise recording of smallest objects – ideal for industrial inspections, jewelry design, medical applications, game modeling and the digitization of historical artifacts.

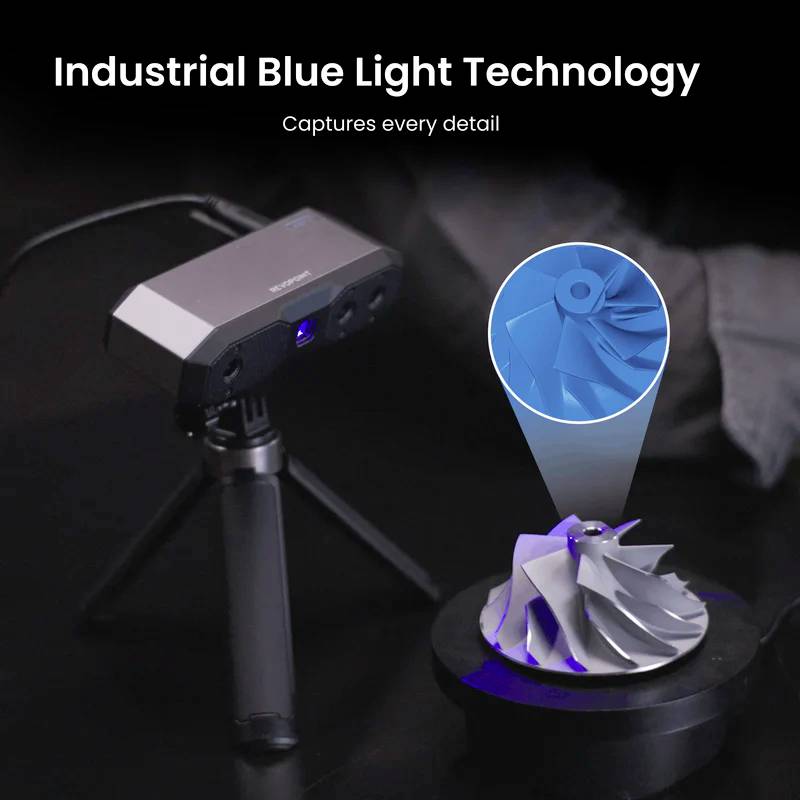

Industrial blue light for highest quality
Thanks to the high-quality blue light sensor the MINI 2 captures even the finest structures on objects from a size of only 10 x 10 x 10 mm. This technology scans reflective and filigree surfaces with extraordinary precision.

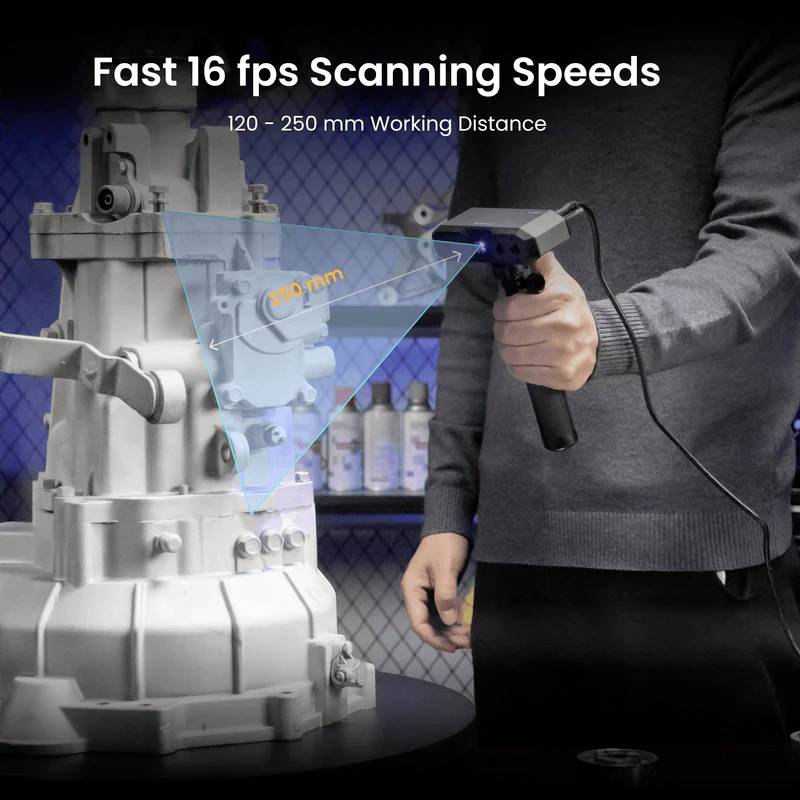

Fast and intelligent detection
With a scanning speed of up to 16 images per second the MINI 2 provides detailed models in no time at all. Supported by a 9-axis IMU with gyroscope, acceleration sensor and magnetometer the intelligent tracking provides for stabilized scans without distortions - even with fast movements or blurring.
Seamless connectivity and versatile software
The MINI 2 offers Wi-Fi 6 for wireless scanning as well as USB-type-C for fast, stable connections. With the powerful Revo SCAN 5 software, scans can be exported directly to STL, PLY or OBJ - perfect for CAD applications, 3D modeling and Slice r programs.
This text is machine translated.
Industrial blue light for highest quality
Thanks to the high-quality blue light sensor the MINI 2 captures even the finest structures on objects from a size of only 10 x 10 x 10 mm. This technology scans reflective and filigree surfaces with extraordinary precision.
Fast and intelligent detection
With a scanning speed of up to 16 images per second the MINI 2 provides detailed models in no time at all. Supported by a 9-axis IMU with gyroscope, acceleration sensor and magnetometer the intelligent tracking provides for stabilized scans without distortions - even with fast movements or blurring.
Seamless connectivity and versatile software
The MINI 2 offers Wi-Fi 6 for wireless scanning as well as USB-type-C for fast, stable connections. With the powerful Revo SCAN 5 software, scans can be exported directly to STL, PLY or OBJ - perfect for CAD applications, 3D modeling and Slice r programs.
This text is machine translated.
Scope of delivery
- Revo point mini 2 standard edition 3D scanner
- Tripod
- Mobile phone holder
- USB type A-to-C Ka illum
- 2-in-1 mobile cable
- USB Type-C Adapter
- Mini turntable
- Turntable Topp Series
- Power cable for turntable
- Carrying case
- Agrippa
- Magic Mat
- Calibration board
- Marker
- Adhesive strips
- User manual
