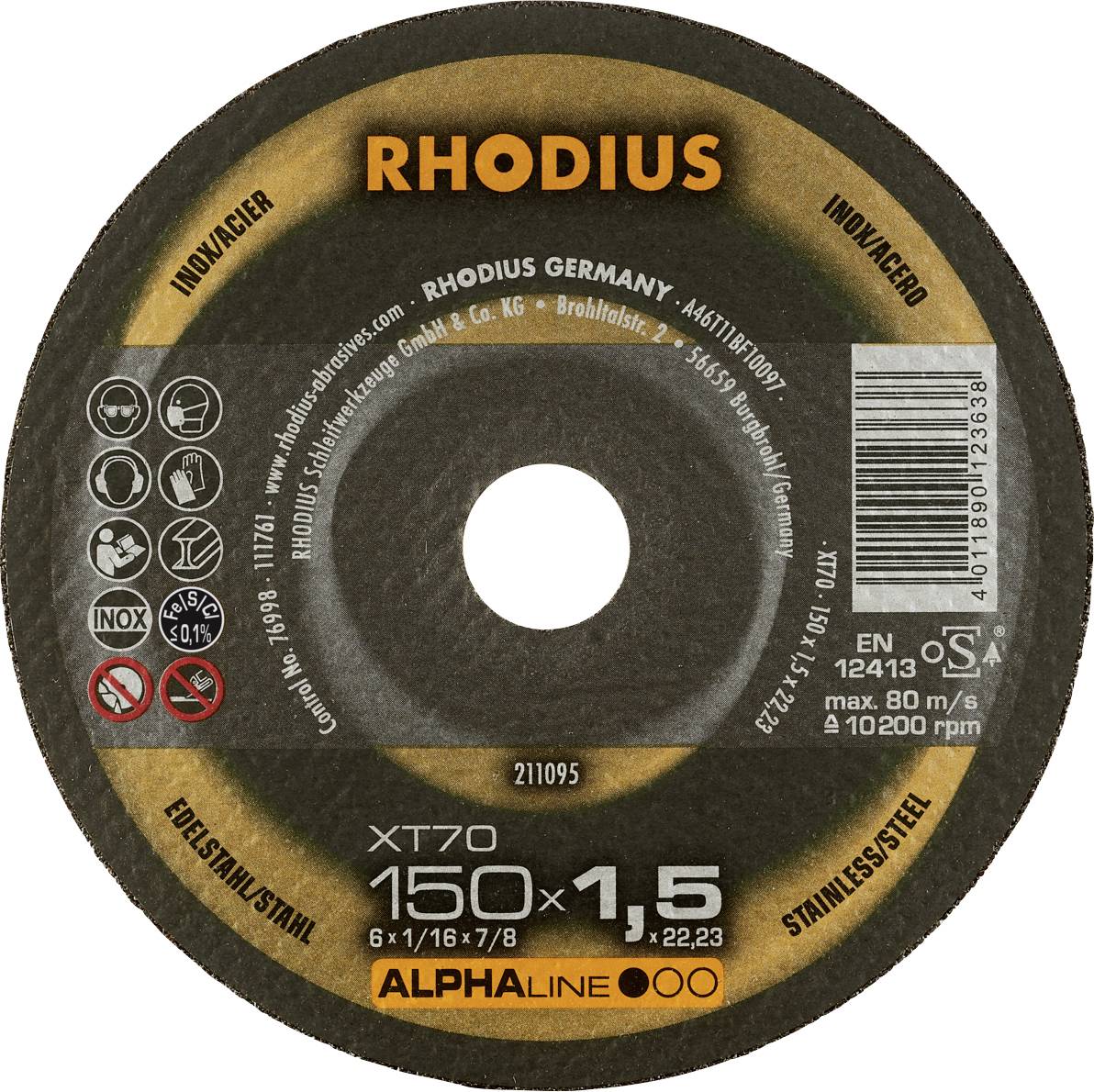

Rhodius 211095 Cutting disc (straight) 150 mm 1 pc(s) Stainless steel, Steel

Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct

214 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions

Number
Total (€ 1.99 / piece)
€ 1.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included

Highlights & Details

Rhodius XT70, extra-thin cut-off wheel 150 x 1.5 x 22.23 mm, shape 41, ALPHALINE, made in Germany, for stainless steel, Steel

  • Reliable cut-off wheel for the price-conscious specialist
  • Ideal for drive-weak machines
  • Little burr formation
  • High cutting speeds.
  • Low flying sparks

Technical specifications

Product type

Cutting disc (straight)

Content

1 pc(s)

(Ø)

150 mm

Type

Disc

Bore Ø

22.23 mm

Thickness

1.5 mm

Rotational speed (max.)

10200 U/min

Material suitability

Stainless steel

Steel

Dim

(Ø) 150 mm

Documents & Downloads

Datasheet

Datasheet 3394036 Rhodius 211095 Cutting disc (straight) 150 mm 1 pc(s) Stainless steel, Steel

User & Safety Instructions

User & Safety Instructions 3394036 Rhodius 211095 Cutting disc (straight) 150 mm 1 pc(s) Stainless steel, Steel

Description

Machine suitability: The cutting wheel XT70 is suitable in manual operation for angle grinders of all performance classes (including weak drive machines and battery machines). Material suitability: The XT70 is specially designed for use on stainless steel (VA-steel, Inox), e.g. 1.4301 (X5CrNi18-10 or 304), steel (black steel also known as structural steel, St37, S235JR, 1.0037 or carbon steel) and cast steel. Construction and production: The cutting wheel contains high-quality corundum (aluminum oxide) and 2 full-surface fiberglass fabric. The minimum side load for the cutting disc is according to EN 12413 and OSA 40 N, or from diameter 150 mm 50 N. The expiry date (three years) is stamped in the boring ring. A consistent quality is ensured by complex In-Pro process controls in production. In order to offer a safety Maximum, every thousand glass pieces are tested destructive.
This disc is a straight disc (form 41). Cutting discs with a straight shape enable a greater immersion depth and thus also more cuts. Quality: To be able to work even more economically (cost per cut), RHODIUS cutting discs of the quality lines PRO and TOP or with the technology CE RAMICON are recommended. The XT70 uses the printer in an exceptionally light and fast cut manner. The disc is characterized by low spark flight, sturdy application and outstanding quietness. It makes the work easier and is particularly economical. Precise and fast working in thin-walled material is no problem.
This RHODIUS quality tool is particularly suitable for cutting structural steel, thin-walled metal sheets, stainless and acid-resistant steel, cable ducts, carriers and profiles. Dimensions: The extra-thin cutting wheel with a disc width from 1.0 mm to 1.5 mm is available in diameters from 100 mm to 150 mm. Industries: It is the perfect tool for the various applications and challenges in plant construction, container construction, boiler and container construction, construction steel construction, pipeline construction and also assembly. Note: The RHODIUS cutting wheels for stainless steel are iron-free and sulfur-free. To prevent rust, never Norma change back to stainless steel with the same disc.

This text is machine translated.

Scope of delivery

  • 1 piece XT70 150 x 1.5 x 22.23 mm
