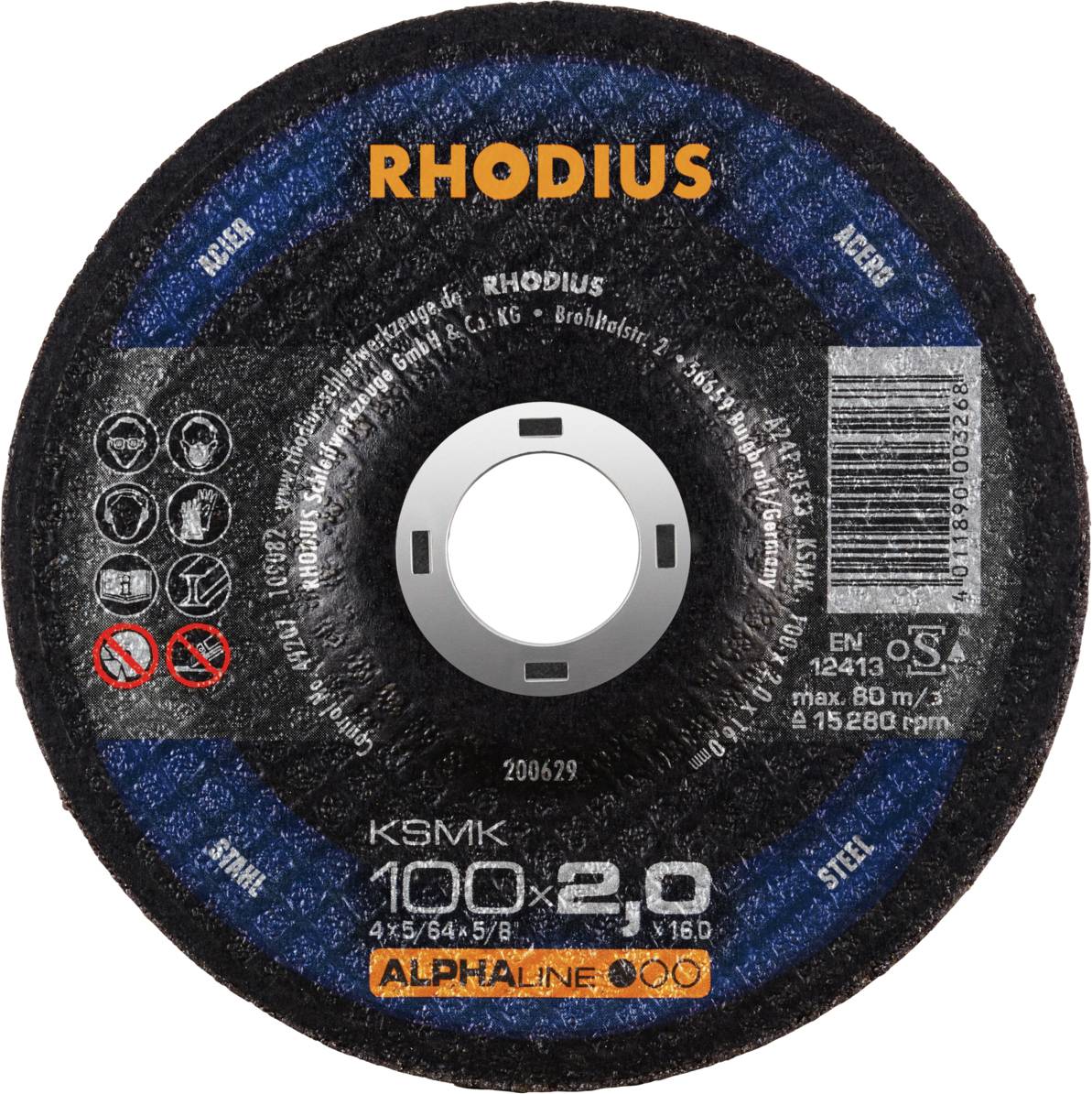

Rhodius KSMK 200629 Cutting disc set 25 pc(s) Steel

Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 4 Nov

Sales and shipping:
Conrad ElectronicTerms & Conditions

Number (Package size 25 pc(s))
Total (€ 25.99 / piece)
€ 25.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included

Highlights & Details

Rhodius KSMK, 25 pieces of freehand cutting wheel 100 x 2.0 x 16.00 mm, form 42, ALPHALINE, made in Germany, for steel

  • The classic metal cutting wheel for the price-conscious professional. Easy separation with good service life.
  • High cutting speeds.
  • Easy cutting
  • Comfortable separation behavior

Technical specifications

  • Working speed 80 m/s.
  • Suitable for machines: Freehand angle grinder
  • Eurohole X 52.5 mm
  • Eurohole Y 44.5 mm
  • Quality level: ALPHALINE
Product type

Cutting disc set

Content

25 pc(s)

Rotational speed (max.)

15300 U/min

Material suitability

Steel

Dim

(W x H x D) 105 x 105 x 2 mm

Depth

2 mm

Height

105 mm

Width

105 mm

Weight

0.046 kg

Documents & Downloads

Datasheet

Datasheet 3408312 Rhodius KSMK 200629 Cutting disc set 25 pc(s) Steel

User & Safety Instructions

User & Safety Instructions 3408312 Rhodius KSMK 200629 Cutting disc set 25 pc(s) Steel

Description

Machine suitability: The KSMK cut-off wheel is suitable for hand use on angle grinders as well as for high frequency (HF) and compressed air machines of all power classes. Material suitability: The KSMK is specially designed for use on steel (black steel also called structural steel, St37, S235JR, 1.0037 or carbon steel) and cast steel. Construction and production: The cutting wheel contains high-quality corundum (aluminum oxide) and 2 full-surface fiberglass fabric. The minimum side load for the cutting disc is according to EN 12413 and OSA 40 N, or from diameter 150 mm 50 N. The expiry date (three years) is stamped in the boring ring. A constant quality is ensured by complex in-process controls in production. To provide a safety Maximum, every one in thousands of discs is tested destructive.This is an offset disc (form 42). The cut-off wheel is particularly stable. Application: In the application, the KSMK impresses with an aggressive cut and an excellent smoothness. This cutting wheel is particularly useful for economic use.This Rhodius quality tool is particularly suitable for cutting structural steel, beams, profiles, plates and cross beams. Dimensions: The free-hand cut-off wheel with a disc width of 2.0 mm and 3.0 mm is available in diameters from 100 mm to 230 mm. Industries: It is the perfect tool for the various applications and challenges of construction locks as well as in plant construction, container construction, foundry and cleaning, in boiler and container construction, in structural steel construction, in pipeline construction, in gala construction and also on assembly.

This text is machine translated.

Scope of delivery

  • 25 pieces KSMK 100 x 2.0 x 16.00 mm
