Rhodius XT70 208697 Cutting disc 50 pc(s) Stainless steel, Steel

Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 12 Nov

Sales and shipping:
Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))
Total (€ 1.04 / piece)
€ 51.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included

Highlights & Details

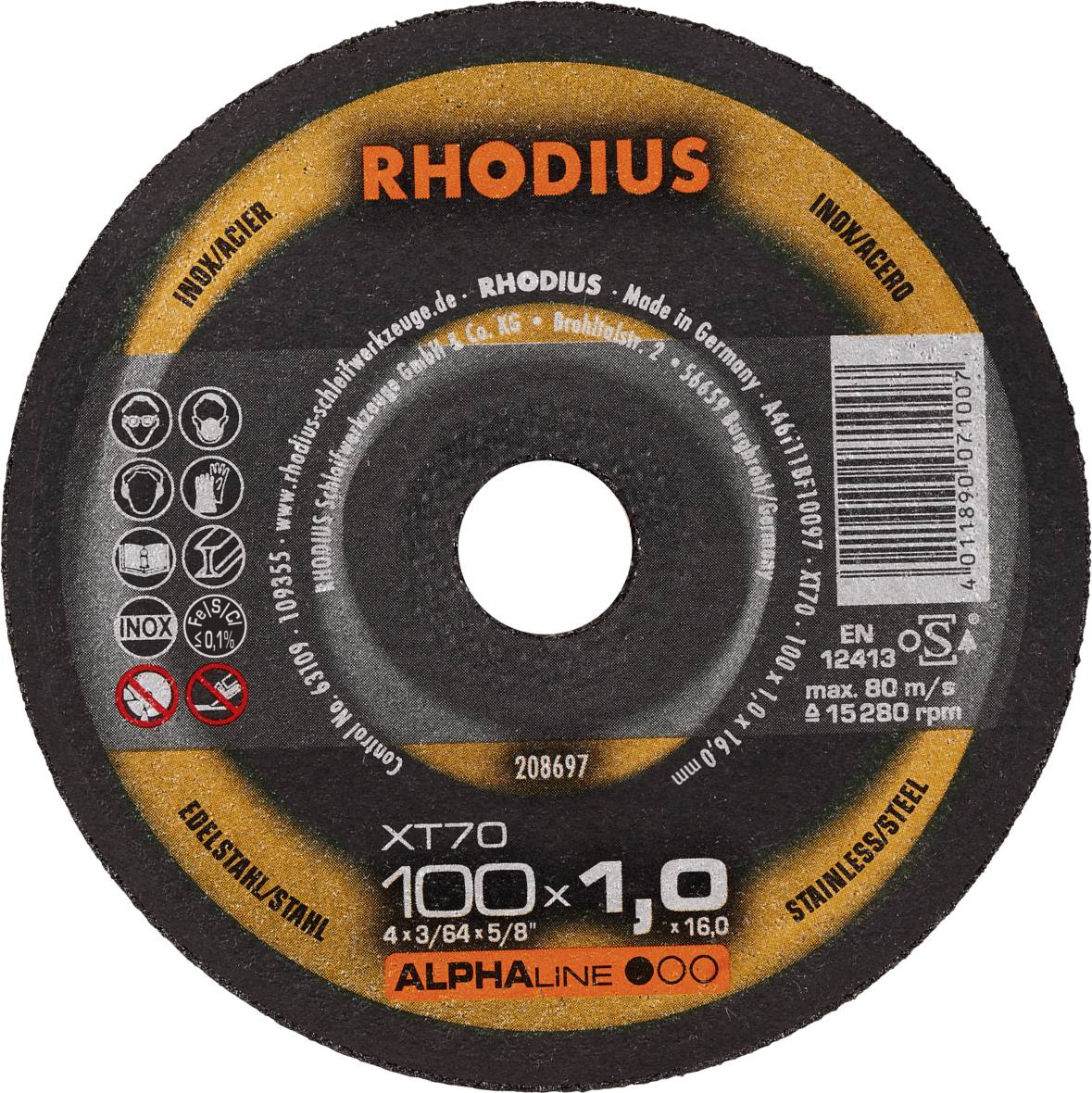

Rhodius XT70, 50 pieces extra-thin cut-off wheel 100 x 1.0 x 16.00 mm, shape 41, ALPHALINE, Made in Germany, for stainless steel, Steel

  • Reliable cut-off wheel for the price-conscious specialist. Ideal for drive-weak machines.
  • Little burr formation
  • High cutting speeds.
  • Low flying sparks

Technical specifications

  • Working speed 80 m/s.
  • Suitable for machines: Freehand angle grinder
  • Eurohole X 50 mm
  • Eurohole Y 38,885 mm
  • Quality level: ALPHALINE
  • Suitable for angle grinders, suitable for all power classes (also battery machines).
  • Material suitability: Specially designed for stainless steel, black steel, structural steel and cast steel.
Product type

Cutting disc

Features

Glass fibre reinforced

Content

50 pc(s)

Type

Straight

Rotational speed (max.)

15280 U/min

Material suitability

Stainless steel

Steel

Dim

(W x H x D) 100 x 100 x 1.2 mm

Depth

1.2 mm

Height

100 mm

Width

100 mm

Weight

0.021 kg

Documents & Downloads

Datasheet

Datasheet 3409033 Rhodius XT70 208697 Cutting disc 50 pc(s) Stainless steel, Steel

User & Safety Instructions

User & Safety Instructions 3409033 Rhodius XT70 208697 Cutting disc 50 pc(s) Stainless steel, Steel

Description

Machine suitability: The cutting wheel XT70 is suitable in manual operation for angle grinders of all performance classes (including weak drive machines and battery machines). Material suitability: The XT70 is specially designed for use on stainless steel (VA-steel, Inox), e.g. 1.4301 (X5CrNi18-10 or 304), steel (black steel also known as structural steel, St37, S235JR, 1.0037 or carbon steel) and cast steel. Construction and production: The cutting wheel contains high-quality corundum (aluminum oxide) and 2 full-surface fiberglass fabric. The minimum side load for the cutting disc is according to EN 12413 and OSA 40 N, or from diameter 150 mm 50 N. The expiry date (three years) is stamped in the boring ring. A constant quality is ensured by complex in-process controls in production. To provide a safety Maximum, every one of the thousands of discs is tested in a destructive way. This is a straight-shaped disc (form 41). Cutting discs with a straight shape enable a greater immersion depth and thus also more cuts. Quality: In order to be able to work even more economically (cost per cut), Rhodius cutting discs of the quality lines PRO and TOP or with the technology CERAMICON are recommended. The XT70 uses the printer in an exceptionally light and fast cut manner. The disc is characterized by low spark flight, sturdy application and outstanding quietness. It makes the work easier and is particularly economical. Precise and fast working in thin-walled materials is no problem.This Rhodius quality tool is especially suitable for cutting structural steel, thin-walled sheets, rust-resistant and acid-resistant steel, cable shafts, carriers and profiles. Dimensions: The extra-thin cutting wheel with a disc width from 1.0 mm to 1.5 mm is available in diameters from 100 mm to 150 mm. Industries: It is the perfect tool for the various applications and challenges in plant construction, container construction, boiler and container construction, construction steel construction, pipeline construction and also assembly. Note: The Rhodius cutting wheels for stainless steel are iron-free and sulfur-free. To prevent rust, never change from normal steel back to stainless steel with the same disc.

This text is machine translated.

Scope of delivery

  • 50 piece XT70 100 x 1.0 x 16.00 mm

Hints

Ideal for drive-weak machines
