Buy Rigol DSA832E-TG Manufacturer's standards (no certificate)

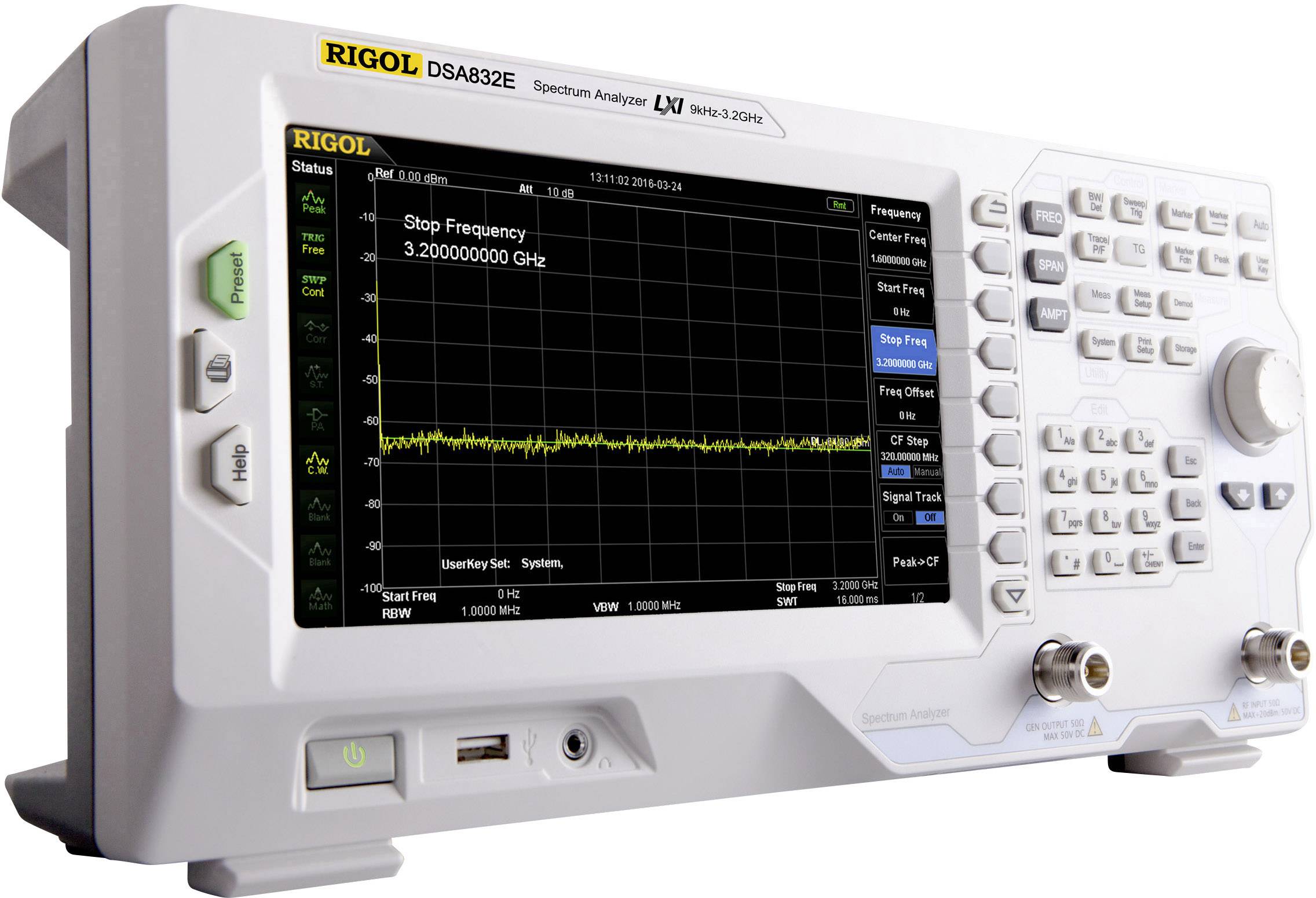

A spectrum analyser displays a frequency spectrum with a maximum value of 3.20000000 GHz on a screen. Buttons on the right enable settings.

A spectrum analyser with a screen displaying a frequency curve at 3.2 GHz. Various buttons and ports are visible.

1/2

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 2,457.98 / piece)

€ 2,457.98

plus VAT.

Report legal concerns

Highlights & Details

Spectrum analyzer DSA 832 E-TG

9 kHz - 3.2 GHz bandwidth
Frequency resolution 1 Hz
Up to -130 dBm (DANL -135)
Integrated Tracking Generator

Technical specifications

Display resolution: 800 x 480 pixels
Display size: 20.32 cm

: Manufacturer's standards (no certificate)

Inputs: RF input, external trigger, REF-in

Dim: (W x H x D) 362 x 179 x 128 mm

Weight: 4.25 kg

Width: 362 mm

Height: 179 mm

Depth: 128 mm

Interfaces: 1x USB
1x USB host
1x RJ45 (LAN)

Input impedance: 50 Ω

Frequency range: 9 kHz - 3.2 GHz

Power supply (details): 100 - 240 V AC

Connection: N socket/BNC socket

Documents & Downloads

Datasheet

Datasheet 1517914 Rigol DSA832E-TG Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 1517914 Rigol DSA832E-TG Manufacturer's standards (no certificate)

Description

The DSA 832 E-TG spectrum analyzer is suitable both for the semi-professional, as well as also for the professional range of application. Due to the variety of software tools and possible accessories, ideal for EMI (EMC) Pre compliance tests as a preparation for the final acceptance of EMC specifications.

This text is machine translated.

Features

Detector Functions: positive peak, negative peak, Sample, RMS, Voltage Average, quasi-peak (optional license required)
Large WVGA-color TFT-Monitor (203 mm)
Built-in AM/FM demodulator
USB interface
Pic Bridge printer support.
