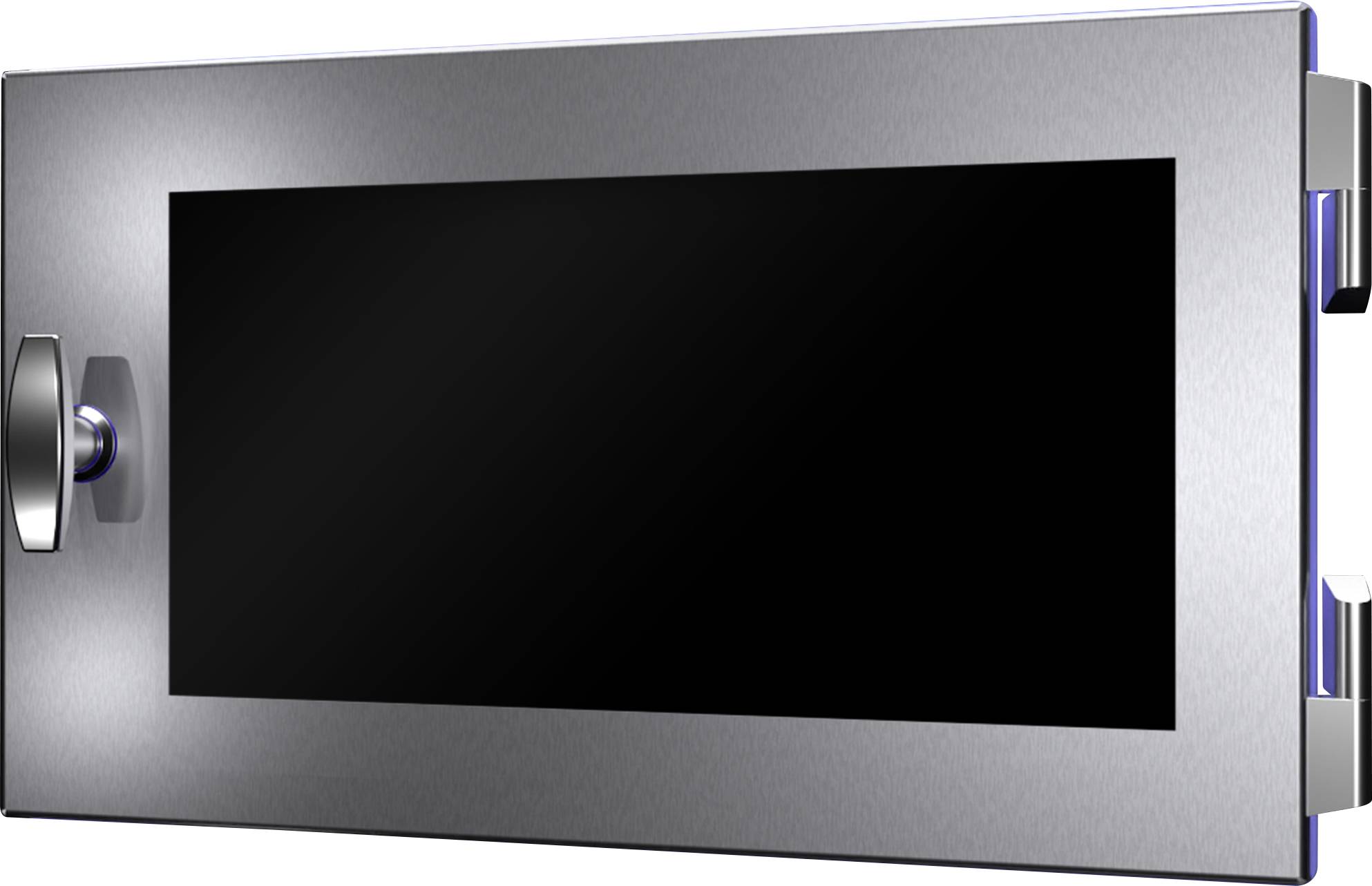

Rittal HD 4000.082 4000082 Window (L x W x H) 65 x 470 x 290 mm Stainless steel, Silicone, Polycarbonate (PC) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Window
Width
470 mm
Material
Stainless steel
Silicone
Polycarbonate (PC)
Height
290 mm
Type
With T-handle
Number
Total (€ 407.56 / piece)
€ 407.56
plus VAT.
14-day return policy included
Technical specifications
- Material: Frame: Stainless steel 1.4301 (AISI 304)
- Sealing: Silicone, compliant with FDA directive 21 CFR 177.2600
- Viewing panel: Polycarbonat
- Net weight: 2.84 kg
- Gross weight: 2.896 kg
- Dimensions: Width 470 mm
- Height: 290 mm
- Depth: 65 mm
- Suitable for: Housing type: Compact-HD switching cabinet
- Benefit: Large field of view
- Gap-free transition between viewing window and frame
- Outside hinge
- With T-handle for easy opening without keys
- IK code: IK08
- Mounting options: For mounting on surfaces
- Visible area: Window width 352 mm
- Window height 185 mm
- Protection class IP according to IEC 60 529:IP 55
- Product type
Window
- Height
290 mm
- Type
With T-handle
- Length
65 mm
- Width
470 mm
- Dim
(L x W x H) 65 x 470 x 290 mm
- Material
Stainless steel
Silicone
Polycarbonate (PC)
- Compatible with (details)
Housing type: Compact-switch cabinet HD
- Content
1 pc(s)
- Type
HD 4000.082
470 mm
290 mm
29 mm
TRUE
IP55
12
Glass
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386767 Rittal HD 4000.082 4000082 Window (L x W x H) 65 x 470 x 290 mm Stainless steel, Silicone, Polycarbonate (PC) 1 pc(s)
Description
HD viewing window, with knob handle, WxH: 470x290 mm, stainless steel, 1.4301
For protection of buttons or displays.
This text is machine translated.
For protection of buttons or displays.
