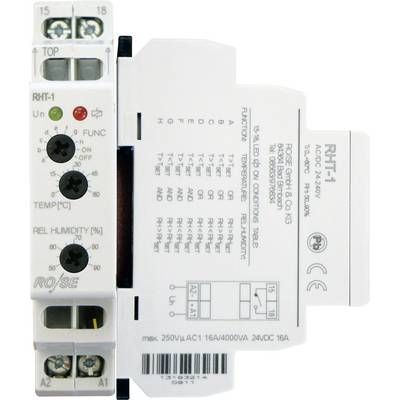

RO/SE LM-Heizungen RHT-1 Control Cabinet Thermostat And Humidistat
EAN:
Part number:
Item no:
Product type
Enclosure thermostat hygrostat combo
Connection
Screw terminal
Operating voltage
230 V DC
230 V AC
Contact type
1 maker
Switching voltage (max.)
230 V AC
Datasheet (PDF)
4 Piece(s)
Sales and shipping:
Number
Total (€ 138.65 / piece)
€
Only 4 Piece(s) available
Technical specifications
- Switching current (24 V) 10 A
- Mounting: top-hat rail 35 mm
- Product type
Enclosure thermostat hygrostat combo
- Type
RHT-1
- Connection
Screw terminal
- Adjustment range (min.) (moisture)
50 RH
- Adjustment range (max.) (moisture)
90 RH
- Adjustment range (min.) (temperature)
0 °C
- Temperature adjustment range (max.)
60 °C
- Operating voltage
230 V DC
230 V AC
- Min. operating voltage
24 V DC
24 V AC
- Max. operating voltage
230 V DC
230 V AC
- Operating voltage
24, 24 - 230, 230 V DC, V AC
- Contact type
1 maker
- Switching voltage (max.)
230 V AC
- Switching current (max.)
16 A
- Max. switching capacity
4000 VA
IP40
- Length
90 mm
- Width
64 mm
- Height
17.6 mm
- Dim
(L x W x H) 90 x 64 x 17.6 mm
- Adjustment range
0 - 60 °C
- Switching capacity
4000 VA
- Switching current
(230 V)16 A/(24 V) 10 A
- Type
RHT-1
- Fitting method
DIN-rail 35 mm
- Operating voltage
24 - 230 V DC/AC
Documents & Downloads
Datasheet
Datasheet 185800 RO/SE LM-Heizungen RHT-1 Control Cabinet Thermostat And Humidistat
User & Safety Instructions
User & Safety Instructions 185800 RO/SE LM-Heizungen RHT-1 Control Cabinet Thermostat And Humidistat
Description
The Hygro-Thermostat is used to regulate heating devices, cooling devices, fans and heat exchanger. In addition, it can be used as switch contact for Signal giver for notifying about excessive- or low temperature and exceeding- or deceeding of a specific atmospheric humidity. A measurement of temperature and relative atmospheric humidity is possible with this device.
