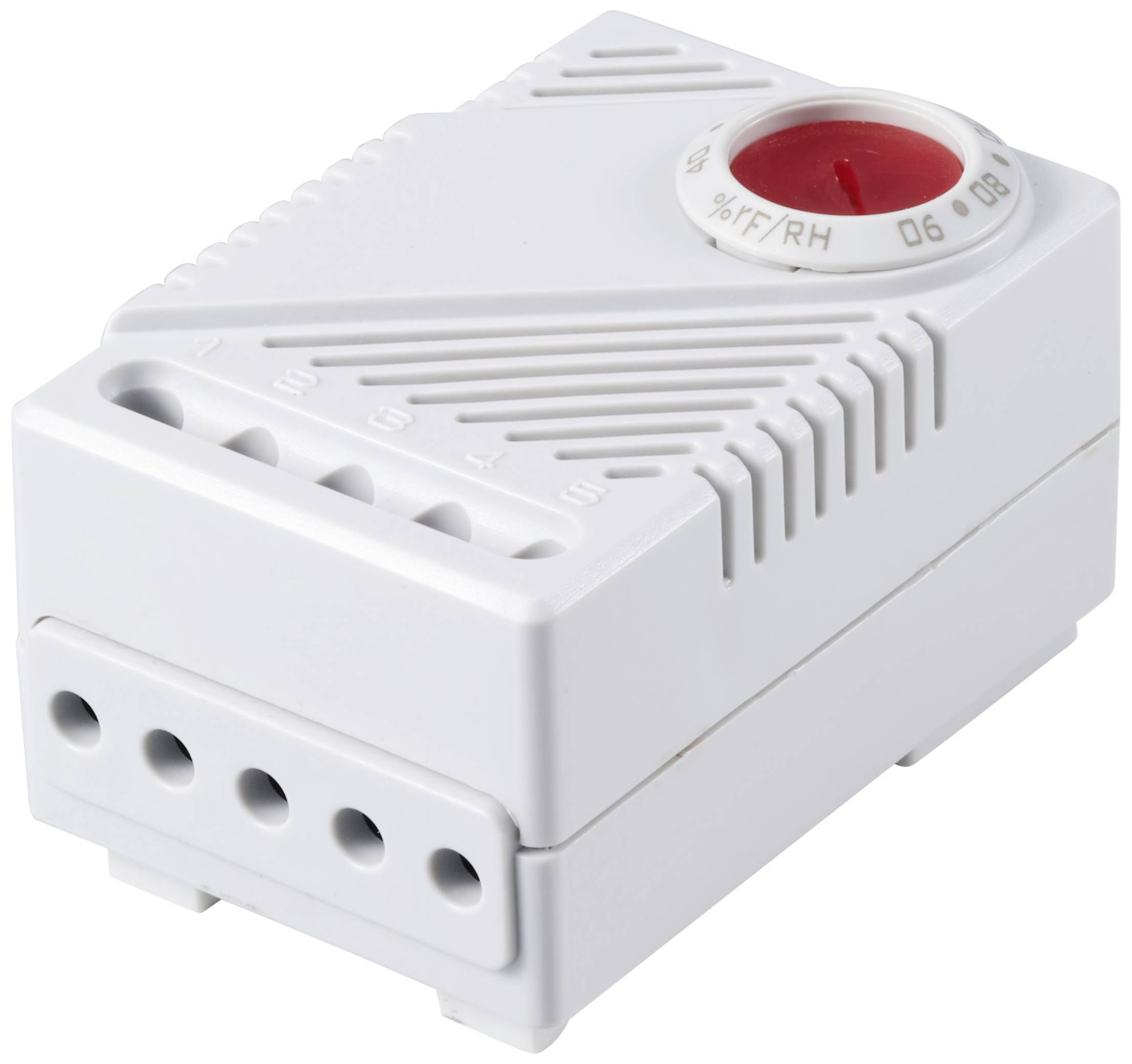

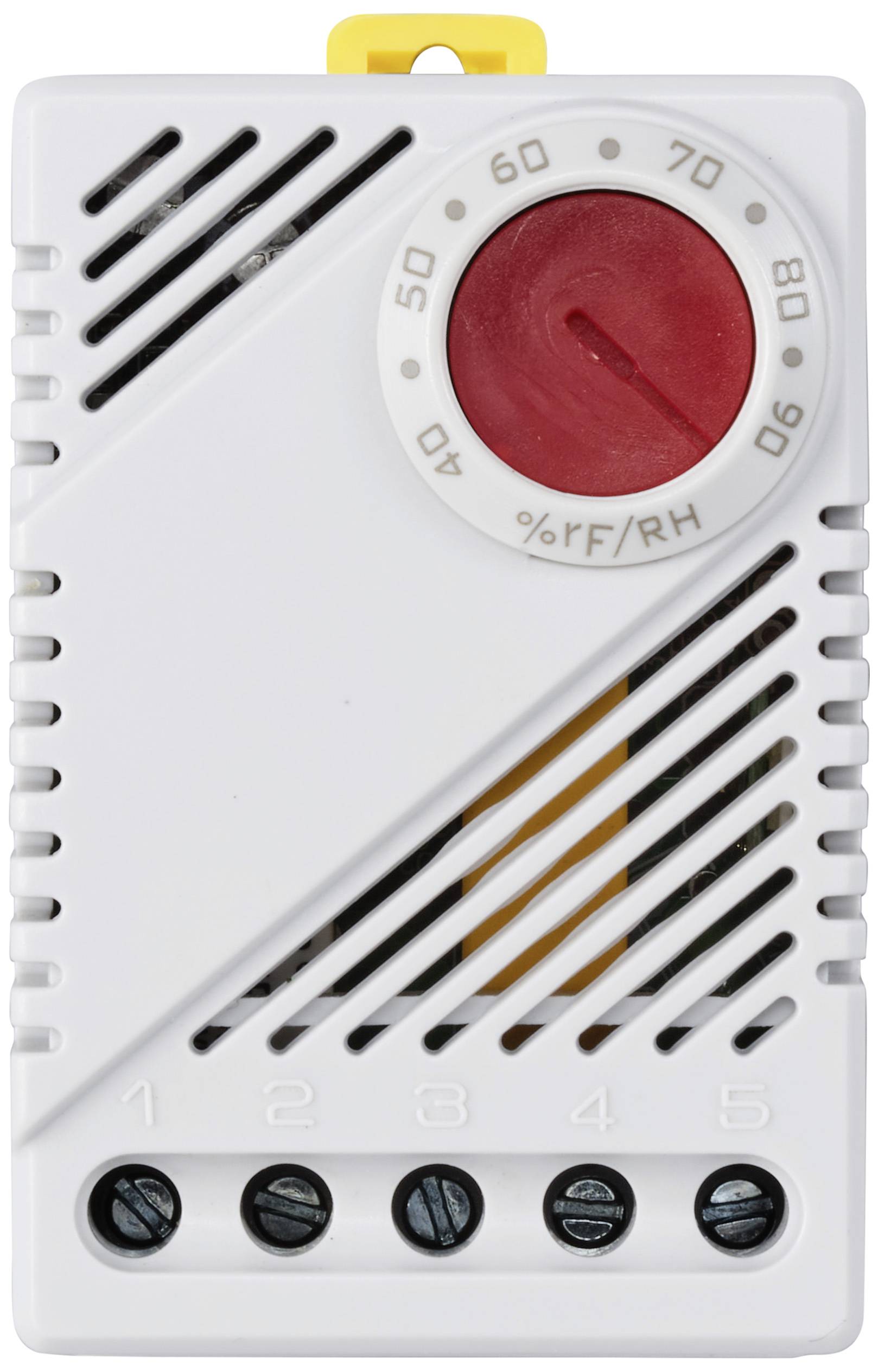

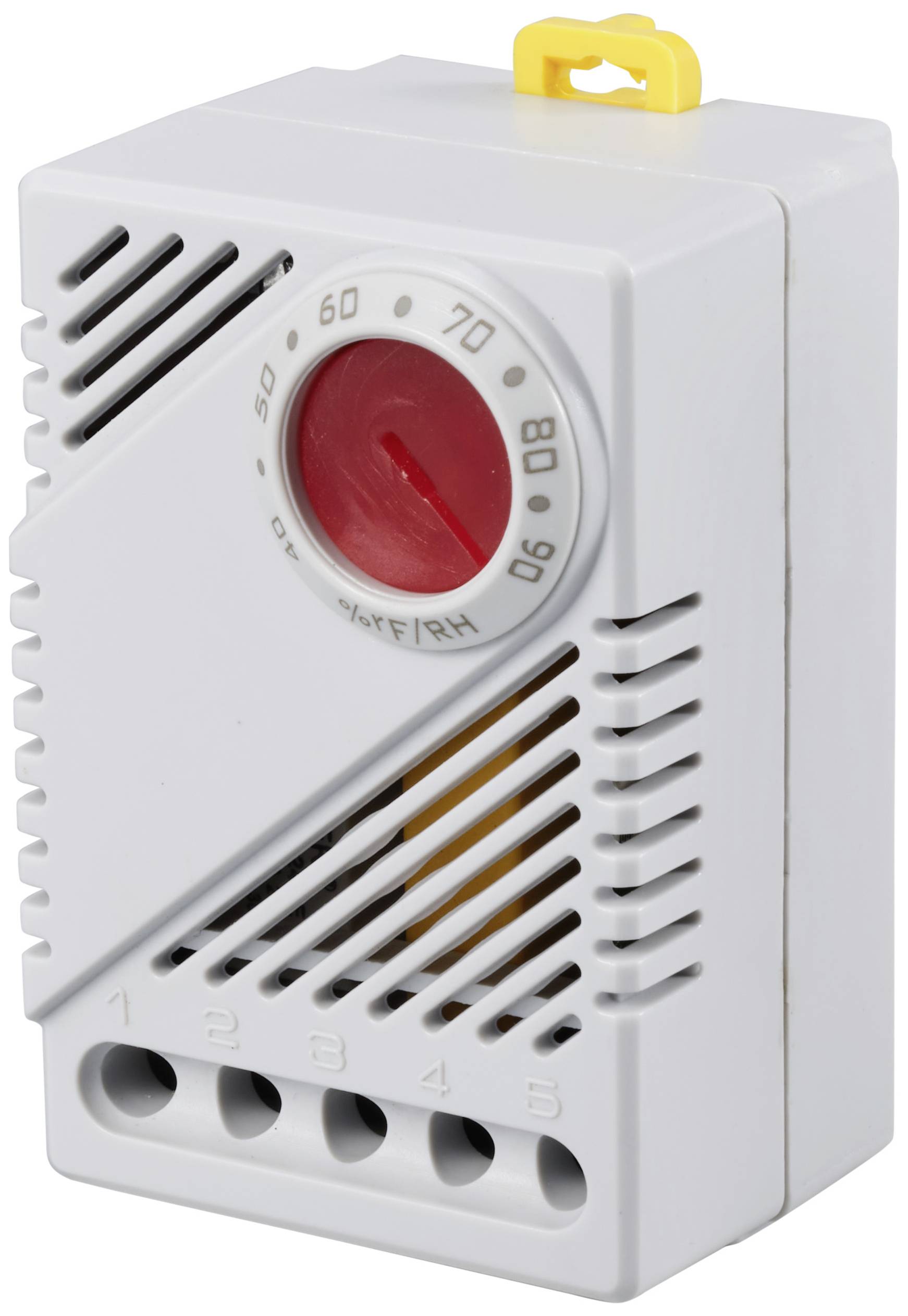

TRU COMPONENTS Enclosure hygrostat TC-NTL 77-M.0 (L x W x H) 64.5 x 42.5 x 38 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure hygrostat
Type
TC-NTL 77-M.0
Adjustment range (max.) (moisture)
90 RH
Operating temperature (min.)
0 °C
Operating temperature (max.)
60 °C
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 31.92
3
4% = € 1.38
€ 30.54
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 31.92 / piece)
€ 31.92
plus VAT.
14-day return policy included
Highlights & Details
TRU COMPONENTS TC-NTL 77-M.0 Switchboard hygrostat
- Adjustable and preset relative humidity
- Status indicator (LED)
- High switching power
- Clip fixing
- Temperature compensated
Our service for you
Technical specifications
- Switching difference: 5%RH (±3%RH tolerance) at +25℃(+77℉),50%RH
- Reaction time: 5 sec.
- Contact type: Changeover contact (relays)
- Lifetime: >50,000 cycles
- Max. Switching capacity (relay output): 240VAC/120VAC 8(1.6)A.
- Max. Switch-on current: AC 16A for 10 sec.
- Optical LED display
- Connection: 5-pole terminal, tightening torque max. 0.5Nm: Rigid wire/wire 2.5mm² (AWG 14)

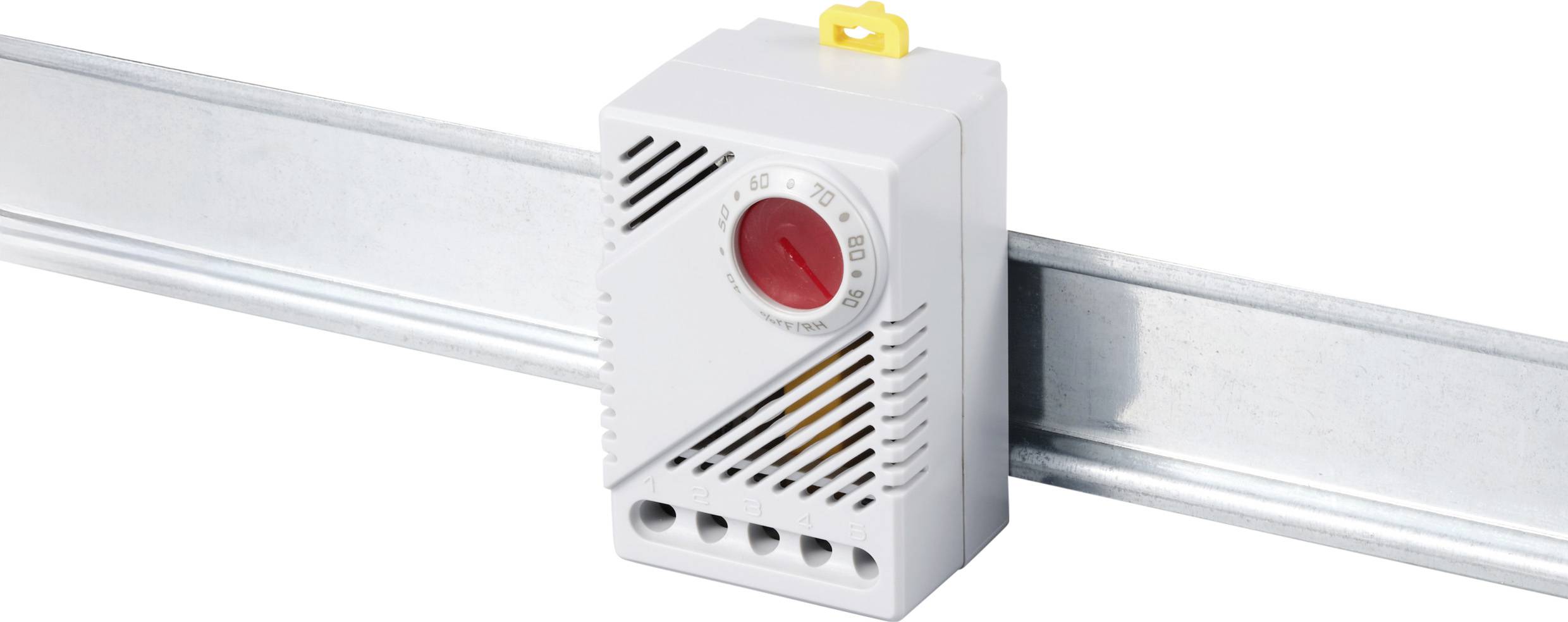

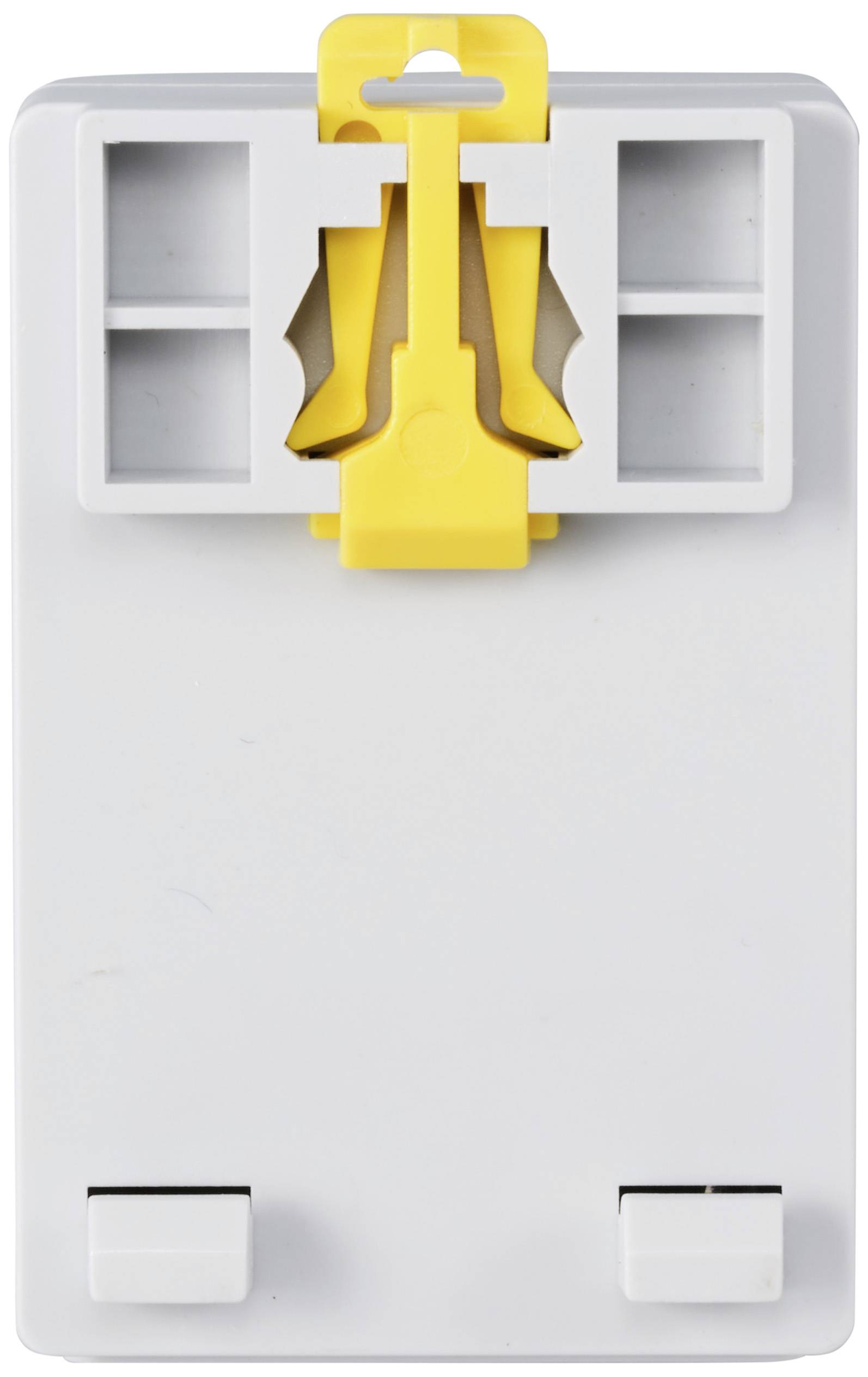

- Attachment: Clip for 35 mm DIN-rail, EN 60715
- Housing: Plastic according to UL94 V-0, light gray
- Dimensions 64.5×42×38mm
- Weight: Approx. 70 g
- Installation position: Installation position
- Operating/storage temperature: 0 to +60℃(+32 to +140℉)/-20 to +70℃(-4 to +158℉)
- Humidity during operation/storage: Max. 90%RH (non-condensing)
- Product type
Enclosure hygrostat
- Type
TC-NTL 77-M.0
- Adjustment range (max.) (moisture)
90 RH
- Operating temperature (min.)
0 °C
- Operating temperature (max.)
60 °C
IP20
- Length
64.5 mm
- Width
42.5 mm
- Height
38 mm
- Dim
(L x W x H) 64.5 x 42.5 x 38 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3192518 TRU COMPONENTS Enclosure hygrostat TC-NTL 77-M.0 (L x W x H) 64.5 x 42.5 x 38 mm 1 pc(s)
Description
The electronic hygrostat measures the relative humidity in a housing with electric/electronic components and activates a heating when the set value is reached, which helps to prevent the formation of condensation water in the housing. The LED integrated in the adjustment knob lights up when the connected heater is in operation.
