Name: Rothenberger 1000004127
Brand: Rothenberger
SKU: 3220824
Availability: BackOrder

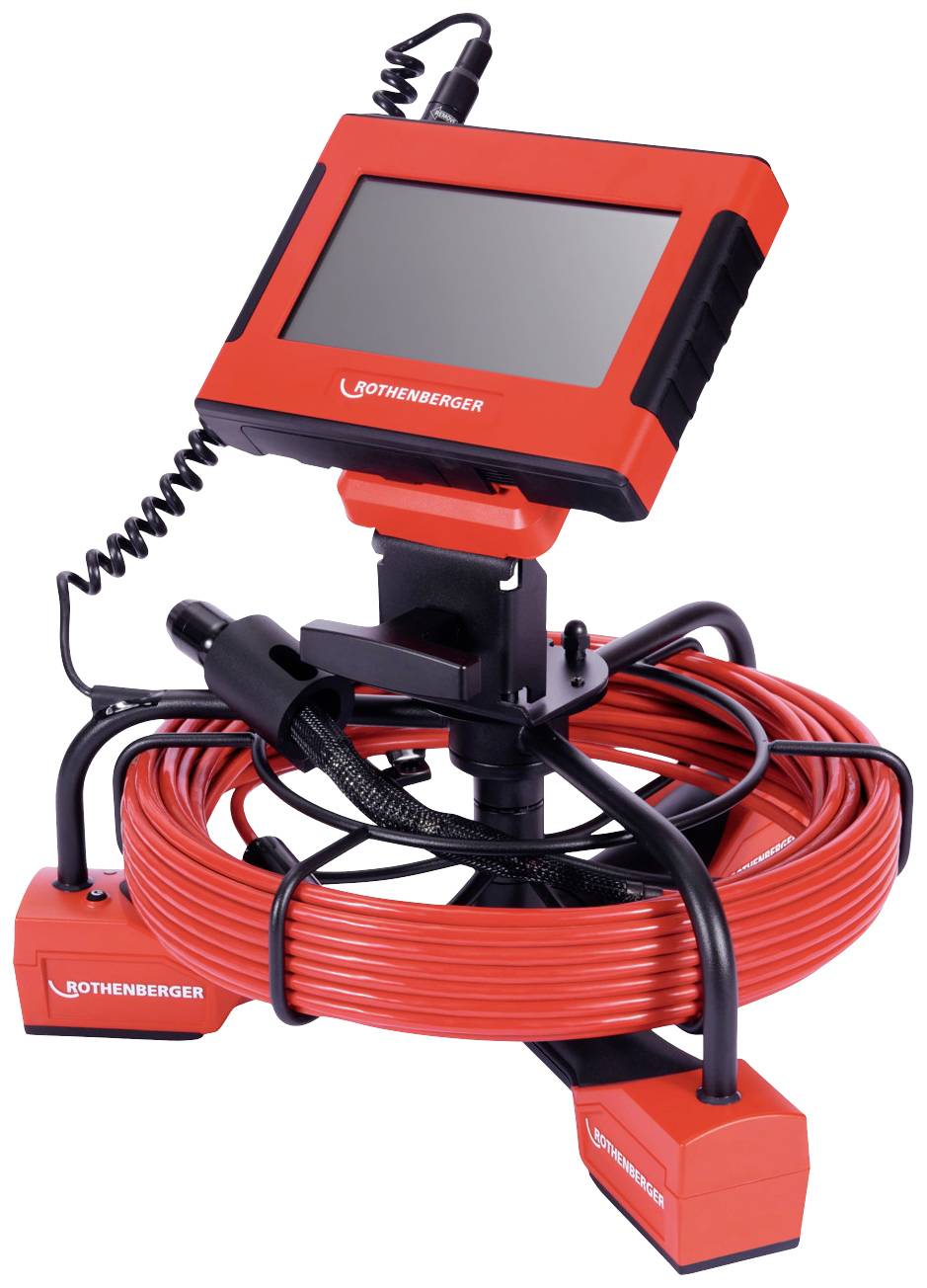

A red inspection camera system with a screen, surrounded by a coiled cable. Used for visual channel inspection.

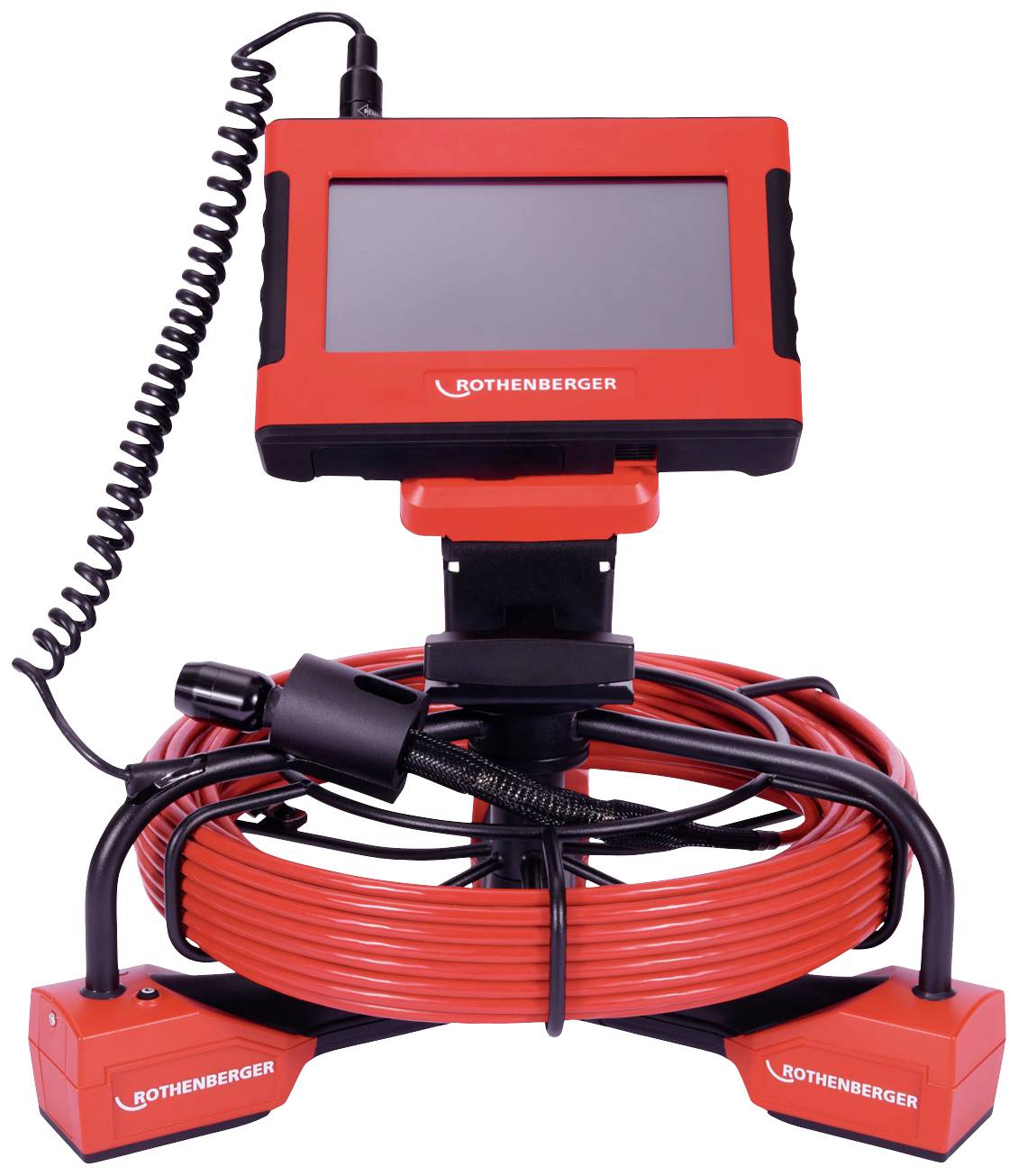

A red and black pipe inspection system by Rothenberger with a monitor and a coiled cable for channel investigation.

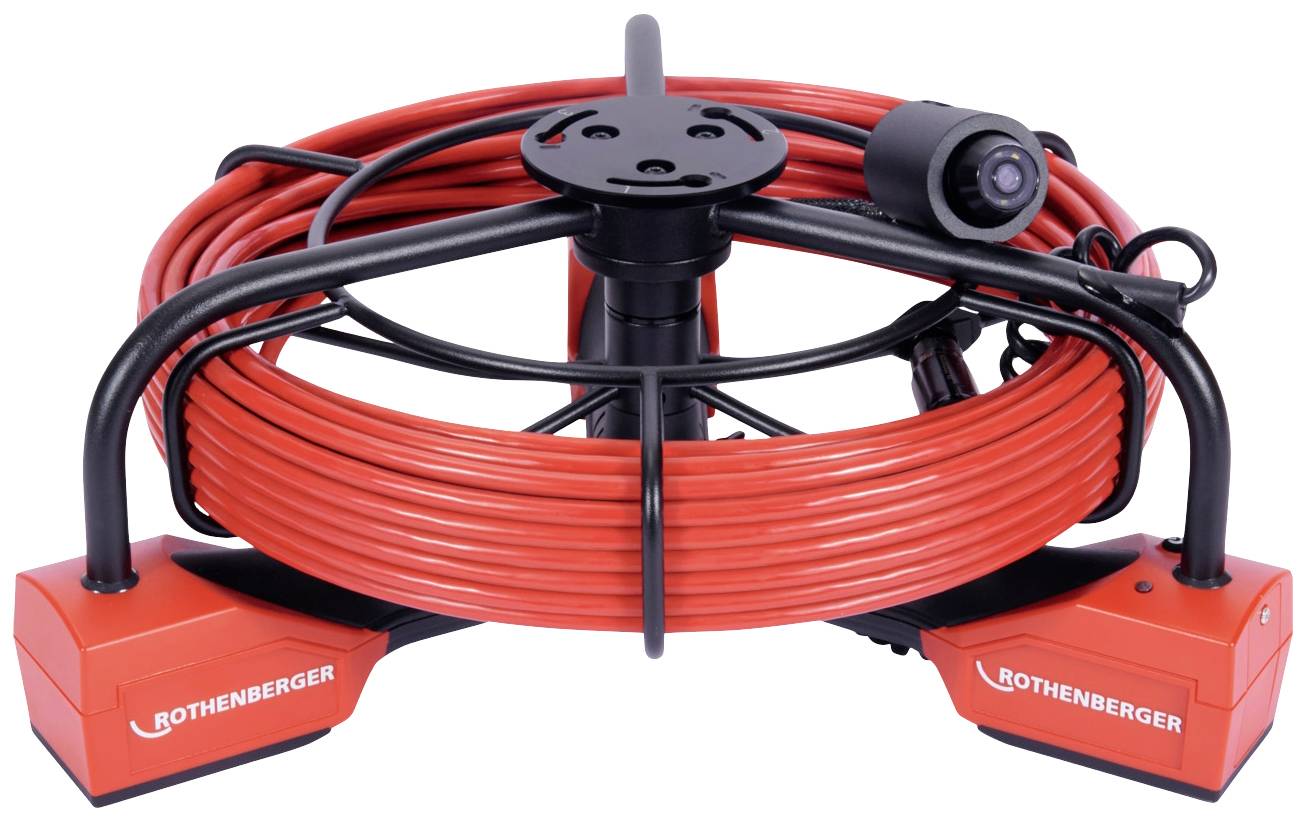

A red pipe camera with a long cable, mounted on a stand. Suitable for inspecting pipes or hard-to-reach areas.

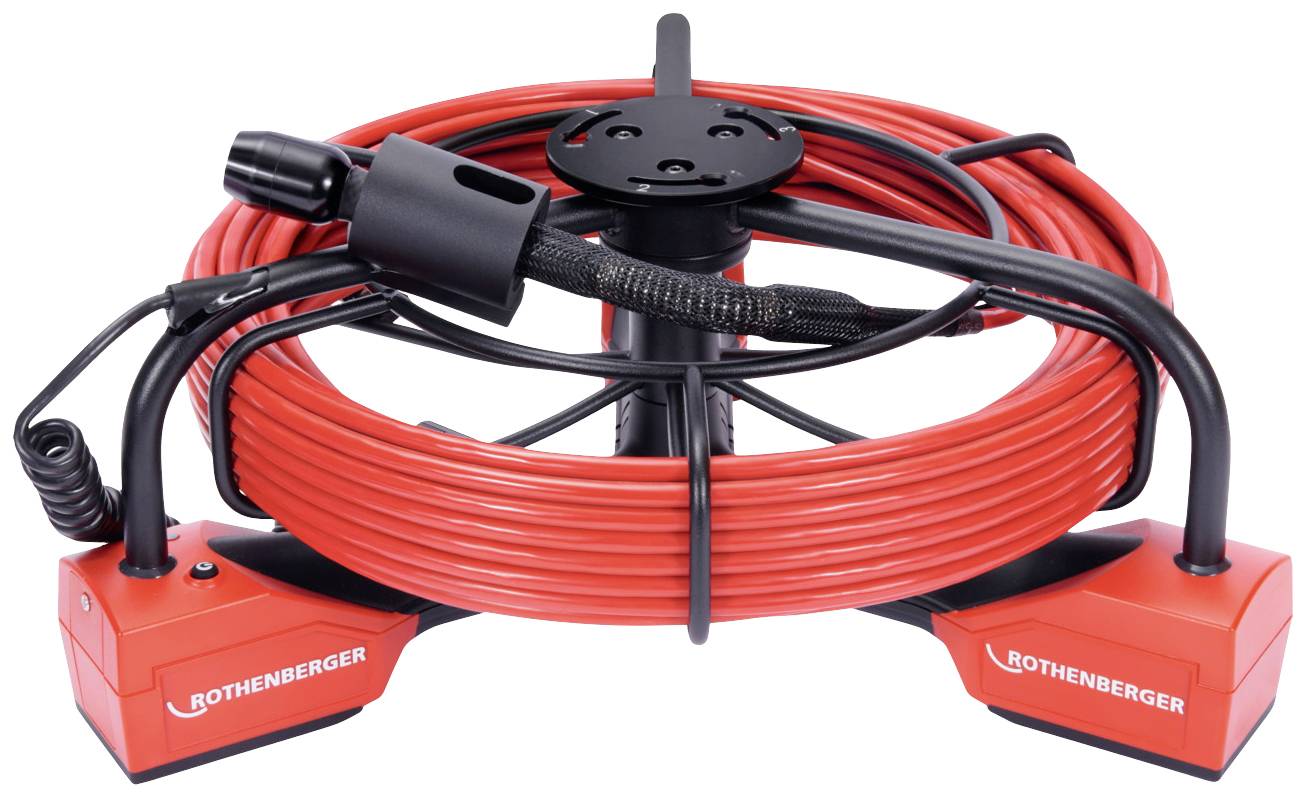

A red pipe cleaning device with a black frame, bearing the 'Rothenberger' label. It is used for pipe inspection.

1/5

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3,675.00 / piece)

€ 3,675.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Number of batteries: 1 pieces
Li-Ion battery system (rechargeable)
System battery: AMPShare
Li-Power rechargeable battery
Operating temperature 0 °C - 40 °C.
Operating humidity 0 - 95%
Battery capacity 2 Ah

Length: 586 mm

Dim: (L x W x H) 586 x 386 x 422 mm

Weight: 9.3000 kg

Width: 386 mm

Height: 422 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3220824 Rothenberger 1000004127

Description

The pipe inspection set EU, consisting of the ROCAM MINI HD AMPShare and the module Reel 25/22 HD AMPShare combines both articles in a highly efficient set for pipe inspection. The ROCAM MINI HD AMPShare is the monitor unit with high-resolution 7 inch full-HD touch-display and simplifies the professional and professional inspection at the customer. The Haspel 25/22 HD AMPShare module extends the inspection area of the ROCAM MINI HD AMPShare to 22 m and ensures that the ROCAM MINI HD AMPShare can also be used for inspection, of pipe systems, in multi-family houses. The set combines the benefits of using the ROCAM MINI HD AMPShare and the Reel 25/22 HD AMPShare.

This text is machine translated.

Features

Full-HD and TrueColour for a fast, accurate analysis
22m cable for more independence
Optimized cable rigidity and head geometry to perform up to six 90° bends (50mm pipes) / three 90° bends (40mm tubes)
Built-in Bluetooth module to connect headphones to add voice recording videos
Wi-Fi module for the perfect connection between Smartphone and ROCAM MINI HD. With the help of the APP the entire gallery of the ROCAM MINI can be accessed and photos and videos can be shared directly.
Live stream function via APP for sharing the screen with the customer for a professional appearance

Scope of delivery

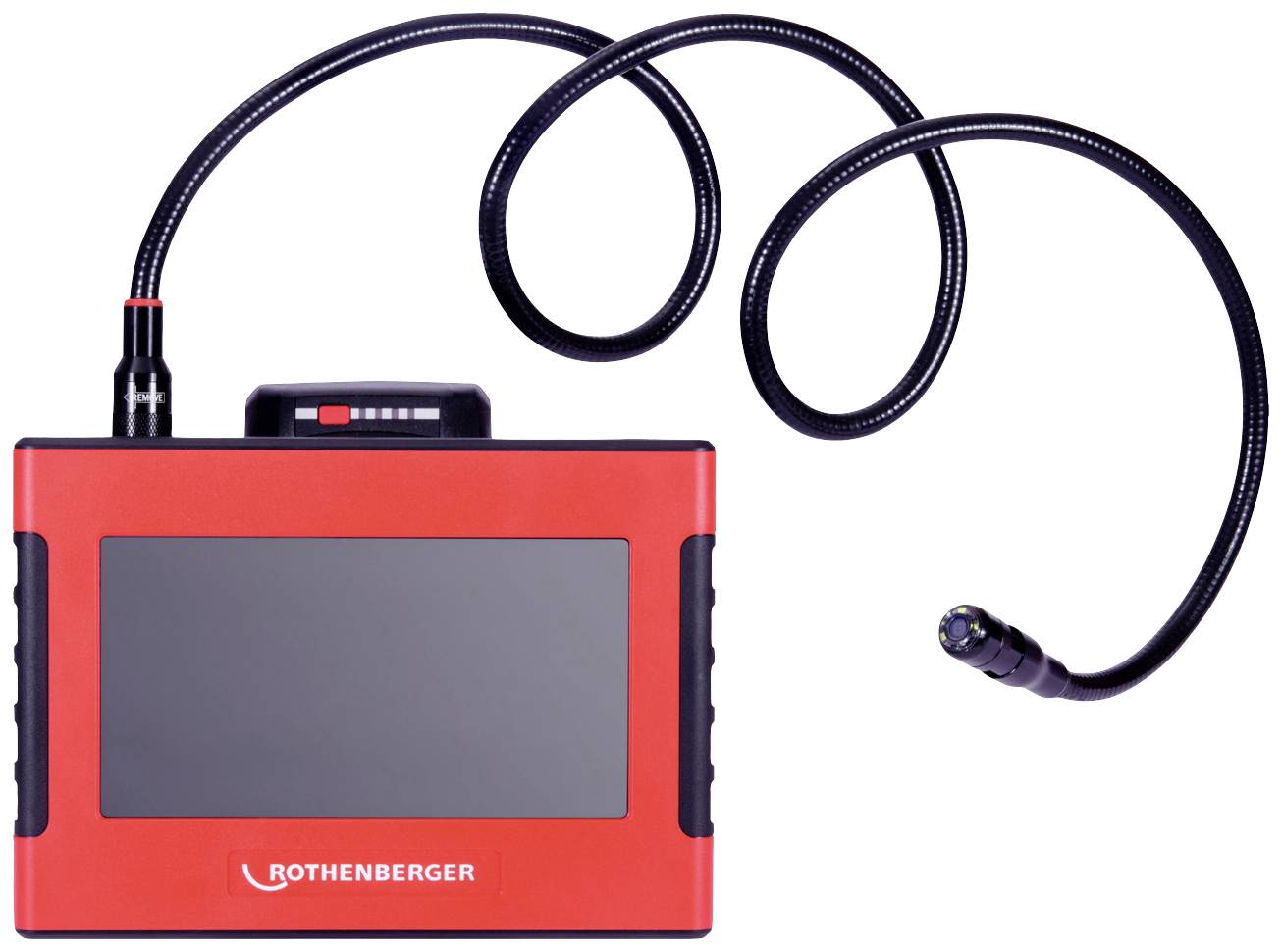

ROCAM mini HD - display amp
Module 25/22 HD - reel amp
Module TEC - Endoscope
Guiding ball
RO BP18/2 rechargeable battery, AMPS, basic unit
RO BC18 CHARGER, 230V, AMP
ROCASE 6427 with deep insertion conduit
