Rothenberger 56266 Tap and die bit
EAN:
Part number:
Item no:
Number
Total (€ 2,015.00 / piece)
€ 2,015.00
incl. VAT
14-day return policy included
Highlights & Details

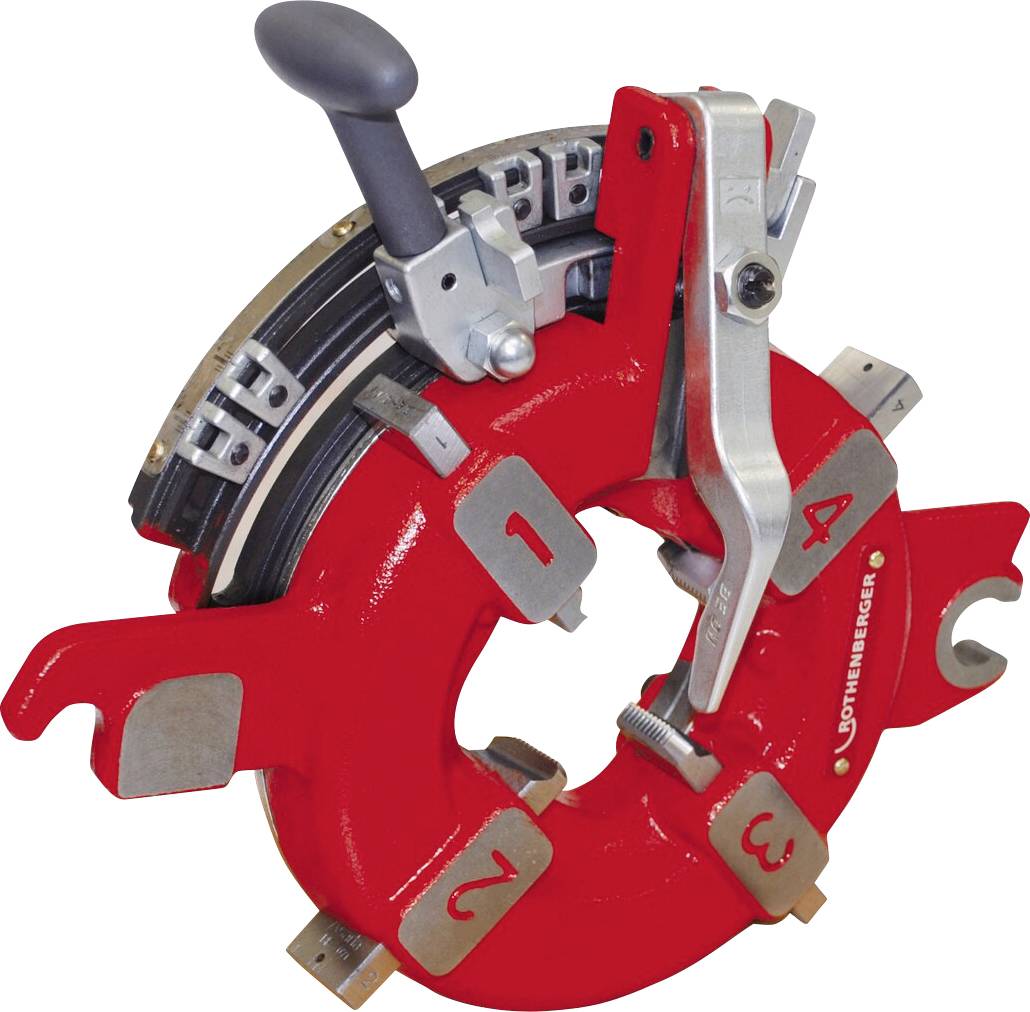

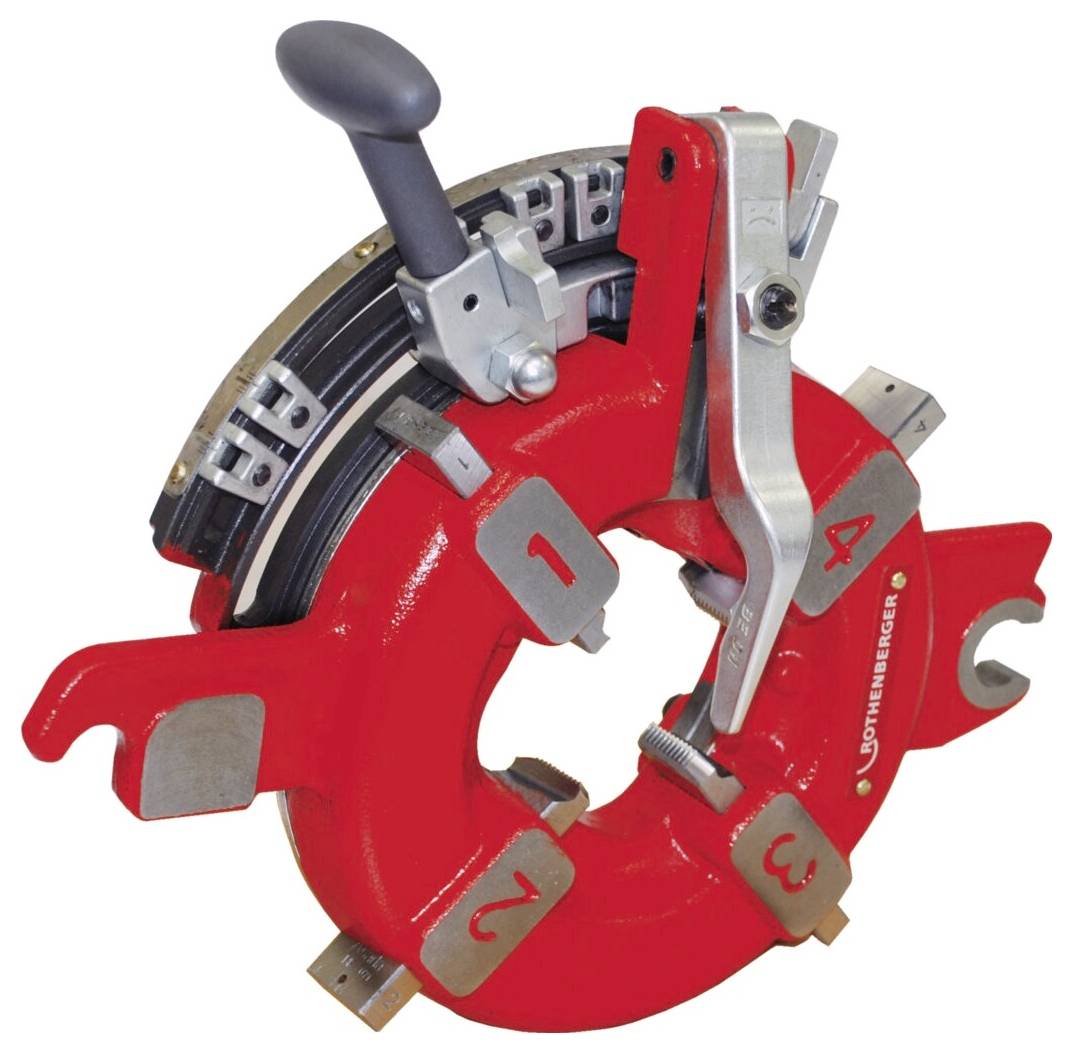

Cutting head for 2SE, AUTO, BSPT R,1/2-2"
- Adjustable thread usable length for series production
- Adjustable thread size and individual thread depth for series production without readjustment when dimensions change
- Cutting jaw holder with ball seat, for easy and simple change of the cutting jaws
- Thread cutting head for Supertronic 2-4 SE and ROPOWER 50 R thread cutting machines can be used
- Cutting & cooling lubrication brings through cutting head, direct oil outlet at thread cutting jaws
Technical specifications
- Product type
Tap and die bit
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3551516 Rothenberger 56266 Tap and die bit
Information
Information 3551516 Rothenberger 56266 Tap and die bit
Description
The automatic thread cutting head, BSPT R 1/2-2-inch for the SUPERTRONIC 2 SE thread cutting machine can be pipe threads according to EN 10226 on steel tubes of the EN 10255 M-H. standard The precision-made cutting jaws made from tough special steel offer long tool life when cutting threads with precision and reliable results. The automatic thread cutting head, BSPT R for the SUPERTRONIC 2 SE thread cutting machines has a working range of 1/2-2". For producing pipe threads according to ASME B1.20.1 on steel tubes of the standard EN 10255 M-H in the sanitary, heating and air-conditioning sector.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Cutting head for Supertronic 2SE, AUTO, BSPT R, 1/2"-2"
- User manual
