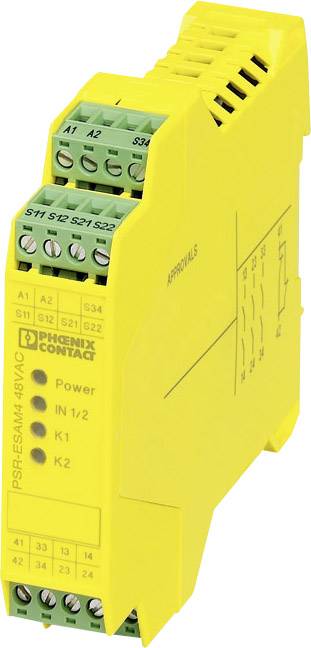

Safety relay PSR-SPP-230UC/ESAM4/3X1/1X2/B Phoenix Contact Operating voltage: 230 V DC, 230 V AC 3 makers, 1 breaker (W
EAN:
Part number:
Item no:
Product type
Safety relay
Connector
Spring force connector
Operating voltage
230 V DC
230 V AC
Type
PSR-SPP-230UC/ESAM4/3X1/1X2/B
Contact type
3 makers
1 breaker
Datasheet (PDF)
Number
Total (€ 231.09 / piece)
€ 252.10
-8 %
€ 231.09
plus VAT.
Technical specifications
- Product type
Safety relay
- Type
PSR-SPP-230UC/ESAM4/3X1/1X2/B
- Connector
Spring force connector
- Operating voltage
230 V DC
230 V AC
- Contact type
3 makers
1 breaker
- Switching voltage (max.)
250 V DC
250 V AC
- Switching current (max.)
6 A
IP20
- Depth
114.5 mm
- Width
22.5 mm
- Height
112 mm
- Dim
(W x H x D) 22.5 x 112 x 114.5 mm
- Content
1 pc(s)
22.5
Basic device
112 mm
114.5 mm
TRUE
Spring clamp connection
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1573007 Safety relay PSR-SPP-230UC/ESAM4/3X1/1X2/B Phoenix Contact Operating voltage: 230 V DC, 230 V AC 3 makers, 1 breaker (W
User & Safety Instructions
User & Safety Instructions 1573007 Safety relay PSR-SPP-230UC/ESAM4/3X1/1X2/B Phoenix Contact Operating voltage: 230 V DC, 230 V AC 3 makers, 1 breaker (W
Description
Safety relay for Emergency Stop and protective door monitoring up to SIL 3 or Category 4, PL e according to EN ISO 13849, 1- or 2-channel operation.
