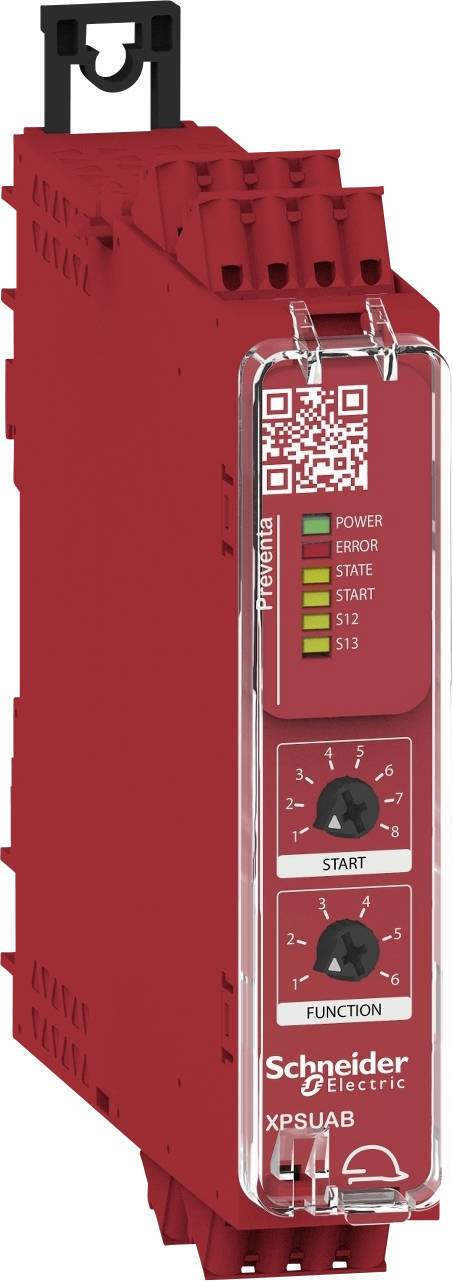

Name: Safety relay XPSUAB11CC Schneider Electric Operating voltage: 24 V DC/AC 1 change-over (W x H x D) 22.5 x 100 x 120 mm L
Brand: Schneider Electric
SKU: 2373927
Availability: BackOrder

Safety relay XPSUAB11CC Schneider Electric Operating voltage: 24 V DC/AC 1 change-over (W x H x D) 22.5 x 100 x 120 mm L-0

Safety relay XPSUAB11CC Schneider Electric Operating voltage: 24 V DC/AC 1 change-over (W x H x D) 22.5 x 100 x 120 mm L-1

1/2

Product type

Safety relay

Connector

Spring force connector

Operating voltage

24 V DC/AC

Type

XPSUAB11CC

Response time

20 ms

Datasheet (PDF)

Dispatches on Mon, 18 Jan 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 89.99 / piece)

€ 89.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting bracket: 35 mm symmetrical DIN rail
POWER CONSUMPTION 1.5 W 24 V DC
Safety inputs: 1
RATED OPERATING CURRENT IE 5 A AC-1; 3 A AC-15; 5 A DC-1; 3 A DC-13; 3 A AC-1; 1 A AC-15; 2 A DC-1; 1 A DC-13
Synchronization time between inputs: 0.5 s; 2.2 s.
Maximum response time with input open: 20 ms
PVC-free: Yes

Product type: Safety relay

Type: XPSUAB11CC

Connector: Spring force connector

Operating voltage: 24 V DC/AC

Response time: 20 ms

Contact type: 1 change-over

Performance level: PL c

Safety integrity level: SIL 1

Safety rating: 1

Certification (sensors): TÜV
cUL

Features: LED indicator

: IP20
IP40
IP54

Operating temperature (min.): -25 °C

Operating temperature (max.): +55 °C

Depth: 120 mm

Width: 22.5 mm

Height: 100 mm

Dim: (W x H x D) 22.5 x 100 x 120 mm

Content: 1 pc(s)

UKCA: yes
