Saia X5G303K1AN Microswitch X5G303K1AN 250 V AC 1.5 A 1 x On/(On) IP40 momentary 1 pc(s)
Product type
Microswitch
Connection
Print
Operation type
Tappet
Switch position
1 x On/(On)
Switching voltage
250 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 3.82 / piece)
€ 3.82
incl. VAT
14-day return policy included
Technical specifications
- Product type
Microswitch
- Functions
momentary
- Connection
Print
- Contact material
Ag
- Operation type
Tappet
- Contact type
1 change-over
- Switch position
1 x On/(On)
- Switching voltage
250 V AC
- Switching current (max.)
1.5 A
- Min. temperature
0 °C
- Max. temperature
+75 °C
- Length
6 mm
- Width
13 mm
- Height
6.5 mm
IP40
- Actuating force
1.5 N
- Content
1 pc(s)

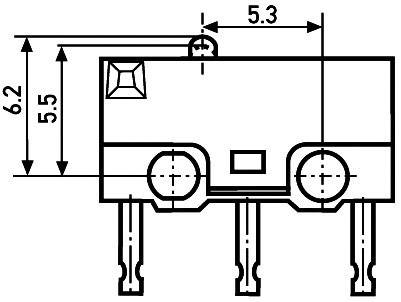

- Dim
(L x W x H) 6 x 13 x 6.5 mm
- Type
X5G303K1AN
- Type
1 changer
- Switching capacity
1.5 A/250 V/AC / 3 A/125 V AC
- Switching voltage
250 V AC
- Switching current
1.5 A
- Type
X5G303K1AN
- Actuating force
1.5 N
- Connection
Straight PCB connection
- Temperature range
0 - +75 °C
Documents & Downloads
Datasheet
Datasheet 705108 Saia X5G303K1AN Microswitch X5G303K1AN 250 V AC 1.5 A 1 x On/(On) IP40 momentary 1 pc(s)
Description
Ultra miniature shape, suited to low currents. Approval: UL, CSA.
