Name: scaleo systems VV-101800-0 Power supply unit 3.3 V DC 0.9 A 3 W
Brand: scaleo systems
SKU: 3842469
Availability: BackOrder

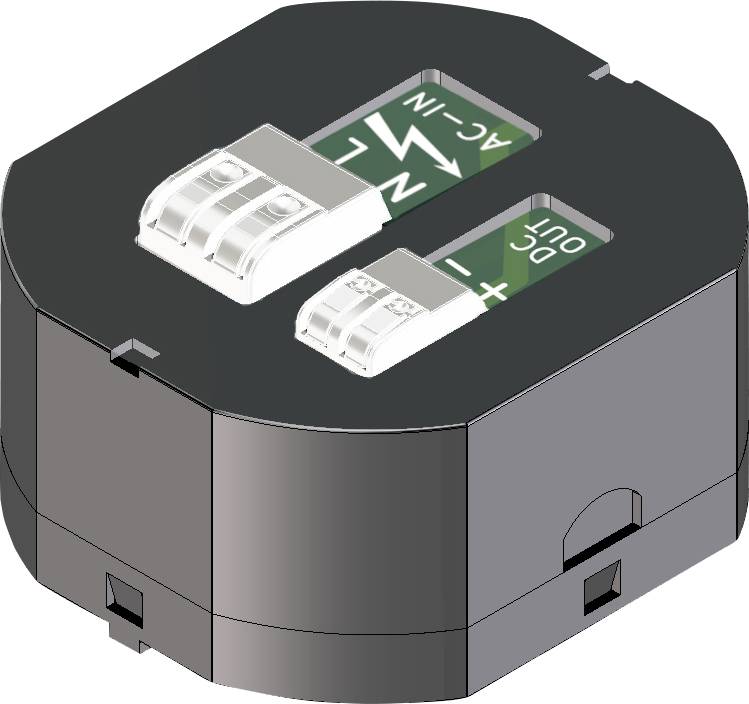

Black electronic module with two terminal pads labeled AC-IN and DC-OUT, shown in a 3D product-style view.<br>

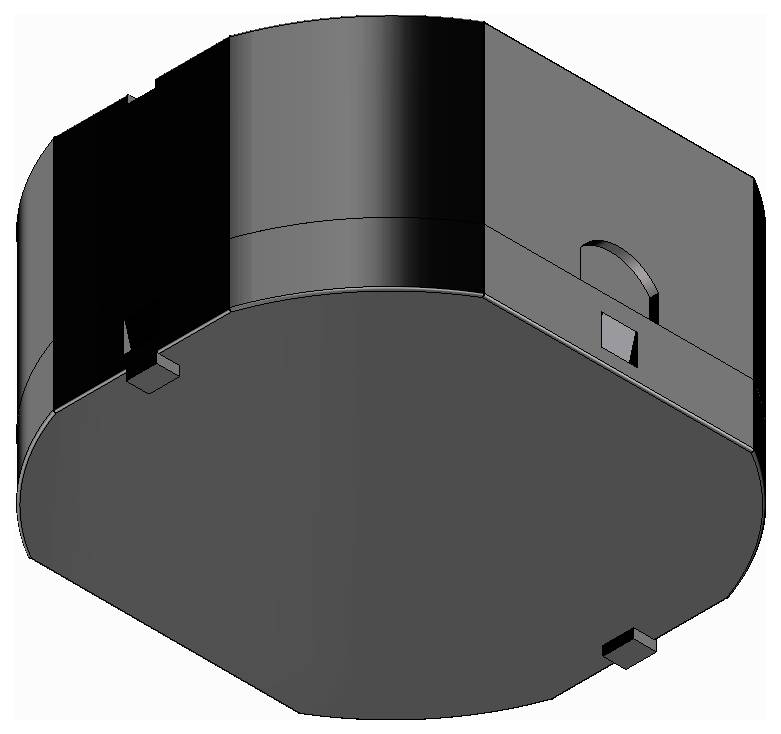

3D rendering of a dark gray cylindrical mechanical part with a flat circular base and small side cutouts, shown in isometric view on a white background

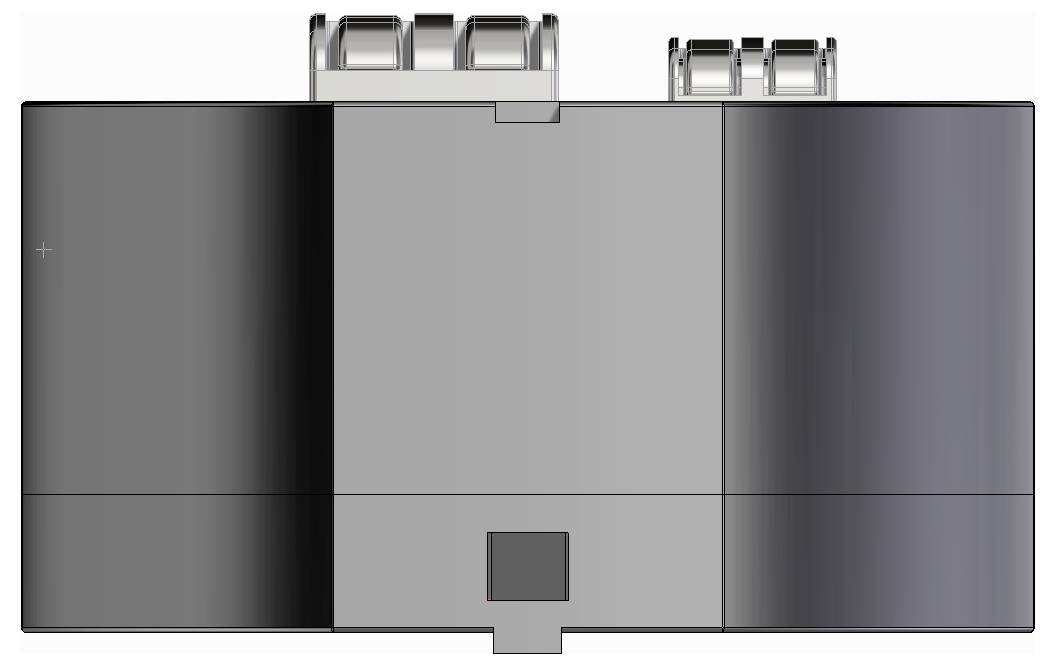

Front view of a rectangular three-section battery pack with two metal terminal blocks on top and a small central connector at the bottom.

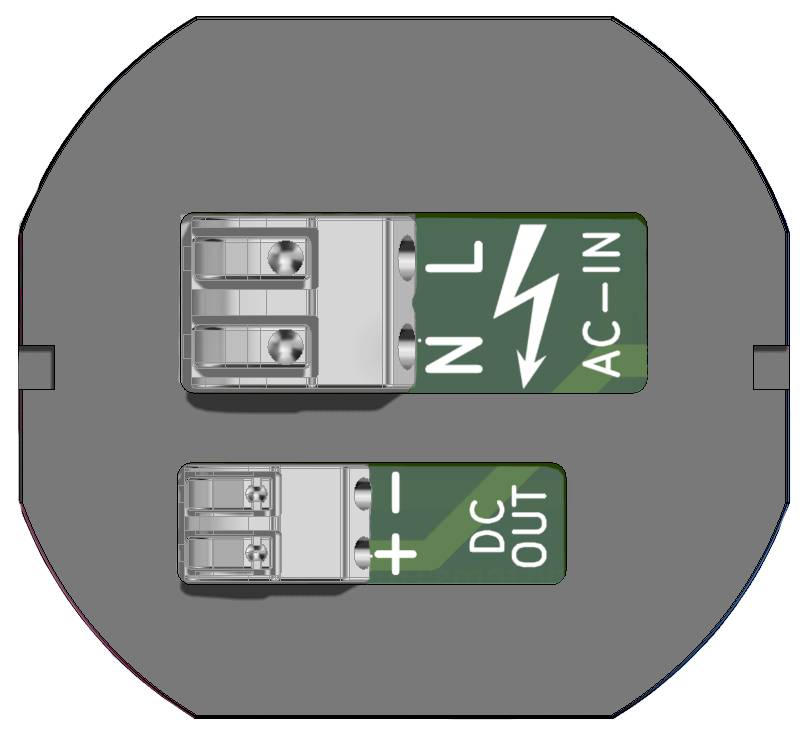

Top view of a battery connector with two terminals labeled AC-IN and DC-OUT, showing AC input and DC output polarity markings.<br>

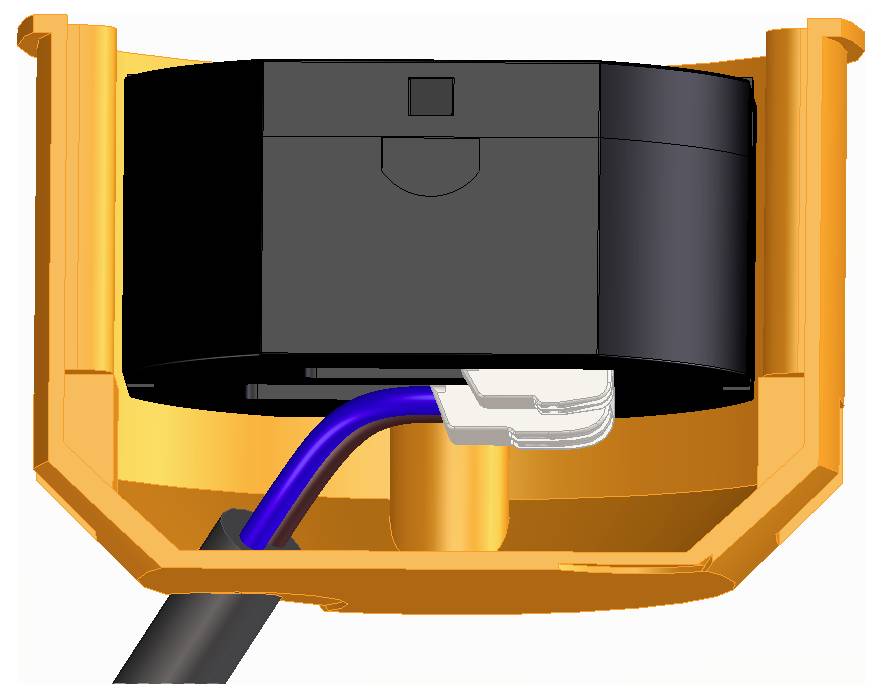

Diagram of a wired black-and-orange electrical component or sensor, showing internal wiring and connector inside a housing.

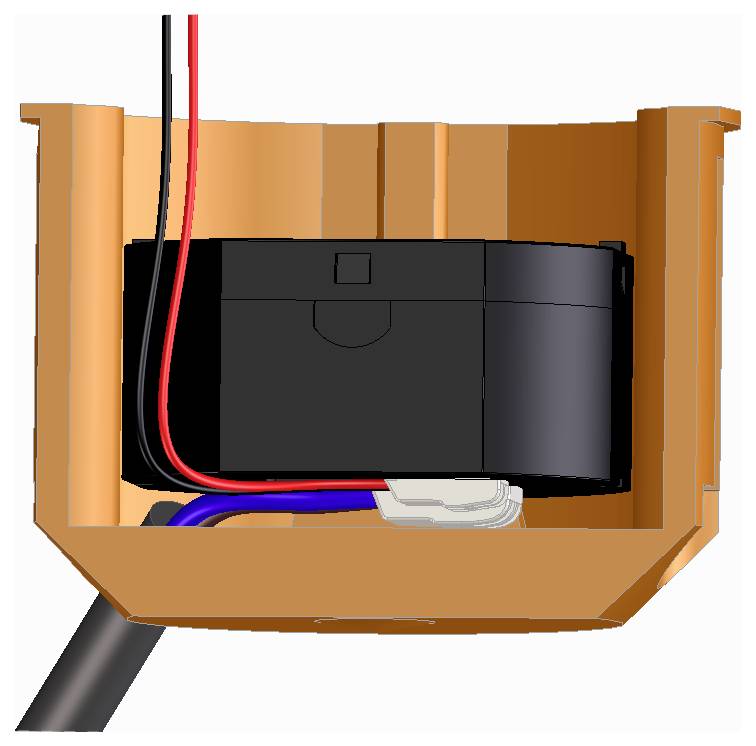

Inside an orange housing, a black cylindrical electronic component is wired with red, black, and blue cables.<br>

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 55.99 / piece)

€ 55.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Flush-mounted power supply 3.3V/3W for 230V Smart home, LED & controls

Output 3.3 V DC / 0.9 A
Power 3 W
Spring-loaded terminal

Technical specifications

Product type: Power supply unit

Input voltage (max.): 305 V AC

Max. output current: 0.9 A

Output current (max.) - rounded: 900 mA

Min. input voltage: 85 V AC

Dim: (L x W x H) 48 x 52.5 x 28 mm

Output voltage (max.): 3.3 V DC

Connection: Spring-loaded terminal

: 3 W

Input frequency: 50-60 Hz

No. of outputs: 1 x

Output voltage 1: 3.3 V DC

Type: closed

Operating temperature (max.): 85 °C

Operating temperature (min.): -30 °C

Weight: 50 g

Material (details): ABS plastic

Type: Flush-mounted power supply

Width: 52.5 mm

Height: 28 mm

Length: 48 mm

Type: 3.3V/3 W

Documents & Downloads

Datasheet

Datasheet 3842469 scaleo systems VV-101800-0 Power supply unit 3.3 V DC 0.9 A 3 W

User & Safety Instructions

User & Safety Instructions 3842469 scaleo systems VV-101800-0 Power supply unit 3.3 V DC 0.9 A 3 W

Description

This flush-mounted power supply unit with 3.3V/3W is the ideal solution for an discreet and reliable power supply in modern electrical installations. Thanks to the compact design, the power supply can be easily integrated into flush-mounted sockets and disappears invisibly in the wall or on the switch.
The power supply is ideally suited for Smart home applications, home automation, LED lighting, small electronic modules, smart controls as well as small drives. The device can be flexibly adapted to different consumers by selecting different DC output voltages.
Whether it's powering sensors, actuators, WLAN modules, relays, controllers or LED strips – this flush-mount power supply provides a stable and efficient DC voltage for permanent use. Ideal for new building, renovation or upgrade of smart systems.

This text is machine translated.
