Name: scaleo systems VV-101802-0 Power supply unit 5 V DC 0.6 A 3 W
Brand: scaleo systems
SKU: 3842470
Availability: BackOrder

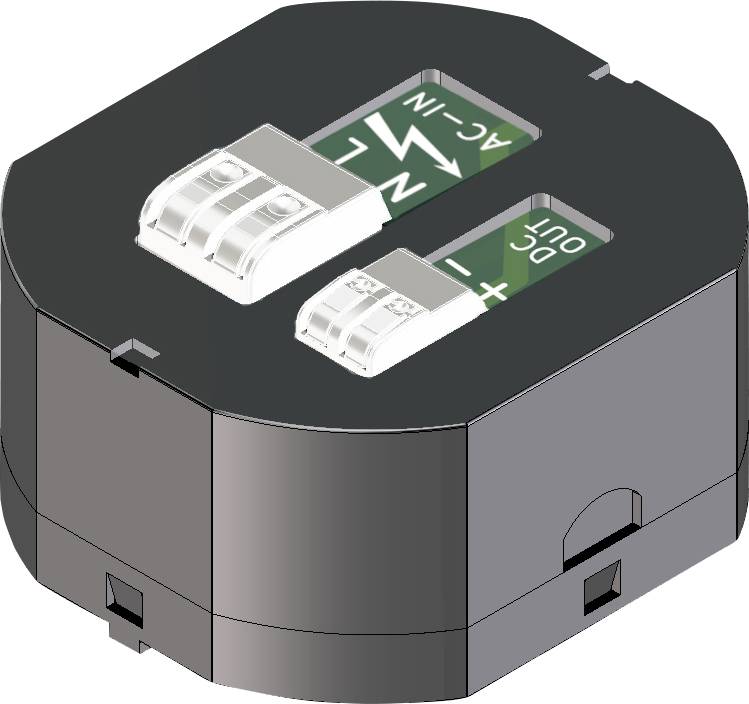

A small black electronic module with two white terminal blocks on top, labeled 'AC-IN' and 'DC-OUT' with plus and minus symbols.<br>

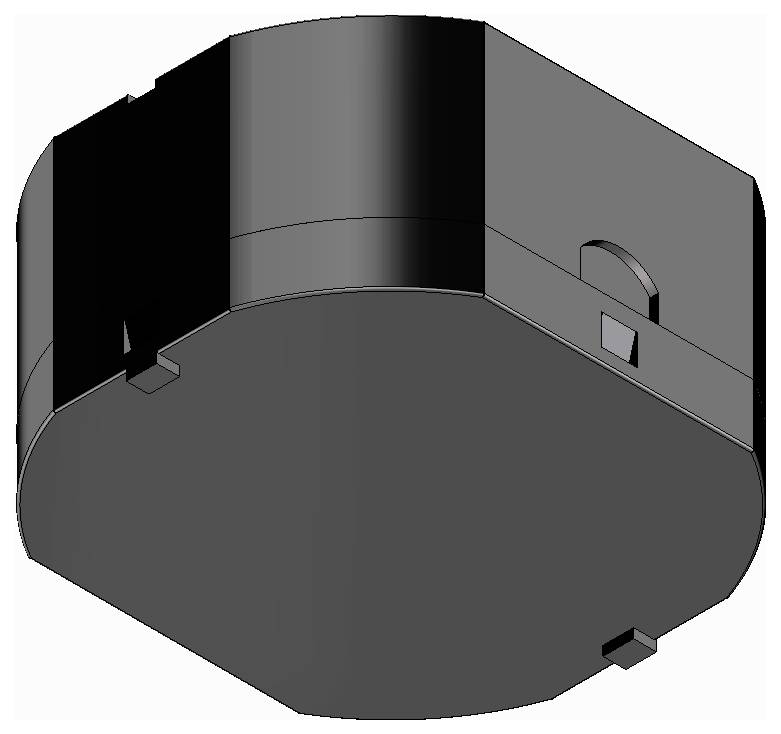

3D rendering of a black and gray cylindrical device or housing with a flat circular base and side latch details, viewed from below.<br>

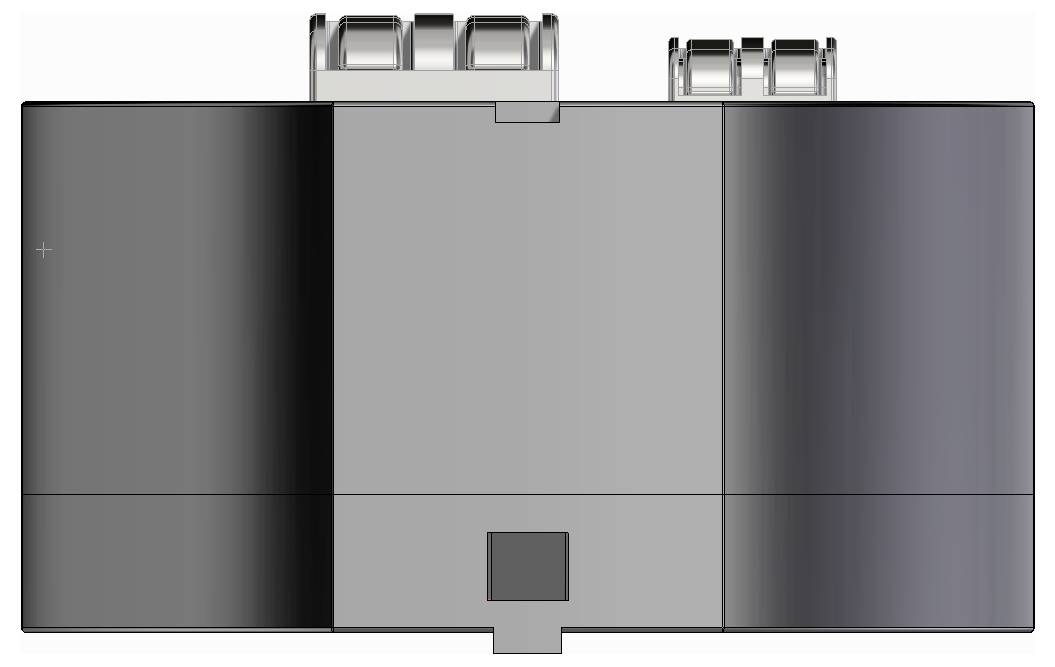

Front view of a rectangular electrical connector housing with three sections and metal terminals on top, shown on a white background.

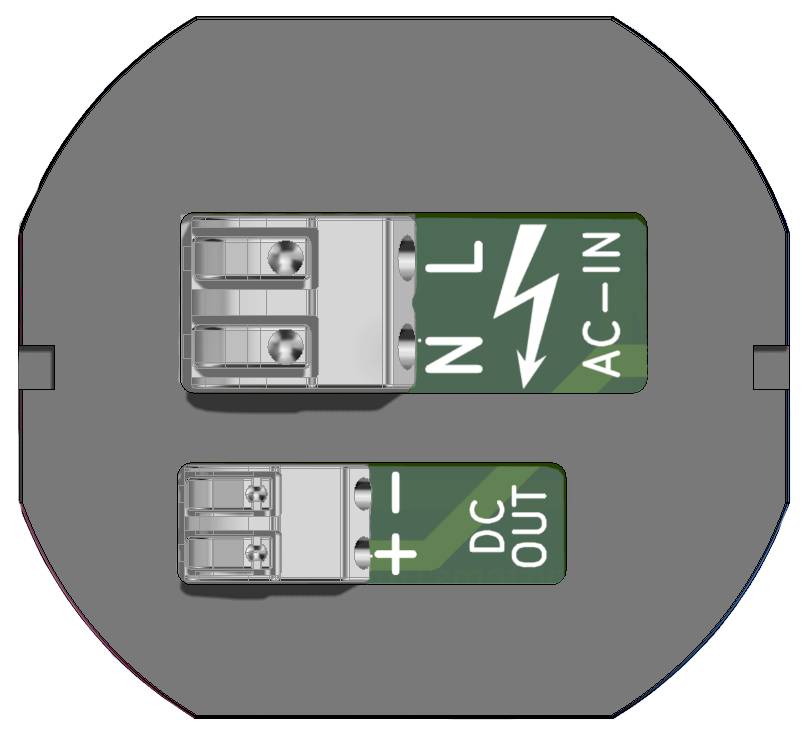

Diagram of two electrical terminal blocks: the top connector is labeled AC-IN with N and L, and the bottom connector is labeled DC OUT with plus and minus.<br>

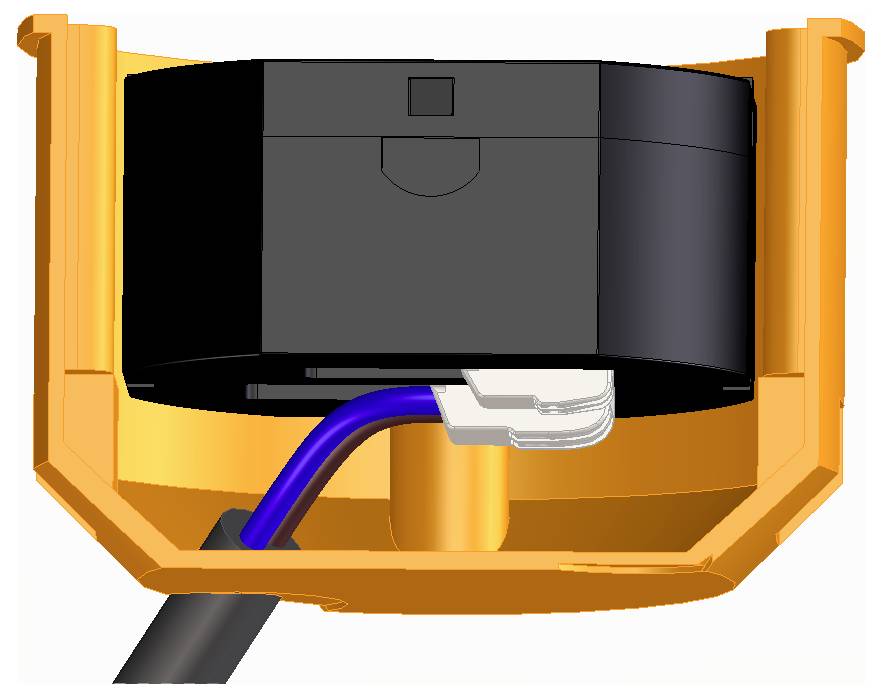

Close-up of an orange and black electronic connector or sensor housing with blue and black wires attached underneath.

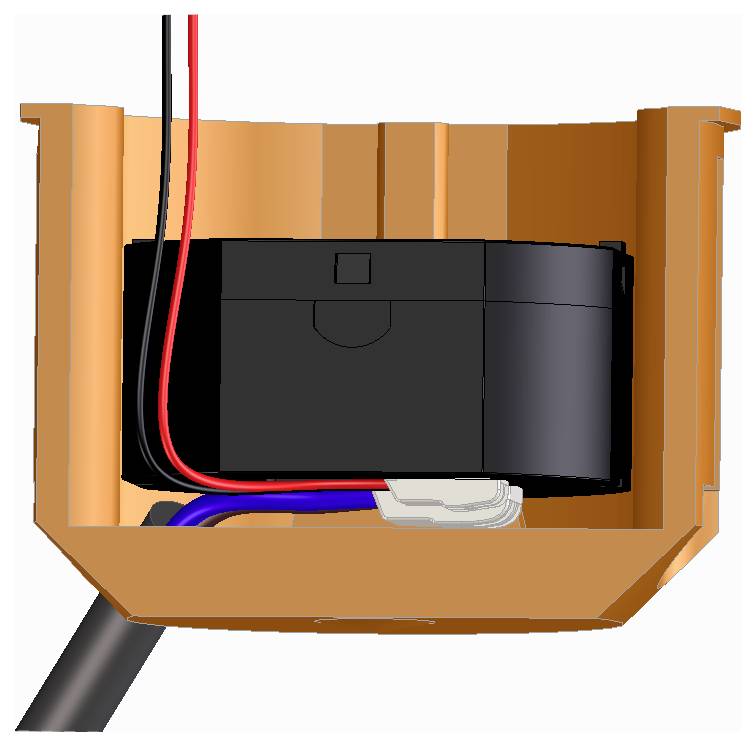

A black electronic component with red, black, and blue wires is mounted inside an orange housing, shown in a cutaway view.<br>

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 55.99 / piece)

€ 55.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Flush-mounted power supply 5V/3W for 230V for Smart home, LED & controls

Output 5 V DC / 0.6 A
Power 3 W
Spring-loaded terminal

Technical specifications

Product type: Power supply unit

Input voltage (max.): 305 V AC

Max. output current: 0.6 A

Output current (max.) - rounded: 600 mA

Min. input voltage: 85 V AC

Dim: (L x W x H) 48 x 52.5 x 28 mm

Output voltage (max.): 5 V DC

Connection: Spring-loaded terminal

: 3 W

Input frequency: 50-60 Hz

No. of outputs: 1 x

Output voltage 1: 5 V DC

Type: closed

Operating temperature (max.): 85 °C

Operating temperature (min.): -30 °C

Weight: 50 g

Material (details): ABS plastic

Type: Flush-mounted power supply

Width: 52.5 mm

Height: 28 mm

Length: 48 mm

Type: 5V/3W

Documents & Downloads

Datasheet

Datasheet 3842470 scaleo systems VV-101802-0 Power supply unit 5 V DC 0.6 A 3 W

User & Safety Instructions

User & Safety Instructions 3842470 scaleo systems VV-101802-0 Power supply unit 5 V DC 0.6 A 3 W

Description

This flush-mounted power supply with 5V/3W is the ideal solution for an discreet and reliable power supply in modern electrical installations. Thanks to the compact design, the power supply can be easily integrated into flush-mounted sockets and disappears invisibly in the wall or on the switch.
The power supply is ideally suited for Smart home applications, home automation, LED lighting, small electronic modules, smart controls as well as small drives. The device can be flexibly adapted to different consumers by selecting different DC output voltages.
Whether it's powering sensors, actuators, WLAN modules, relays, controllers or LED strips – this flush-mount power supply provides a stable and efficient DC voltage for permanent use. Ideal for new building, renovation or upgrade of smart systems.
