Name: scaleo systems VV-101806-0 Power supply unit 12 V DC 0.25 A 3 W
Brand: scaleo systems
SKU: 3842472
Availability: BackOrder

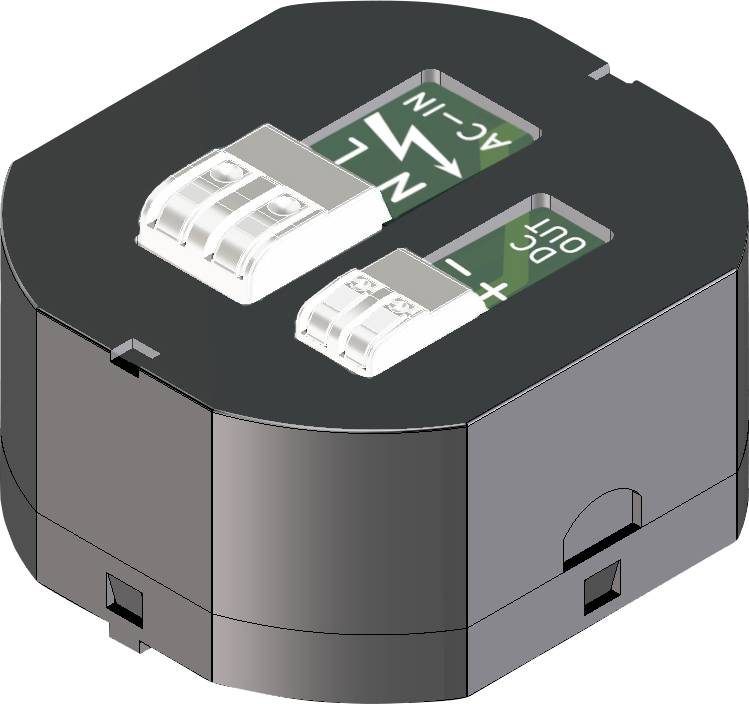

3D electronic module with two white connector terminals labeled AC-IN and DC OUT, shown in a black rectangular casing.

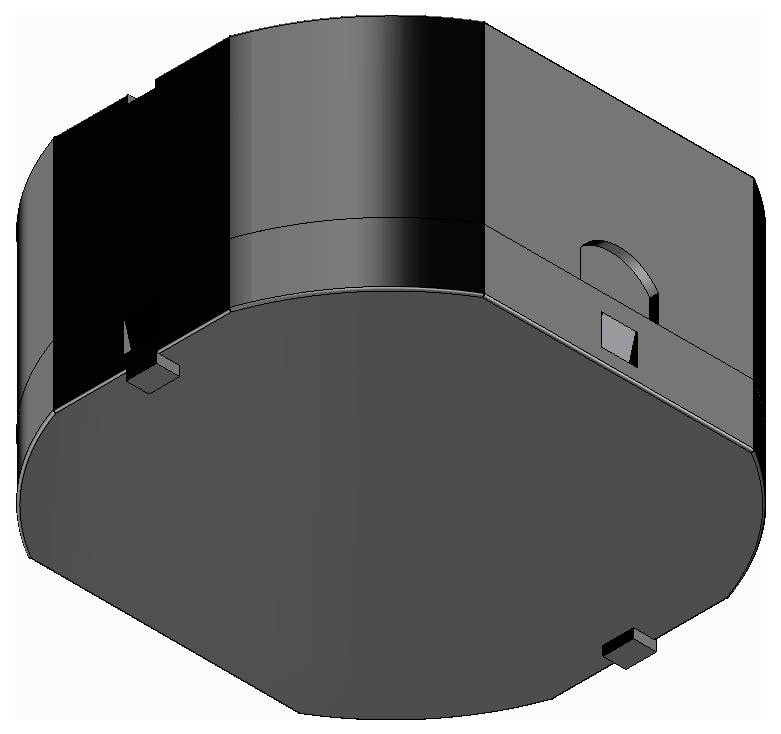

3D render of a dark gray cylindrical electronic component or enclosure with a flat base, shown in perspective on a white background.<br>

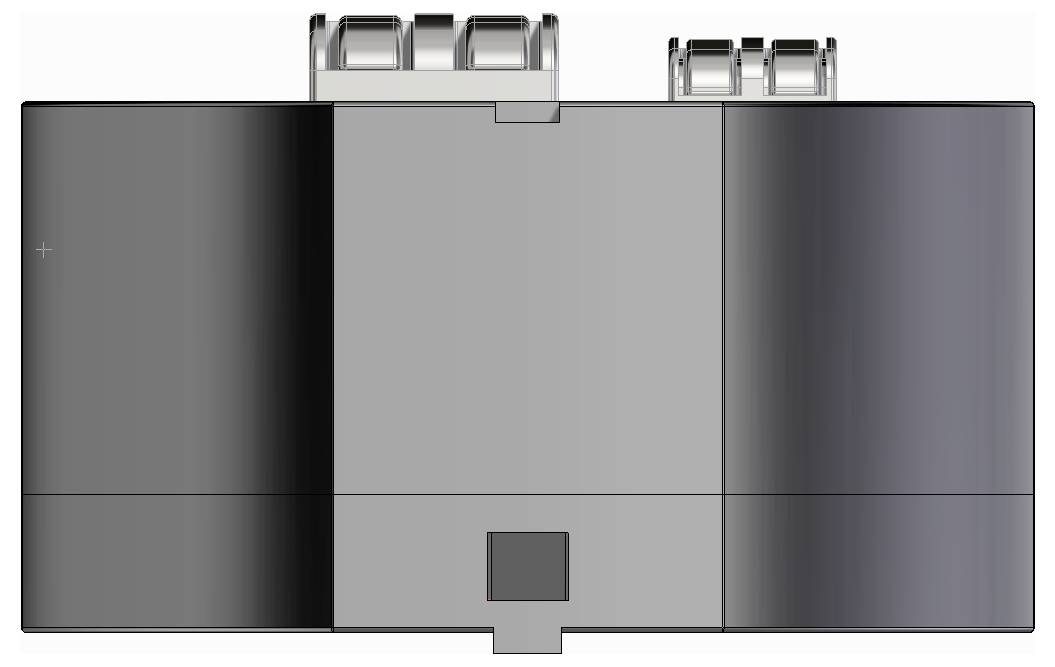

A gray three-section electrical component or battery pack with metal terminals on top and a small connector tab at the bottom.

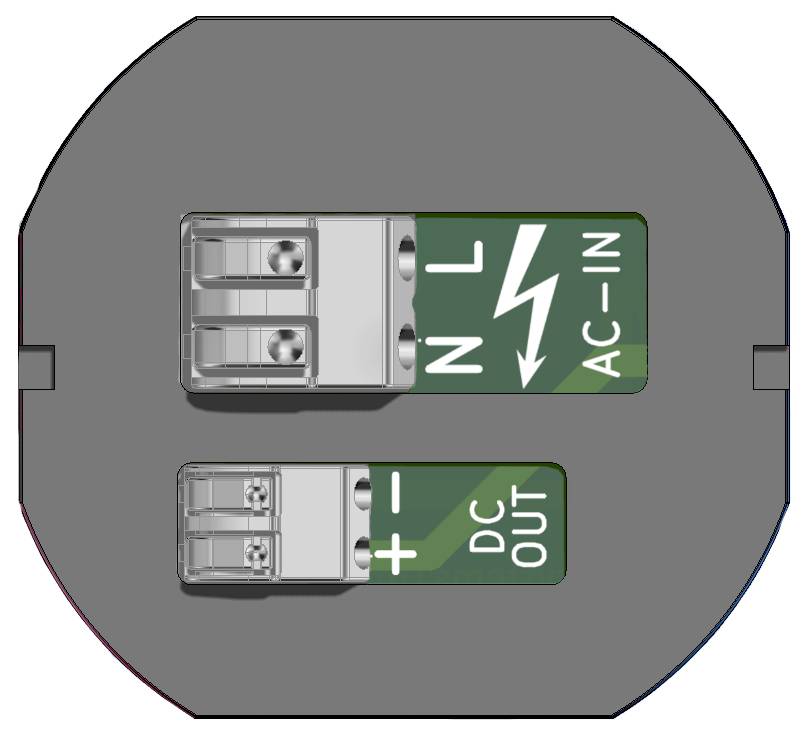

Illustration of two electrical terminal blocks: top labeled AC-IN with N and L, bottom labeled DC OUT with plus and minus.<br>

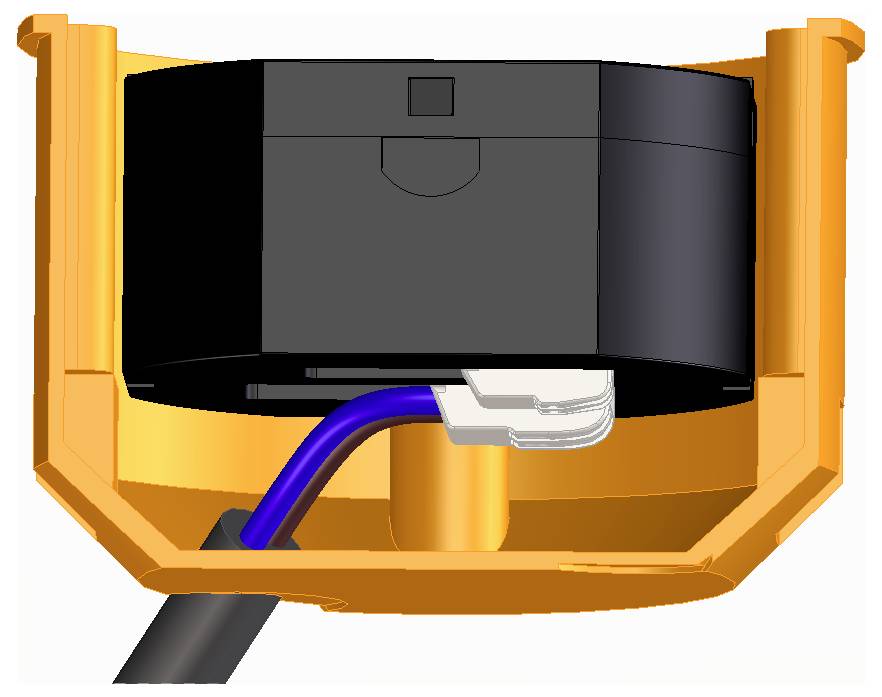

Cross-section of an orange electrical connector showing a black internal module and a blue wire entering from the bottom left.

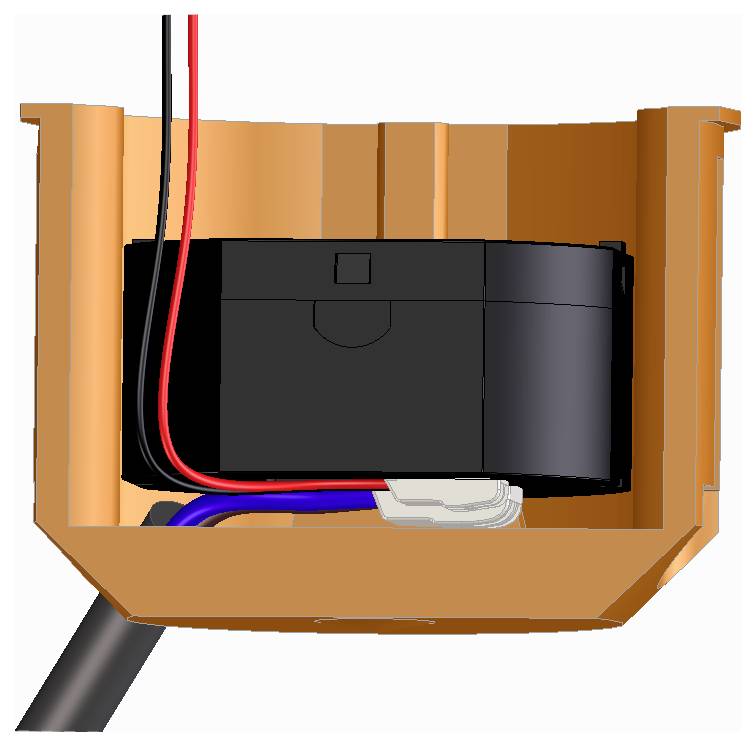

Close-up of a black cylindrical motor or actuator mounted inside an orange housing, with red, black, and blue wires connected at the bottom.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 55.99 / piece)

€ 55.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Flush-mounted power supply 12V/3W for 230V Smart home, LED & controls

Output 12 V DC / 0.25 A
Power 3 W
Spring-loaded terminal

Technical specifications

Product type: Power supply unit

Input voltage (max.): 305 V AC

Max. output current: 0.25 A

Output current (max.) - rounded: 250 mA

Min. input voltage: 85 V AC

Dim: (L x W x H) 48 x 52.5 x 28 mm

Output voltage (max.): 12 V DC

Connection: Spring-loaded terminal

: 3 W

Input frequency: 50-60 Hz

No. of outputs: 1 x

Output voltage 1: 12 V DC

Type: closed

Operating temperature (max.): 85 °C

Operating temperature (min.): -30 °C

Weight: 50 g

Material (details): ABS plastic

Type: Flush-mounted power supply

Width: 52.5 mm

Height: 28 mm

Length: 48 mm

Type: 12V/3W

Documents & Downloads

Datasheet

Datasheet 3842472 scaleo systems VV-101806-0 Power supply unit 12 V DC 0.25 A 3 W

User & Safety Instructions

User & Safety Instructions 3842472 scaleo systems VV-101806-0 Power supply unit 12 V DC 0.25 A 3 W

Description

This flush-mounted 12V/3W power supply is the ideal solution for an discreet and reliable power supply in modern electrical installations. Thanks to the compact design, the power supply can be easily integrated into flush-mounted sockets and disappears invisibly in the wall or on the switch.
The power supply is ideally suited for Smart home applications, home automation, LED lighting, small electronic modules, smart controls as well as small drives. The device can be flexibly adapted to different consumers by selecting different DC output voltages.
Whether it's powering sensors, actuators, WLAN modules, relays, controllers or LED strips – this flush-mount power supply provides a stable and efficient DC voltage for permanent use. Ideal for new building, renovation or upgrade of smart systems.
