Name: scaleo systems VV-101808-0 Power supply unit 24 V DC 0.125 A 3 W
Brand: scaleo systems
SKU: 3842473
Availability: BackOrder

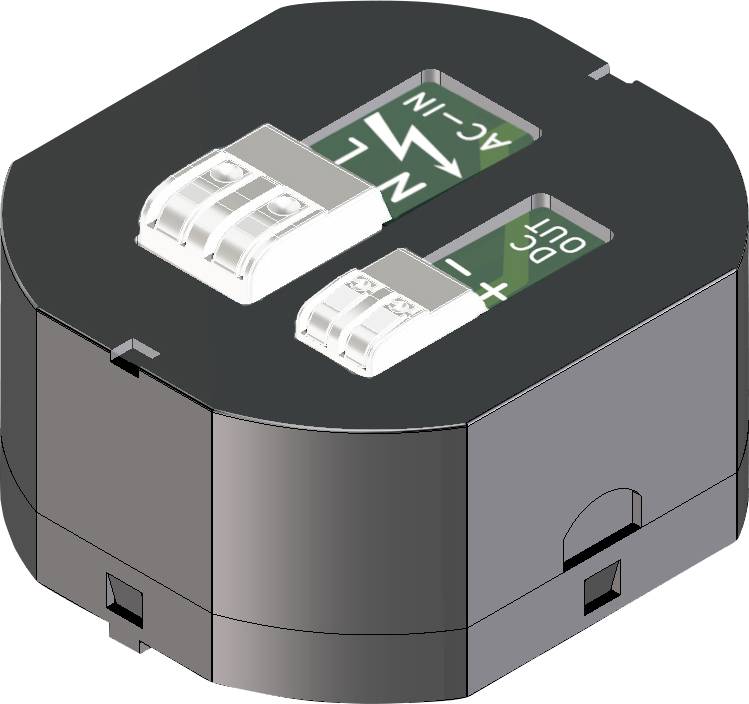

3D render of a compact electrical module with two screwless terminal connectors labeled 'AC-IN' and 'OUT+' for wiring input and output.

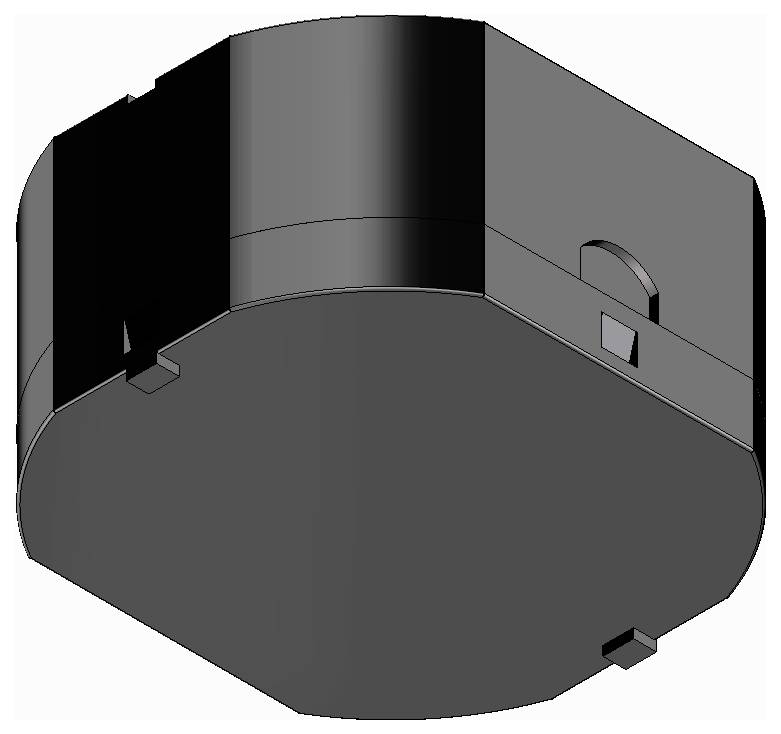

3D rendering of a gray cylindrical electronic component with side tabs and a front slot, shown against a white background.

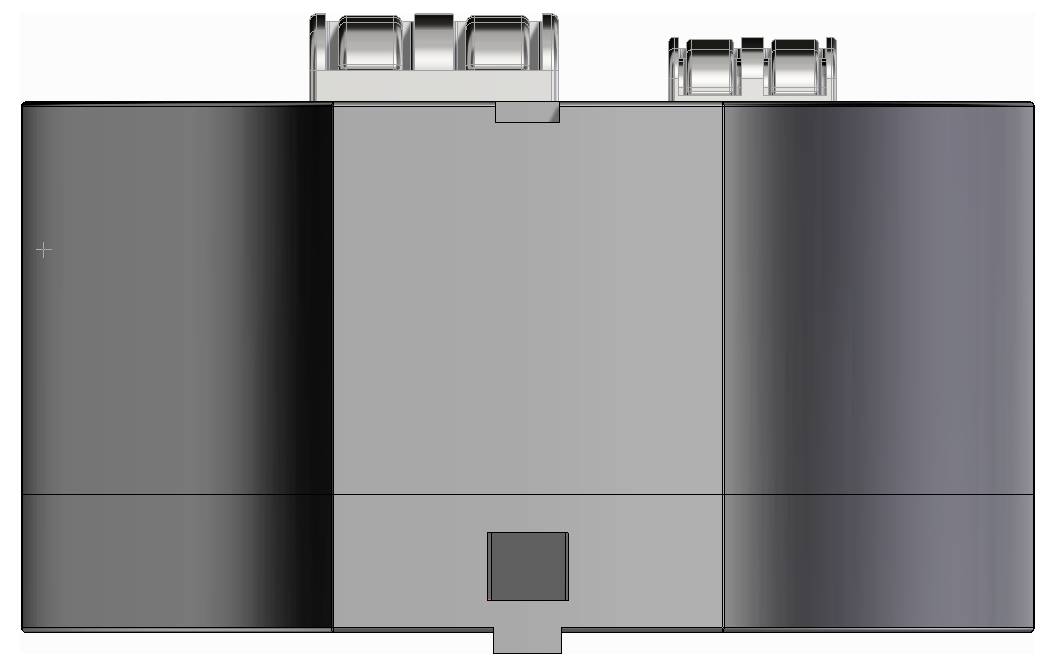

Top view of a rectangular gray electronic device with two connector ports on top and a small square button or sensor near the bottom center.

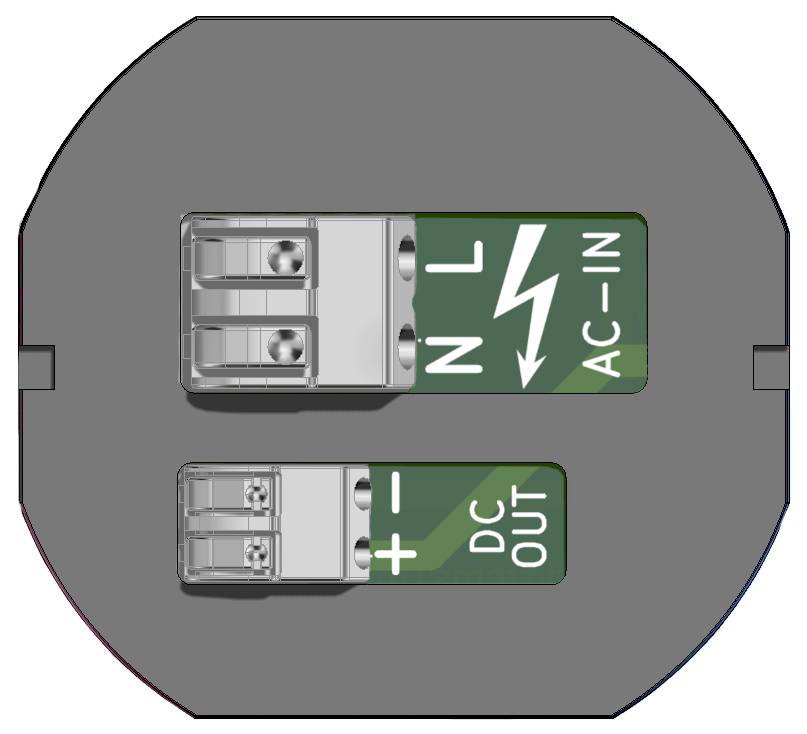

Top view of a connector block showing two labeled terminals: AC-IN with N and L, and DC OUT with + and -.<br>

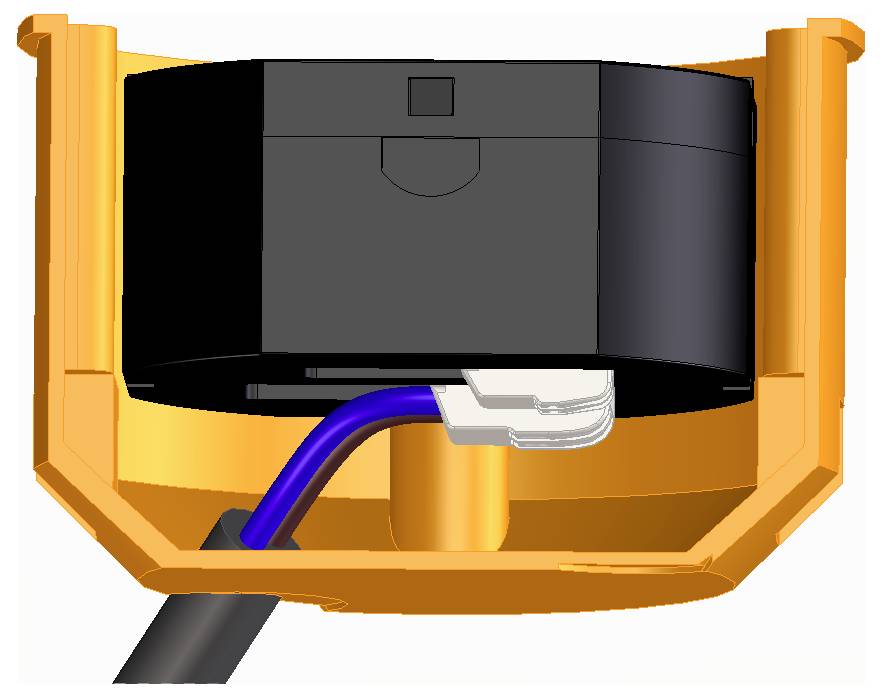

Cutaway illustration of an orange and black electric motor or actuator with blue and black cables connected inside the housing.

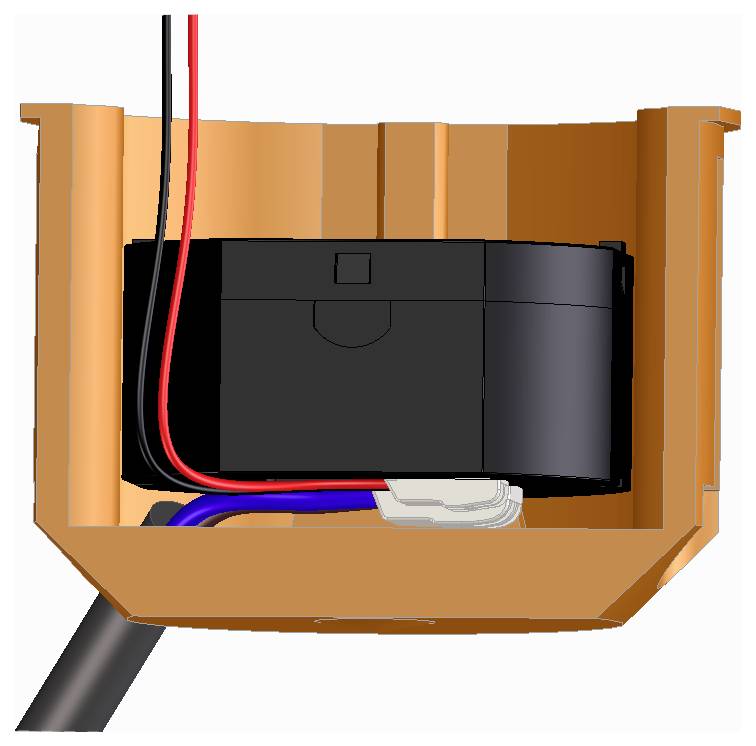

Black cylindrical device with red and black wires seated inside an orange enclosure, shown from above.<br>

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 55.99 / piece)

€ 55.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Flush-mounted power supply 24V/3W for 230V for Smart home, LED & controls

Output 24 V DC / 0.125 A
Power 3 W
Spring-loaded terminal

Technical specifications

Product type: Power supply unit

Input voltage (max.): 305 V AC

Max. output current: 0.125 A

Output current (max.) - rounded: 125 mA

Min. input voltage: 85 V AC

Dim: (L x W x H) 48 x 52.5 x 28 mm

Output voltage (max.): 24 V DC

Connection: Spring-loaded terminal

: 3 W

Input frequency: 50-60 Hz

No. of outputs: 1 x

Output voltage 1: 24 V DC

Type: closed

Operating temperature (max.): 85 °C

Operating temperature (min.): -30 °C

Weight: 50 g

Material (details): ABS plastic

Type: Flush-mounted power supply

Width: 52.5 mm

Height: 28 mm

Length: 48 mm

Type: 24V/3W

Documents & Downloads

Datasheet

Datasheet 3842473 scaleo systems VV-101808-0 Power supply unit 24 V DC 0.125 A 3 W

User & Safety Instructions

User & Safety Instructions 3842473 scaleo systems VV-101808-0 Power supply unit 24 V DC 0.125 A 3 W

Description

This flush-mounted 24V/3W power supply is the ideal solution for an discreet and reliable power supply in modern electrical installations. Thanks to the compact design, the power supply can be easily integrated into flush-mounted sockets and disappears invisibly in the wall or on the switch.
The power supply is ideally suited for Smart home applications, home automation, LED lighting, small electronic modules, smart controls as well as small drives. The device can be flexibly adapted to different consumers by selecting different DC output voltages.
Whether it's powering sensors, actuators, WLAN modules, relays, controllers or LED strips – this flush-mount power supply provides a stable and efficient DC voltage for permanent use. Ideal for new building, renovation or upgrade of smart systems.
