Name: scaleo systems VV-101812-0 Power supply unit 5 V DC 2 A 10 W
Brand: scaleo systems
SKU: 3842474
Availability: BackOrder

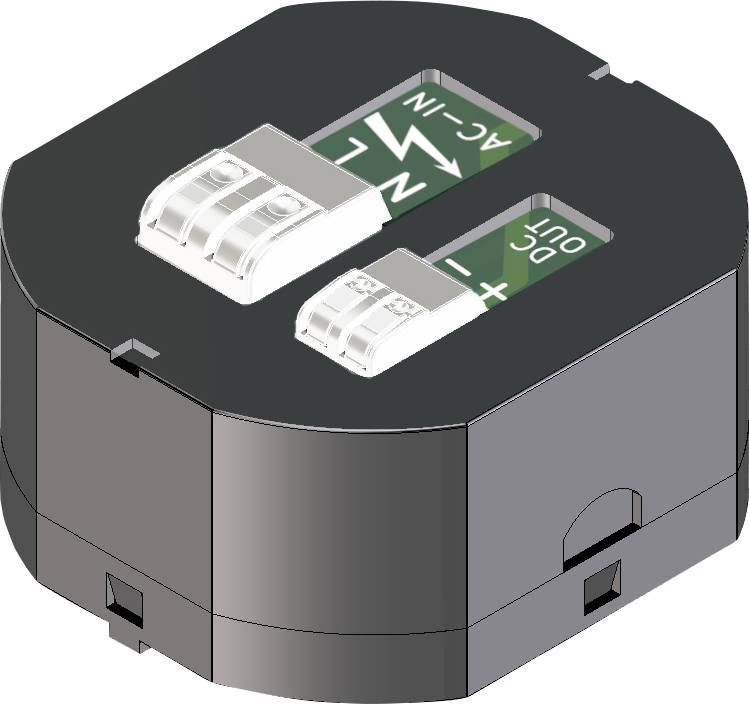

Illustration of a small black electronic module with two screwless wire terminals labeled 'AC-IN' and 'DC-OUT'.

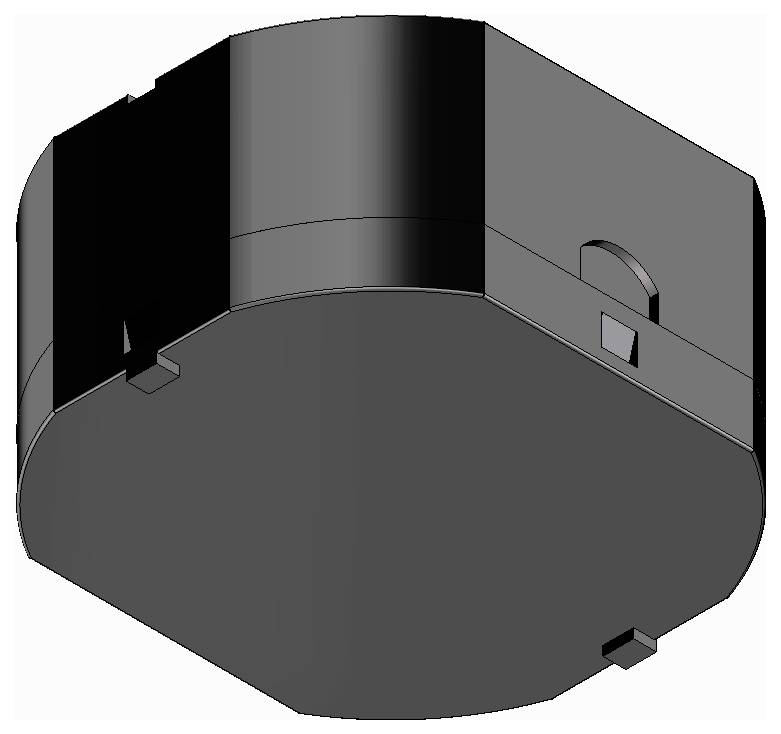

3D rendering of a dark gray octagonal device or enclosure, viewed from below, with a rounded top section and small side notch and clip details.<br>

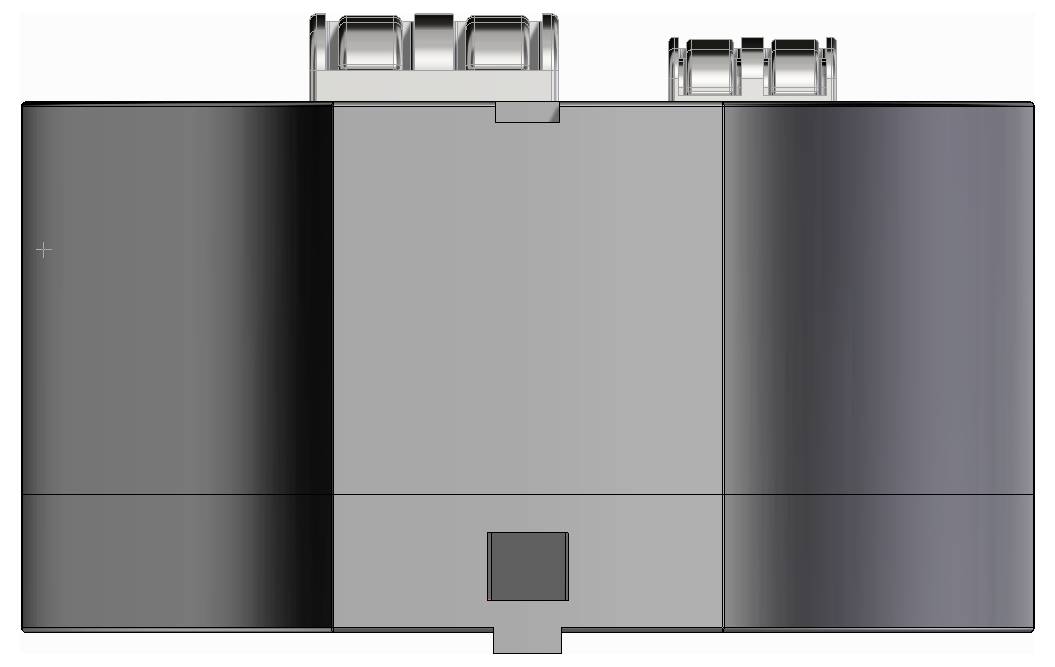

Top view of a three-section battery pack with two connector terminals on top and a central latch or port on the front edge.

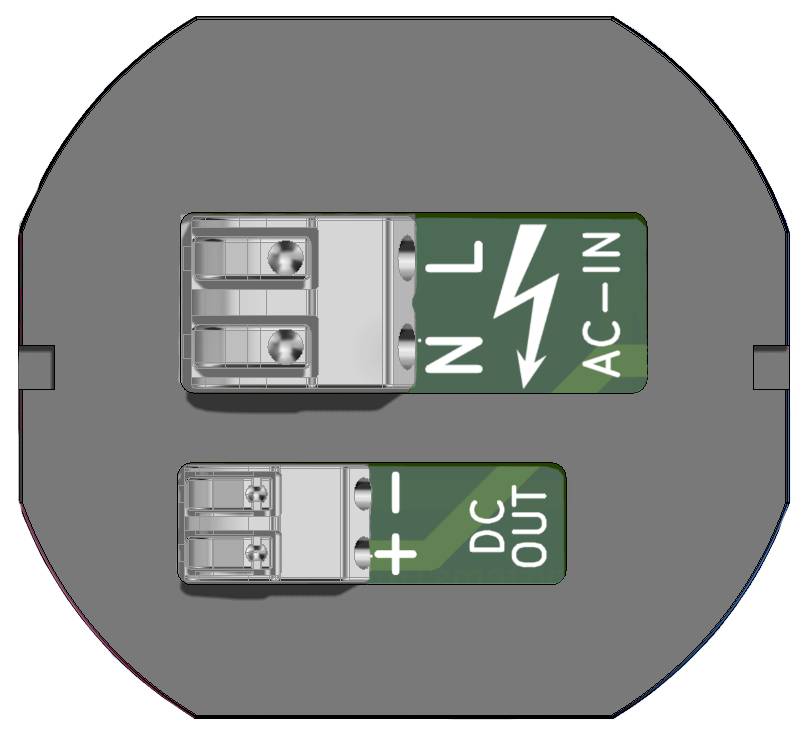

Diagram of a power connector with two terminals: AC in labeled N and L, and DC out labeled + and -.<br>

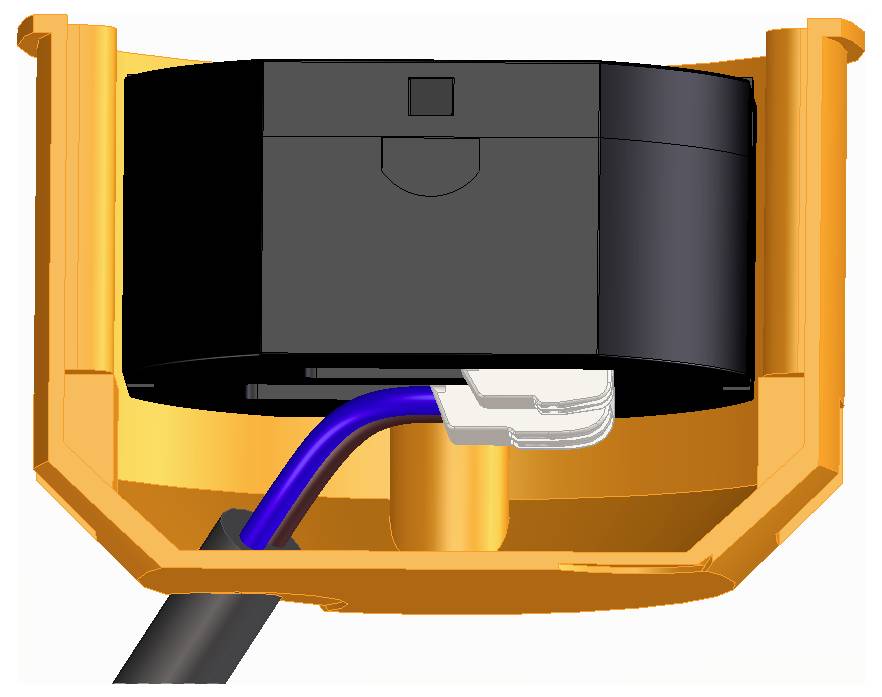

Cutaway illustration of a black and orange electrical connector housing with a blue wire and metal contact inserted inside.

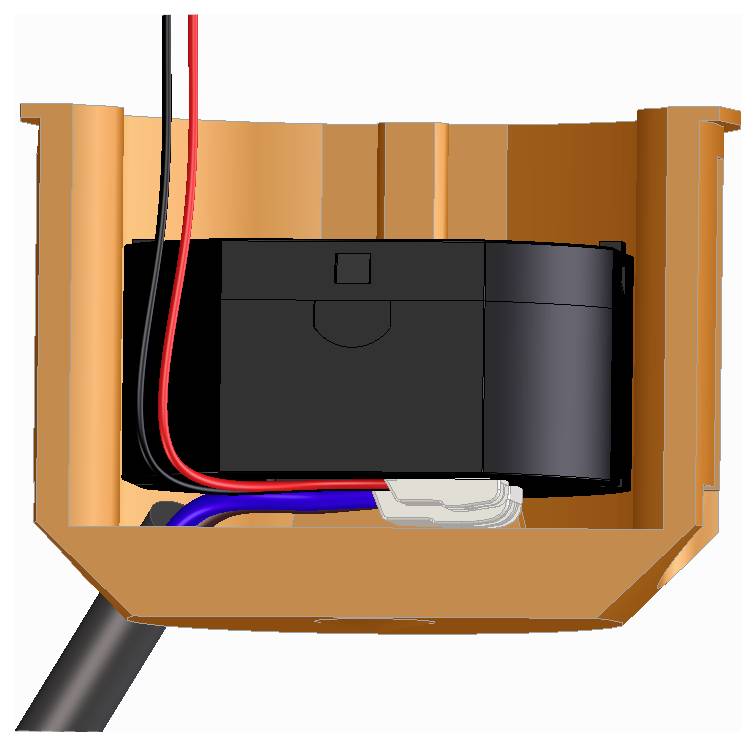

Close-up diagram of a black electronic component with red and black wires inside an orange housing.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 63.99 / piece)

€ 63.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Flush-mounted power supply 5V/10W for 230V for Smart home, LED & controls

Output 5 V DC / 2 A
Power 10 W
Spring-loaded terminal

Technical specifications

Product type: Power supply unit

Input voltage (max.): 305 V AC

Max. output current: 2 A

Output current (max.) - rounded: 2 A

Min. input voltage: 85 V AC

Dim: (L x W x H) 48 x 52.5 x 28 mm

Output voltage (max.): 5 V DC

Connection: Spring-loaded terminal

: 10 W

Input frequency: 50-60 Hz

No. of outputs: 1 x

Output voltage 1: 5 V DC

Type: closed

Operating temperature (max.): 85 °C

Operating temperature (min.): -30 °C

Weight: 50 g

Material (details): ABS plastic

Type: Flush-mounted power supply

Width: 52.5 mm

Height: 28 mm

Length: 48 mm

Type: 5V/10W

Documents & Downloads

Datasheet

Datasheet 3842474 scaleo systems VV-101812-0 Power supply unit 5 V DC 2 A 10 W

User & Safety Instructions

User & Safety Instructions 3842474 scaleo systems VV-101812-0 Power supply unit 5 V DC 2 A 10 W

Description

This flush-mounted power supply with 5V/10W is the ideal solution for discreet and reliable power supply in modern electrical installations. Thanks to the compact design, the power supply can be easily integrated into flush-mounted sockets and disappears invisibly in the wall or on the switch.
The power supply is ideally suited for Smart home applications, home automation, LED lighting, small electronic modules, smart controls as well as small drives. The device can be flexibly adapted to different consumers by selecting different DC output voltages.
Whether it's powering sensors, actuators, WLAN modules, relays, controllers or LED strips – this flush-mount power supply provides a stable and efficient DC voltage for permanent use. Ideal for new building, renovation or upgrade of smart systems.

This text is machine translated.
