scaleo systems VV-101816-0 Power supply unit 12 V DC 0.83 A 10 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 63.99 / piece)
€ 63.99
incl. VAT
14-day return policy included
Highlights & Details
In-wall power supply 12V/10W for 230V for Smart home, LED & controls
- Output 12 V DC / 0.83 A
- Power 10 W

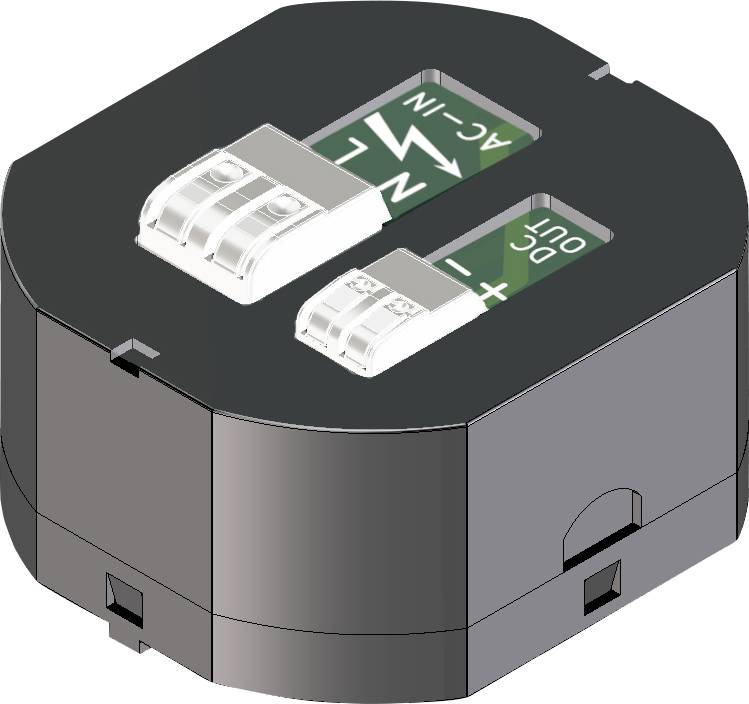

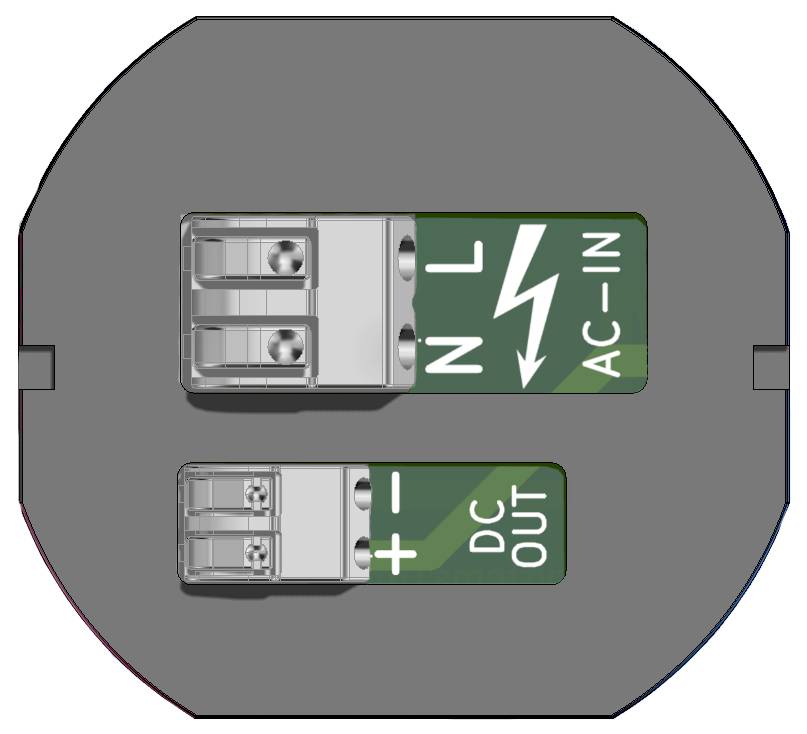

- Spring-loaded terminal
Technical specifications
- Product type
Power supply unit
- Input voltage (max.)
305 V AC
- Max. output current
0.83 A
- Output current (max.) - rounded
830 mA
- Min. input voltage
85 V AC
- Dim
(L x W x H) 48 x 52.5 x 28 mm
- Output voltage (max.)
12 V DC
- Connection
Spring-loaded terminal
10 W
- Input frequency
50-60 Hz
- No. of outputs
1 x
- Output voltage 1
12 V DC
- Type
closed
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-30 °C
- Weight
50 g
- Material (details)
ABS plastic
- Type
Flush-mounted power supply
- Width
52.5 mm
- Height
28 mm
- Length
48 mm
- Type
12V/10W
Documents & Downloads
Datasheet
Datasheet 3842475 scaleo systems VV-101816-0 Power supply unit 12 V DC 0.83 A 10 W
User & Safety Instructions
User & Safety Instructions 3842475 scaleo systems VV-101816-0 Power supply unit 12 V DC 0.83 A 10 W
Description

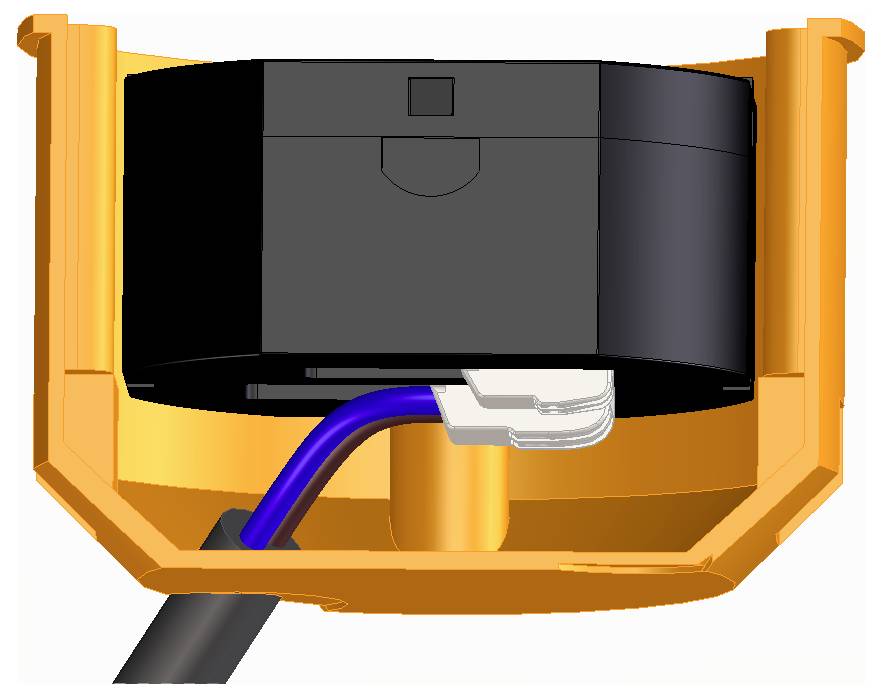

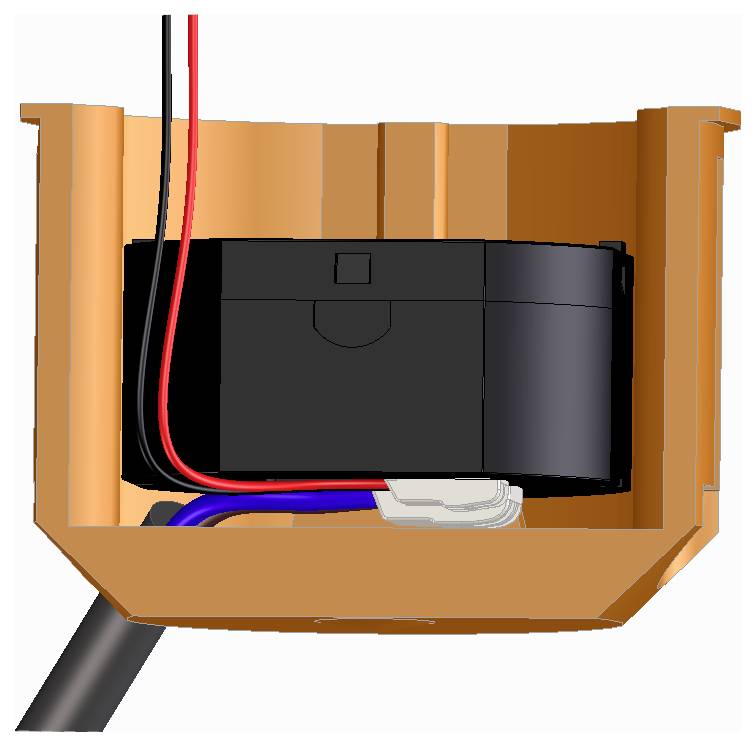

This 12V/10W flush-mount power supply is the ideal solution for discreet and reliable power supply in modern electrical installations. Thanks to the compact design, the power supply can be easily integrated into flush-mounted sockets and disappears invisibly in the wall or on the switch.
The power supply is ideally suited for Smart home applications, home automation, LED lighting, small electronic modules, smart controls as well as small drives. The device can be flexibly adapted to different consumers by selecting different DC output voltages.
Whether it's powering sensors, actuators, WLAN modules, relays, controllers or LED strips – this flush-mount power supply provides a stable and efficient DC voltage for permanent use. Ideal for new building, renovation or upgrade of smart systems.
This text is machine translated.
The power supply is ideally suited for Smart home applications, home automation, LED lighting, small electronic modules, smart controls as well as small drives. The device can be flexibly adapted to different consumers by selecting different DC output voltages.
Whether it's powering sensors, actuators, WLAN modules, relays, controllers or LED strips – this flush-mount power supply provides a stable and efficient DC voltage for permanent use. Ideal for new building, renovation or upgrade of smart systems.
This text is machine translated.
Hints
Power supply for Tasmota components
