Name: scaleo systems VV-101818-0 Power supply unit 24 V DC 0.4 A 10 W
Brand: scaleo systems
SKU: 3842476
Availability: BackOrder

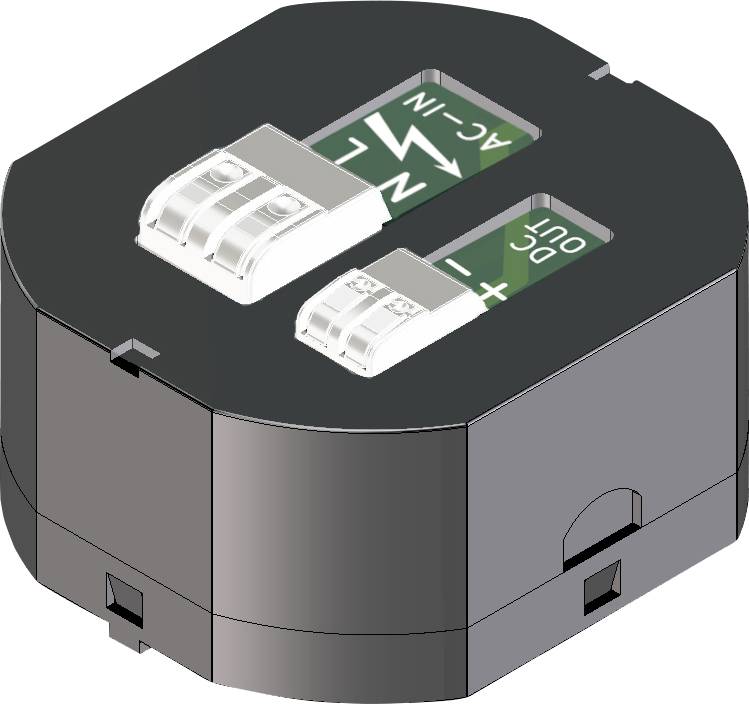

Black electronic module with two white screw terminals labeled 'AC-IN' and 'DC OUT', for converting AC input to DC output.

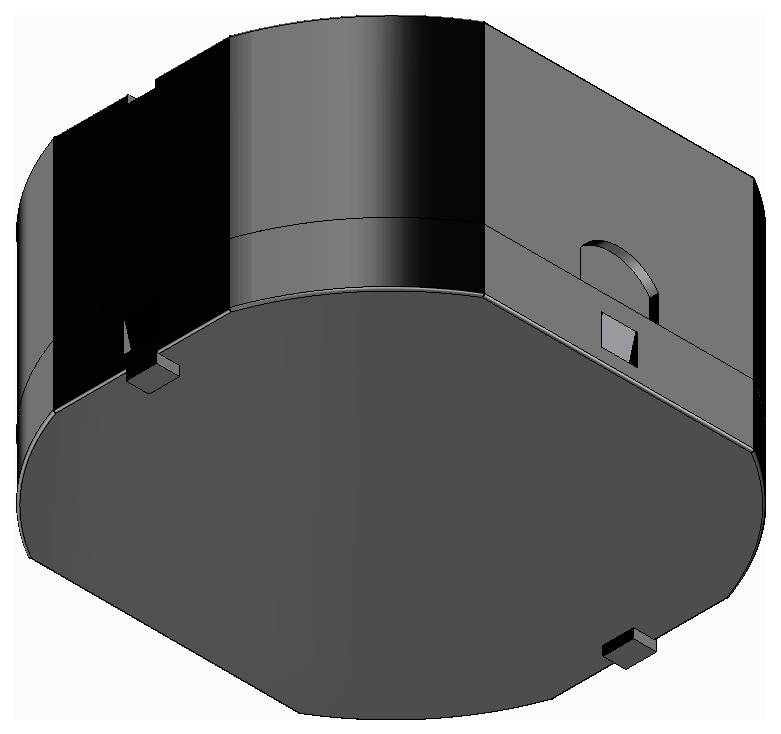

Gray 3D mechanical part or housing viewed from below, with a rounded base and a side tab/slot detail.

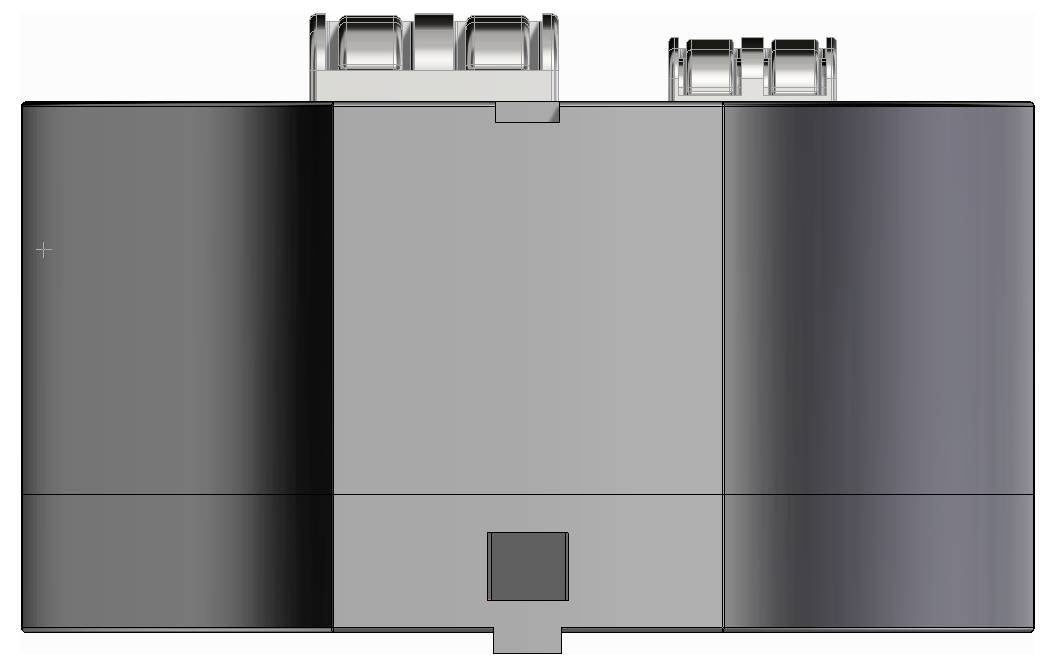

Top-down view of a gray rectangular battery pack with two connector terminals on top and a small central latch on the front edge.

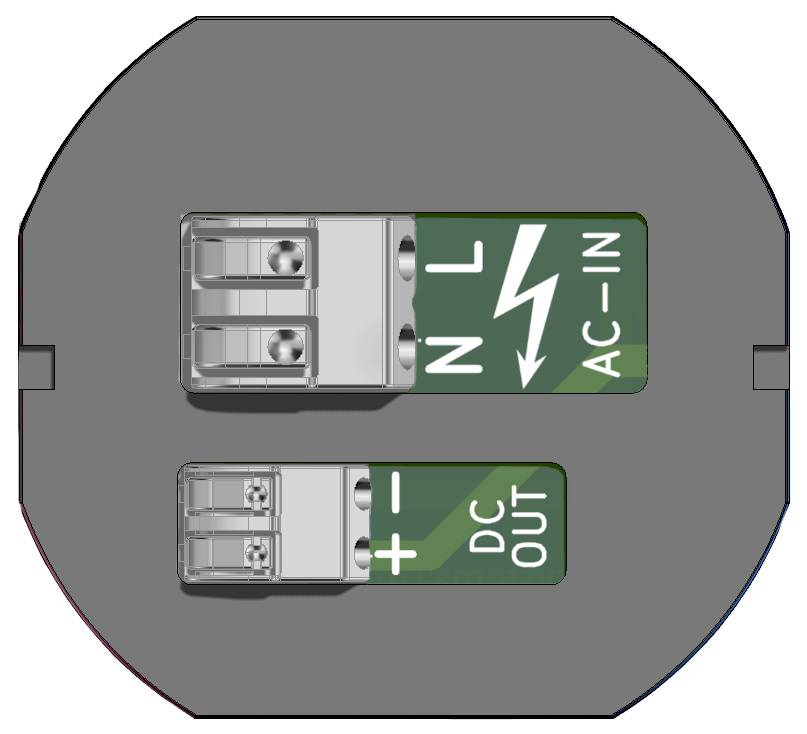

Illustration of a device terminal block with two connectors labeled AC-IN (N, L) and DC OUT (+, -), showing input and output wiring points.

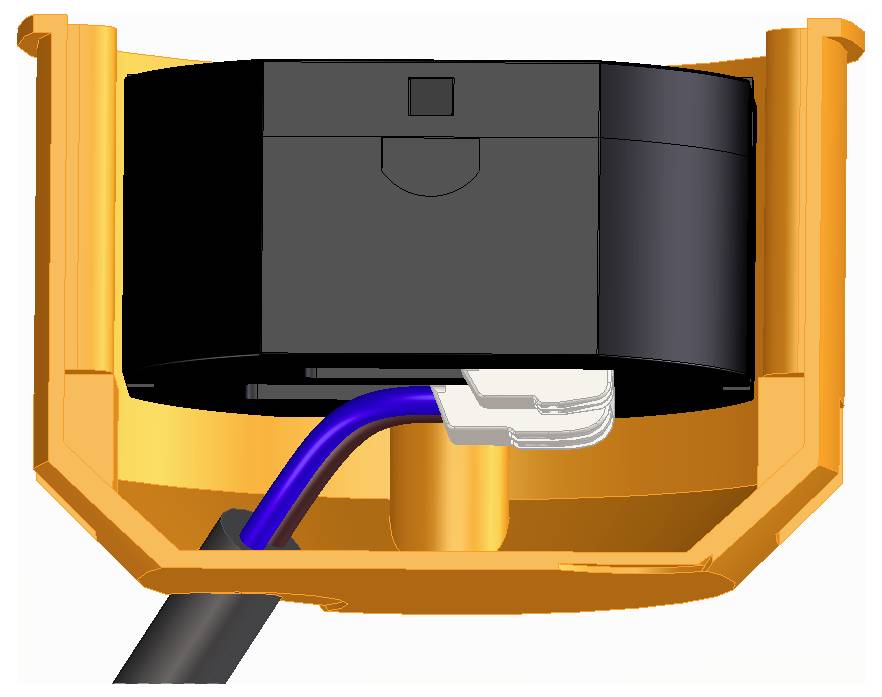

Close-up diagram of a black electrical connector or sensor mounted in an orange housing, with blue and black wires attached.

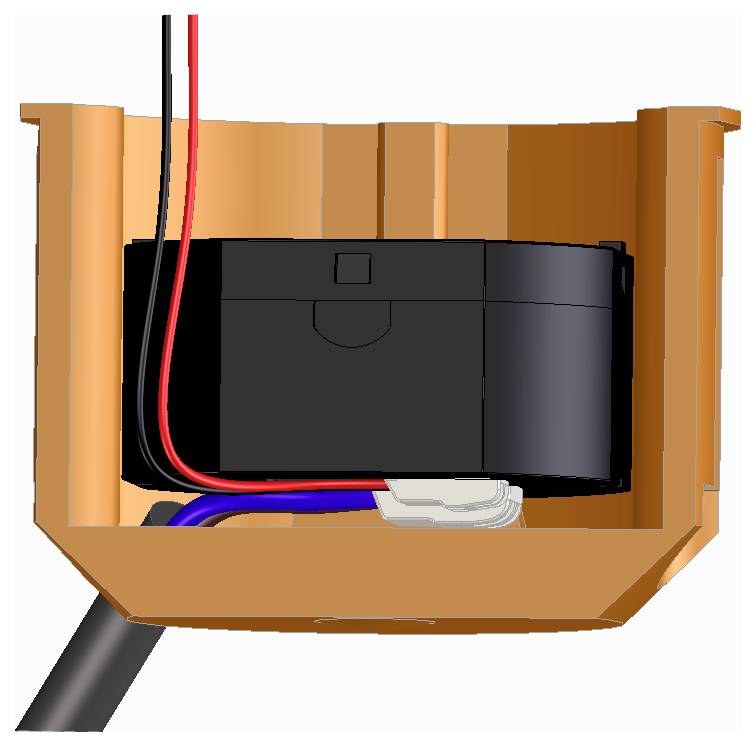

Close-up of a black electronic module mounted inside an orange casing with red, black, and blue wires connected.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 63.99 / piece)

€ 63.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Flush-mounted power supply 24V/10W for 230V for Smart home, LED & controls

Output 24 V DC / 0.4 A
Power 10 W
Spring-loaded terminal

Technical specifications

Product type: Power supply unit

Input voltage (max.): 305 V AC

Max. output current: 0.4 A

Output current (max.) - rounded: 400 mA

Min. input voltage: 85 V AC

Dim: (L x W x H) 48 x 52.5 x 28 mm

Output voltage (max.): 24 V DC

Connection: Spring-loaded terminal

: 10 W

Input frequency: 50-60 Hz

No. of outputs: 1 x

Output voltage 1: 24 V DC

Type: closed

Operating temperature (max.): 85 °C

Operating temperature (min.): -30 °C

Weight: 50 g

Material (details): ABS plastic

Type: Flush-mounted power supply

Width: 52.5 mm

Height: 28 mm

Length: 48 mm

Type: 24V/10W

Documents & Downloads

Datasheet

Datasheet 3842476 scaleo systems VV-101818-0 Power supply unit 24 V DC 0.4 A 10 W

User & Safety Instructions

User & Safety Instructions 3842476 scaleo systems VV-101818-0 Power supply unit 24 V DC 0.4 A 10 W

Description

This flush-mounted 24V/10W power supply is the ideal solution for discreet and reliable power supply in modern electrical installations. Thanks to the compact design, the power supply can be easily integrated into flush-mounted sockets and disappears invisibly in the wall or on the switch.
The power supply is ideally suited for Smart home applications, home automation, LED lighting, small electronic modules, smart controls as well as small drives. The device can be flexibly adapted to different consumers by selecting different DC output voltages.
Whether it's powering sensors, actuators, WLAN modules, relays, controllers or LED strips – this flush-mount power supply provides a stable and efficient DC voltage for permanent use. Ideal for new building, renovation or upgrade of smart systems.

This text is machine translated.
